Connecting 9.1-channel speakers: Second pair of front speakers

This system enables switching playback between front speakers A and B as desired.

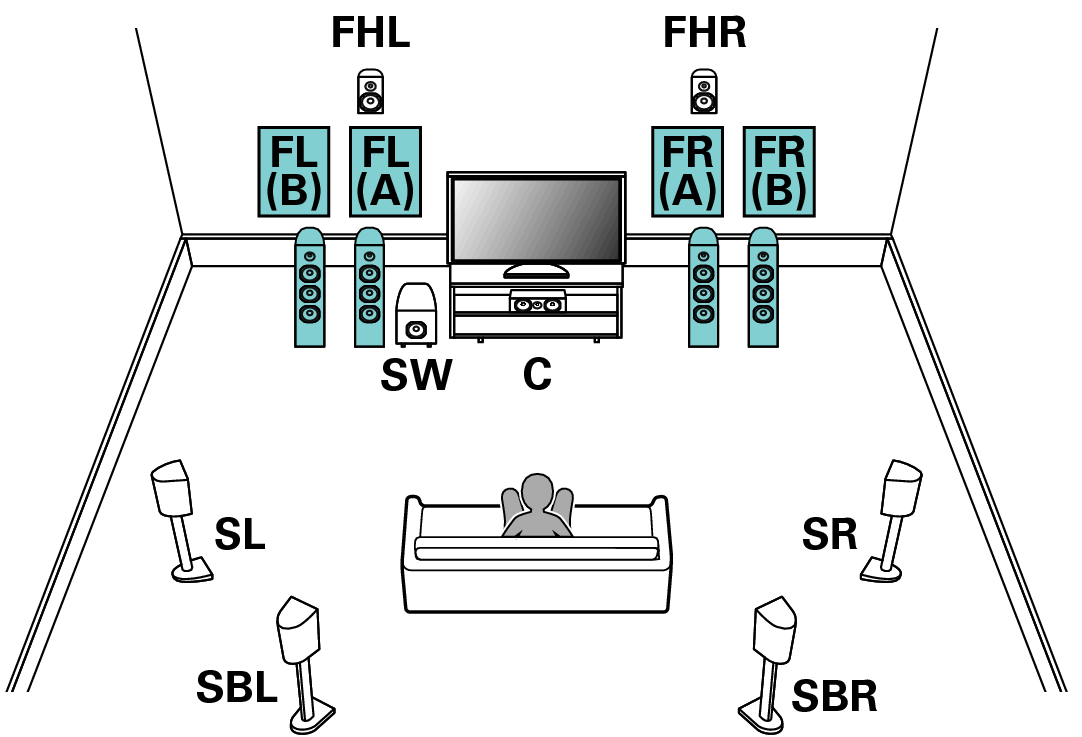

Pict SP Layout 7.1 FB

Bracket Open Example Bracket Close  UNBALANCED RCA connector connection

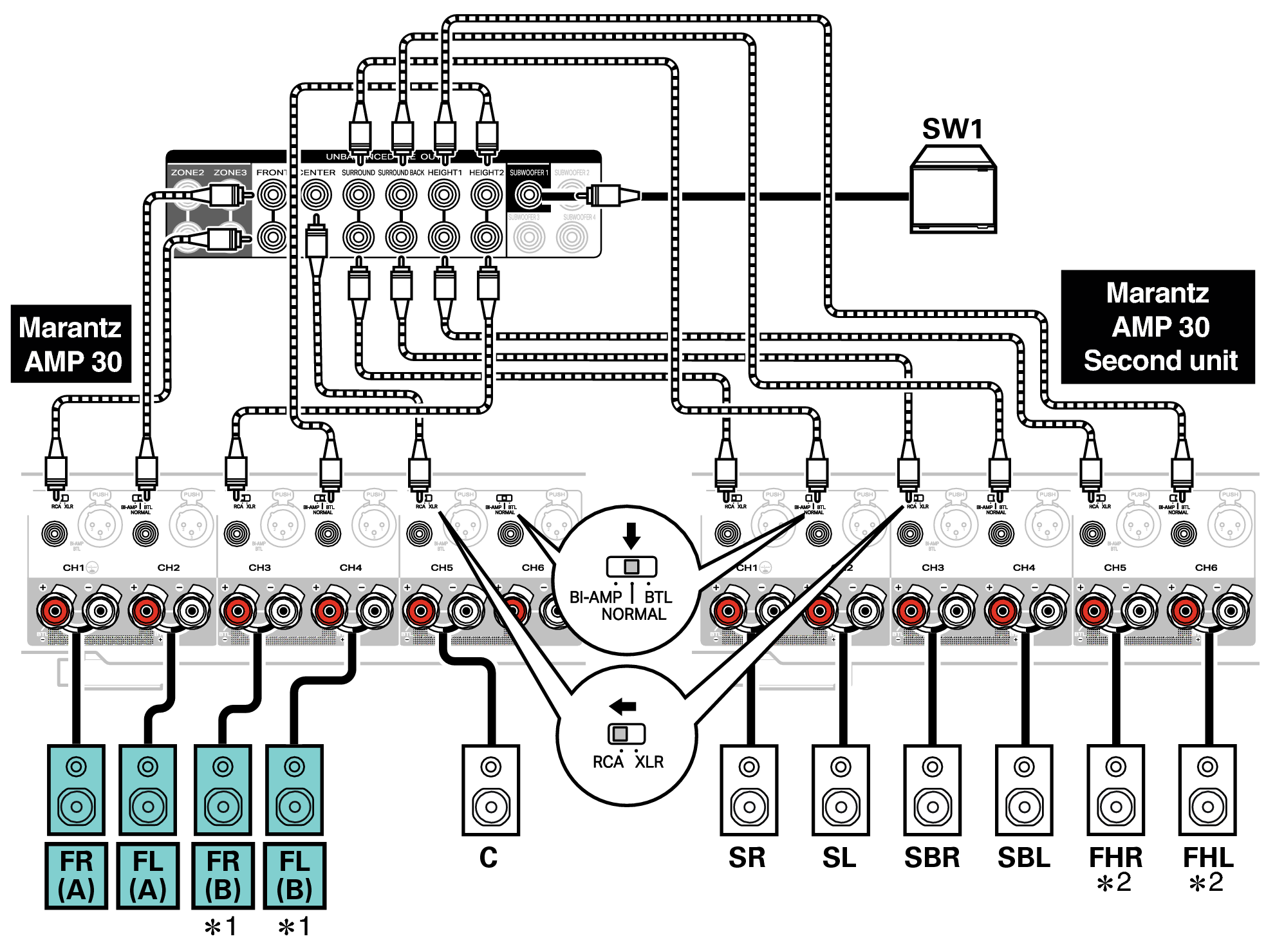

Conne SP 11.1 FB AV30

The PRE OUT connectors for connecting to the second front speakers vary depending on the main zone layout. Refer to “Speaker Layout” in the menu. link

The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 and HEIGHT2 RCA connectors or HEIGHT1 and HEIGHT2 XLR connectors. Set the speaker to be connected from “Speaker Layout” in the menu. link
