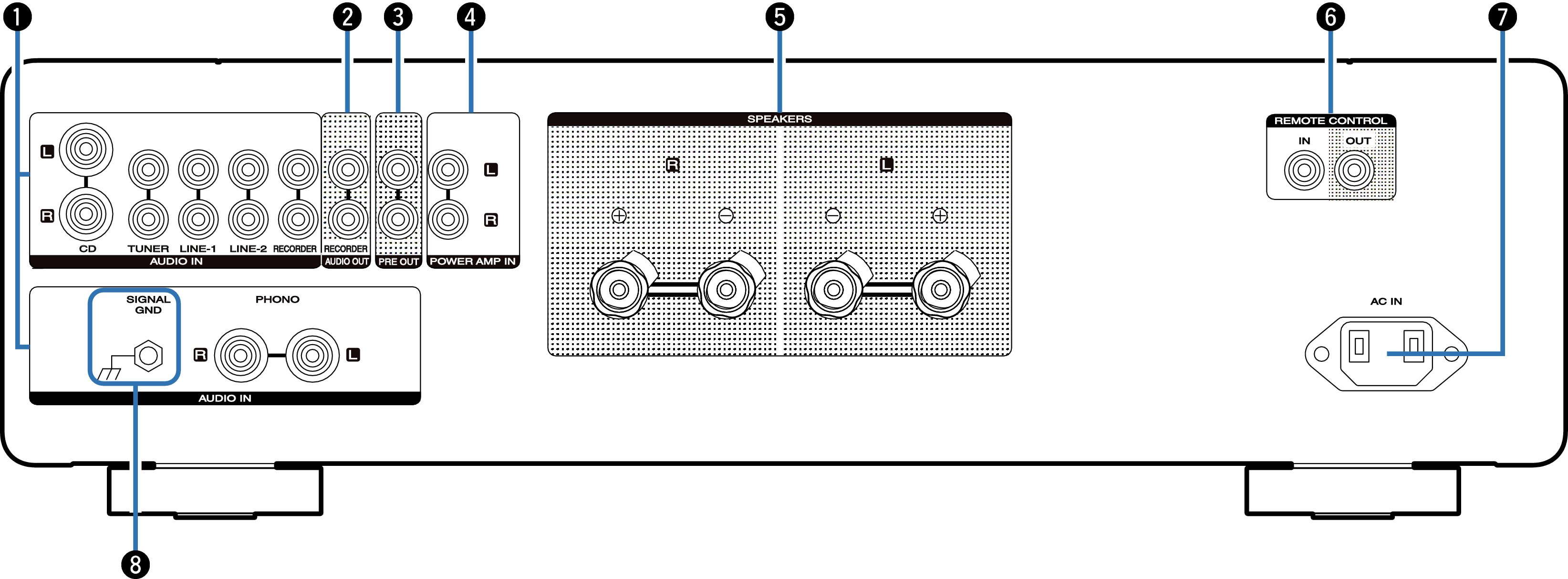

Rear panel
Analog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio output connectors.
AUDIO OUT connectors (RECORDER)
Used to connect the input connector of a recorder. link
PRE OUT connectors
Use this to add such equipment as a power amplifier or subwoofer. link
When connecting a subwoofer, also consult the subwoofer instruction manual.
Power amplifier connectors (POWER AMP IN)
Used to connect a pre-amplifier when this unit is used as a power amplifier. link
Speaker terminals (SPEAKERS)
Used to connect speakers. link
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the remote control function. link
AC inlet (AC IN)
Used to connect the power cord. link
SIGNAL GND terminal
Used to connect the ground wire of a turntable. link
