Front panel

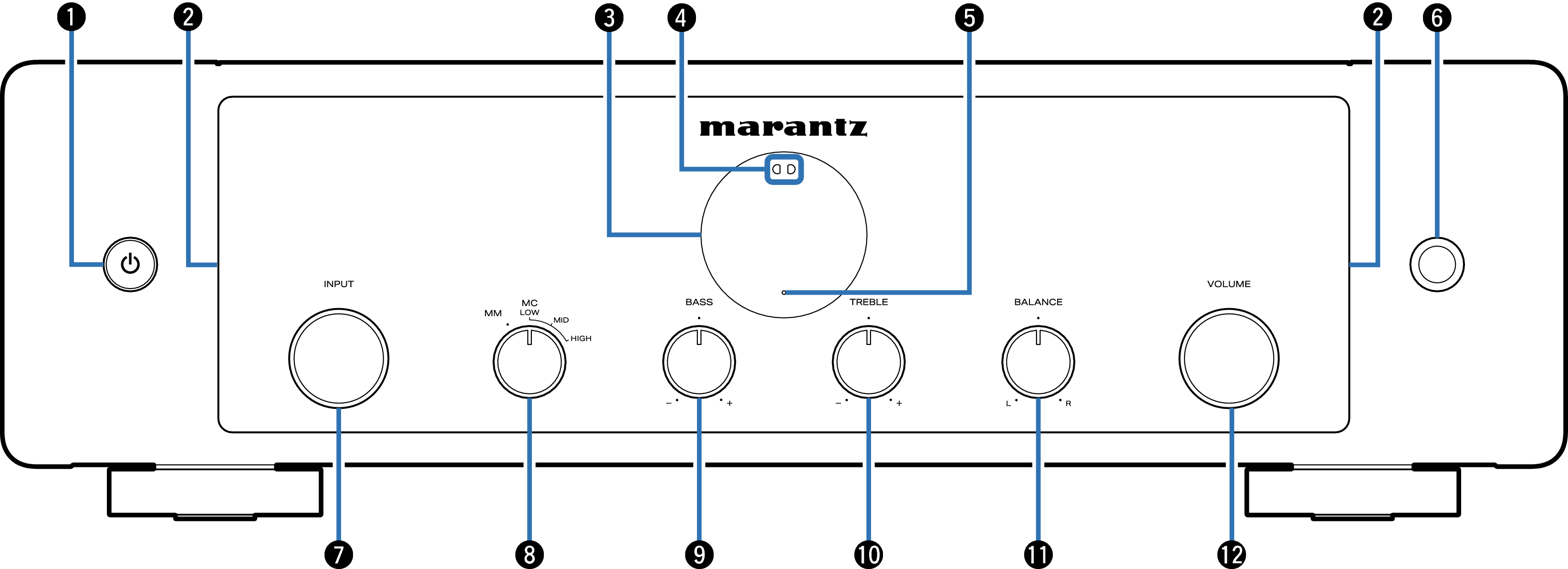

Name Front MODEL30N

Power operation button ( Power Button )

This turns the power on/off (standby). link

Lighting LED

This illuminates when the power is turned on. Brightness can be changed and lighting turned off. link

Display

This displays various pieces of information.

Remote control sensor

This receives signals from the remote control unit. link

Protection circuit indicator

This blinks when the protection circuit has operated. link

Headphones jack (PHONES)

Used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers and from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

INPUT selector knob

This selects the input source. link

Cartridge selector knob

This switches between MM/MC cartridge and selects MC cartridge input impedance. Sets the phono equalizer of this unit according to the type or impedance of the turntable cartridge to be connected.

MM: Set this for an MM cartridge.

MC LOW (33 Ω/ohms) : Use this setting for an MC cartridge of less than 50 Ω/ohms.

MC MID (100 Ω/ohms) : Use this setting for an MC cartridge of about 50 Ω/ohms.

MC HIGH (390 Ω/ohms) : Use this setting for an MC cartridge of 100 Ω/ohms or higher.

For an MC cartridge, select the input impedance closest to the impedance recommended for the cartridge used or select a value a few times that of the cartridge’s internal impedance.

If this setting change operation is performed, playback sound is output approximately 4 seconds after the change.

BASS control knob

This setting adjusts the volume level for the bass. link

TREBLE control knob

This setting adjusts the volume level for the treble. link

BALANCE control knob

This adjusts the balance of the volume output from the left and right speakers. link

VOLUME knob

These adjust the volume level. link

kuromaru 9 , kuromaru 10 and kuromaru 11 can be adjusted when tone balance control is on. link
