Remote control unit

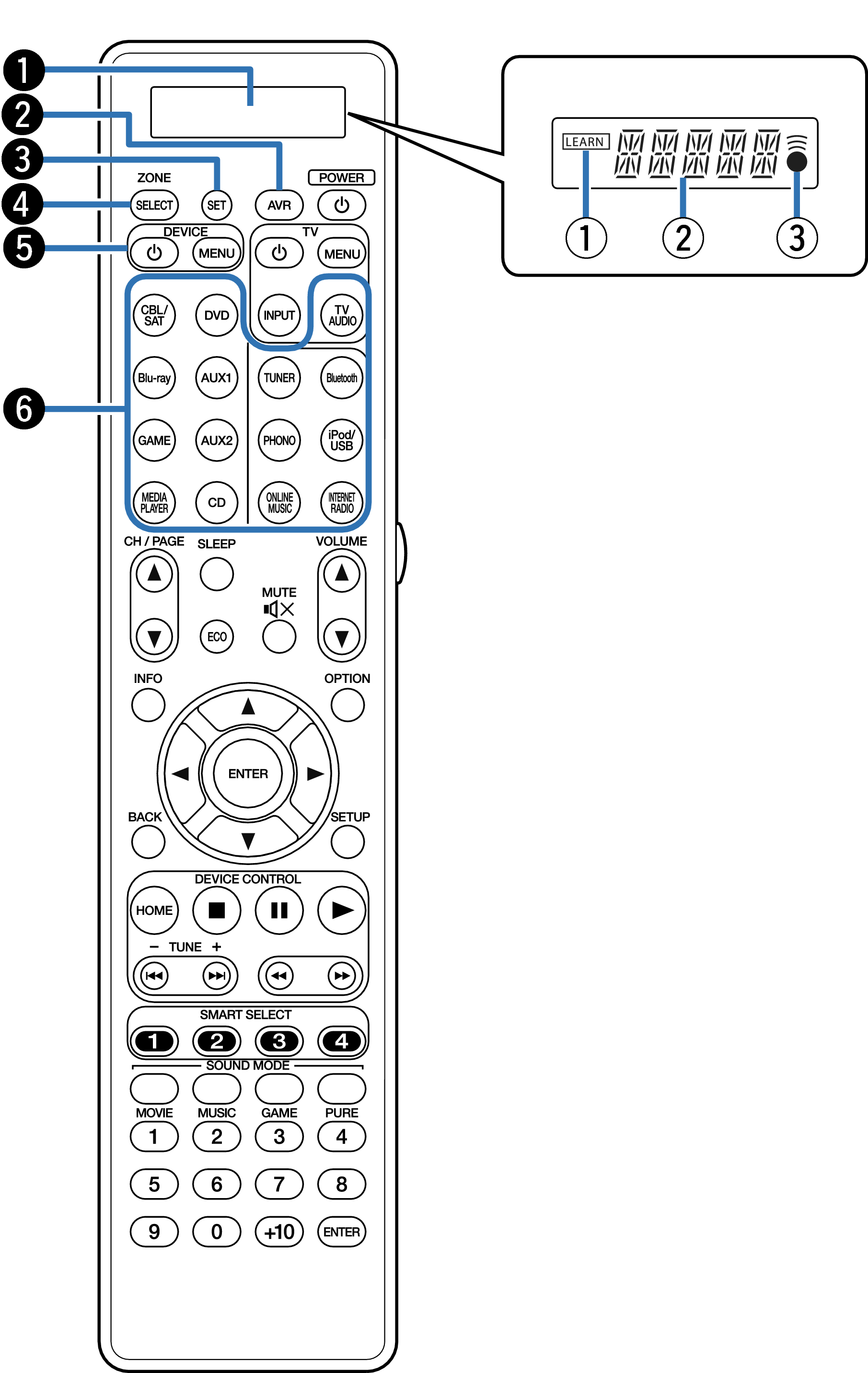

Display
This is lit when setting the learning function for the remote control unit. link
This displays “AVR” when operating this unit.
This displays the input source name when operating an external device.
This displays “TV” when operating TV.
This is lit when signals are sent from the remote control unit.
AVR operation button
When preset codes are registered to the remote control unit, press this button and then operate the menu on the unit.
SET button
ZONE SELECT button
These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. link, link
Device operation buttons (DEVICE / DEVICE MENU)
These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link
Input source select buttons

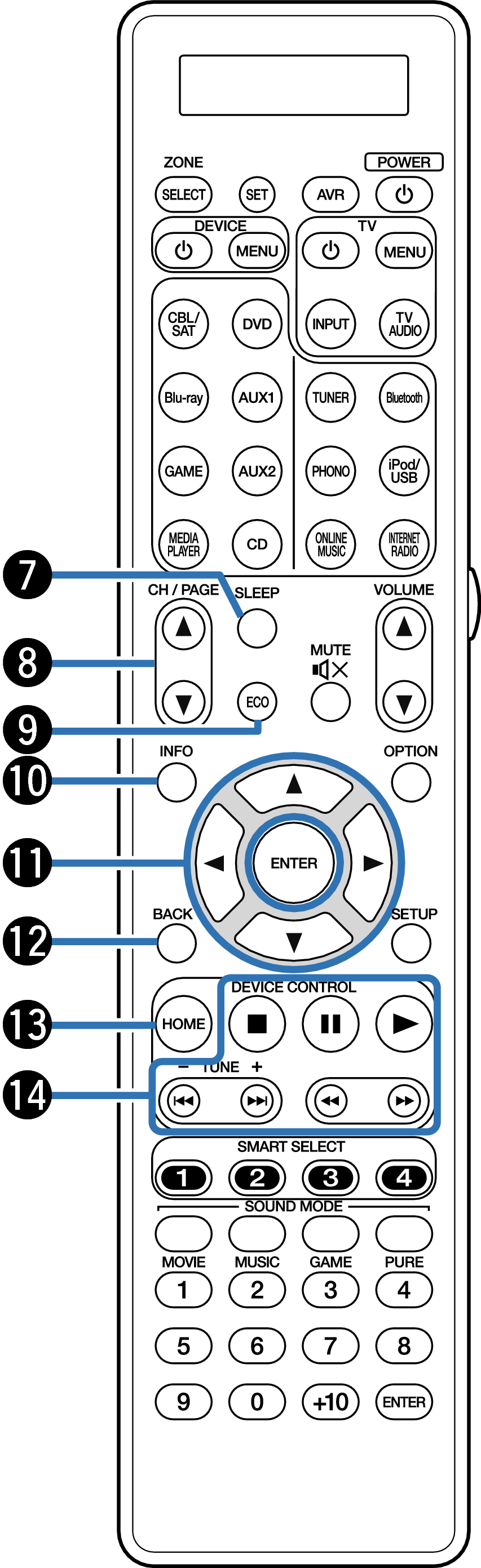

SLEEP button
This sets the sleep timer. link
Channel/page search buttons (CH/PAGE )
ECO Mode button
This switches to ECO Mode. link

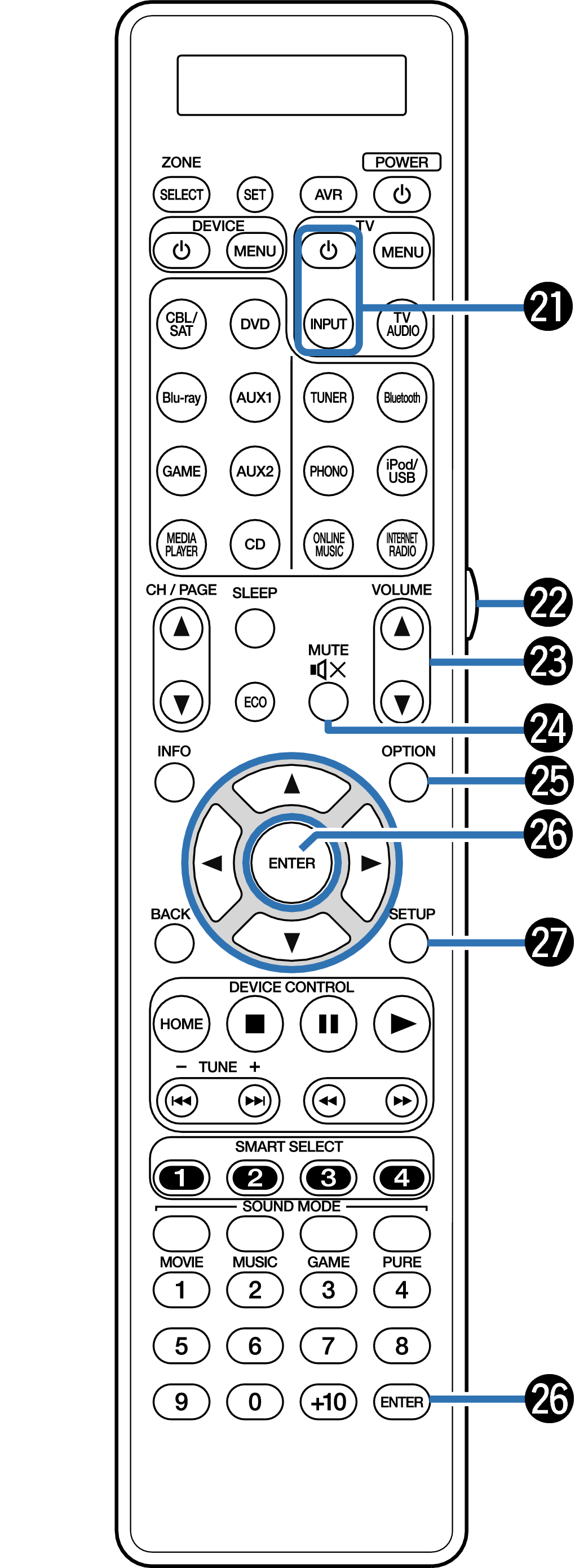

Information button (INFO)
This displays the status information on the TV screen. link
Cursor buttons ( )
These select items. link
BACK button
This returns to the previous screen. link
HOME button
This takes you to the Home screen (Top screen) when the input source is Online Music or iPod/USB. link
System buttons
These perform playback related operations. link
Skip buttons ( , )
Play button ( )
Search buttons ( , )
Pause button ( )
Stop button ( )
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. link

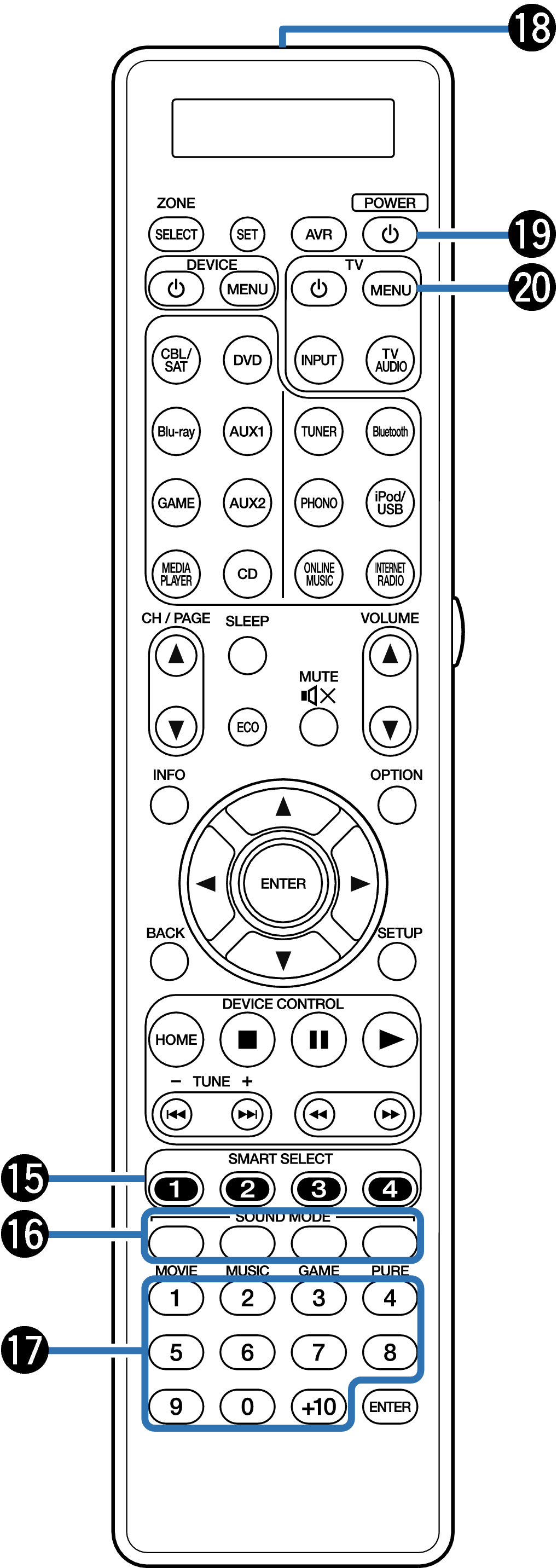

SMART SELECT buttons (1 - 4)
These call up settings registered to each button, such as input source, volume level and sound mode settings. link
SOUND MODE buttons
These select the sound mode. link
MOVIE button
MUSIC button
GAME button
PURE button
Number buttons
These enter numbers into the unit. link
Remote control signal transmitter
This transmits signals from the remote control unit. link
POWER button ( )
TV operation buttons (TV / TV MENU / TV INPUT)
These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link
TV operation buttons (TV / TV INPUT)
These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link
Light button
This turns on the backlight for approx. 2 seconds. link
VOLUME buttons ( )
MUTE button ( )
OPTION button
This displays the option menu on the TV screen. link
ENTER button
This determines the selection. link
SETUP button
This displays the menu on the TV screen. link
