Operating devices
To operate an external device, press the input source button registered with the preset code, followed by one of the buttons in the following tables.
When operating an external device, the display on the remote control unit shows the input source name.
The “TV” indicator lights when the TV is being operated.
To operate the menu of this unit, press AVR before operating the unit. The “AVR” indicator lights when this unit is being operated.

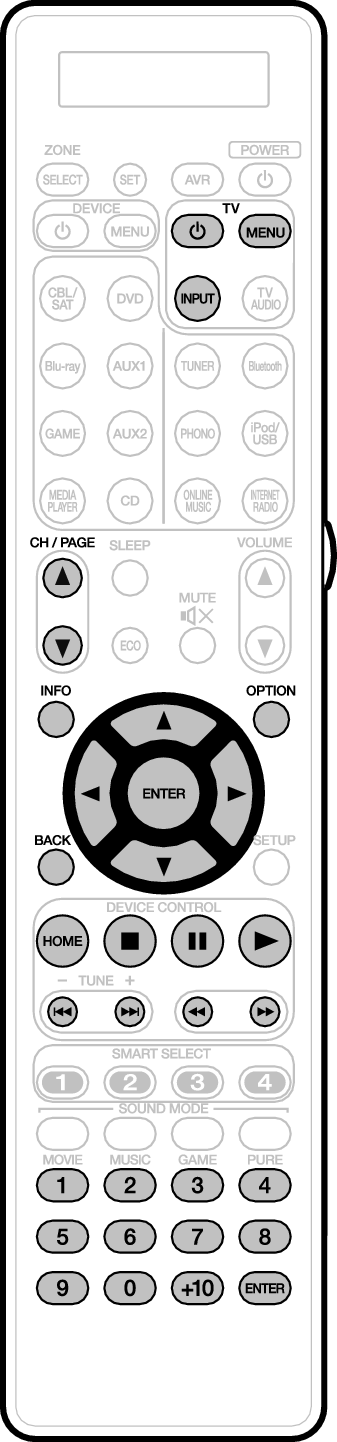

TV group(TV) operation
|
Operation buttons |
Function |
|
TV |
TV power on/off |
|
TV INPUT |
Switch TV input |
|
TV MENU |
TV menu |
|
CH/PAGE |
Switch channels (up/down) |
|
INFO |
Information |
|
OPTION |
Sub menu, Option |
|
|
Cursor operation |
|
ENTER(Cursor) |
Enter |
|
BACK |
Back |
|
|
Skip chapter |
|
|
Playback |
|
|
Fast-reverse / Fast-forward |
|
|
Pause |
|
|
Stop |
|
0 – 9, +10 |
Channel selection |
TV
and TV INPUT buttons can be operated at any time without pressing the TV button.

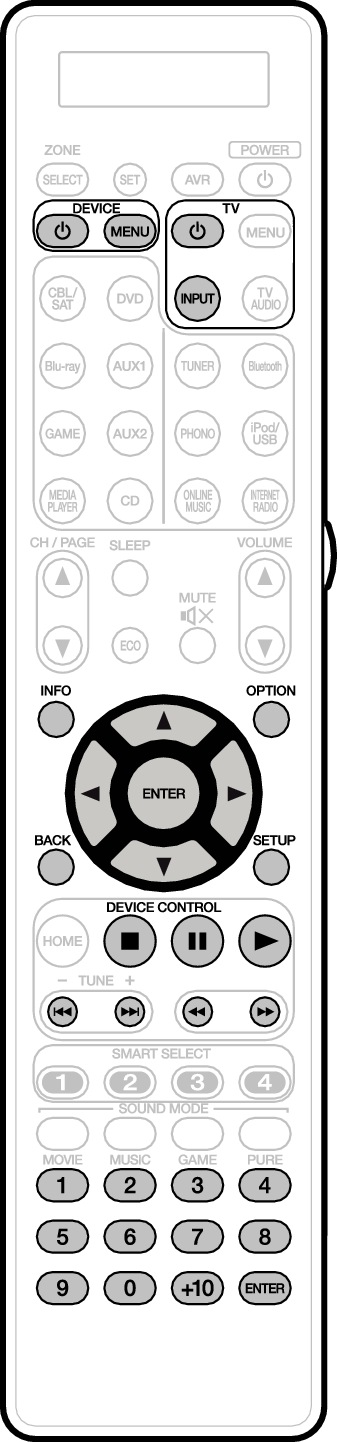

DVD group(DVD player / DVD recorder) operation
|
Operation buttons |
Function |
|
DEVICE |
Power on/off |
|
DEVICE MENU |
(Popup) Menu |
|
INFO |
Information |
|
OPTION |
Top menu |
|
|
Cursor operation |
|
ENTER |
Enter |
|
BACK |
Back |
|
SETUP |
Setup |
|
|
Stop |
|
|
Pause |
|
|
Playback |
|
|
Skip chapter |
|
|
Fast-reverse / Fast-forward |
|
0 – 9, +10 |
Select title, chapter or channel selection |

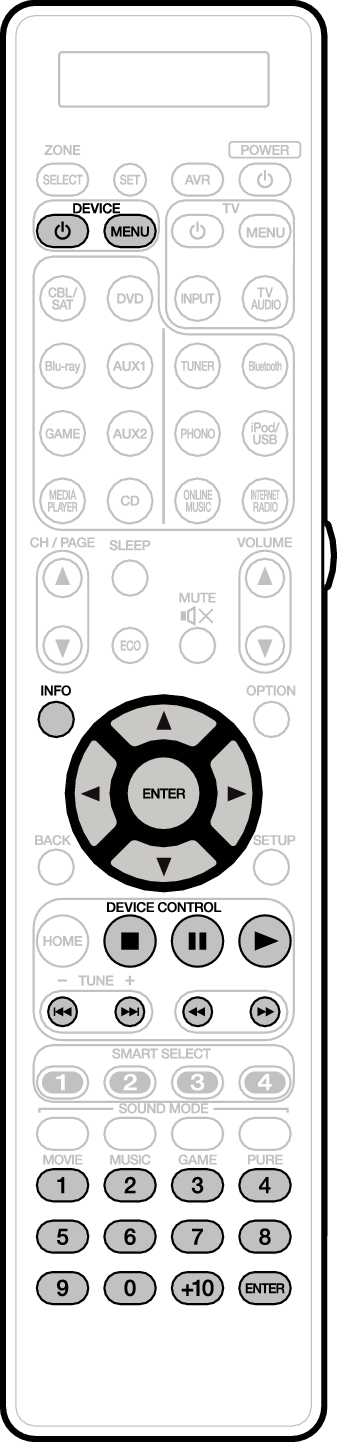

CD group(CD player / CD recorder) operation
|
Operation buttons |
Function |
|
DEVICE |
Power on/off |
|
DEVICE MENU |
(Popup) Menu |
|
INFO |
Information |
|
|
Cursor operation |
|
ENTER |
Enter |
|
|
Stop |
|
|
Pause |
|
|
Playback |
|
|
Skip chapter |
|
|
Fast-reverse / Fast-forward |
|
0 – 9, +10 |
Select title, chapter or channel selection |
Depending on the device, the DEVICE button only performs the power-on operation.

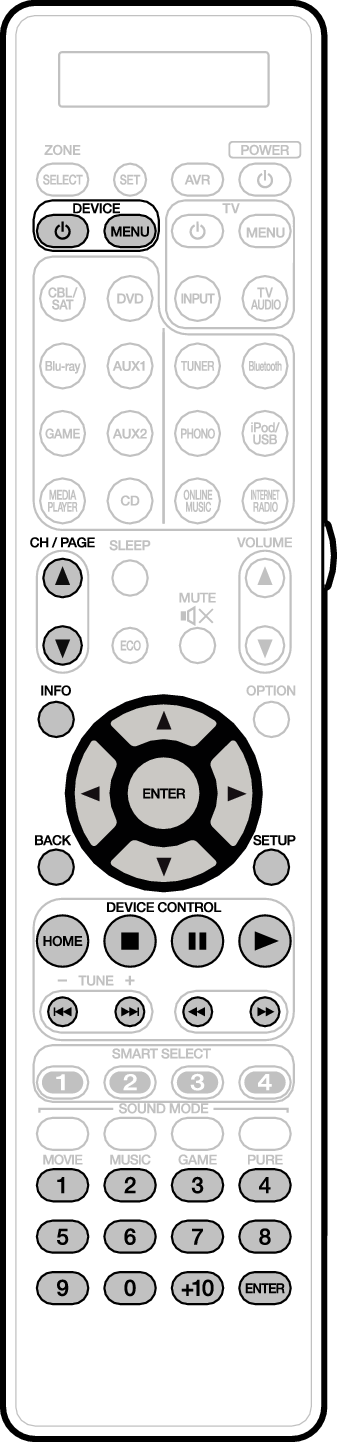

CBL/SAT group(Set top box for satellite (SAT)/cable TV (CBL)/Media player/IP TV) operation
|
Operation buttons |
Function |
|
DEVICE |
Power on/off |
|
DEVICE MENU |
Menu |
|
CH/PAGE |
Switch channels (up/down) |
|
INFO |
Information |
|
|
Cursor operation |
|
ENTER |
Enter |
|
BACK |
Back |
|
SETUP |
Setup |
|
HOME |
Home menu |
|
|
Stop |
|
|
Pause |
|
|
Playback |
|
|
Skip chapter |
|
|
Fast-reverse / Fast-forward |
|
0 – 9, +10 |
Channel selection |

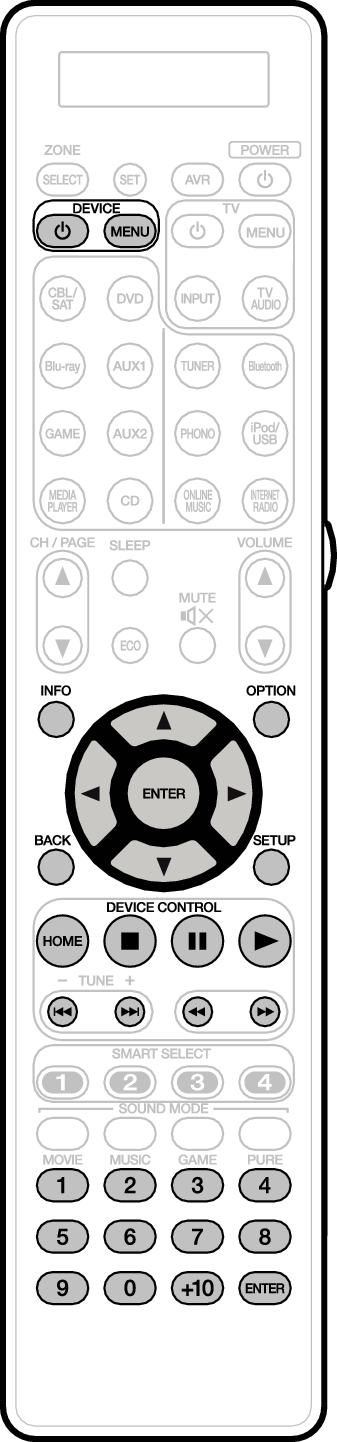

BD group(Blu-ray Disc player) operation
|
Operation buttons |
Function |
|
DEVICE |
Power on/off |
|
DEVICE MENU |
(Popup) Menu |
|
INFO |
Information |
|
OPTION |
Top menu |
|
|
Cursor operation |
|
ENTER |
Enter |
|
BACK |
Back |
|
SETUP |
Setup |
|
HOME |
Home menu |
|
|
Stop |
|
|
Pause |
|
|
Playback |
|
|
Skip chapter |
|
|
Fast-reverse / Fast-forward |
|
0 – 9, +10 |
Select title, chapter or channel selection |
Depending on the device, the DEVICE button only performs the power-on operation.
