Controlling the unit from a web control

Switch the “Network Control” setting to “Always On”. link

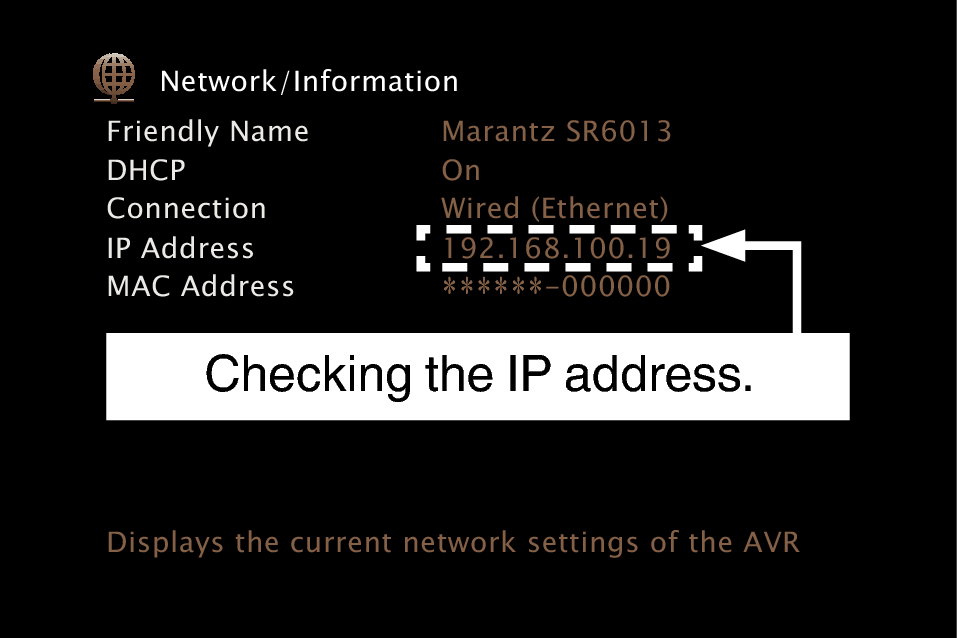

Check the IP address of this unit with “Information”. link

GUI NetworkInfo S63

Start up the web browser.

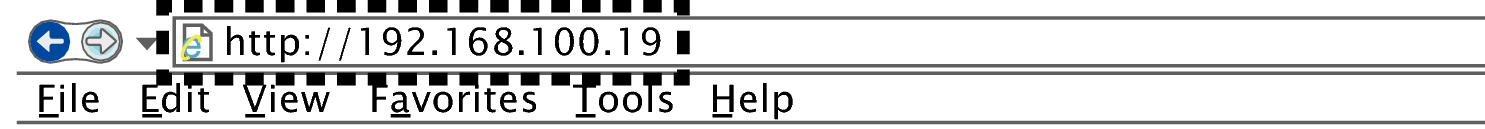

Enter the IP address of this unit in browser’s address box.

For example, if the IP address of this unit is “192.168.100.19”, enter “http://192.168.100.19”.

GUI Web4 S94

When the top menu is displayed on the web browser, click on the menu item you want to operate.
