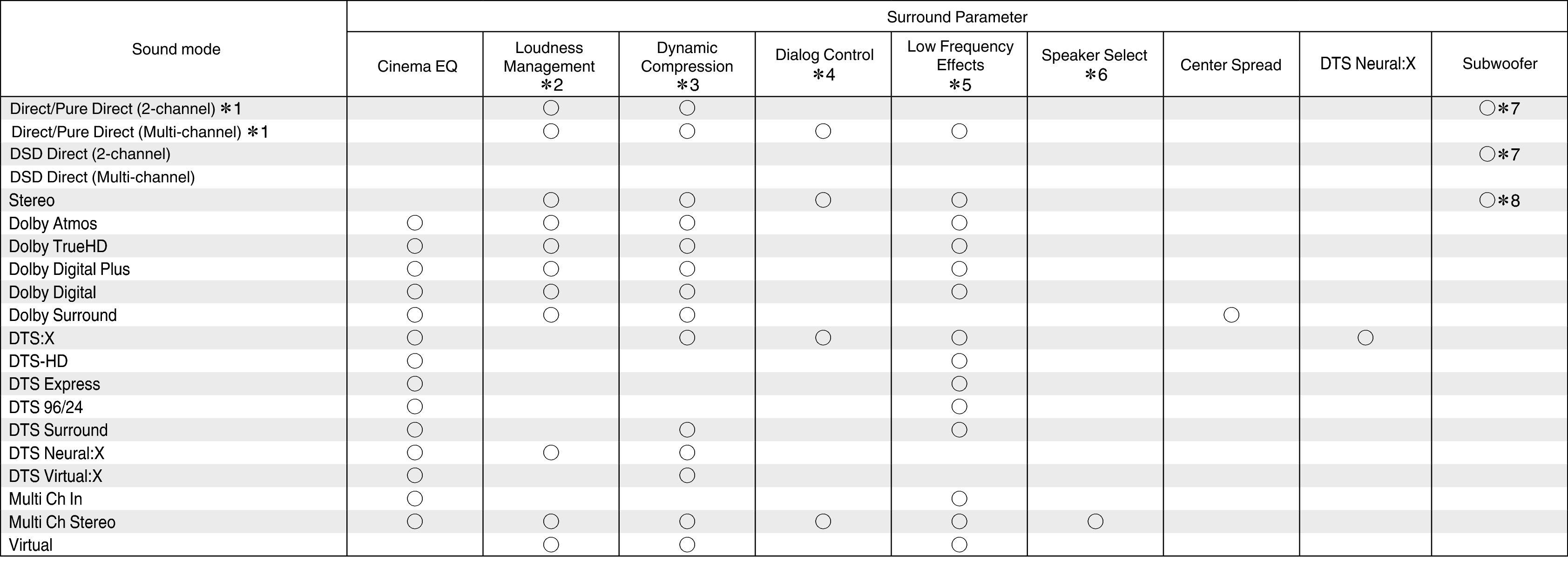

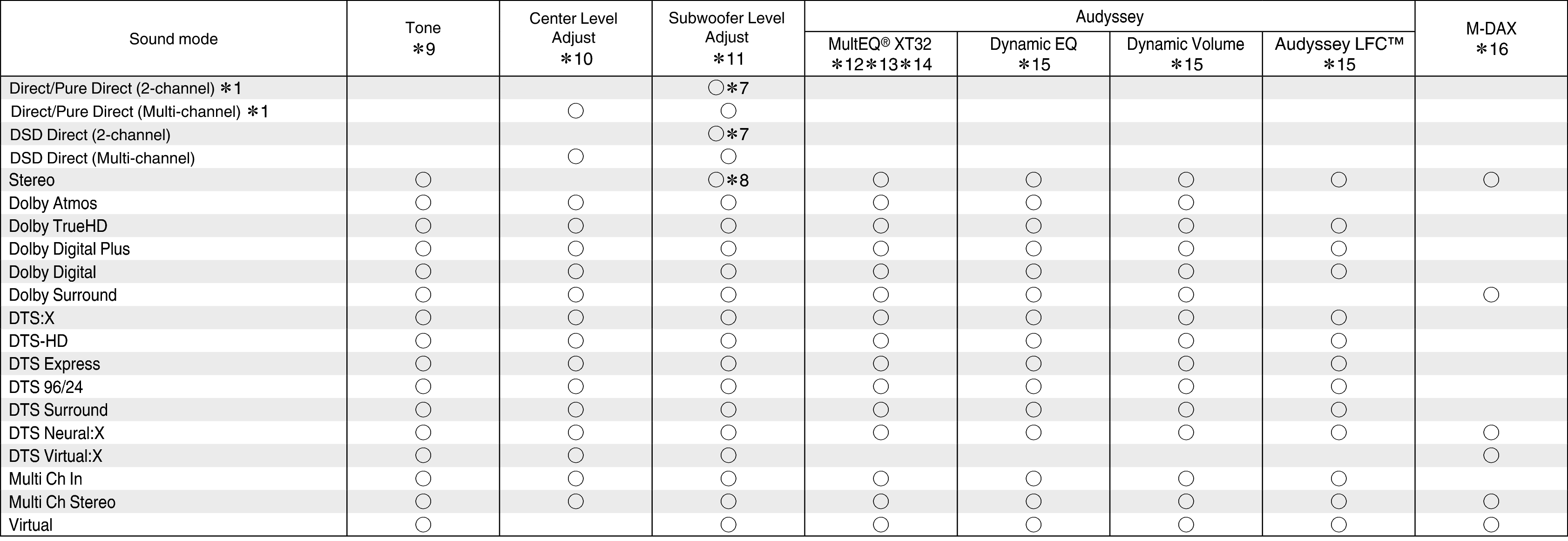

Sound modes and surround parameters

During playback in Pure Direct mode, the surround parameters are the same as in Direct mode.

This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos signal is played.

This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS:X or DTS signal is played.

This item can be selected when a DTS:X signal that is compatible with the Dialog Control function is input.

This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.

This item can be selected when Height, Ceiling or Dolby Atmos Enabled speakers are used.

This setting is available when “Subwoofer Mode” in the menu is set to “LFE+Main”. link

This item can be set when “Front” is set to “Small” or “Subwoofer Mode” is set to “LFE+Main”. link, link

This item cannot be set when “Dynamic EQ” is set to “On”. link

This item cannot be set when “Center” is set to “None”. link

This item cannot be set when “Subwoofer” in the menu is set to “None”. link

This item cannot be set when Audyssey_® Setup (Speaker Calibration) has not been performed.

This item cannot be selected when a DTS:X format with a sampling frequency of over 48 kHz is input.

This item cannot be set when sound mode is “DTS Virtual:X” or sound mode that have “+Virtual:X” in the sound mode name.

This item cannot be set when “MultEQ_® XT32” in the menu is set to “Off”. link

This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.
