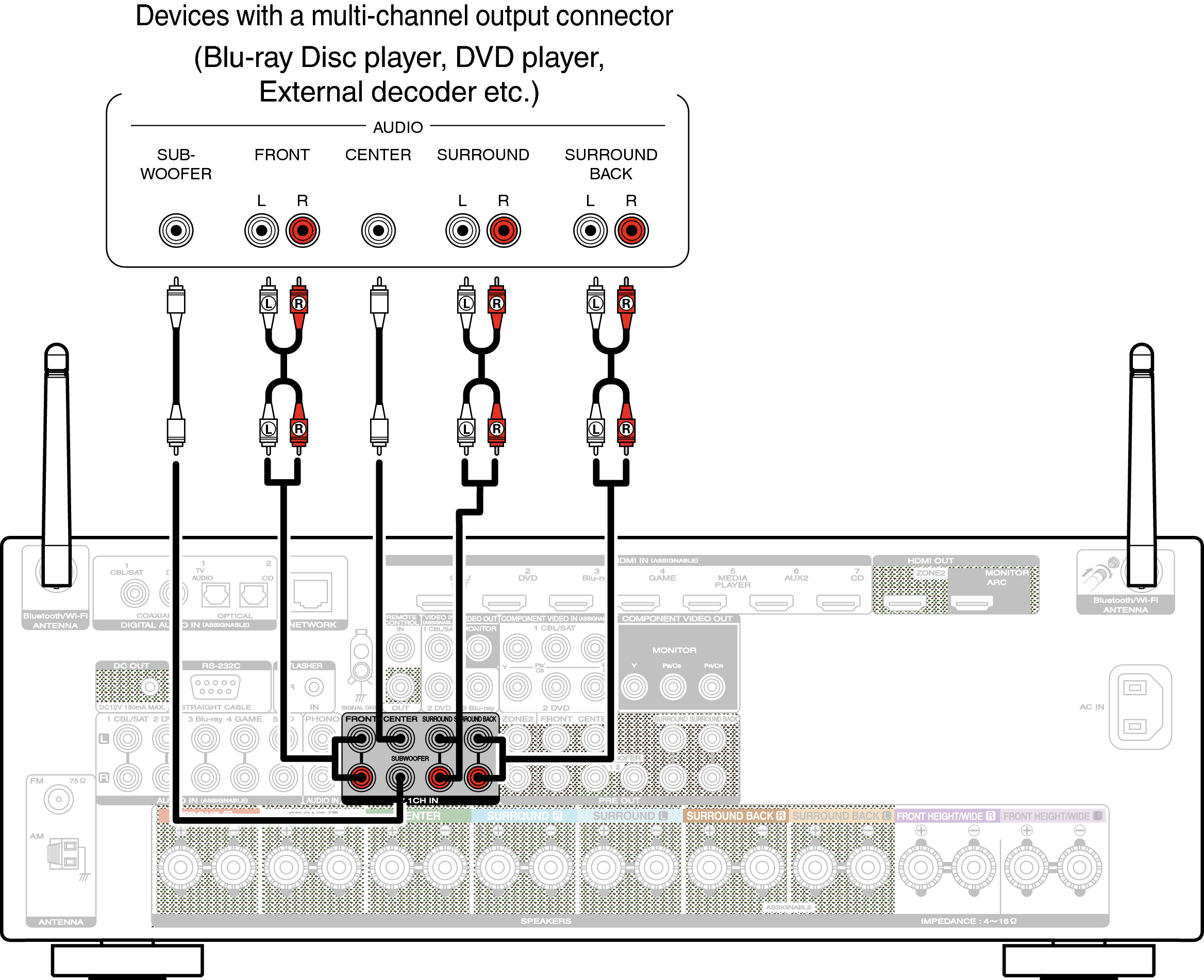

Connecting a device with a multi-channel output connector
You can connect this unit to an external device fitted with multi-channel sound audio output connectors to enjoy music and video.
To play analog signals input from 7.1CH IN connectors, set Input Modelink to “7.1CH IN”.
The video signal can be connected in the same way as a Blu-ray Disc player/DVD player. Connecting a DVD player or Blu-ray Disc playerlink
When a device is connected to the SBL/SBR terminal of 7.1CH IN connectors, set Assign Modelink to “Main Only”.
