Connecting multi-zone speakers

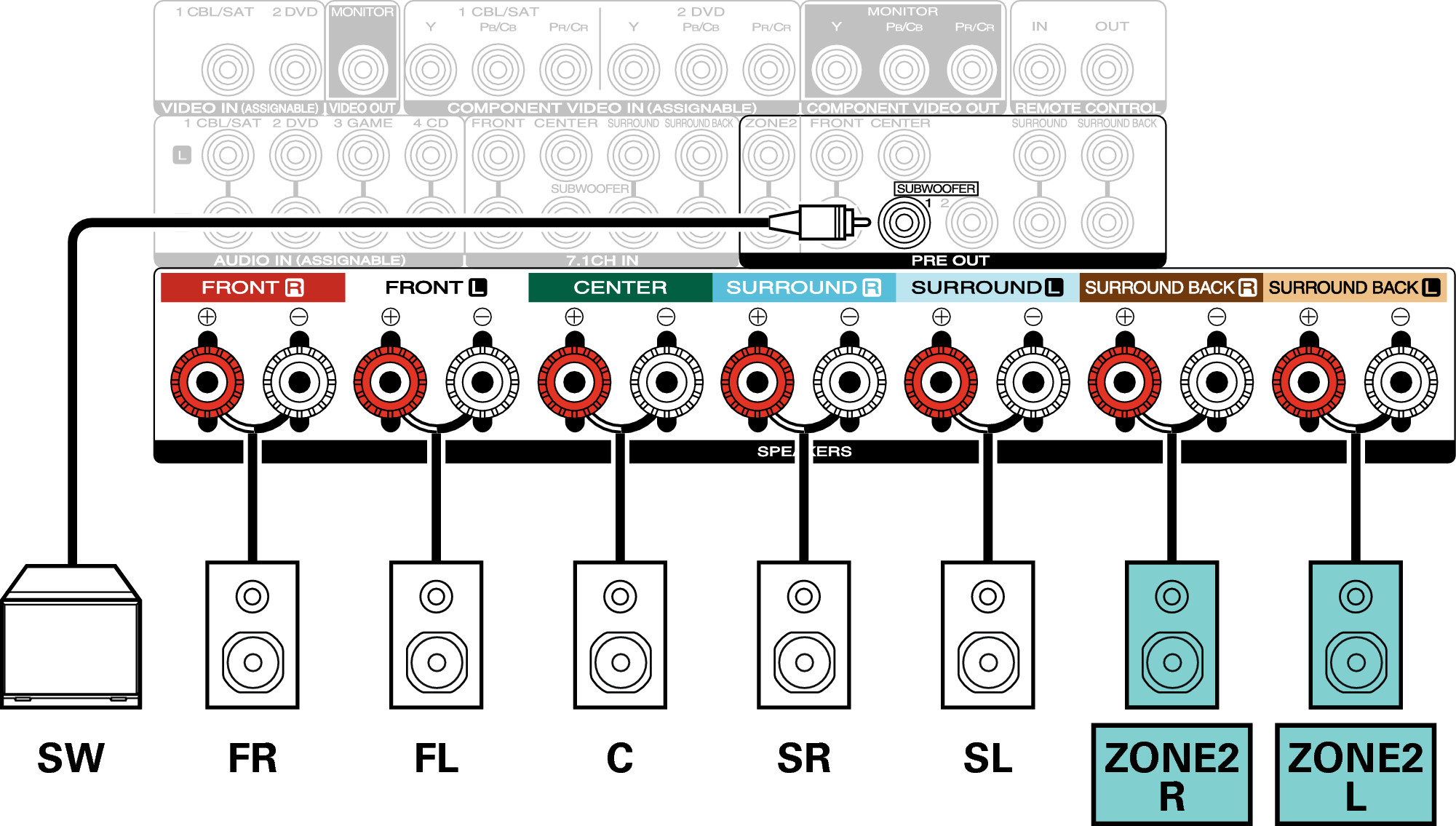

5.1-channel (MAIN ZONE) + 2-channel (ZONE2) speaker connection
This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.

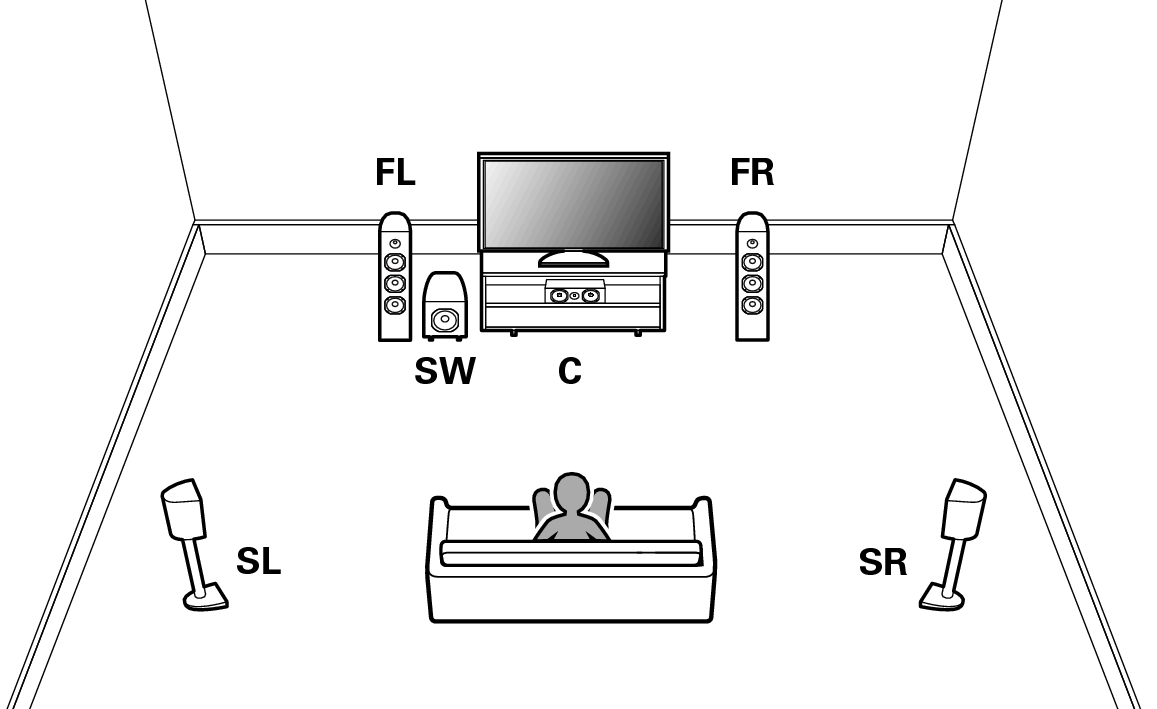

MAIN ZONE |
![]() |

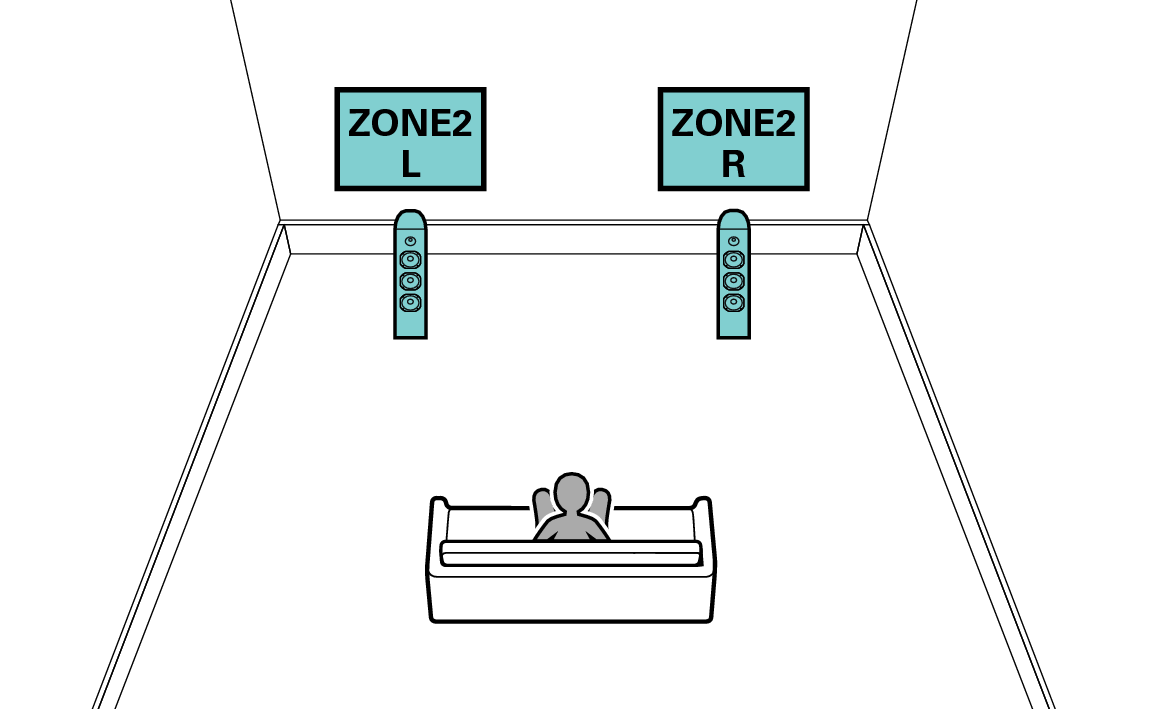

ZONE2 |
![]() |
![Conne SP 5.1 ZONE2 S52U](fig/Conne SP 5.1 ZONE2 S52U_DRDZILrgrqofur.png)
Set “Assign Mode” to “ZONE2” in the menu. link

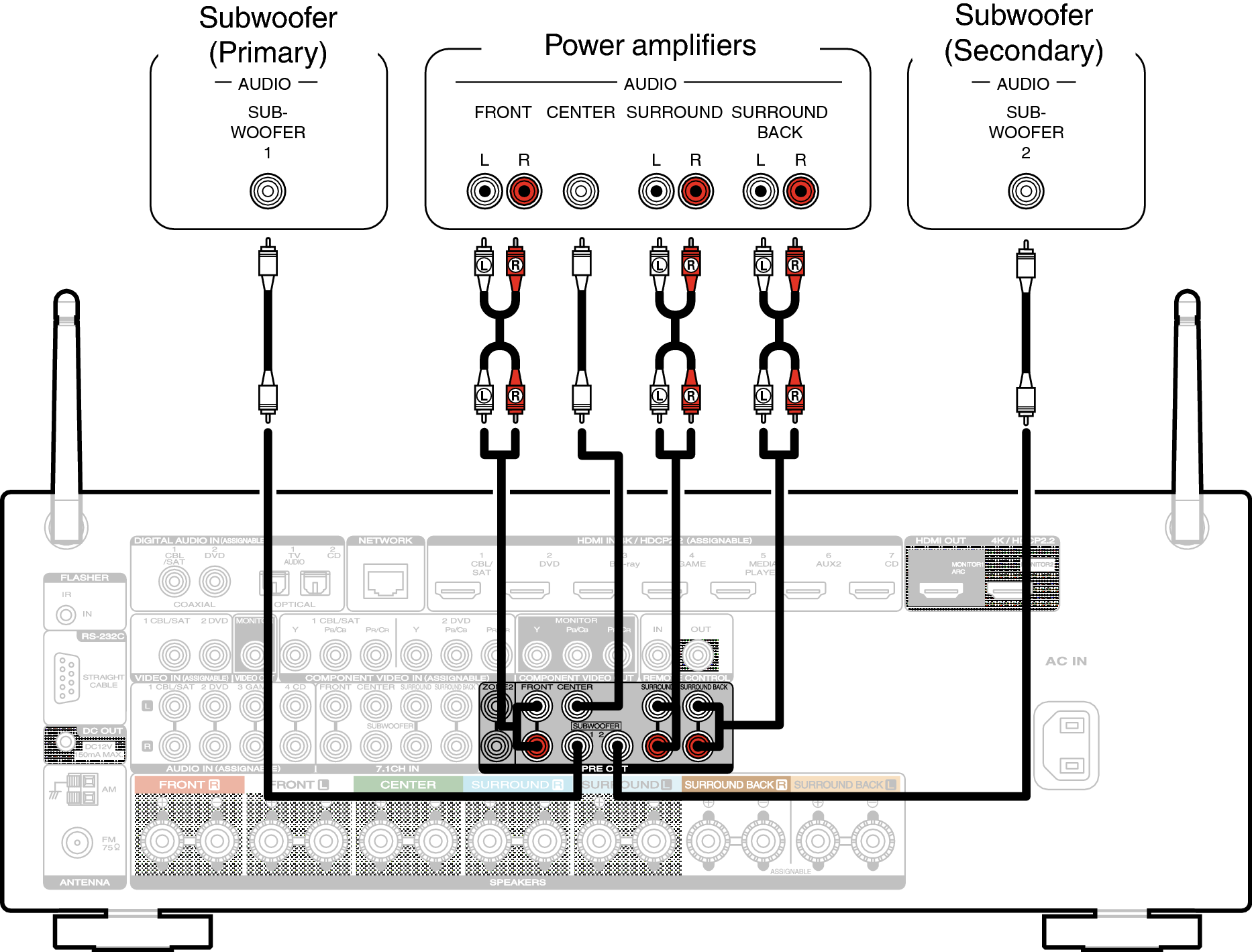

Connecting an external power amplifier
You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.
Select the terminal to use and connect the device.
![Conne PRE OUT S52U](fig/Conne PRE OUT S52U_DRDZILlgvmpioa.png)
When using just one surround back speaker, connect it to the left channel (L) terminal.
