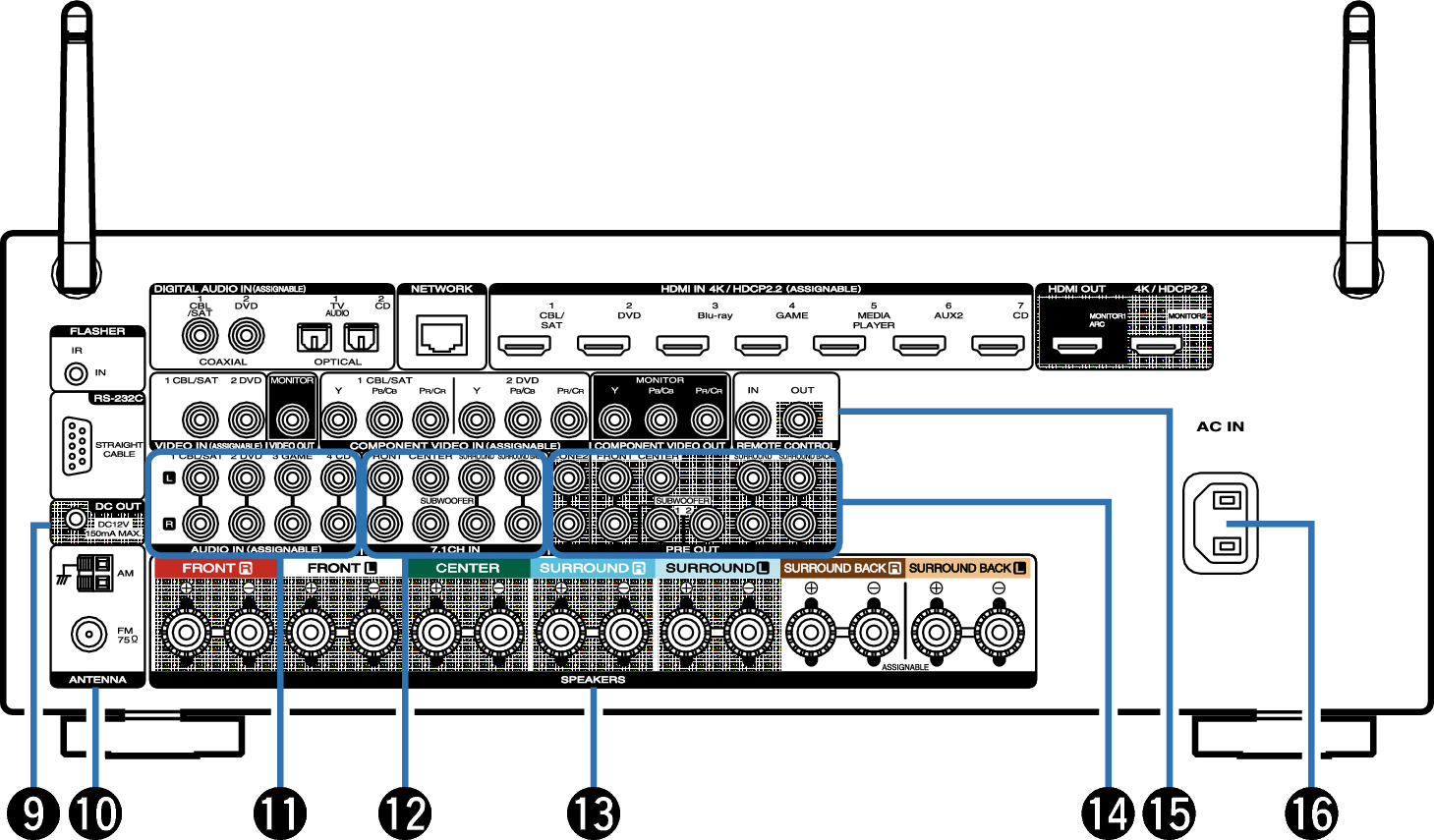

Rear panel
Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

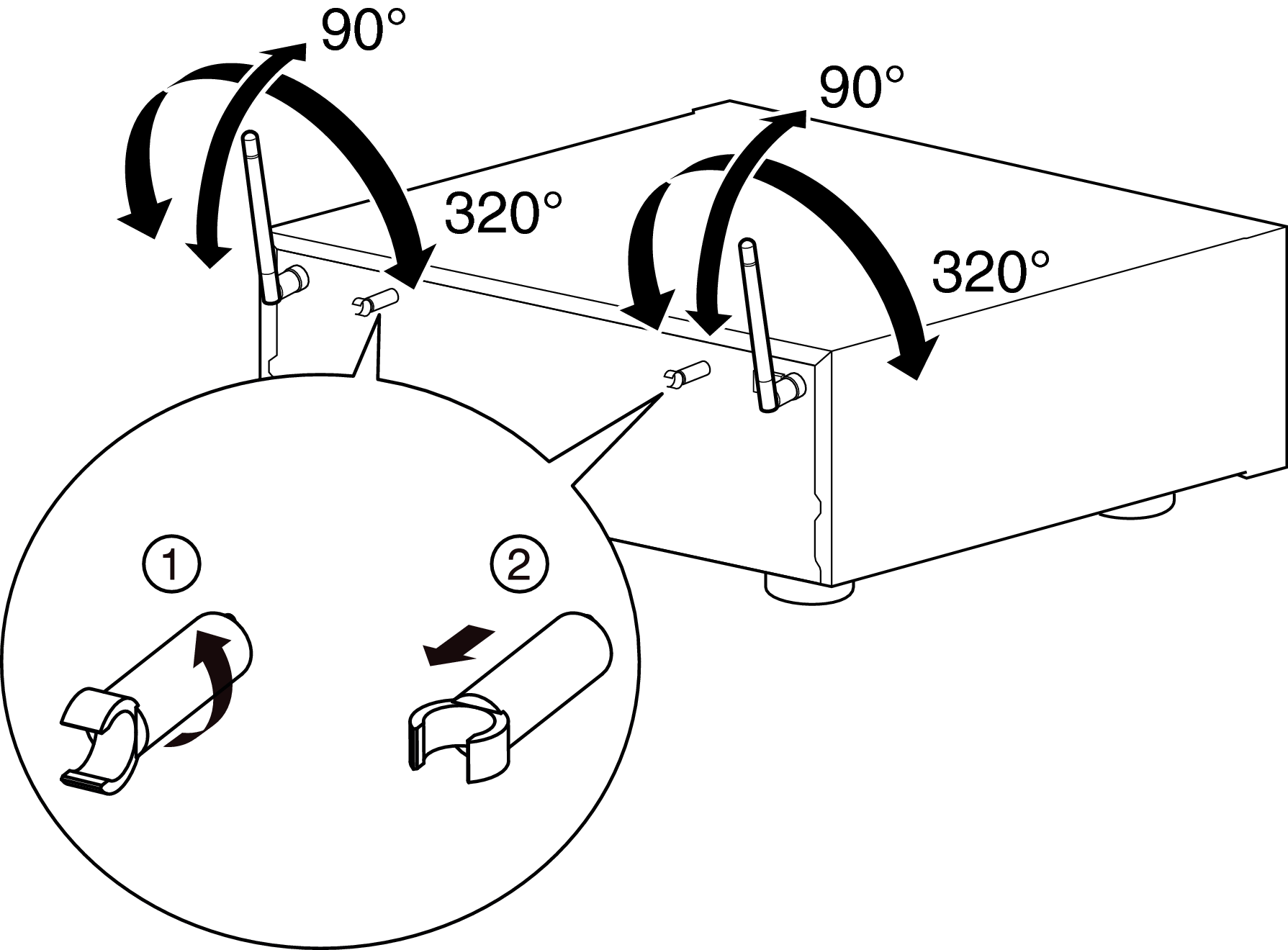

The antenna clip can be removed from the rear panel.
Rotate the antenna clip 90 degrees to the left.
Pull the antenna clip out towards yourself.
The antenna clip is needed when transporting this unit. Keep it in a safe place.
Attach the antenna clip by following the steps for removing it in reverse.
FLASHER IN jack
Used when using a control BOX or other such control devices to control this unit.
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN network. link
HDMI connectors
Used to connect devices equipped with HDMI connectors.
RS-232C connector
Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.
Perform the operation below beforehand.
Turn on the power of this unit.
Turn off the power of this unit from the external controller.
Check that the unit is in the standby mode.
DC OUT jack
Used to connect devices equipped with the trigger function. link
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. link
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
7.1-channel input connectors (7.1CH IN)
Used to connect to a device that has multi-channel audio output connectors. link
Speaker terminals (SPEAKERS)
Used to connect speakers. link
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power amplifier.
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link
AC inlet (AC IN)
Used to connect the power cord. link
NOTE
Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
