Rear panel

For details, see the next page.

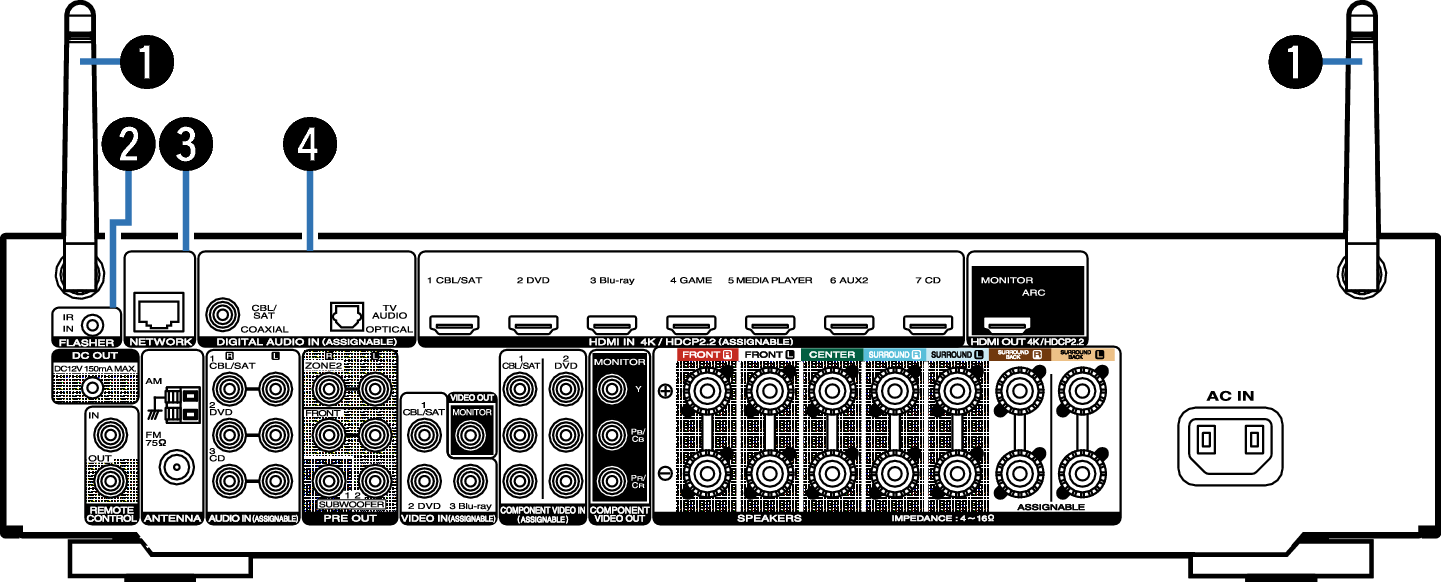

Name Rear Small1 1607U

Rod antennas for Bluetooth/wireless LAN

Stand this antenna upright when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

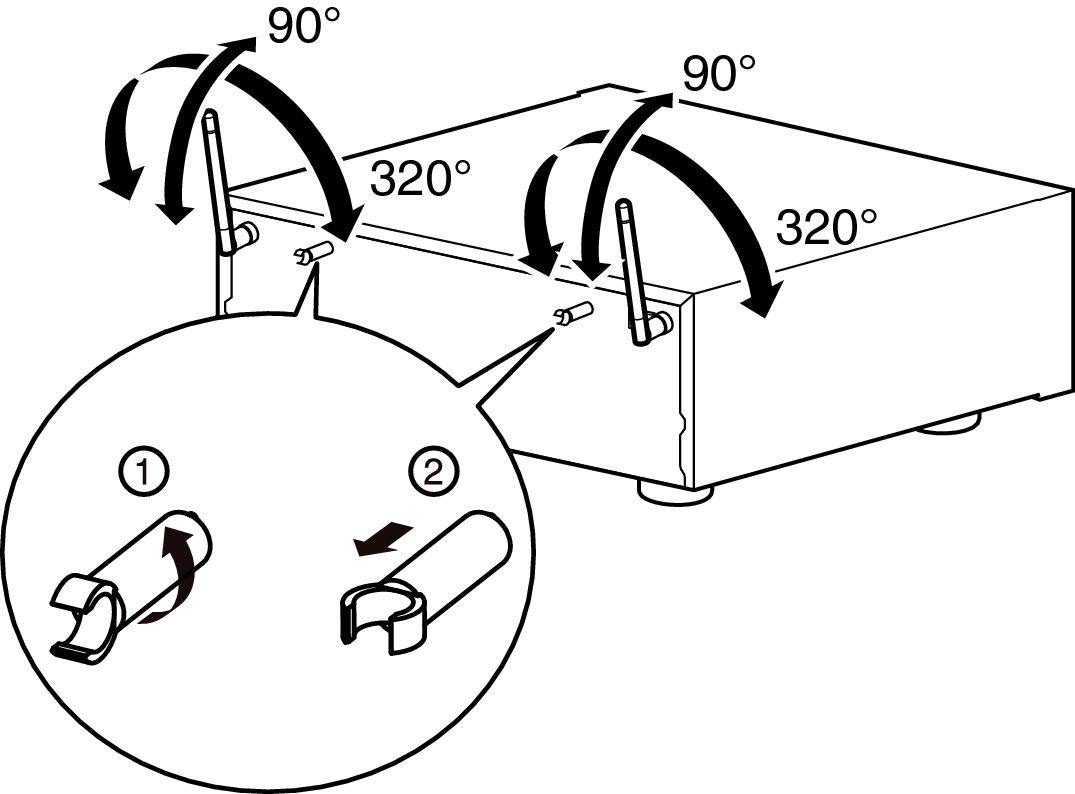

Pict AntennaAngle Mz

The antenna clip can be removed from the rear panel.

Rotate the antenna clip 90 degrees to the left.
Pull the antenna clip out towards yourself.

The antenna clip is needed when transporting this unit. Keep it in a safe place.

Attach the antenna clip by following the steps for removing it in reverse.

FLASHER IN jack

Used when using a control BOX or other such control devices to control this unit.

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

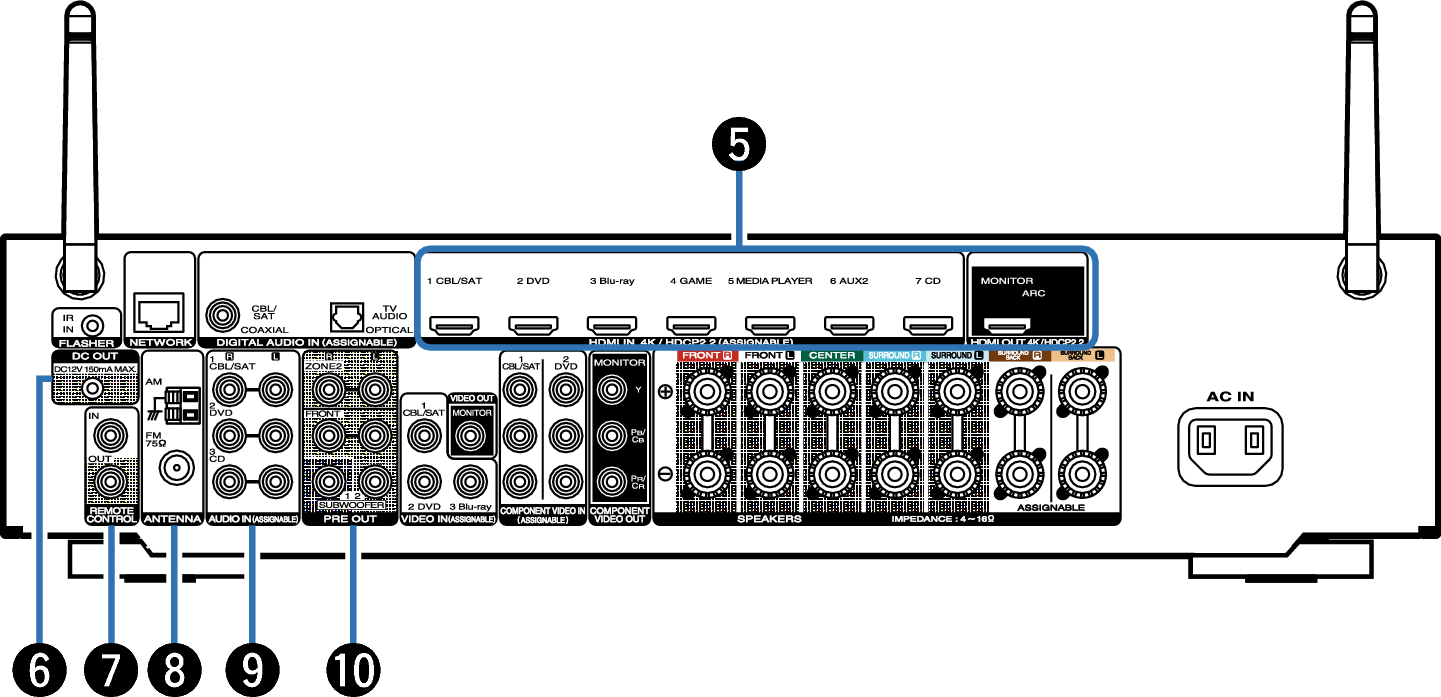

Name Rear Small2 1607U

HDMI connectors

Used to connect devices equipped with HDMI connectors.

DC OUT jack

Used to connect devices equipped with the trigger function. link

REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or a power amplifier for ZONE2.

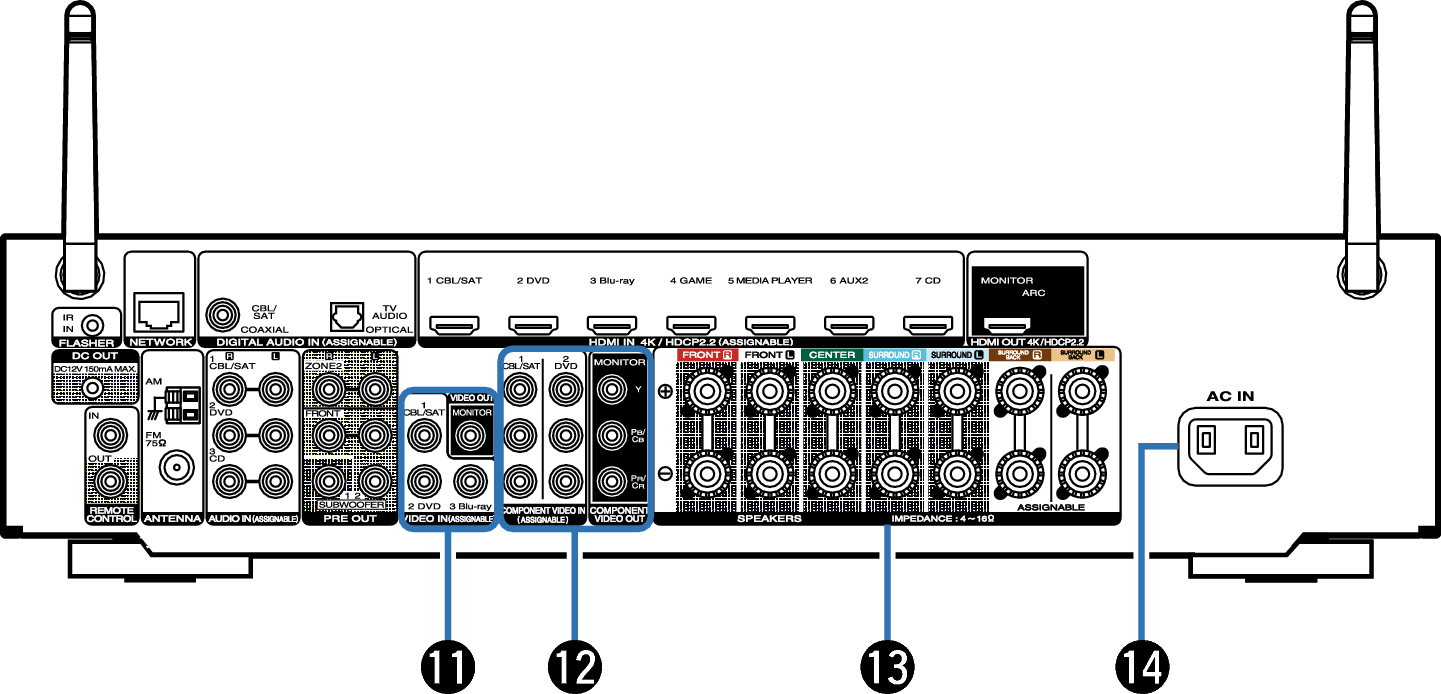

Name Rear Small3 1607U

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors.

Speaker terminals (SPEAKERS)

Used to connect speakers. link

AC inlet (AC IN)

Used to connect the power cord. link

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
