Connecting ZONE2
You can use the following two methods to play back audio in ZONE2.

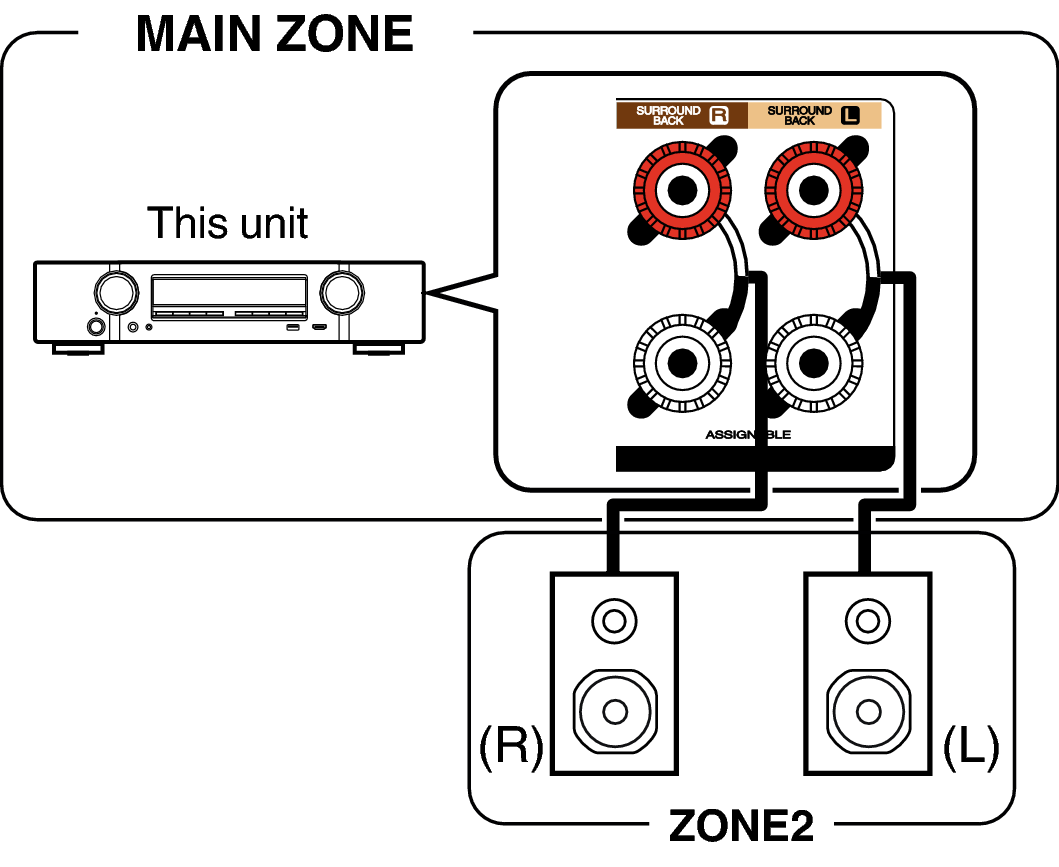

Connection 1: Connecting using a speaker output terminal
When “Assign Mode” is set to “ZONE2” in the menu, ZONE2 audio is output from the SURROUND BACK speaker terminal. link

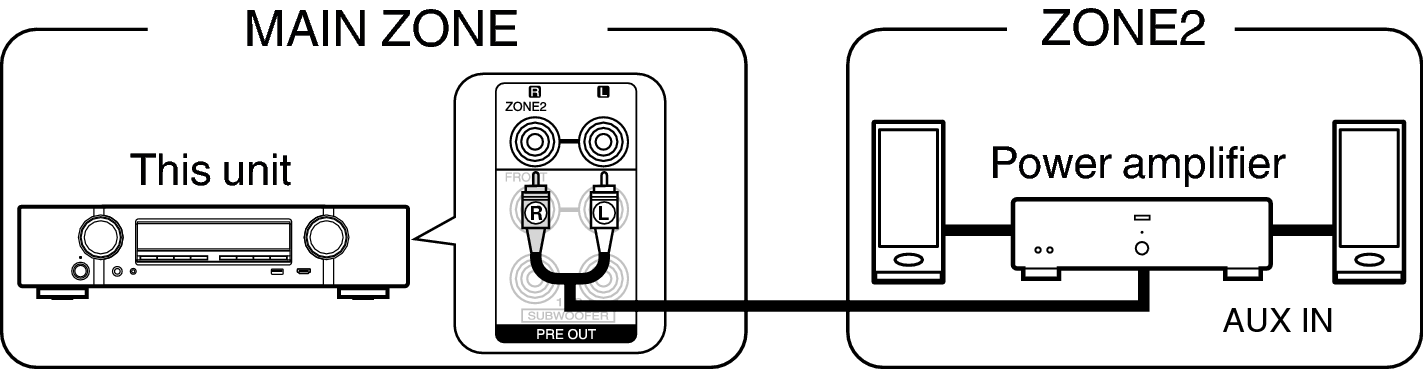

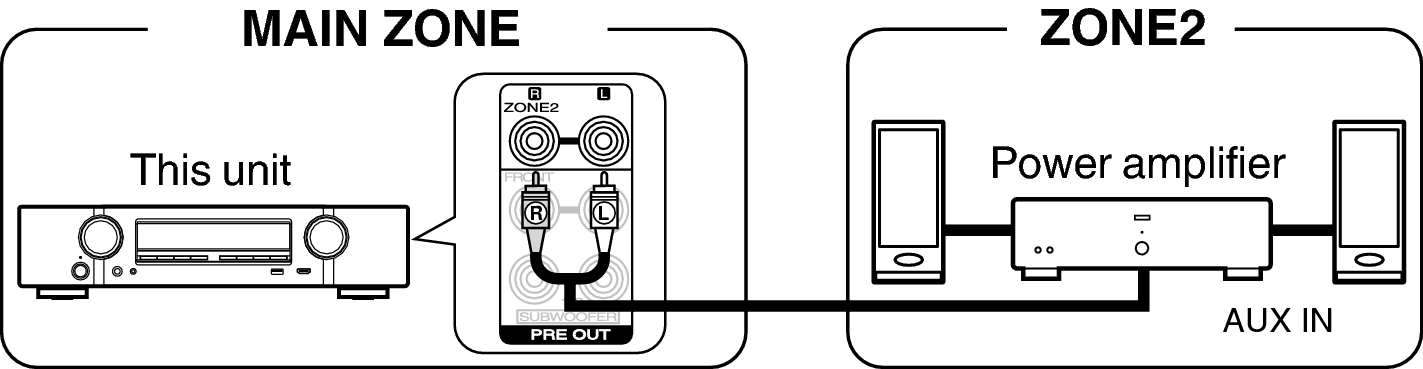

Connection 2 : Connection using an external amplifier (ZONE2)
The audio signals of this unit’s ZONE2 audio output connectors are output to the ZONE2 amplifiers and played on these amplifiers.
