Settings

You can make detailed settings for the network.

To change the network environment, perform “Quick Setup”. (For details on the operations, see the separate “Quick Start Guide”.)

If you are using a broadband router (DHCP function), there is no need to make the settings at “IP Address” and “Proxy”, since the DHCP function is set to “On” in this unit’s default settings.

Only set “Settings” when connecting to a network without a DHCP function.

Wired Setup

DHCP

Selects how to connect to the network.

On (Default):

Configure the network settings automatically from your router.

Off:

Configure the network settings manually.

IP Address

Set the IP address within the ranges shown below.

The Network Audio function cannot be used if other IP addresses are set.

CLASS A: 10.0.0.1 - 10.255.255.254

CLASS B: 172.16.0.1 - 172.31.255.254

CLASS C: 192.168.0.1 - 192.168.255.254

Subnet Mask

When connecting an xDSL modem or connector adapter directly to this unit, input the subnet mask indicated in the documentation supplied by your provider. Normally input 255.255.255.0.

Gateway

When connected to a gateway (router), input its IP address.

Primary DNS, Secondary DNS

If there is only one DNS address indicated in the documentation supplied by your provider, enter it for “Primary DNS”. If two or more DNS are provided by your provider, enter one for “Secondary DNS”.

Proxy

Make this setting when connecting to the Internet via a proxy server.

Make the proxy settings only when you connect to the Internet via a proxy server that is on your internal network or provided by your provider, etc.

Proxy (Off) or Proxy (On):

Set the proxy server.

Proxy (Address) or Proxy (Name):

Select when inputting by address or domain name.

Address or Name:

Inputting address or domain name. Up to 38 characters can be input.

Port:

Enter port number.

If you cannot connect to the Internet, recheck the connections and settings. link

If you do not understand about Internet connection, contact your ISP (Internet Service Provider) or the store from which you purchased your computer.

Wi-Fi Setup Method

In this menu, Wi-Fi settings and connections can be made using any of the five connection methods.

Auto-Scan /Share Wi-Fi setting from an iOS device / WPS (Wi-Fi Protected Setup) / Web Browser Setup / Manual

If a LAN cable is connected, remove it.

See the Quick Setup Guide for details on how to connect to Wi-Fi using the Wi-Fi CONNECT button on the rear panel.

Auto-Scan

This automatically searches for networks.

From the list of the networks, select the one you want to connect to.

Select “Rescan” if the network cannot be found.

Make the following settings.

Default Key:

Select the default key.

When connecting to a WEP encrypted network, “Default Key” menu is displayed.

Password:

Input the password.

DHCP/Proxy:

Performs the DHCP and proxy setting. link, link

Test Connection:

Test the connection.

Share Wi-Fi setting from an iOS device

You can use an iOS device such as an iPhone or iPad to configure Wi-Fi settings.

After selecting this item, select Settings/Wi-Fi from the iOS device home screen, select “Marantz NA6005” displayed at the bottom of the screen, and then follow the setting instructions displayed on the iOS device.

For details, see the “Quick Start Guide”.

The iOS version must be 7 or later.

WPS (Wi-Fi Protected Setup)

Register the PIN code of the unit in the router.

Web Browser Setup

Use a web browser to set up Wi-Fi.
A Wi-Fi device that can perform web browse operations is required.

Read the precautions on the screen, and press ENTER.
Select Wi-Fi network called “Marantz NA6005” from your Wi-Fi device.

The IP address (192.168.1.16) appears on the unit.

Enter the IP address of this unit in browser’s address box.

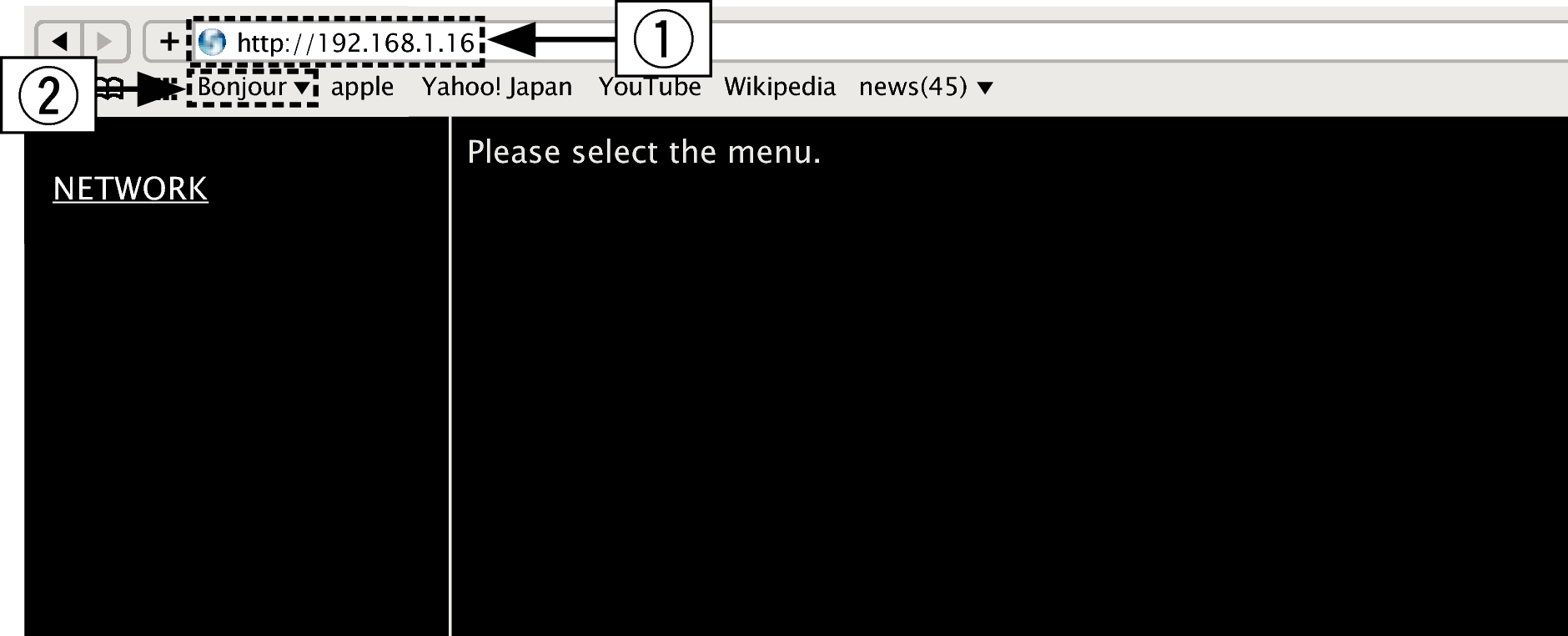

Webcon PC 1 Setting
Entering the IP address (192.168.1.16).
If you are using the Safari web browser, you can select “Bonjour” and directly access the unit’s web control screen from the overview section.
When the top menu is displayed, click “NETWORK”.

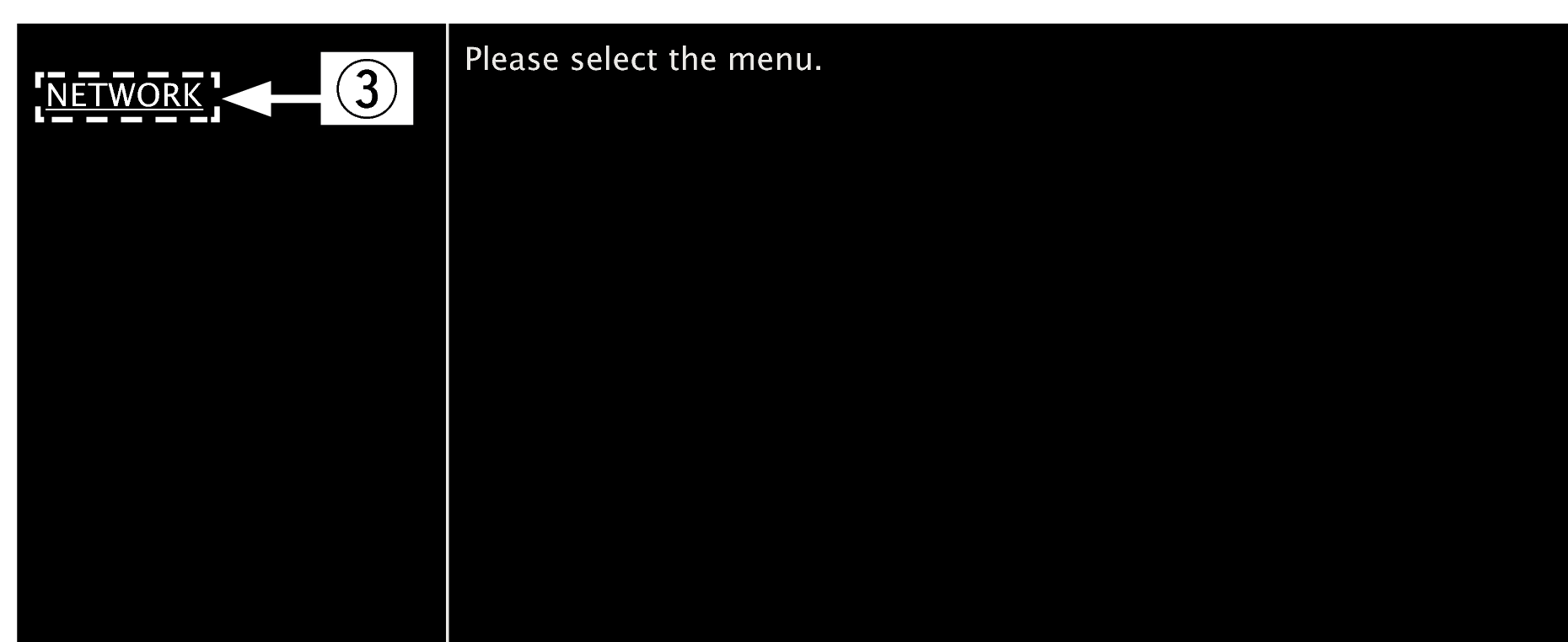

Webcon PC 2 Setting
Click “NETWORK”. ( Finger Bracket Open Example 1 Bracket Close )
Operate.

Bracket Open Example 1 Bracket Close Network Setting 1

Webcon PC 3 NA6005 Setting

Network connection settings

Click to change the network connection method. If you select “Wi-Fi”, a new item will appear on-screen.
( Finger Bracket Open Example 2 Bracket Close )

Bracket Open Example 2 Bracket Close Network Setting 2

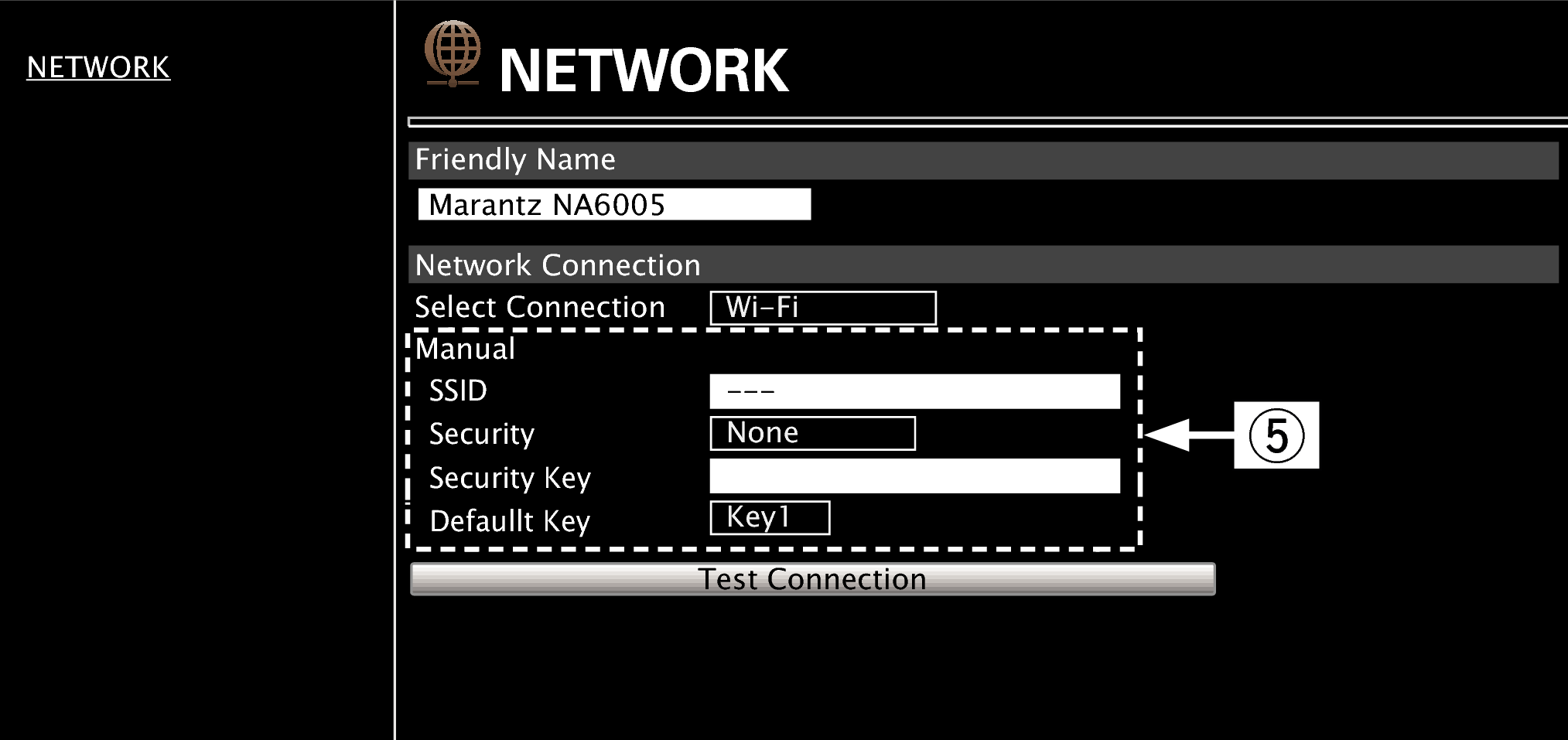

Webcon PC 4 NA6005 Setting

Network connection settings

Bracket Open Example 2 Bracket Close - Displayed when “Wi-Fi” is selected in sanwacirnumw_4 . Select or input items as necessary, and then click “Test Connection” to apply the changes.

Items displayed may vary depending on selected items and connection status.

After selecting each item, wait a moment for the display to be updated.

To apply network connection settings, click “Test Connection” after making changes.

Manual

Sets the wireless connection manually

SSID :

Input the name of the wireless network (SSID).

Security:

Select the encryption method according to the encryption setting of the access point you are using.

Default Key:

Select the Default Key.

When connecting to a “WEP” encrypted network, “Default Key” menu is displayed.

Password:

Input the password.

DHCP/Proxy:

Performs the DHCP and proxy setting. link,
link

Test Connection:

Test the connection.
