Controlling the unit from a web control

Switch the “Network Control” setting to “On”. link

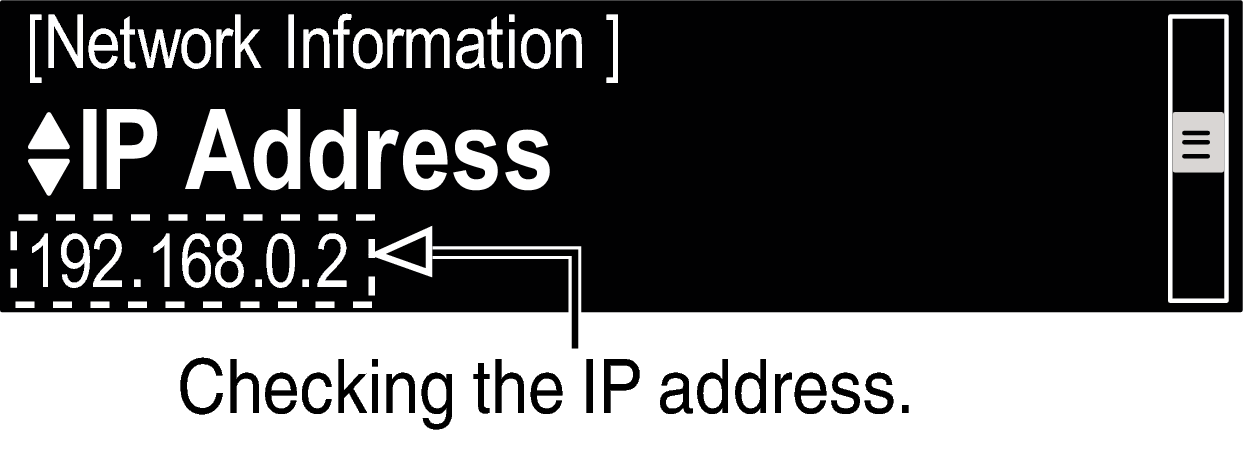

Check the IP address of this unit with “Network Information”.
link
Webcon NetInfo IPAdd
Start up the web browser.
Enter the IP address of this unit in browser’s address box.

For example, if the IP address of this unit is “192.168.0.2”, enter “http://192.168.0.2”.

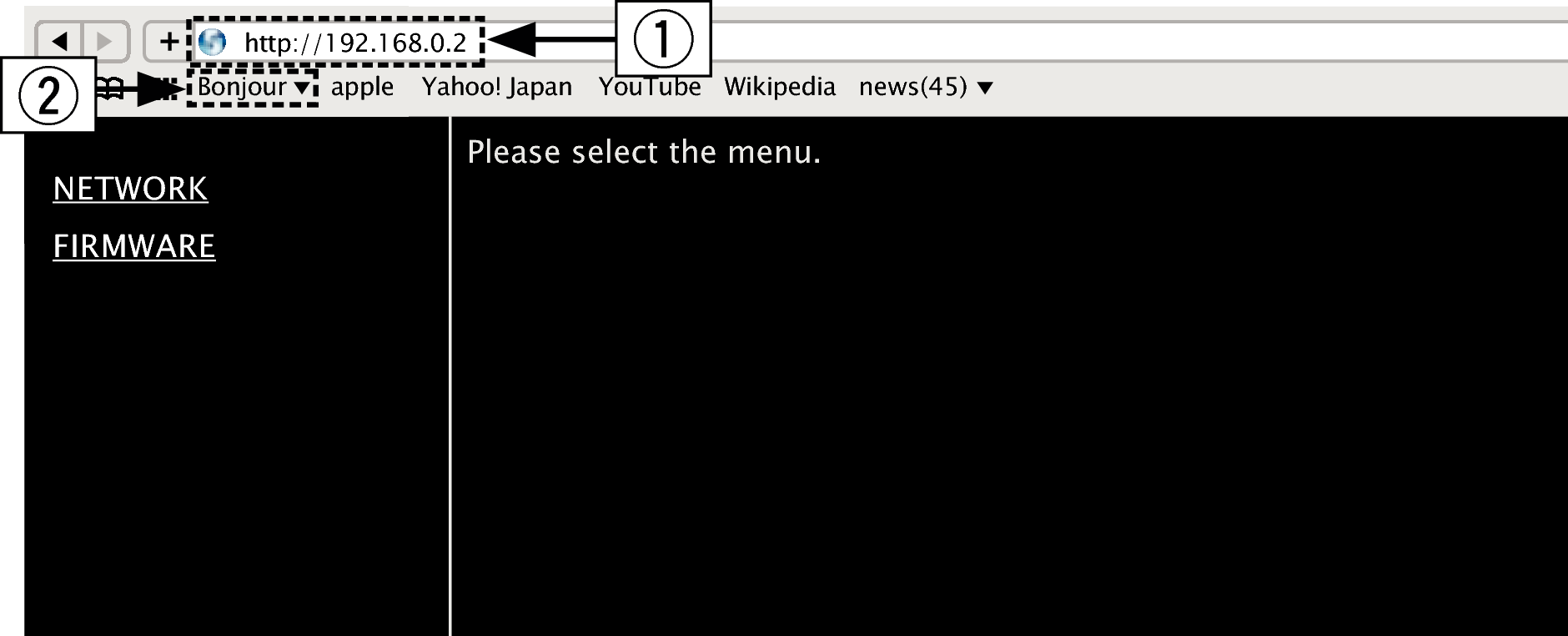

Webcon PC 1
Entering the IP address.
If you are using the Safari web browser, you can select “Bonjour” and directly access the unit’s web control screen from the overview section.

By adding this unit’s IP address to the browser’s bookmark, you can display the web control screen using the bookmark function the next time you use the browser. If you are using a DHCP server and “Network Control” link is set to “Off”, turning the power on/off changes the IP address.

When the top menu is displayed, click on the menu item you want to operate.

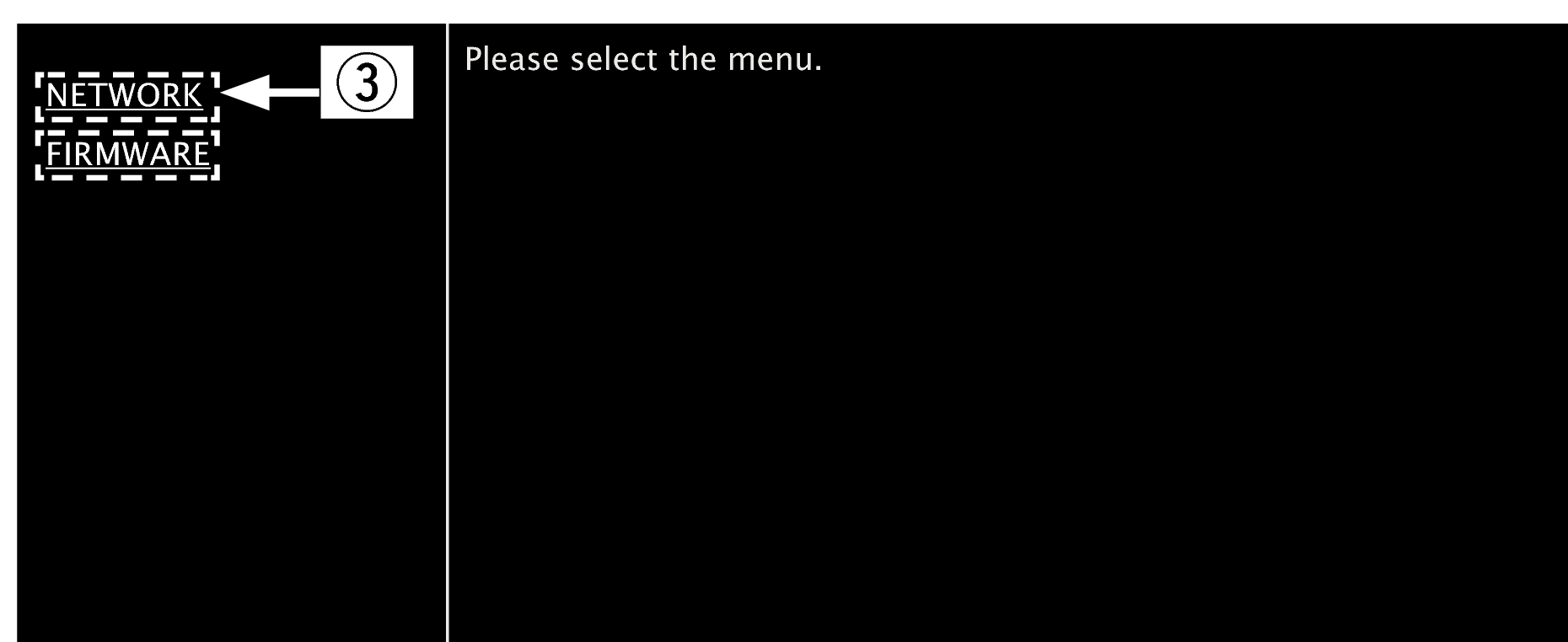

Webcon PC 2
Click when you setup network settings. ( Finger Bracket Open Example 1 Bracket Close )
Operate.

Bracket Open Example 1 Bracket Close Network Setting 1

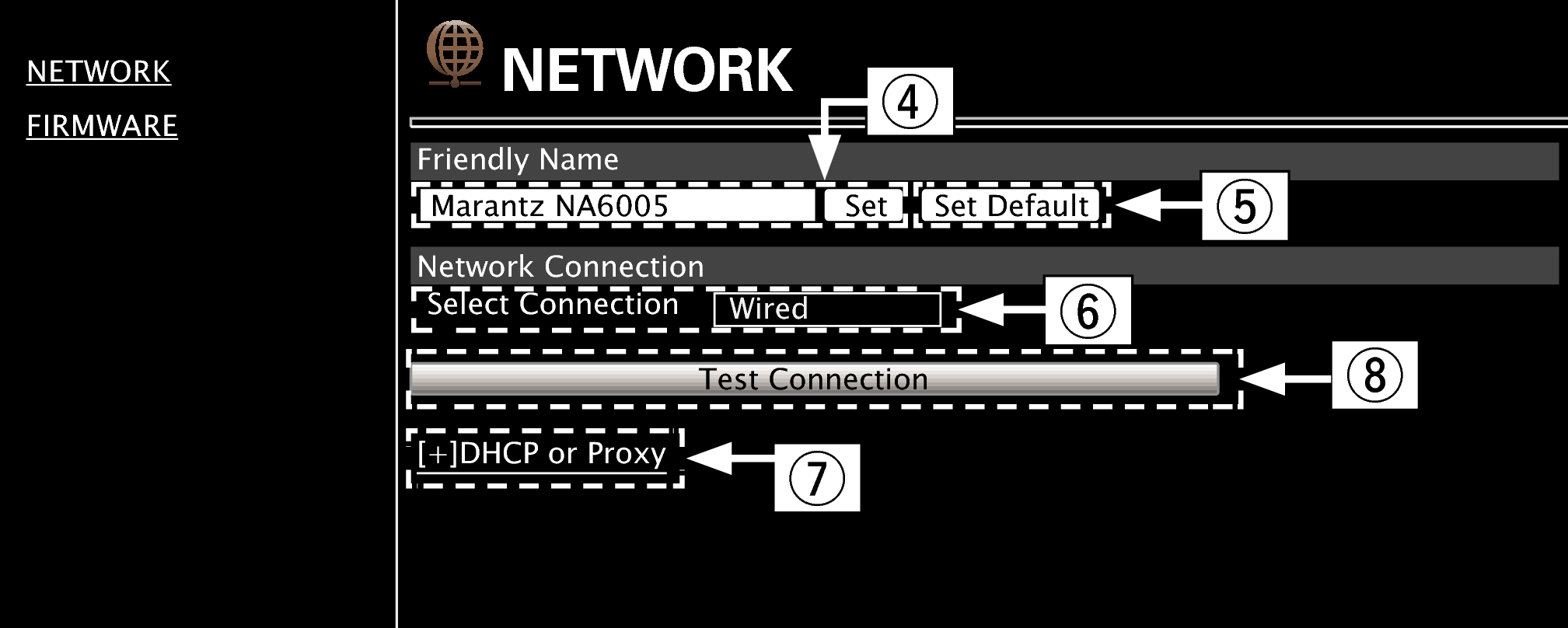

Webcon PC 3 NA6005

Friendly Name setting

To change the Friendly Name, enter the new name in the text box and click “Set”.
To reset the Friendly Name, click “Set Default”.

Only characters that can be displayed on this unit can be set. link

Network connection settings

Click to change the network connection method. If you select “Wi-Fi”, a new item will appear on-screen. ( Finger Bracket Open Example 2 Bracket Close )
Click to change DHCP/proxy settings. ( Finger Bracket Open Example 2 Bracket Close )
Click to connect using the newly applied settings.
Operate.

Bracket Open Example 2 Bracket Close Network Setting 2

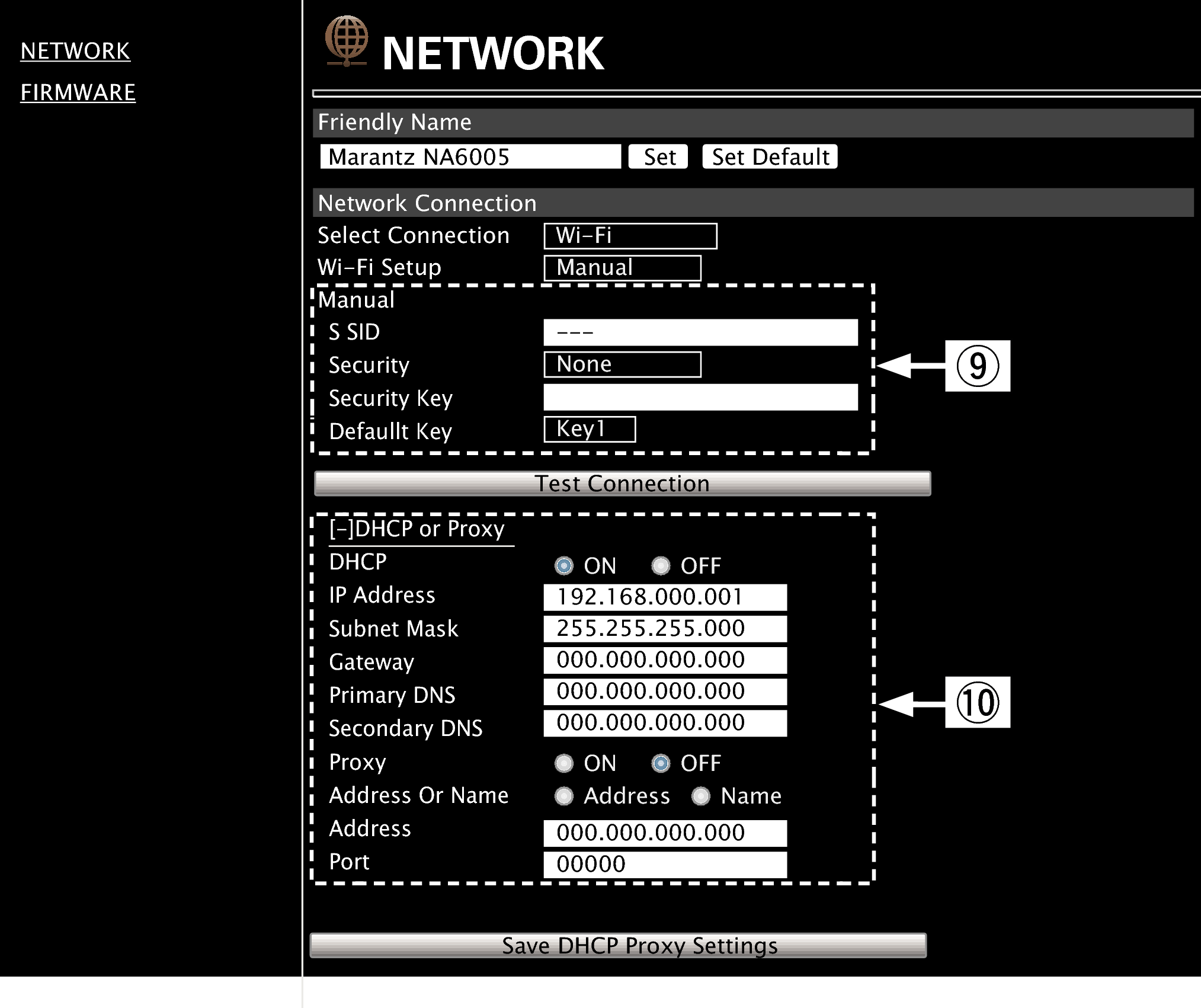

Webcon PC 4 NA6005

Network connection settings

Bracket Open Example 2 Bracket Close - Displayed when “Wi-Fi” is selected in sanwacirnumw_6 . Select or input items as necessary, and then click “Test Connection” to apply the changes.

Items displayed may vary depending on selected items and connection status.

After selecting each item, wait a moment for the display to be updated.

Bracket Open Example 2 Bracket Close - Displayed when “DHCP” or “Proxy” is selected in sanwacirnumw_7 . When changing DHCP/proxy settings, input or select for each item.

To apply network connection settings, click “Test Connection” after making changes.
