Playback

Controlling the unit from a web control

The web control screen supports the following functions.

Setup Menu

Power ON/OFF for each zone

MAIN ZONE input source switching

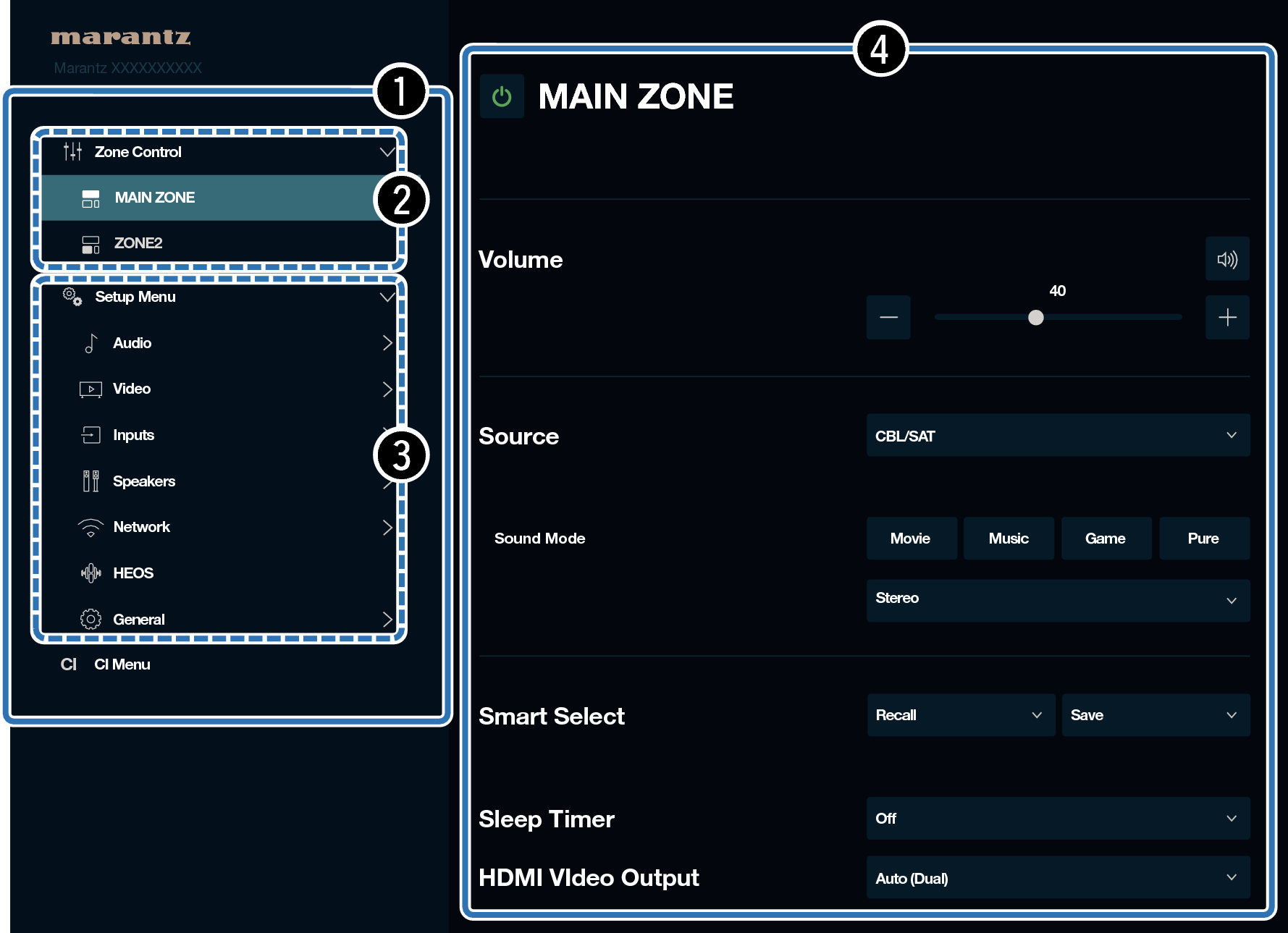

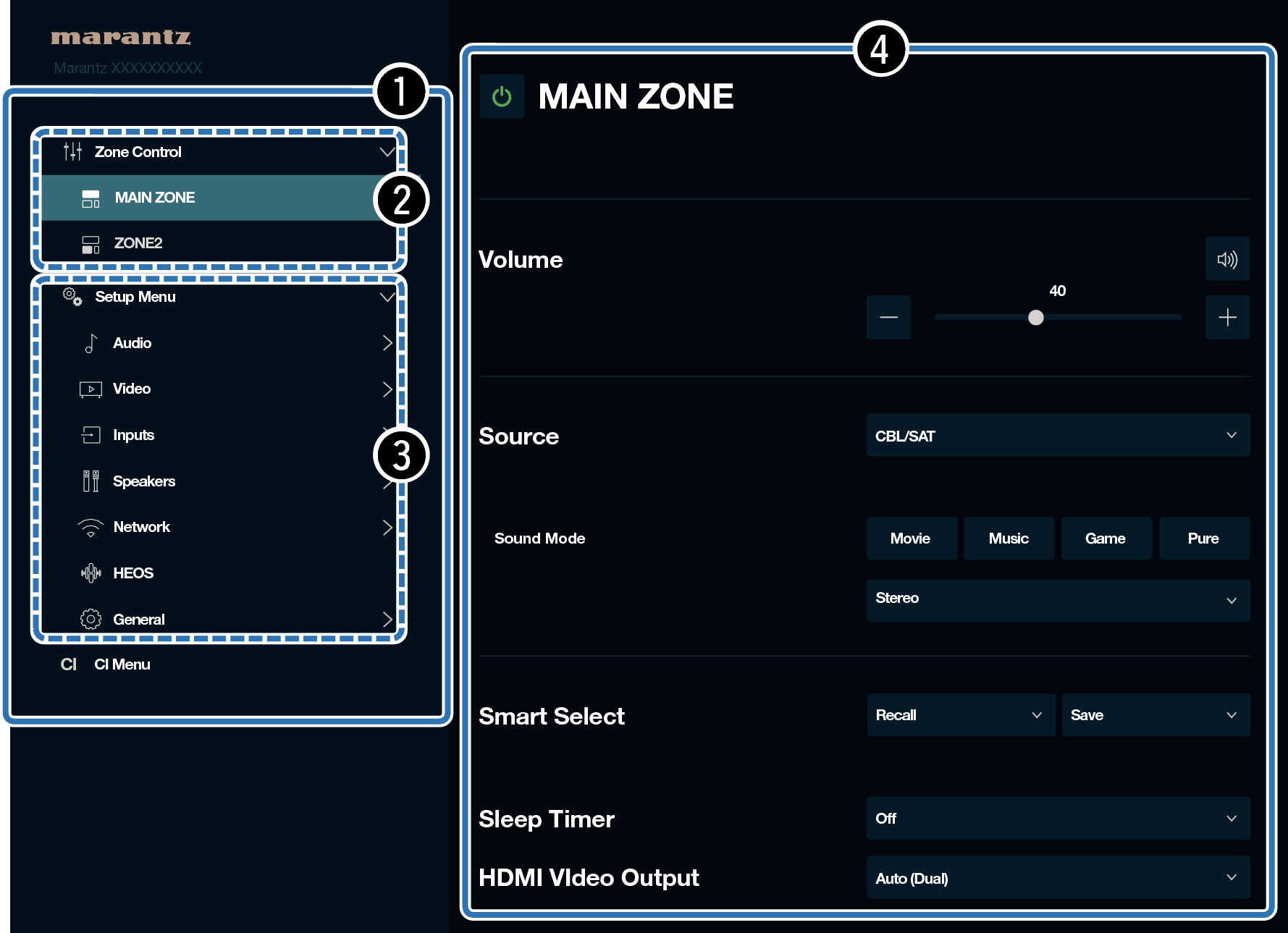

Web control screen
Top menu

Pict Web8 MzZ2

Audyssey Setup is not supported on the web control screen. If you wish to perform measurement, perform measurement from the on-screen Setup Menu.

“CI Menu” contains settings for use by custom installers and should not be used at any other time.

Switch the “Network Control” setting to “Always On”. link
Check the IP address of this unit with “Information”. link
GUI NetworkInfo C50
Open a web browser on a PC or tablet.
Enter the IP address of this unit in browser’s address box.

For example, if the IP address of this unit is “192.168.100.19”, enter “http://192.168.100.19”.

GUI Web4 S94
A privacy error message is displayed when the web control screen is opened through a web browser. Follow the following procedure to proceed to the web control screen.

The message and behavior differ depending on your web browser.

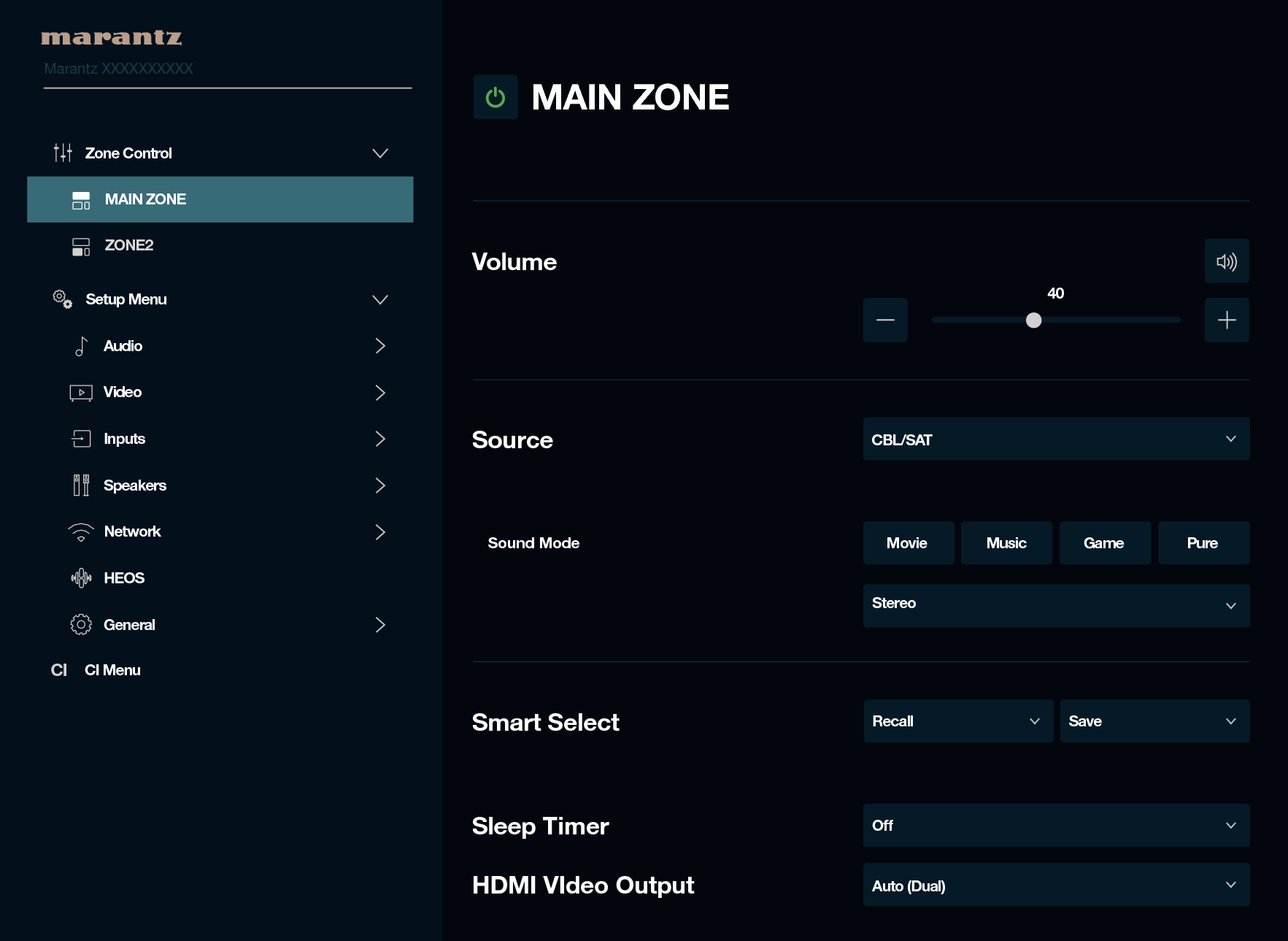

When the top menu is displayed on the web browser, click on the menu item you want to operate.

Example (Chrome):

Click “Advanced” and “Proceed to xxx.xxx.xxx.xxx (IP address)” to open the web control screen.

Pict Web6
BlueArrow
Pict Web7 MzZ2
