Remote control unit
The remote control provided with this unit can control a Marantz amplifier.

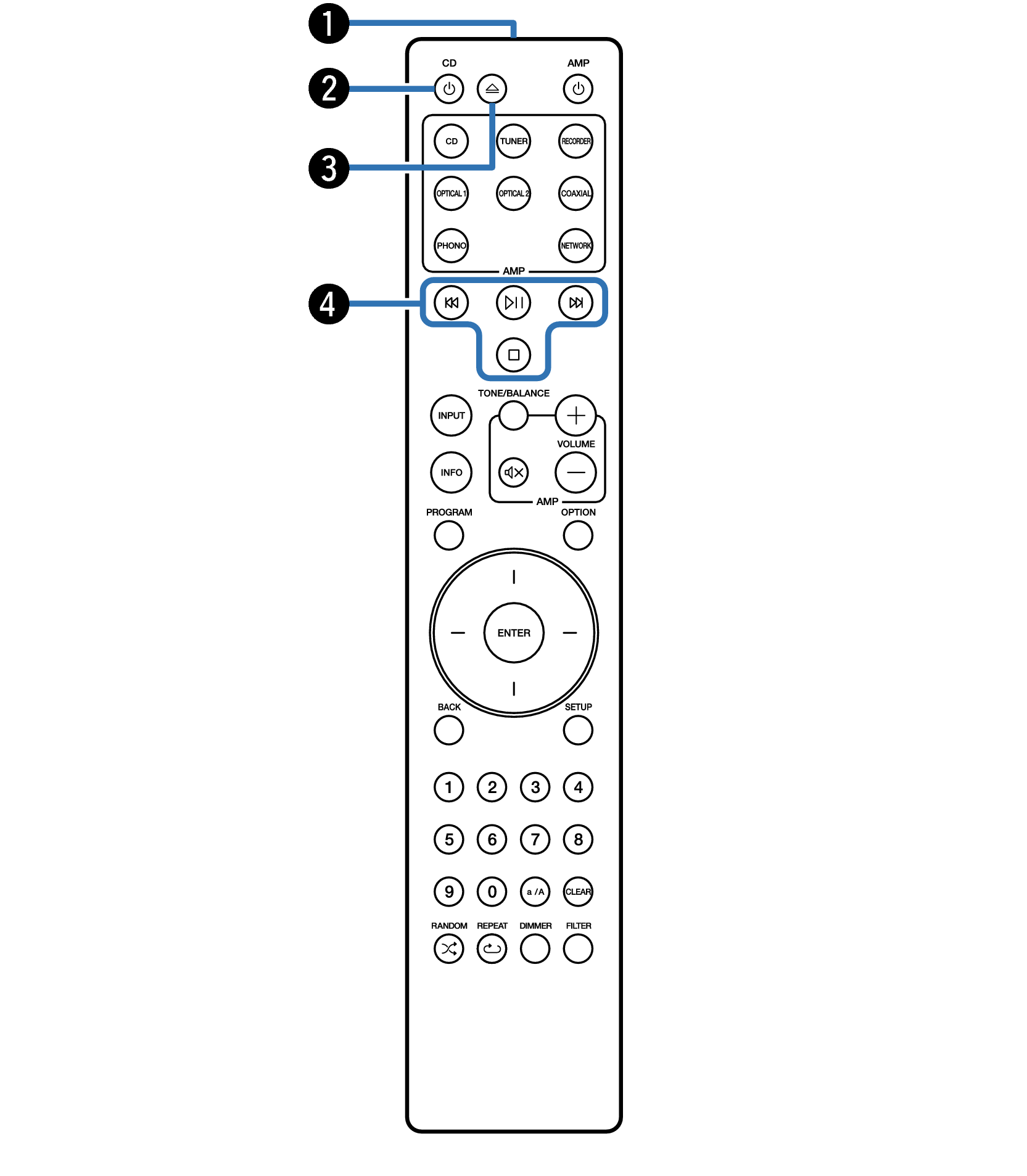

Operating this unit
Remote control signal transmitter
This transmits signals from the remote control unit. link
Power operation button (CD
)
This turns the power on/off (standby). link
Disc tray open/close button (
)
Opens and closes the disc tray. link

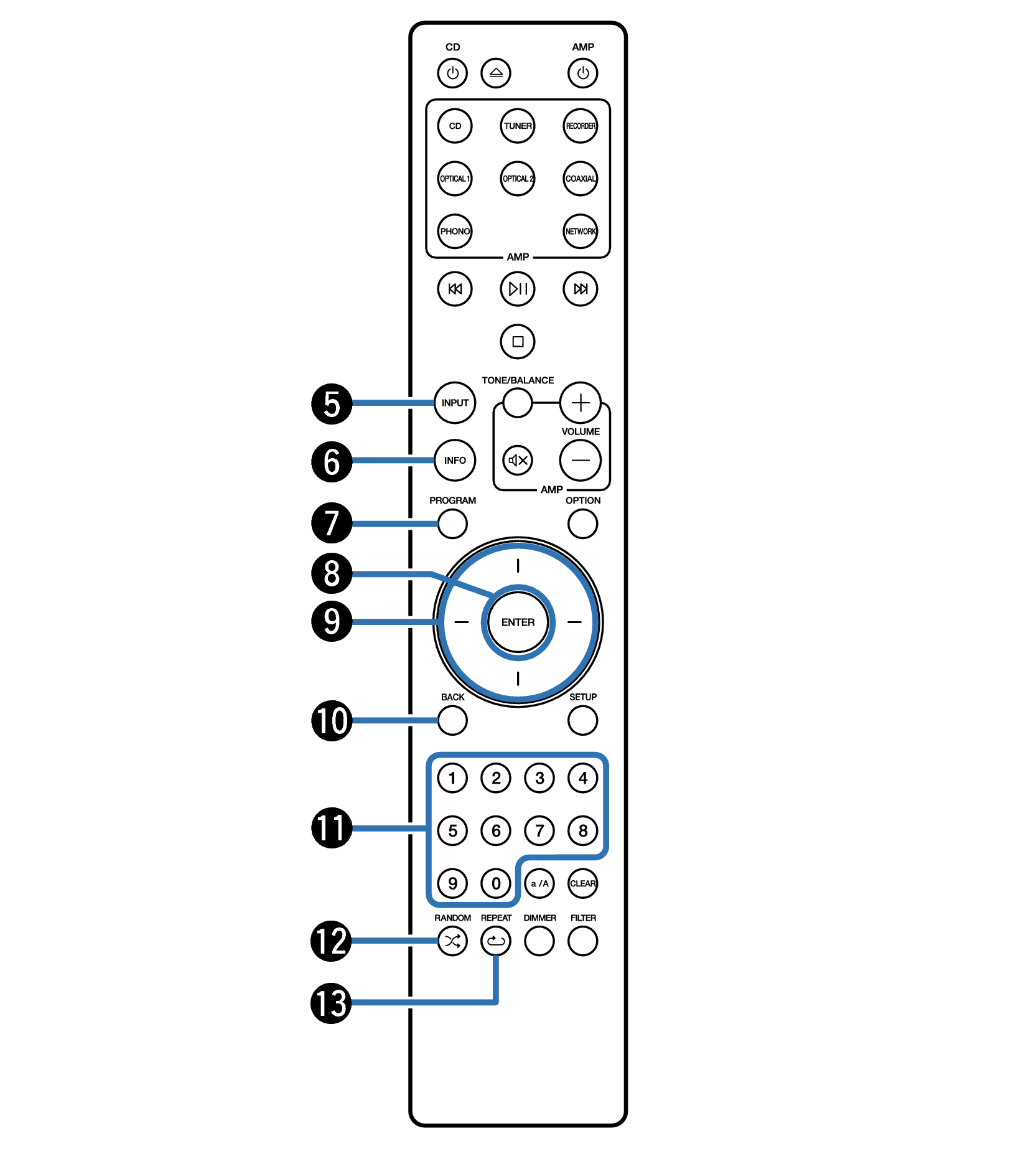

System buttons
These perform playback related operations.
Media mode select button (INPUT)
Used to select the playback source. link
Information button (INFO)
This switches the track information shown in the display during playback.
PROGRAM button
This sets program playback. link
ENTER button
This determines the selection.
Cursor buttons
These select items.
BACK button
Returns to the previous item.
Number buttons (0 – 9)
These enter numbers into the unit.
RANDOM button (
)
Switches the random playback.
REPEAT button (
)
Switches to the repeat playback.

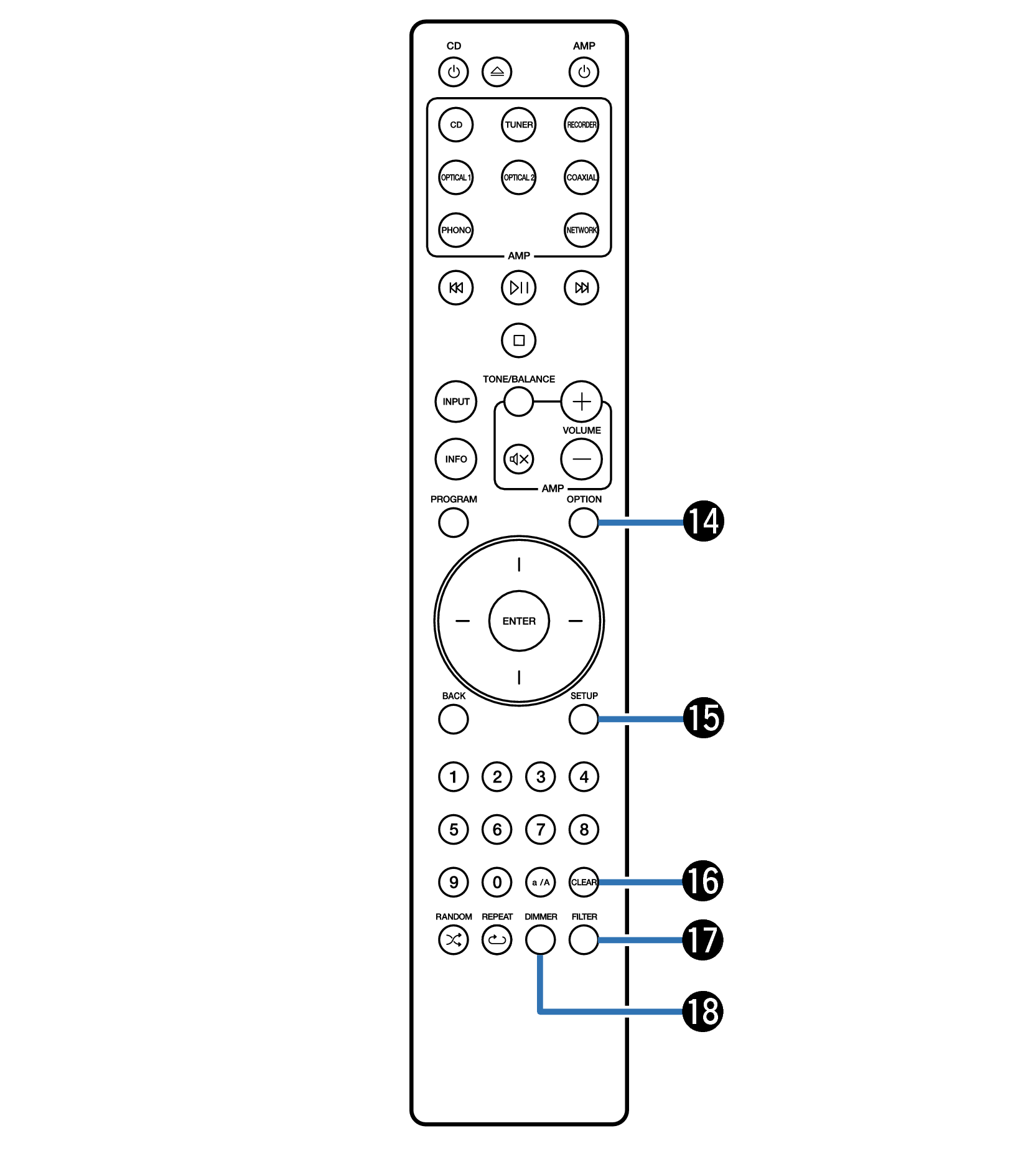

OPTION button
Selects the playback range of the data CD. link
Selects the playback range of the USB flash drive. link
SETUP button
This displays the setting menu on the display. link
CLEAR button
This clears the program registration. link
FILTER button
This switches the filter characteristics. link
DIMMER button
This switches the brightness of the display. link

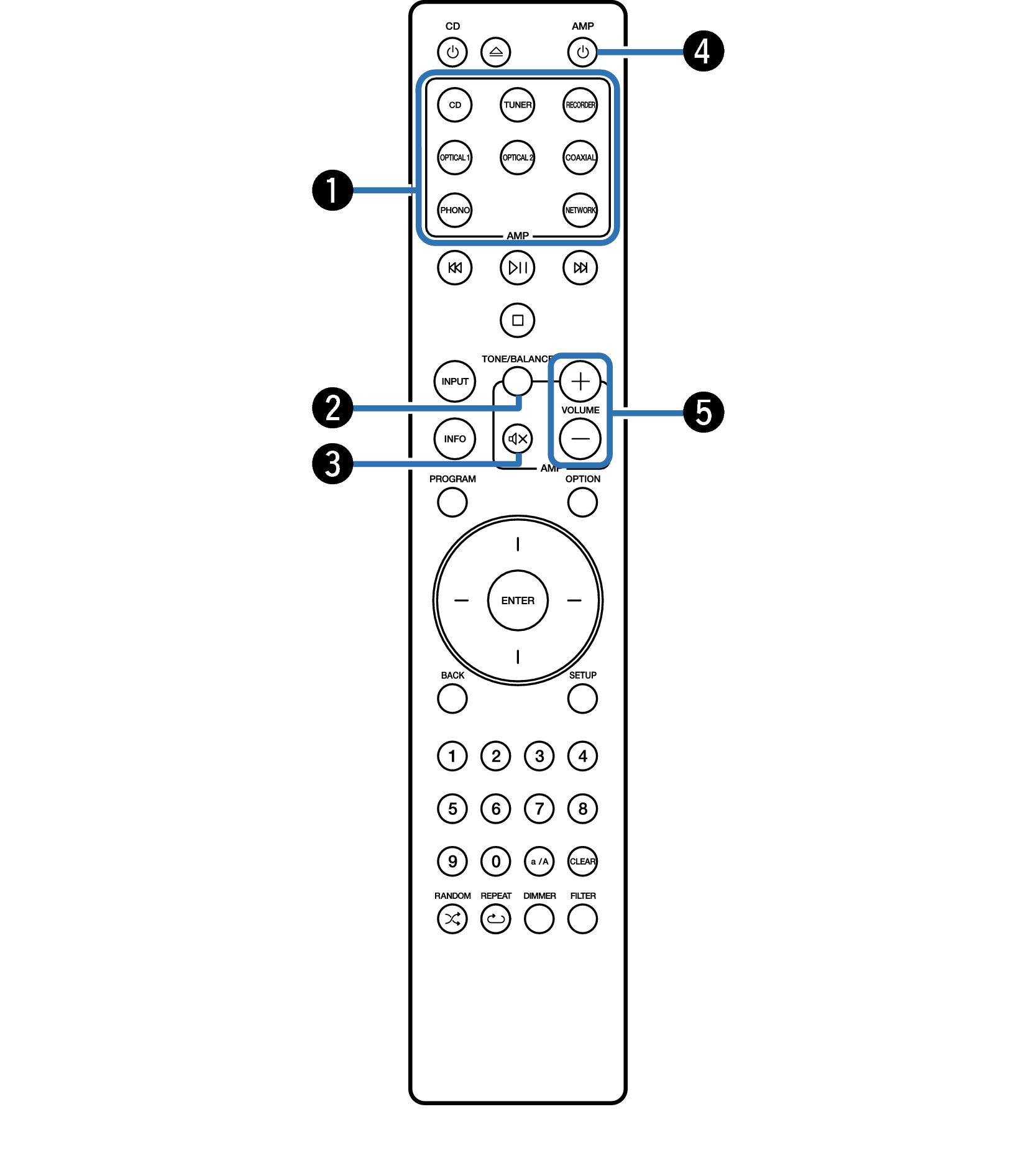

Amplifier operations
A Marantz amplifier can be operated.
Input source select buttons
TONE/BALANCE button
Mute button (
)
Power operation button (AMP )
VOLUME buttons (
)
The remote control may not operate some products.
