Connecting 9.1-channel speakers: Second pair of front speakers

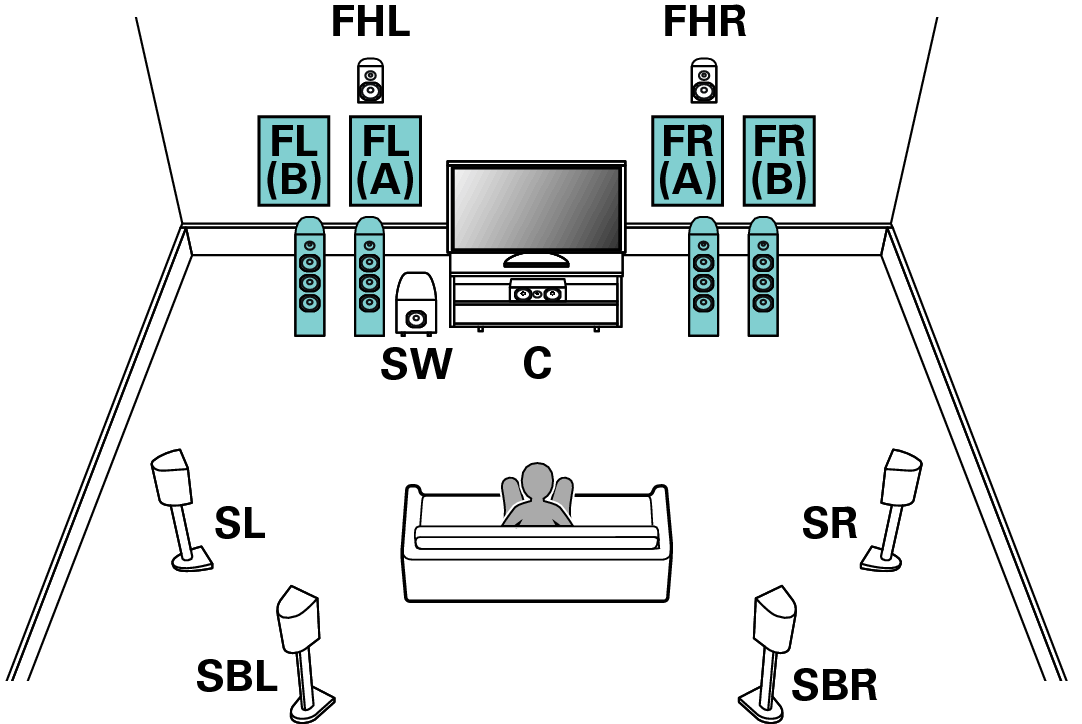

This system enables switching playback between front speakers A and B as desired.
Up to 11.2-channels can be connected by using either UNBALANCED RCA connectors or BALANCED XLR connectors.

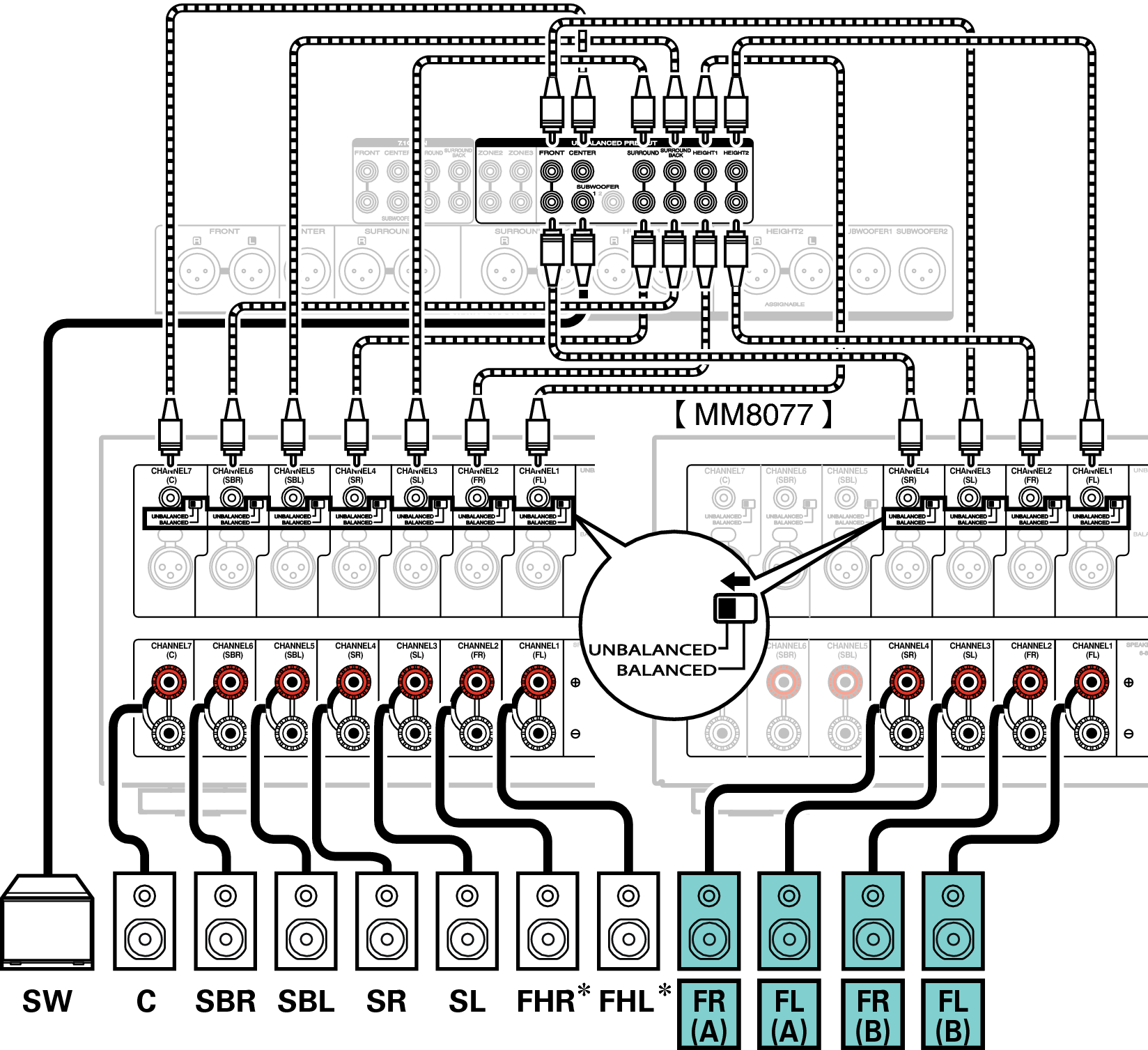

This example explains how to make a connection when using UNBALANCED RCA connectors.
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. link
