Connecting 11.1-channel speakers: Second pair of front speakers

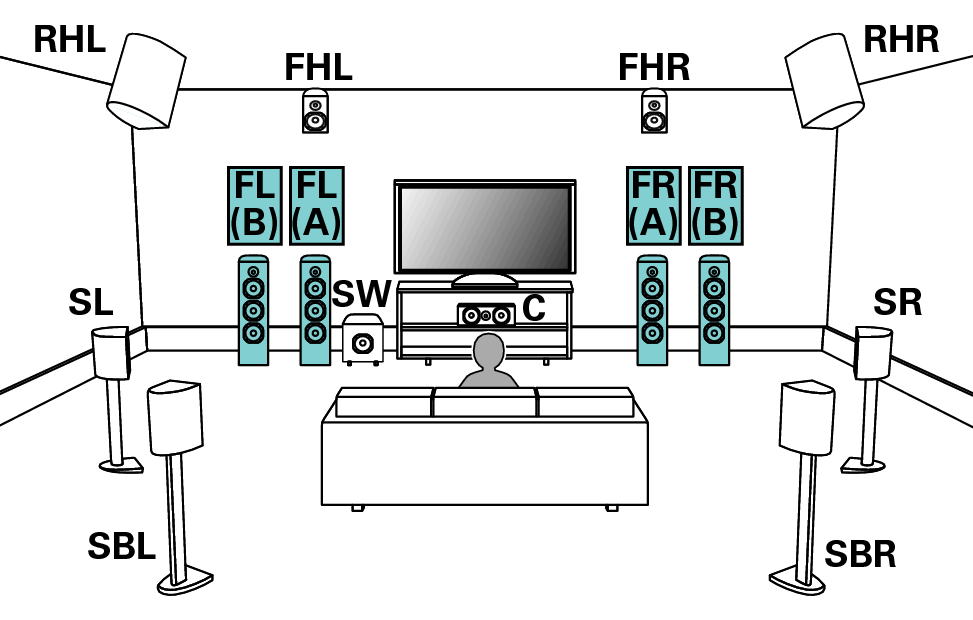

This system enables switching playback between front speakers A and B as desired.

Pict SP Layout 11.1 FB

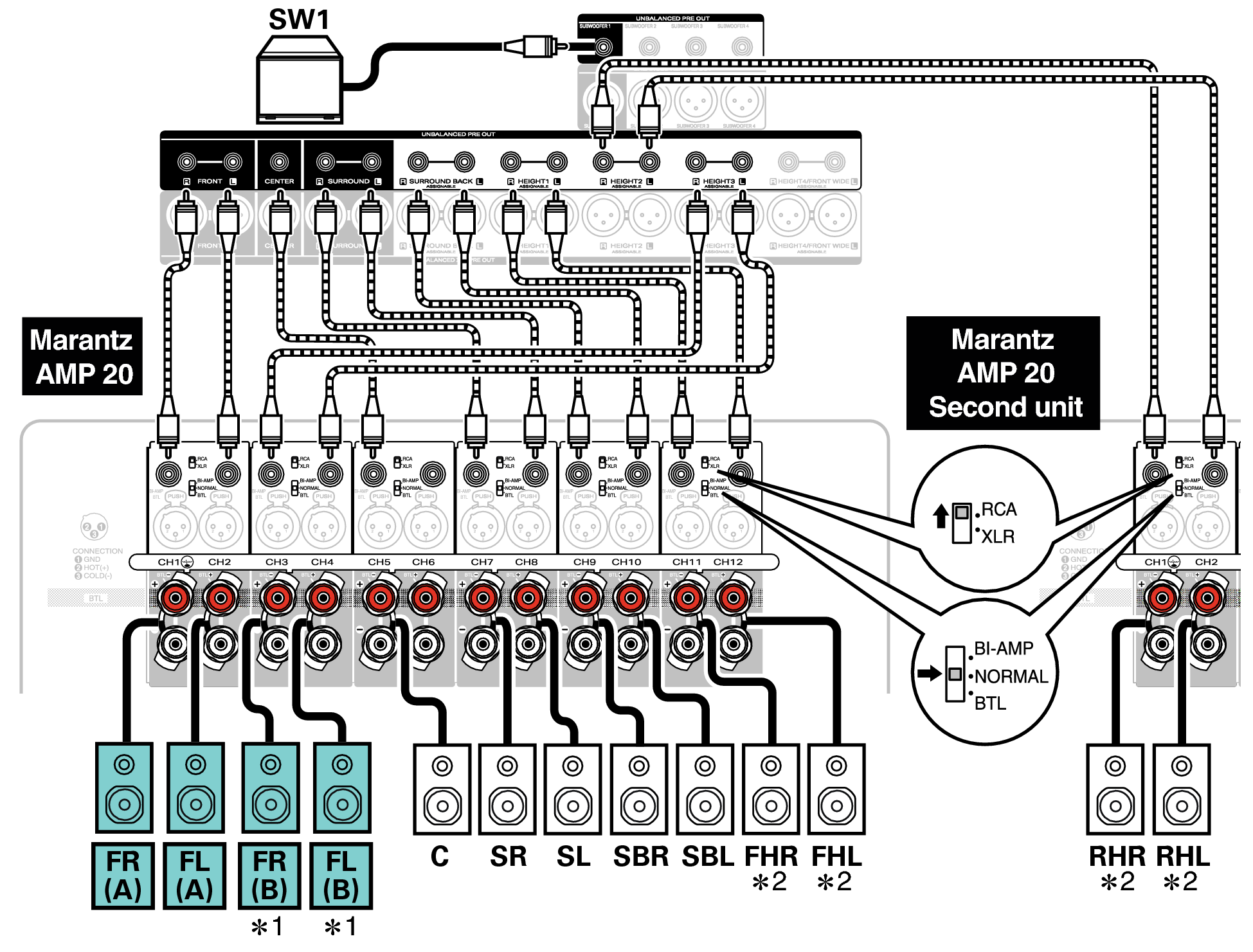

Bracket Open Example Bracket Close  UNBALANCED RCA connector connection

Conne SP 11.1 FB AV20

The PRE OUT connectors for connecting to the second front speakers vary depending on the main zone layout. Refer to “Speaker Layout” in the menu. link

The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1, HEIGHT2 and HEIGHT3 RCA connectors or HEIGHT1, HEIGHT2 and HEIGHT3 XLR connectors. Set the speaker to be connected from “Speaker Layout” in the menu. link
