Rear panel

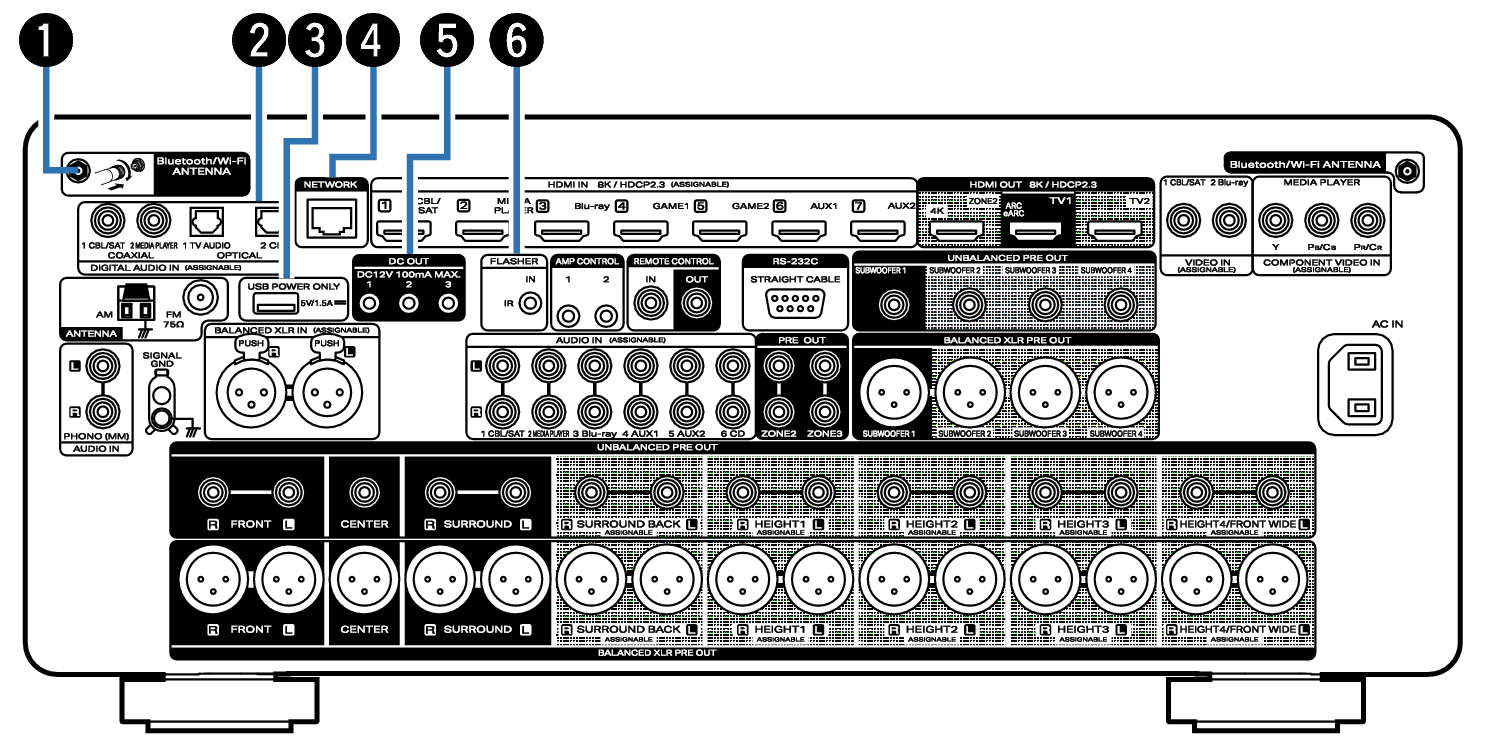

Name Rear Small1 AV20U

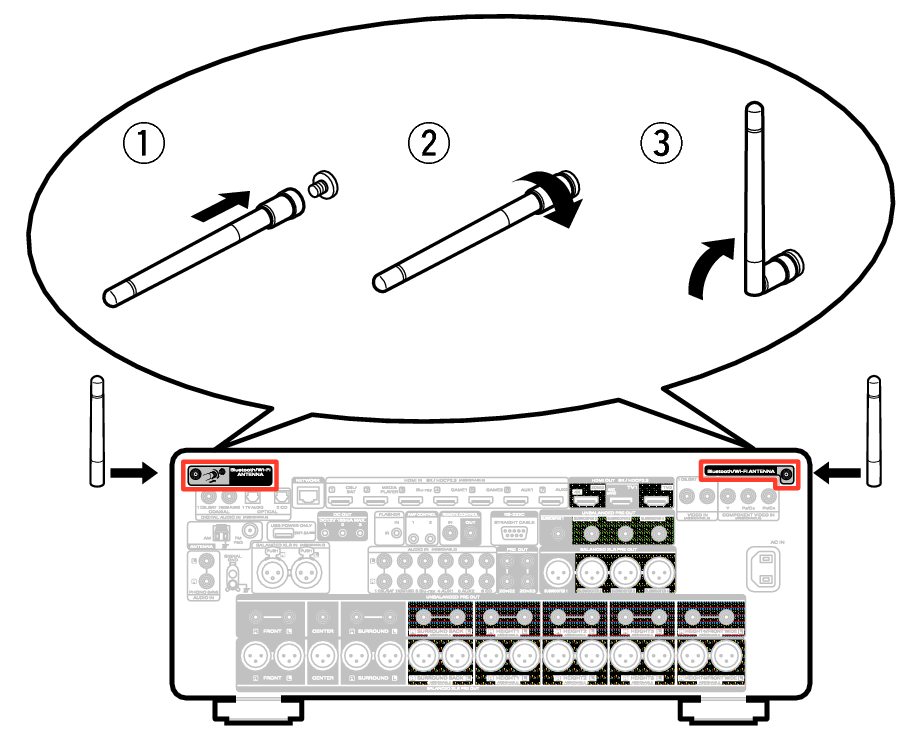

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle AV20U

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARClink

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a media playerlink

USB port (POWER SUPPLY)

Can be used to power streaming media players, etc.

Use a device’s supplied AC adapter when a power supply of 5 V/1.5 A or more is required.

Connect to the USB port on the front panel to play content from a USB memory device.

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

DC OUT jacks

Used to connect devices equipped with the trigger function. link

FLASHER IN jack

Used to connect commercially available (sold separately) IR repeaters. link

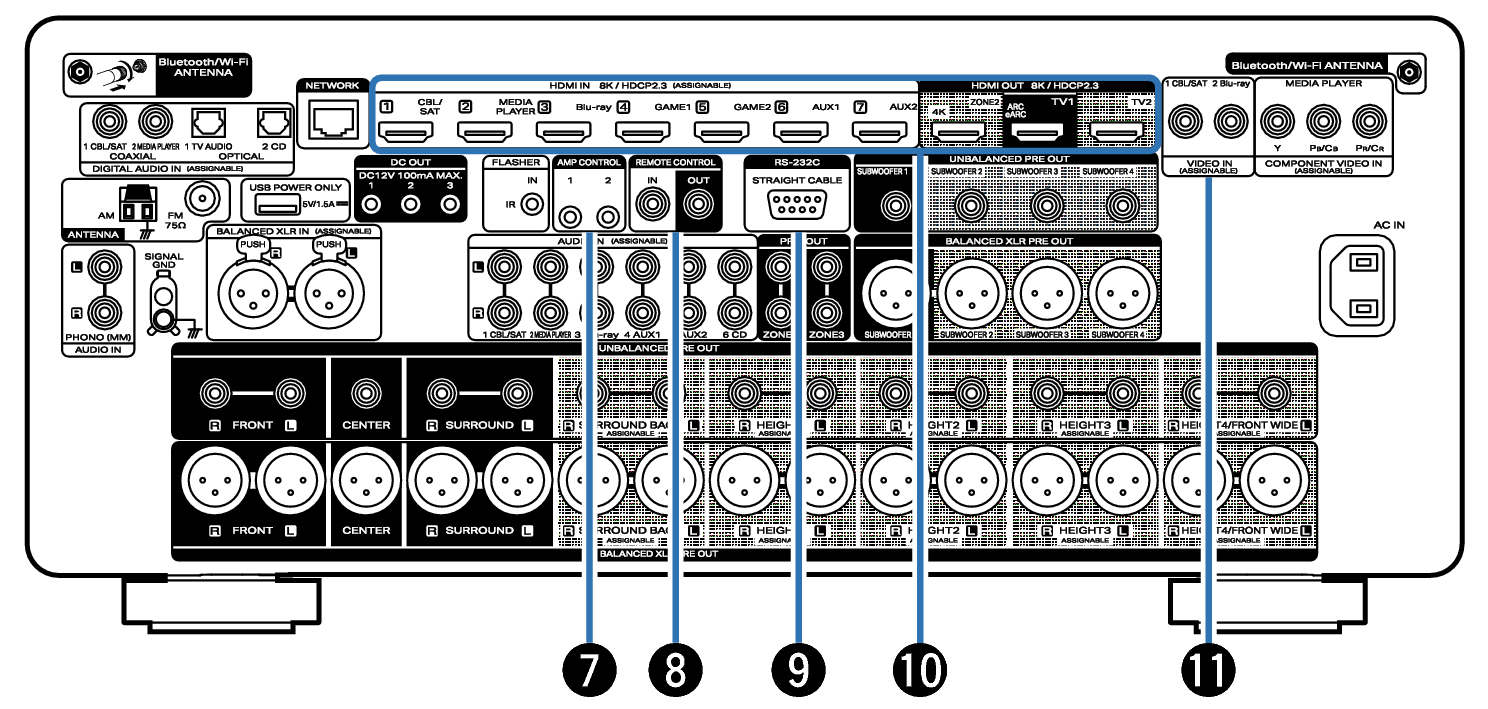

Name Rear Small2 AV20U

AMP CONTROL jacks

Used to connect a Marantz power amp that is equipped with AMP CONTROL terminals. You can turn this unit on/standby or change the brightness of the display in conjunction with the power amp. link

REMOTE CONTROL jacks

Used to connect a Marantz product that is equipped with REMOTE CONTROL terminals. Use this when you want to control this unit with a remote control. link

RS-232C connector

Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.

Perform the operation below beforehand.

Turn on the power of this unit.
Turn off the power of this unit from the external controller.
Check that the unit is in the standby mode.

HDMI connectors

Used to connect devices equipped with HDMI connectors.

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARClink

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARClink

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a media playerlink

Connecting a Blu-ray Disc player or DVD playerlink

Connecting a game console or player device compatible with 8Klink

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a Blu-ray Disc player or DVD playerlink

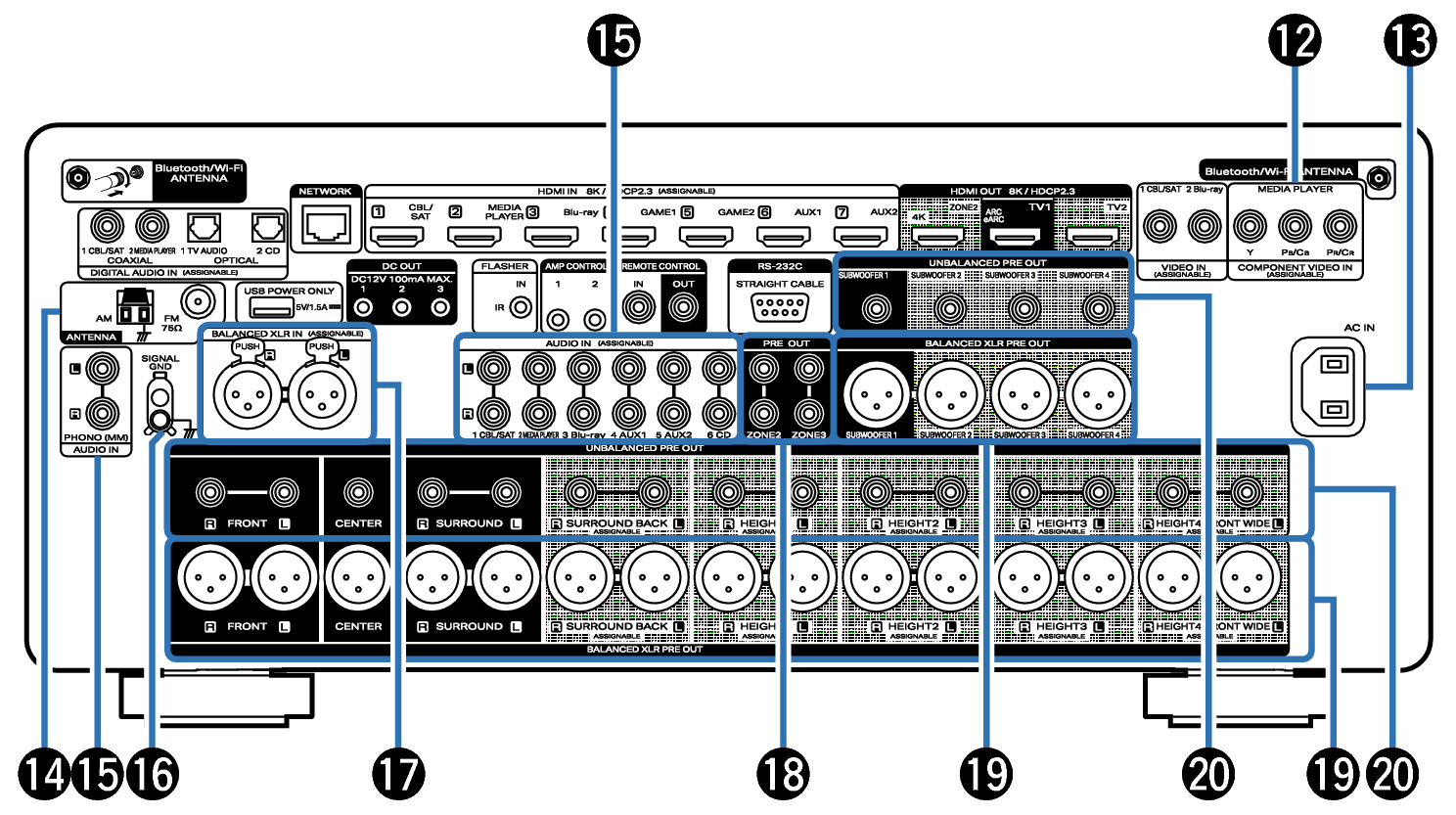

Name Rear Small3 AV20U

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors.

Connecting a media playerlink

AC inlet (AC IN)

Used to connect the power cord. link

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a media playerlink

Connecting a Blu-ray Disc player or DVD playerlink

Connecting a turntablelink

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

BALANCED XLR INPUT connectors

Used to connect a preamplifier with BALANCED XLR output connectors.

PRE OUT connectors

Used to connect an external power amplifier. link

BALANCED XLR PRE OUT connectors

Used to connect a power amp with BALANCED XLR input connectors. link

UNBALANCED RCA PRE OUT connectors

Used to connect a power amp with UNBALANCED RCA input connectors. link

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
