Remote control unit

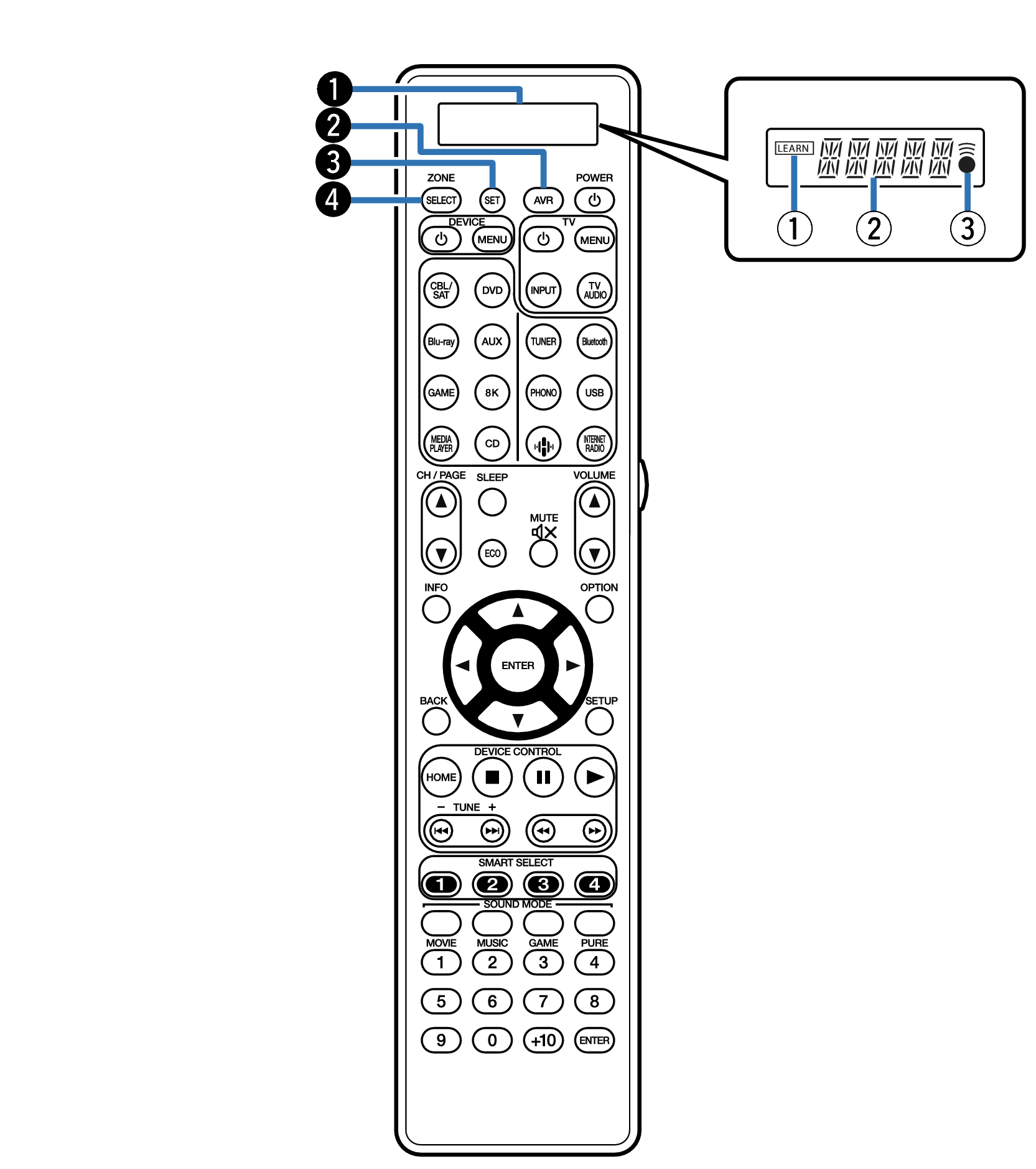

Name RC045-1

Display

LEARN indicator

This is lit when setting the learning function for the remote control unit. link

Information display

This displays “AVR” when operating this unit.

This displays the input source name when operating an external device.

This displays “TV” when operating TV.

RC indicator indicator

This is lit when signals are sent from the remote control unit.

AVR operation button

When preset codes are registered to the remote control unit, press this button and then operate the menu on the unit.

SET button

This is used for various settings on the remote control unit.

ZONE SELECT button

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.

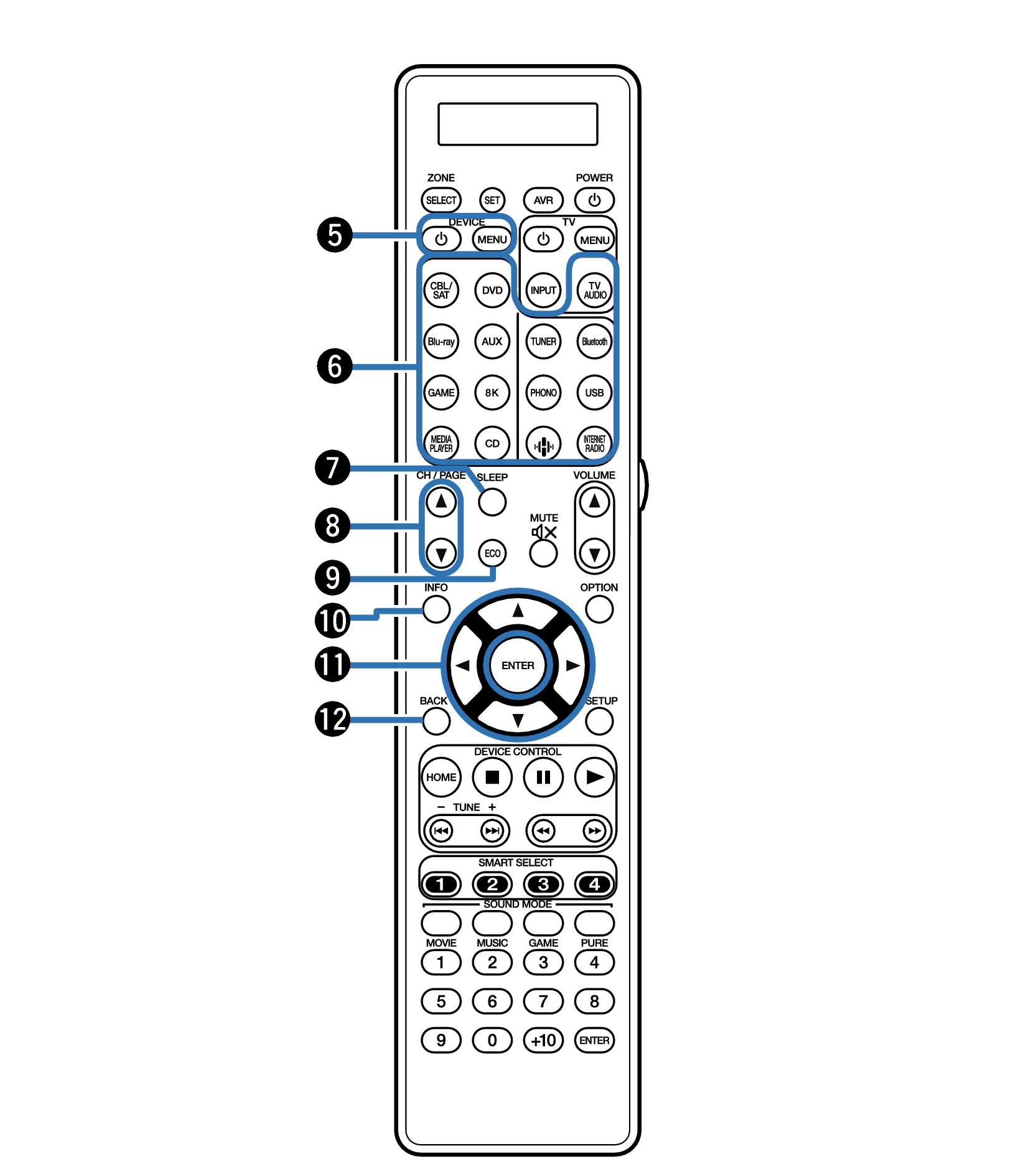

Name RC045-2

Device operation buttons (DEVICE  Power Button  / DEVICE MENU)

These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link

Input source select buttons

These select the input source.

SLEEP button

This sets the sleep timer. link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link

ECO Mode button

This switches to ECO Mode. link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items.

BACK button

This returns to the previous screen.

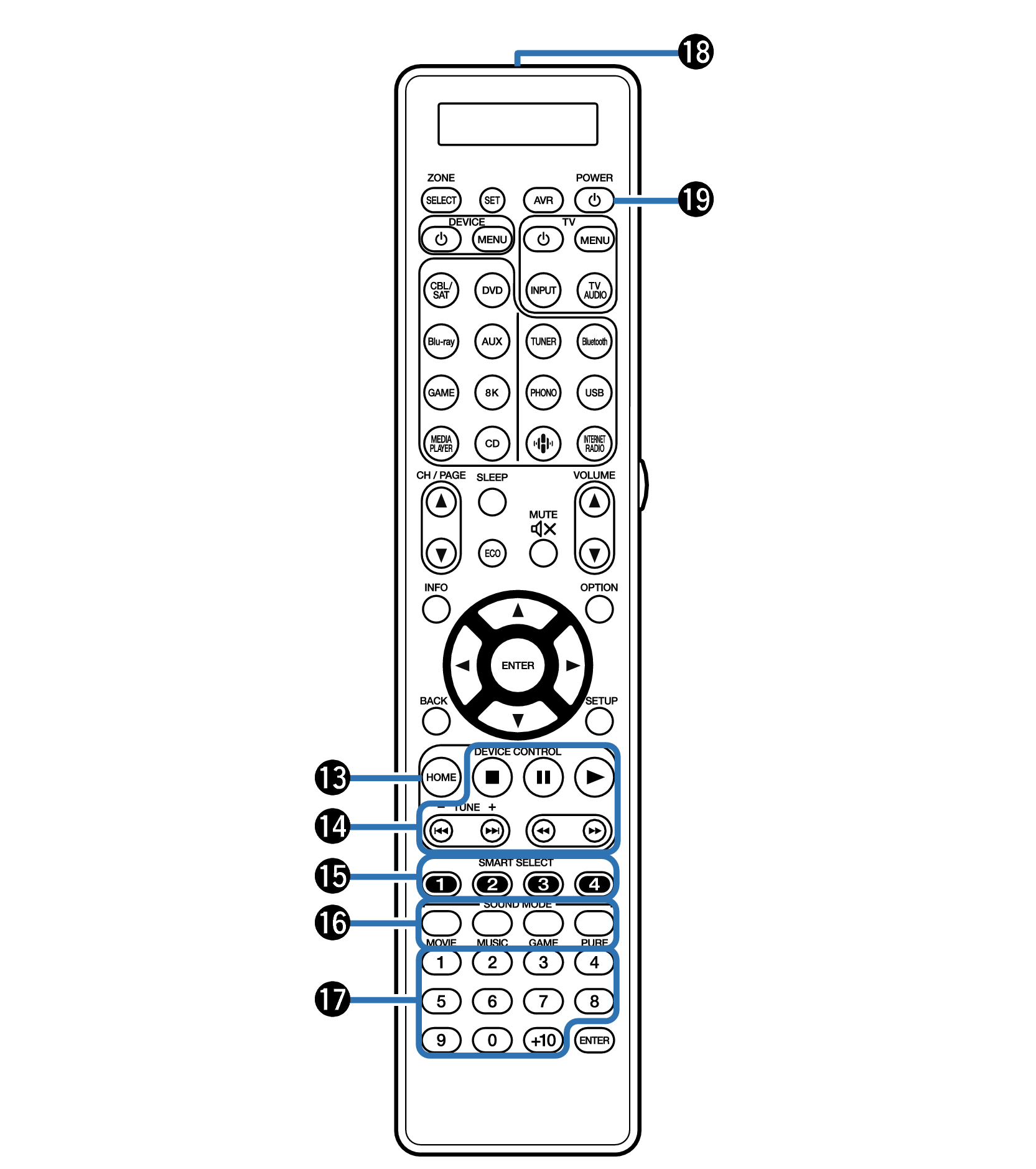

Name RC045-3

HOME button

This takes you to the Home screen (Top screen) when the input source is “HEOS Music”. link

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

SMART SELECT buttons (1 - 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

Number buttons

These enter numbers into the unit. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

POWER button ( Power Button )

This turns the power on/off.

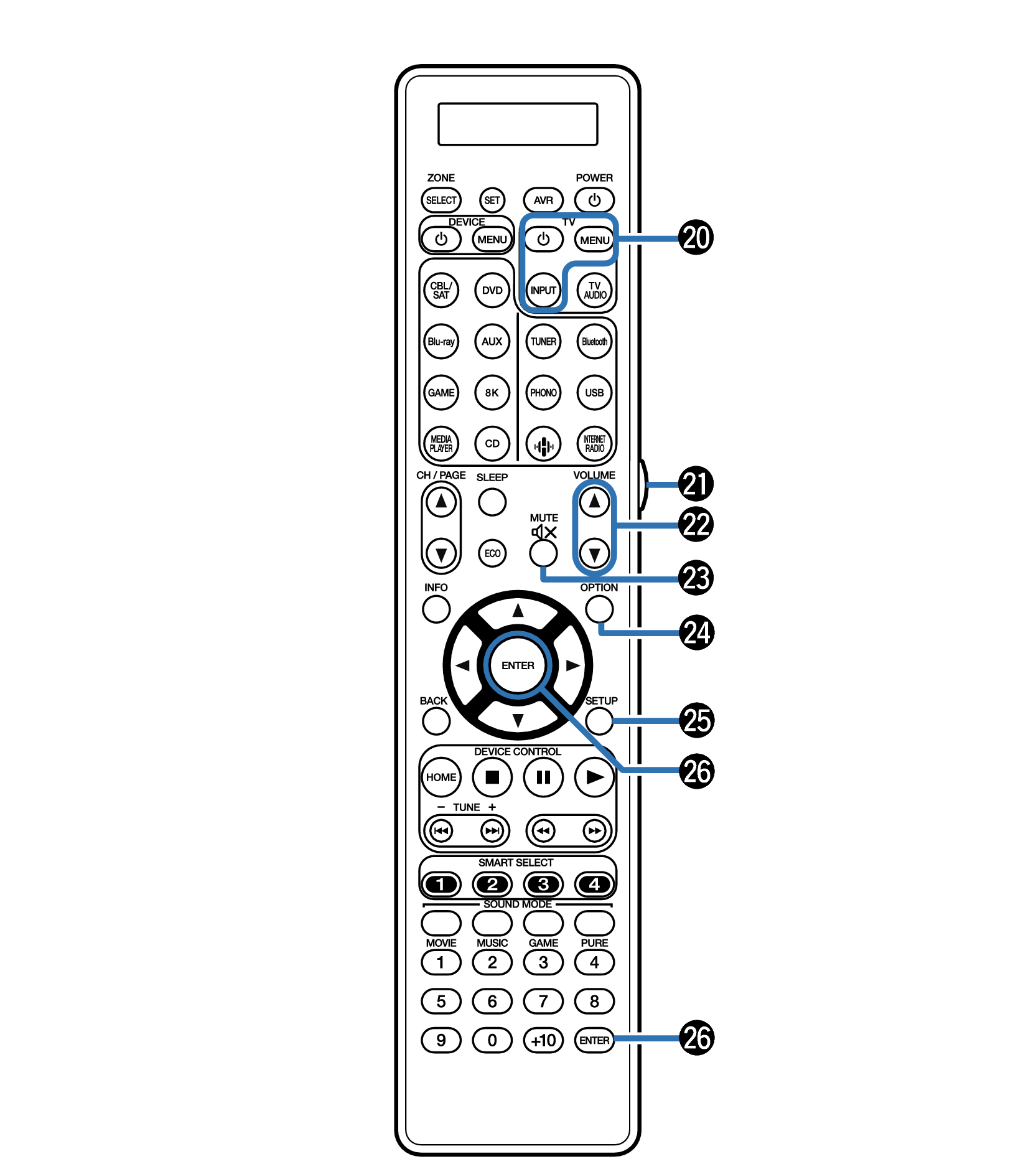

Name RC045-4

TV operation buttons (TV  Power Button  / TV MENU / TV INPUT)

These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link

Light button

This turns on the backlight for approx. 2 seconds. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume level.

MUTE button ( Silent )

This mutes the output audio.

OPTION button

This displays the option menu on the TV screen.

SETUP button

This displays the menu on the TV screen. link

ENTER button

This determines the selection.
