Front panel

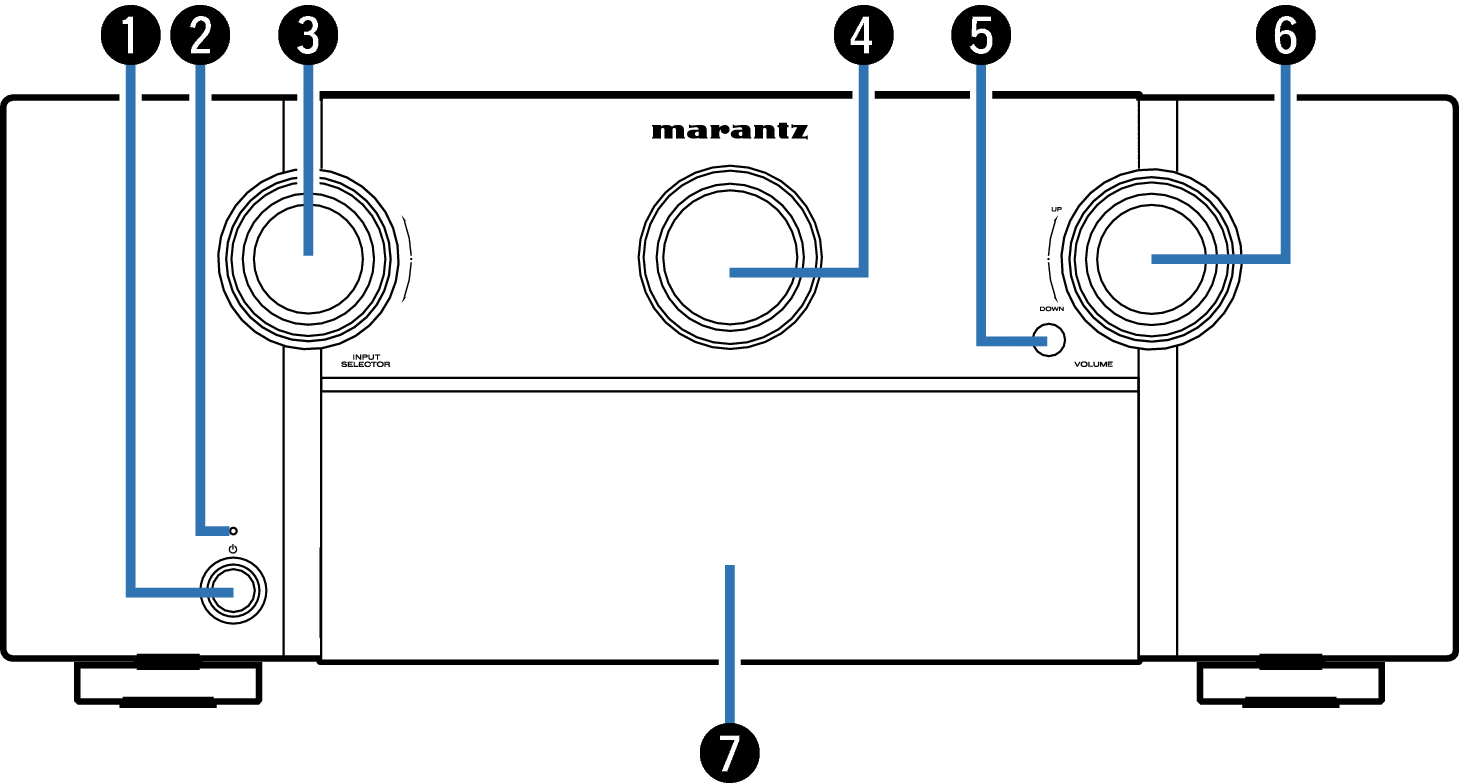

Name Front Small1 S85

Power operation button ( Power Button )

Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). link

Power indicator

This is lit as follows according to the power status:

Off: Power on

Red: Normal standby

Orange:

When “HDMI Pass Through” is set to “On”link

When “HDMI Control” is set to “On”link

When “Network Control” is set to “Always On” link

INPUT SELECTOR knob

This selects the input source. link

Main display

This displays various pieces of information. link

Remote control sensor

This receives signals from the remote control unit. link

VOLUME knob

This adjusts the volume level. link

Door

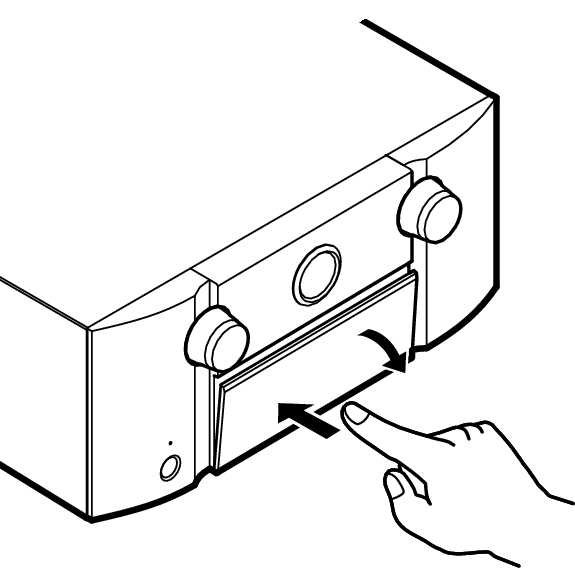

When you are using buttons and/or connectors behind the door, press the bottom of the door to open it. Be careful not to catch your fingers when closing the door.

Pict DoorOpen S82
