Speaker configuration and “Amp Assign” settings

This unit has a built-in 9-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback. link

Perform “Amp Assign” settings to suit the number of rooms and speaker configuration to be installed. link

Playback speaker in each zone

“Amp Assign” settings

Connection page

MAIN ZONE

ZONE2

5.1-channel playback

2-channel (Pre-out)

Can be set in all “Amp Assign” modes.

7.1-channel playback

7.1ch + ZONE2 (Default)

9.1-channel playback

9.1ch

11.1-channel playback

11.1ch

7.1-channel playback (bi-amp connection of front speakers)

7.1ch (Bi-Amp)

Second front speakers

7.1ch + Front B

7.1-channel playback

2-channel
(Speaker out)

7.1ch + ZONE2 (Default)

5.1-channel playback (bi-amp connection of front speakers)

2-channel
(Speaker out)

5.1ch (Bi-Amp) + ZONE2

The sound mode that can be selected varies according to the speaker configuration. See “Sound modes and channel output” link for the sound modes that are supported.

The following pages provide basic connection examples.

In addition to the connections described in p.link - link, this unit allows for various speaker connections with the “Amp Assign” setting.

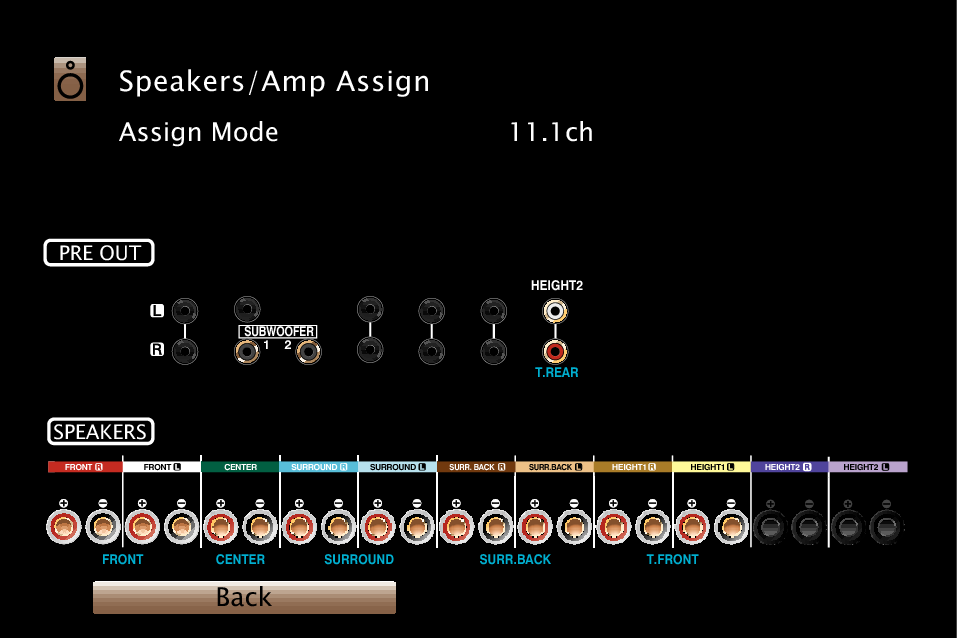

Also refer to the menu screen in “View Terminal Config.” on the “Amp Assign” setting screen, which shows how to make connections in your environment.

GUI ViewTerminalConfig S63U
