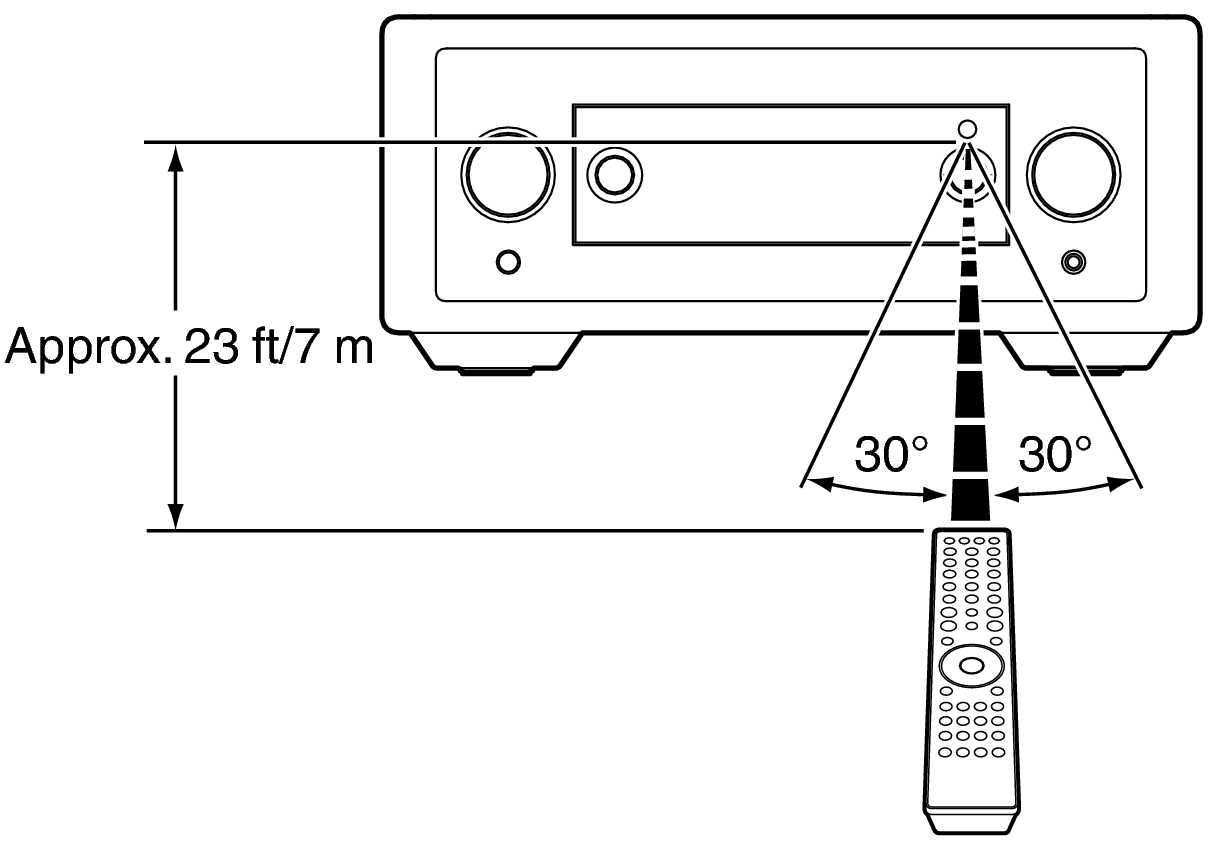

Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

Use RC LINK10nU
