With the door open

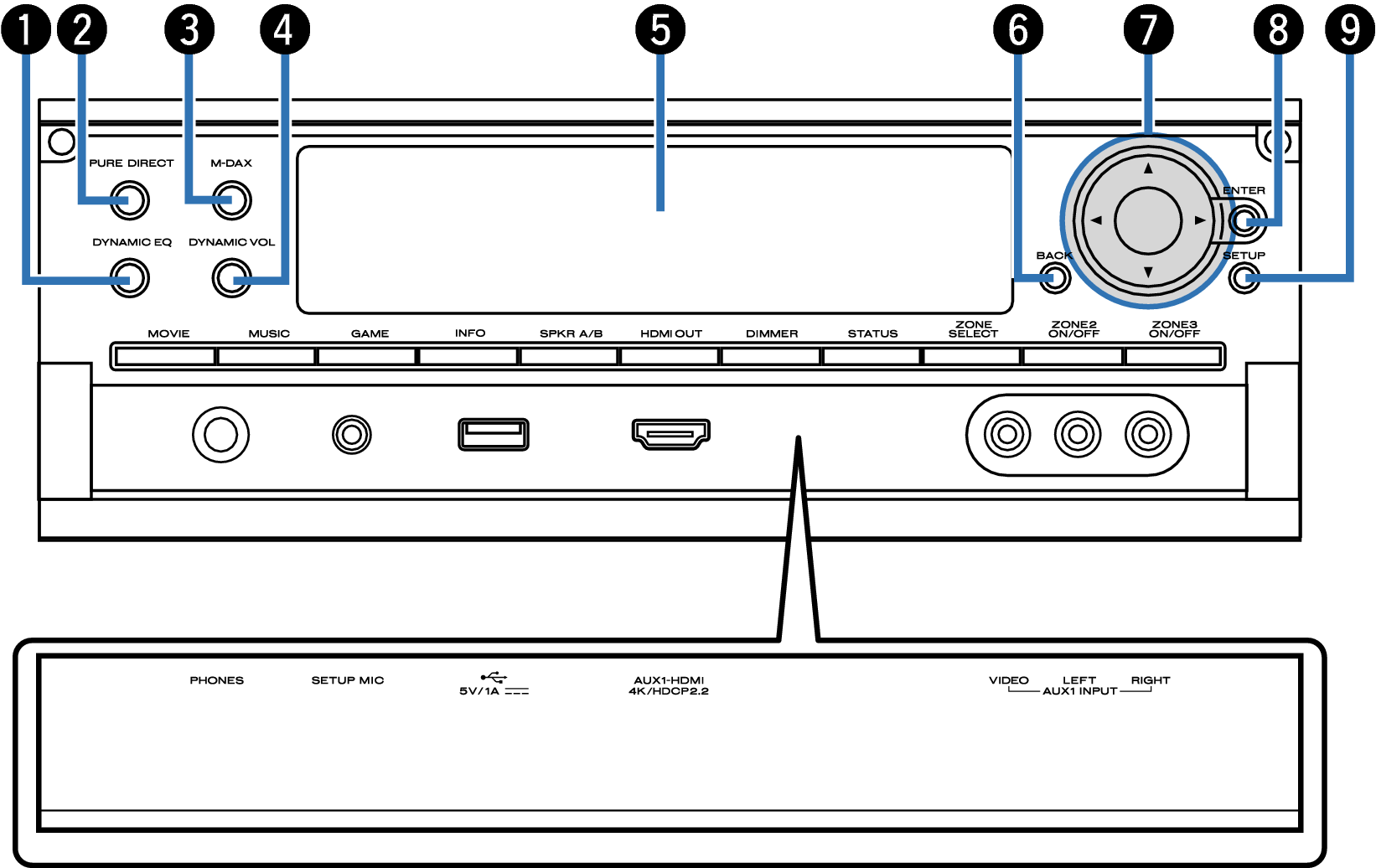

DYNAMIC EQ button

This switches the Dynamic EQ settings. link

PURE DIRECT button/indicator

This switches the sound mode between Direct, Pure Direct and Auto. link – link
This lights when the Pure Direct mode is selected as the sound mode.

M-DAX button/indicator

This enables the M-DAX mode. link
This lights when the M-DAX mode is selected.

Dynamic Volume button (DYNAMIC VOL)

This switches the Dynamic Volume settings. link

Sub display

This displays various pieces of information. link

BACK button

This returns to the previous screen.

Cursor buttons ( )

These select items.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. link

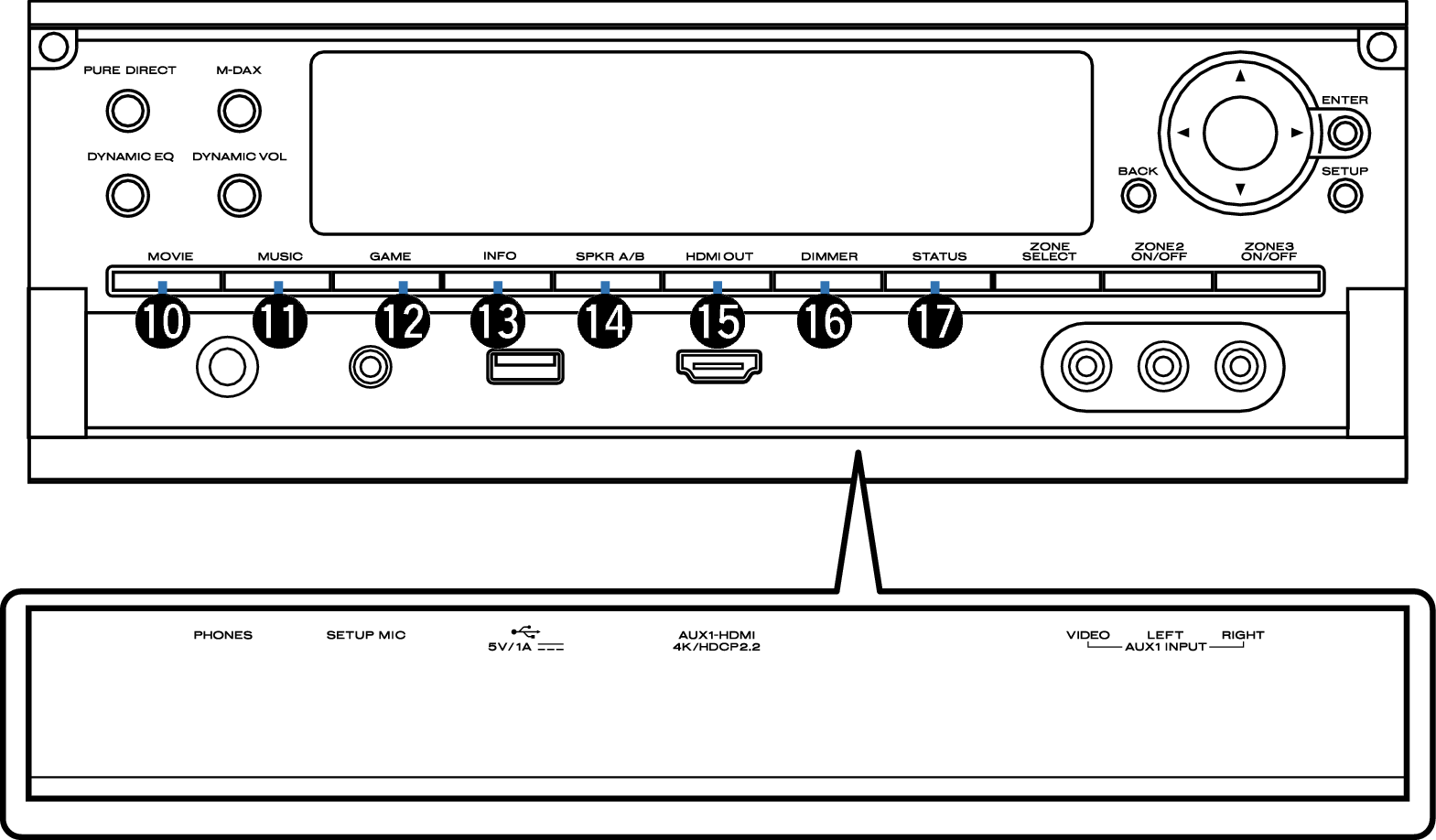

MOVIE button

This switches the sound mode to “Movie”. link

MUSIC button

This switches the sound mode to “Music”. link

GAME button

This switches the sound mode to “Game”. link

Information button (INFO)

This displays the status information on the TV screen. link

Speaker A/B switching button (SPKR A/B)

This sets the front speakers to use. link

HDMI OUT button

This sets the HDMI monitor output. link

DIMMER button

Each press of this switches the brightness of the display. link

STATUS button

Each press of this switches the status information that is shown on the display.

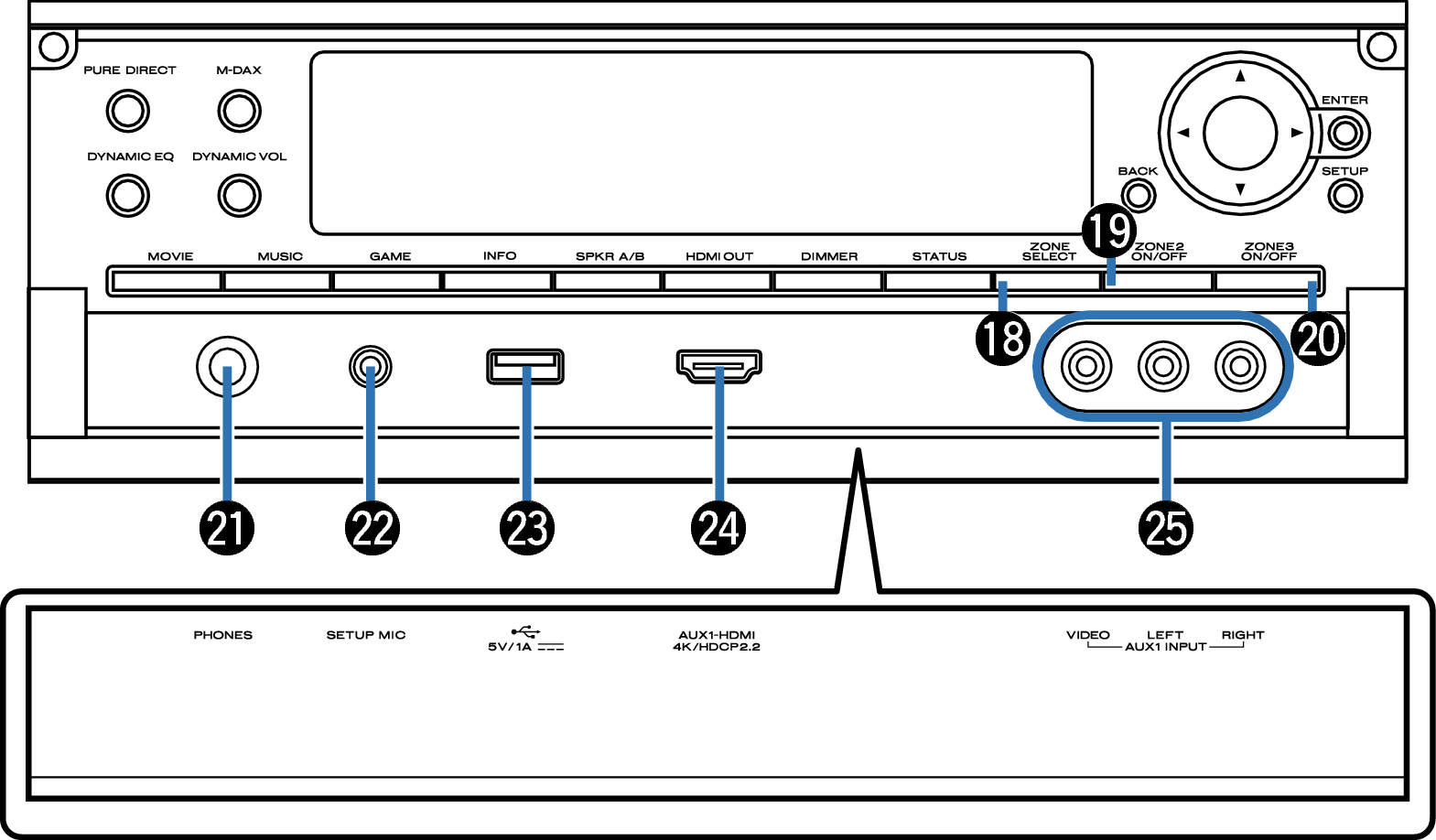

ZONE SELECT button

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. link, link

ZONE2 ON/OFF button

This turns the power of ZONE2 on/off. link

ZONE3 ON/OFF button

This turns the power of ZONE3 on/off. link

Headphones jack (PHONES)

This is used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. link

USB port ( )

This is used to connect USB storages (such as USB memory devices). link

AUX1-HDMI connector

This is used to connect HDMI output compatible devices such as video camcorders and game consoles. link

AUX1 INPUT connectors

Used to connect analog output compatible devices such as video camcorders and game consoles. link
