Connecting ZONE
You can use the following three methods to play back video and audio in ZONE2 and ZONE3.
“Connection through the HDMI ZONE2 connector” link
“Connection through the video output connector and speaker output connector” link
“Connection through the video output connector and external power amplifiers” link
Connection 1 : Connection through the HDMI ZONE2 connector
When a TV is connected to the HDMI ZONE2 OUT connector, you can play back a video or audio from the device connected to the HDMI 1 – 7 IN connector in ZONE2 (HDMI ZONE2 function).
When a TV is connected to the HDMI ZONE2 OUT connector, and the MAIN ZONE and ZONE2 are set to the same input source, the MAIN ZONE audio may be mixed down to 2-channel audio.

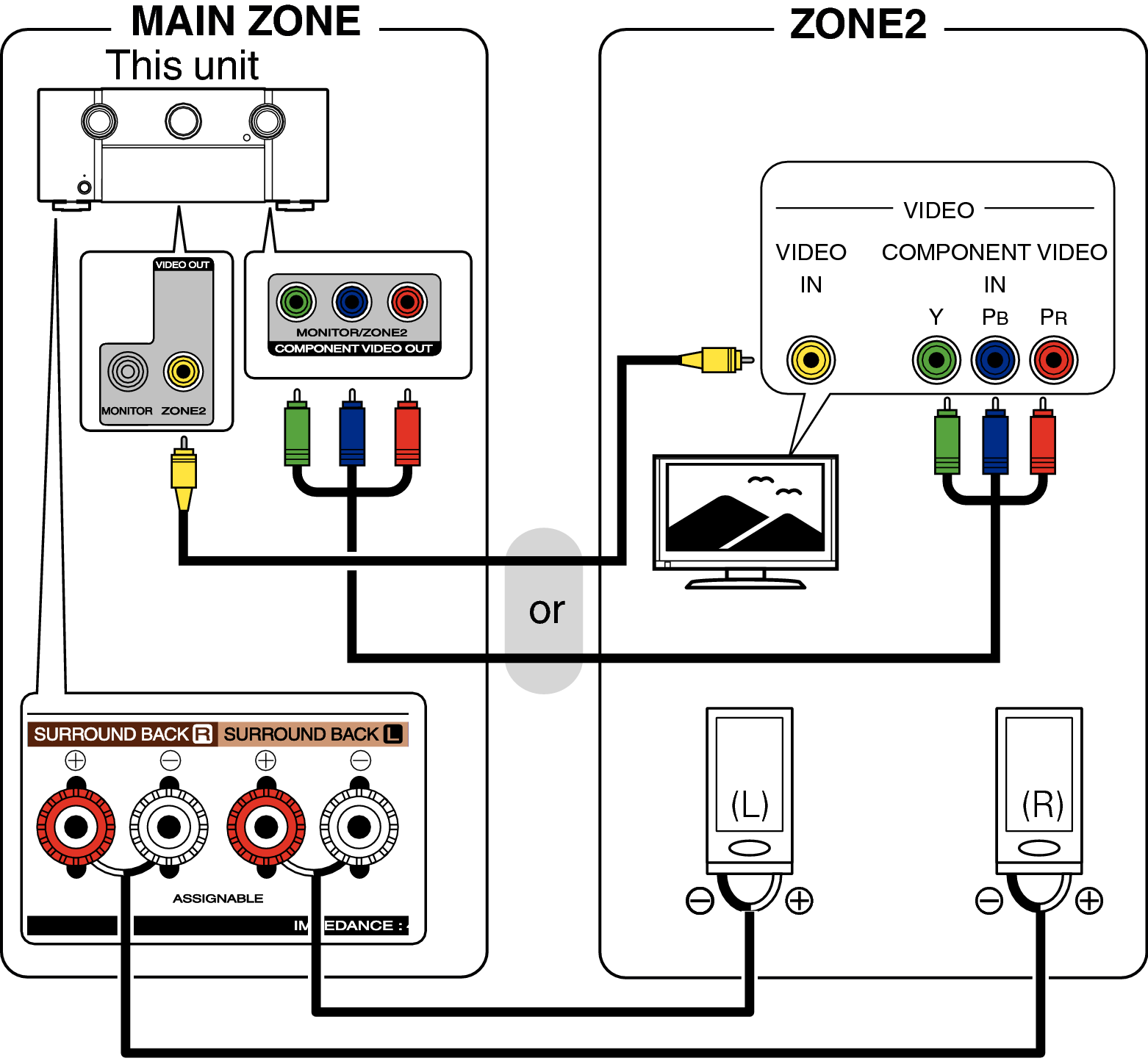

Connection 2 : Connection through the video output connector and speaker output connector
When “Assign Mode” in the menu is set to any of the following audio is output from speakers in ZONE2 or ZONE3. link
Assign Mode: 7.1ch + ZONE2
Assign Mode: 7.1ch + ZONE3
Assign Mode: 7.1ch + ZONE2/3-MONO

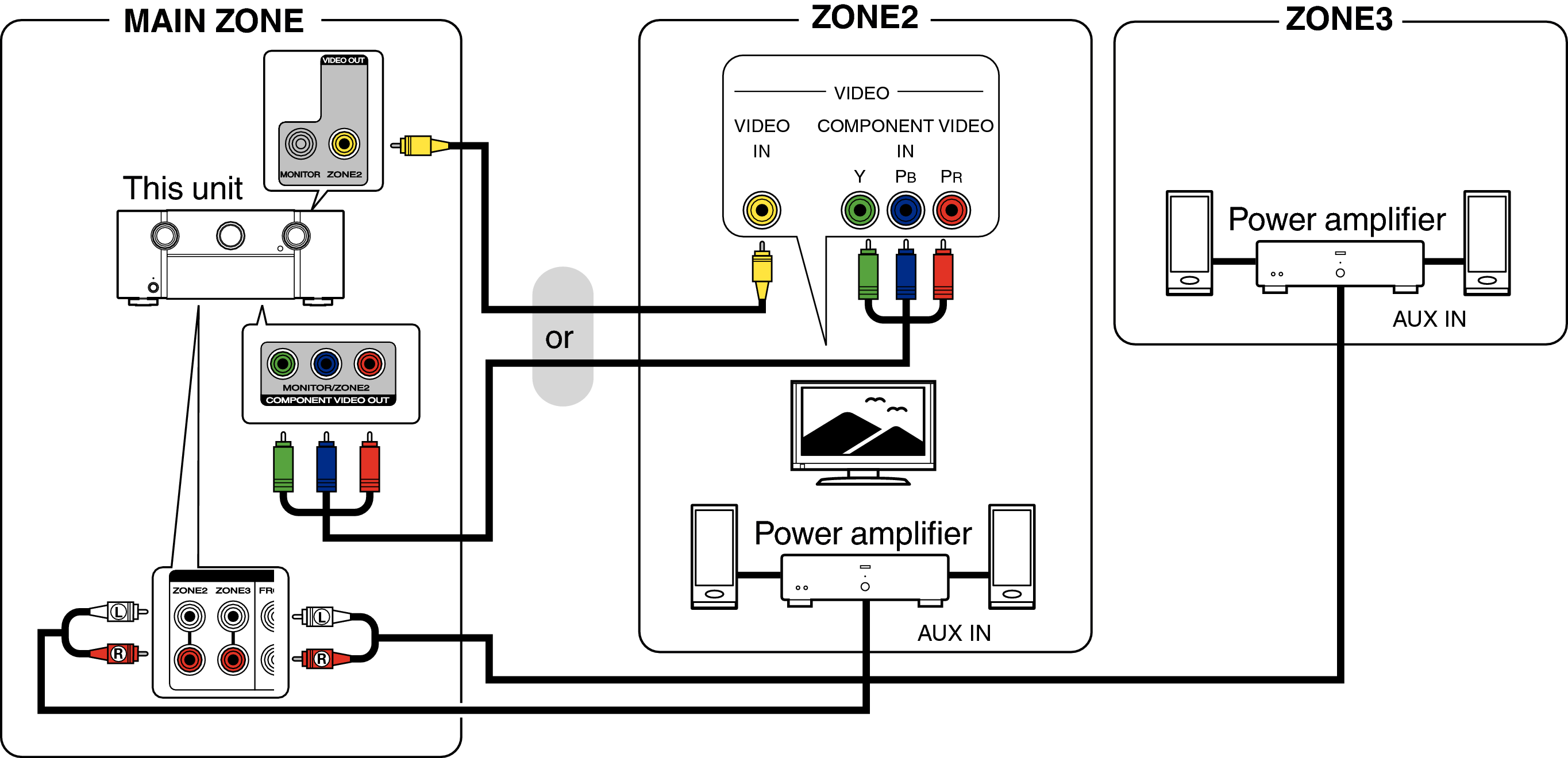

Connection 3 : Connection through the video output connector and external power amplifiers
The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers.
The analog audio signal and the 2-channel PCM signal input from HDMI connector or digital connectors (OPTICAL/COAXIAL) can be played back in ZONE2.
If you want to play back HDMI signals other than 2-channel PCM in ZONE2, set “HDMI Audio” to “PCM”. link 2-channel PCM signals are output from a device connected to the input source selected for ZONE2 and can be played back in ZONE2.
In this case, the MAIN ZONE audio will also be converted to 2-channel PCM signals if the MAIN ZONE and ZONE2 are set to the same input source. However, depending on the playback device, the playback signal may not be converted to PCM even if this setting is configured.
The analog audio signal and the 2-channel PCM signal input from digital connectors (OPTICAL/COAXIAL) can be played back in ZONE3.
When “Component Video Out” in the menu is set to “ZONE2”, the component video output connector outputs the ZONE2 video. link
The menu screen is not output in ZONE2.
