Auto surround playback
This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback.
Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.
Auto surround playback begins.
This can also be set by pressing PURE DIRECT on the main unit.
Description of sound mode types
Dolby sound mode
Sound mode type |
Description |
---|---|
Dolby Surround |
This mode uses Dolby Surround Upmixer to extend various sources to natural and realistic multi channels for playback. Use ceiling speakers such as top middle speakers to realize a three-dimensional sound field. |
Dolby Digital |
This mode can be selected when playing sources recorded in Dolby Digital. |
Dolby TrueHD |
This mode can be selected when playing sources recorded in Dolby TrueHD. |
Dolby Digital Plus |
This mode can be selected when playing sources recorded in Dolby Digital Plus. |
Dolby Atmos∗ |
This mode can be selected when playing back content encoded with Dolby Atmos. |
Can be selected when using the Surround Back, Front Wide, Front Height, Top Front, Top Middle, Top Rear, Rear Height, Front Dolby, Surround Dolby or Back Dolby speakers.
DTS sound mode
Sound mode type |
Description |
---|---|
DTS Surround |
This mode can be selected when playing sources recorded in DTS. |
DTS ES Dscrt6.1∗ |
This mode is suitable for playing discs recorded in DTS-ES. |
DTS ES Mtrx6.1∗ |
This mode is suitable for playing discs recorded in DTS-ES. |
DTS 96/24 |
This mode can be selected when playing sources recorded in DTS 96/24. |
DTS-HD |
This mode can be selected when playing sources recorded in DTS-HD. |
DTS Express |
This mode can be selected when playing sources recorded in DTS Express. |
DTS:X |
This mode can be selected when playing back content encoded with DTS:X. |
DTS Neural:X |
This mode uses DTS Neural:X Upmixer to extend various sources to natural and realistic multi channels for playback. |
This can be selected when “Speaker Config.” - “Surr. Back” is not set to “None”. link
Upgrade (Auro-3D)
Auro-3D sound mode
Sound mode type |
Description |
---|---|
Auro-3D |
This mode uses an Auro-3D decoder to create three-dimensional audio output using the Height Channel. It is ideal for playback of signals encoded as Auro-3D with a Height Channel. If signals not encoded as Auro-3D are input, an Upmixer called the Auro-Matic is used to create highly realistic three-dimensional audio output. |
Auro-2D Surround |
This mode uses an Auro-3D decoder to create Surround Sound without a Height Channel. It is ideal for playback of signals encoded as Auro-3D without a Height Channel. If signals not encoded as Auro-3D are input, an Upmixer called the Auro-Matic is used to output Surround Sound. |
PCM multi-channel sound mode
Sound mode type |
Description |
---|---|
Multi Ch In |
This mode can be selected when playing multi-channel PCM/DSD sources. |
Audyssey DSX® sound mode
Sound mode type |
Description |
---|---|
Audyssey DSX® (A-DSX)∗ |
This mode creates playback for the new channels (front wide or front height) in 5.1-channel systems. By adding front wide or front height channels, the surround sound effects sound become more three dimensional and realistic. |
This can be selected when a setting other than “None” is selected for “Front Height” or “Front Wide”, and a setting other than “None” is selected for “Center” in “Speaker Config.”. link
Original sound mode
Sound mode type |
Description |
---|---|
Multi Ch Stereo |
This mode is for enjoying stereo sound from all speakers. |
Virtual |
This mode lets you experience an expansive surround sound effect when playing back through just the front (L/R) speakers only, and when listening with stereo headphones. |
Auto sound mode
Sound mode type |
Description |
---|---|
Auto |
In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Atmos, DTS, DTS-HD, DTS:X, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode. |
Stereo sound mode
Sound mode type |
Description |
---|---|
Stereo |
This mode plays 2-channel stereo audio with no additional surround sound processing. Sound is output from the front left and right speakers, and subwoofer if connected. When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no additional surround sound processing. |
Direct sound mode
Sound mode type |
Description |
---|---|
Direct |
This mode plays back audio as recorded in the source. |
Pure Direct |
This mode plays back an even higher quality sound than the “Direct” mode. Display indicator circuit of the main body (display will go off.) The analog video input/output switcher and processor is disabled. |

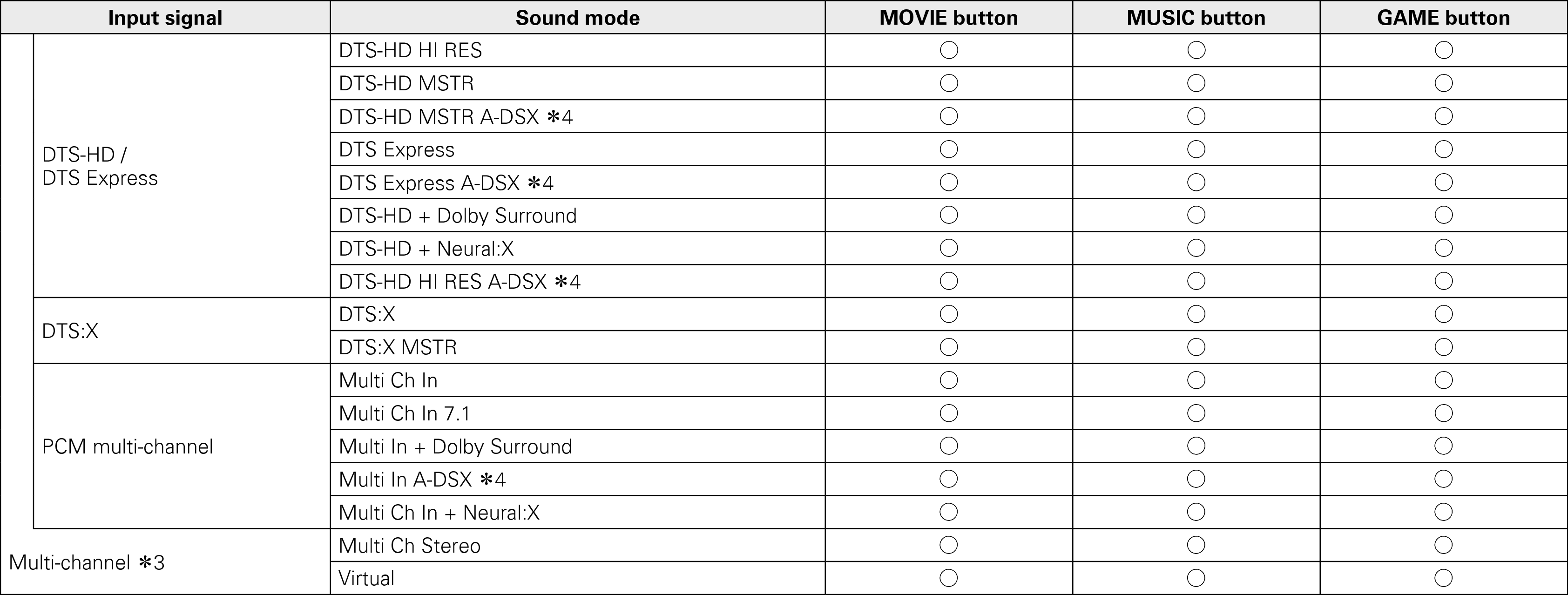

Sound mode that can be selected for each input signal
The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.
Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. link
2-channel also includes analog input.
This mode plays back 2-channel sources in 5.1, 7.1, 9.1 or 11.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.
The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.
These modes add new channels to 5.1-channel surround using Audyssey DSX® processing. link
This can be selected when the input signal does not contain Dolby Atmos.
This can be selected when the input signal contains Dolby Atmos.
The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.
These modes add new channels to 5.1-channel surround using Audyssey DSX® processing. link
Upgrade (Auro-3D)
2-channel also includes analog input.
The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.
It cannot be selected when headphones are used, or when a speaker configuration without front height speakers is used.
It cannot be selected when headphones are used, or when only front speakers are used.
Views on the display
Shows a decoder to be used.
In the case of the Dolby Digital Plus decoder, “Dolby D +” is displayed.
Shows a decoder that creates sound output.
“ ” indicates that the Dolby Surround decoder is being used.
