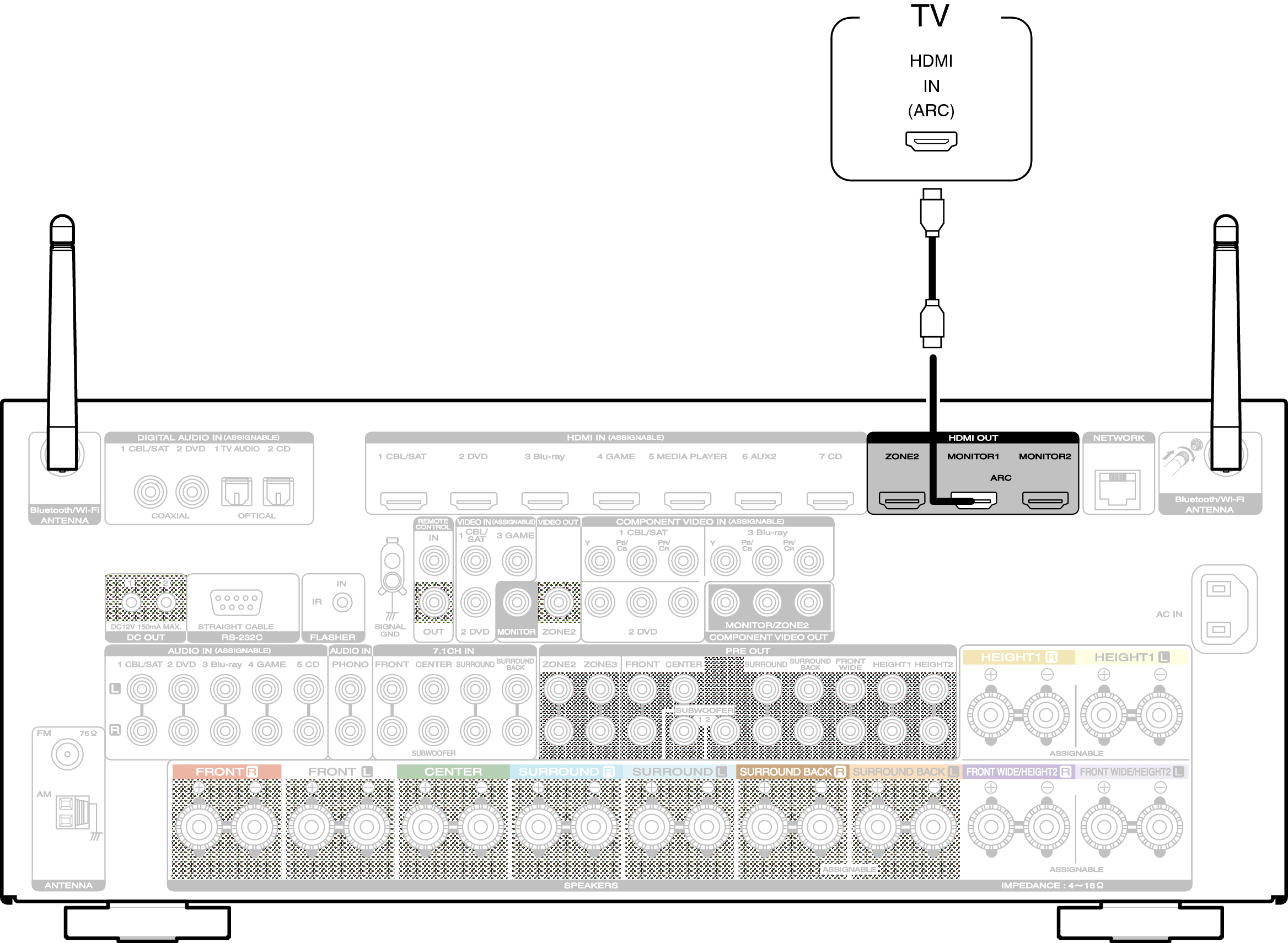

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel)

Use an HDMI cable to connect a TV that is compatible with the ARC function to this unit.

Set “HDMI Control” to “On” when using a TV that supports the ARC function. link

Conne HDMITV1 SR7009N

When using the HDMI control function, connect to the HDMI MONITOR 1 connector.
