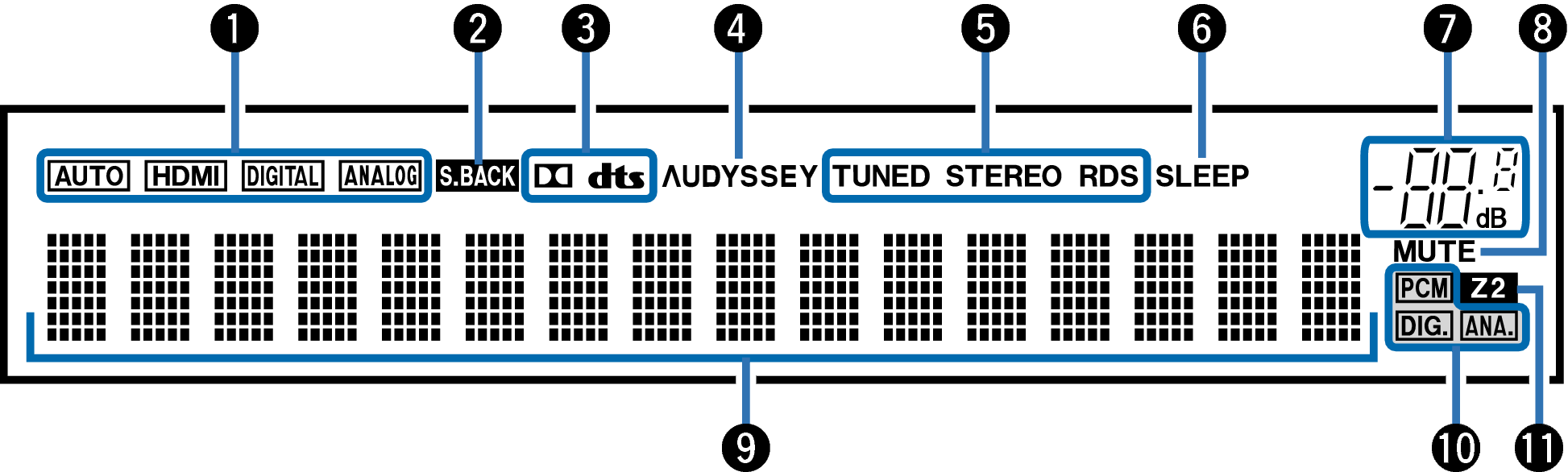

Display

These light according to the audio input mode settings of each input source. link

This lights when audio signals are being output from the surround back speakers. link

These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running.

This lights when “MultEQ_®”, “Dynamic EQ” or “Dynamic Volume” has been set up. link

These light up according to the reception conditions when the input source is set to “Tuner”.

TUNED: Lights up when the broadcast is properly tuned in.

STEREO: Lights up when receiving FM stereo broadcasts.

RDS: Lights up when receiving RDS broadcasts.

This lights when the sleep mode is selected. link

This blinks while the sound is muted. link

The input source name, sound mode, setting values and other information are displayed here.

The respective indicator will light corresponding to the input signal. link

This lights up when ZONE2 (another room) power is turned on. link
