Connecting multi-zone speakers

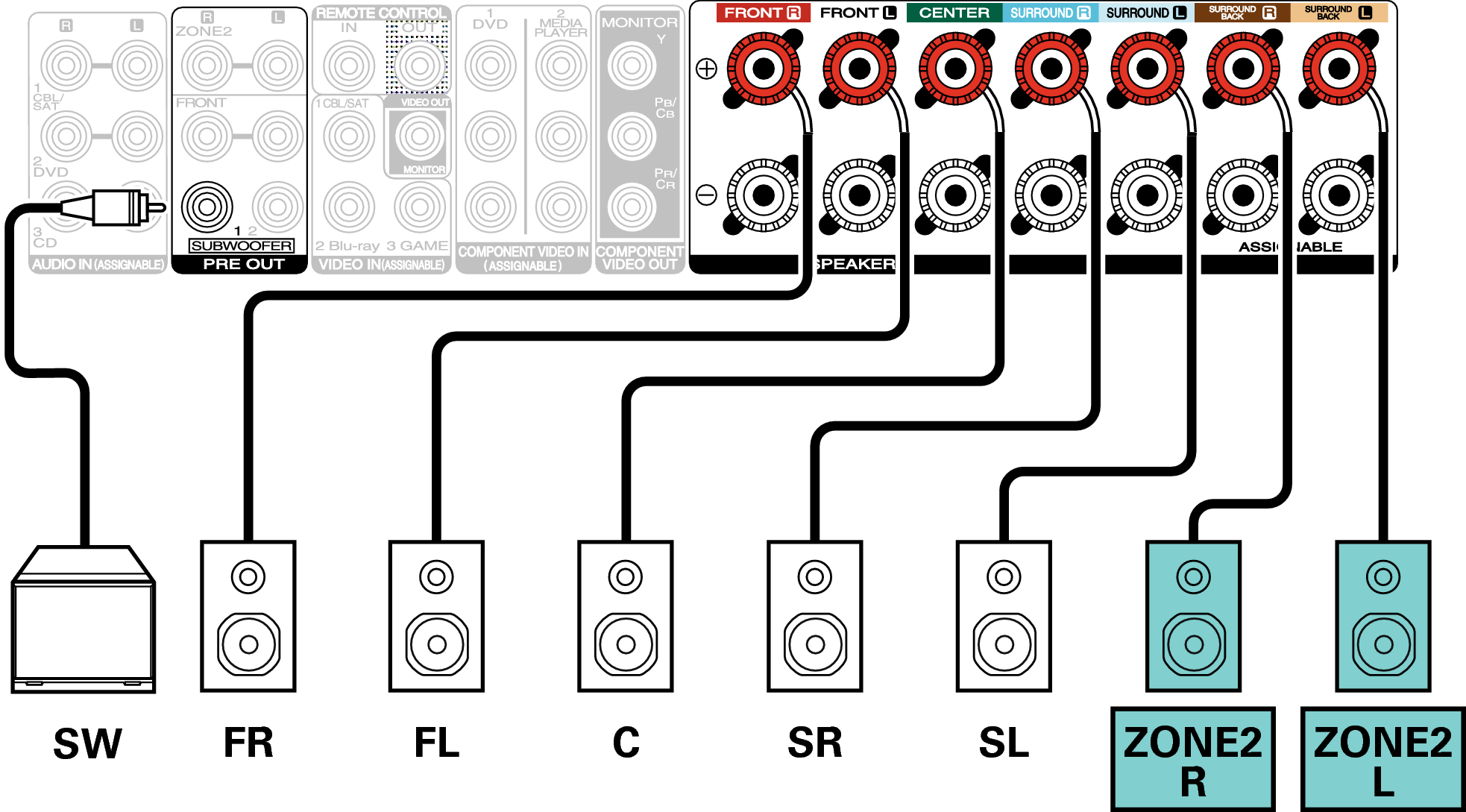

5.1-channel (MAIN ZONE) + 2-channel (ZONE2) speaker connection
This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.
|

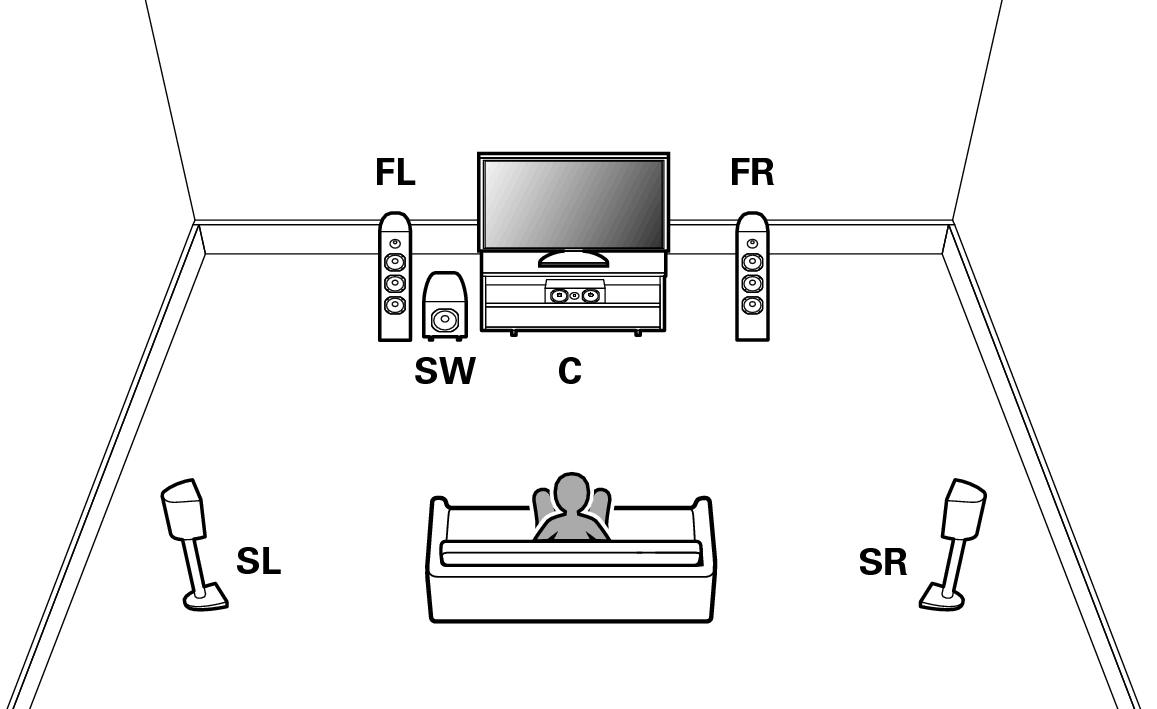

MAIN ZONE |
 |
|

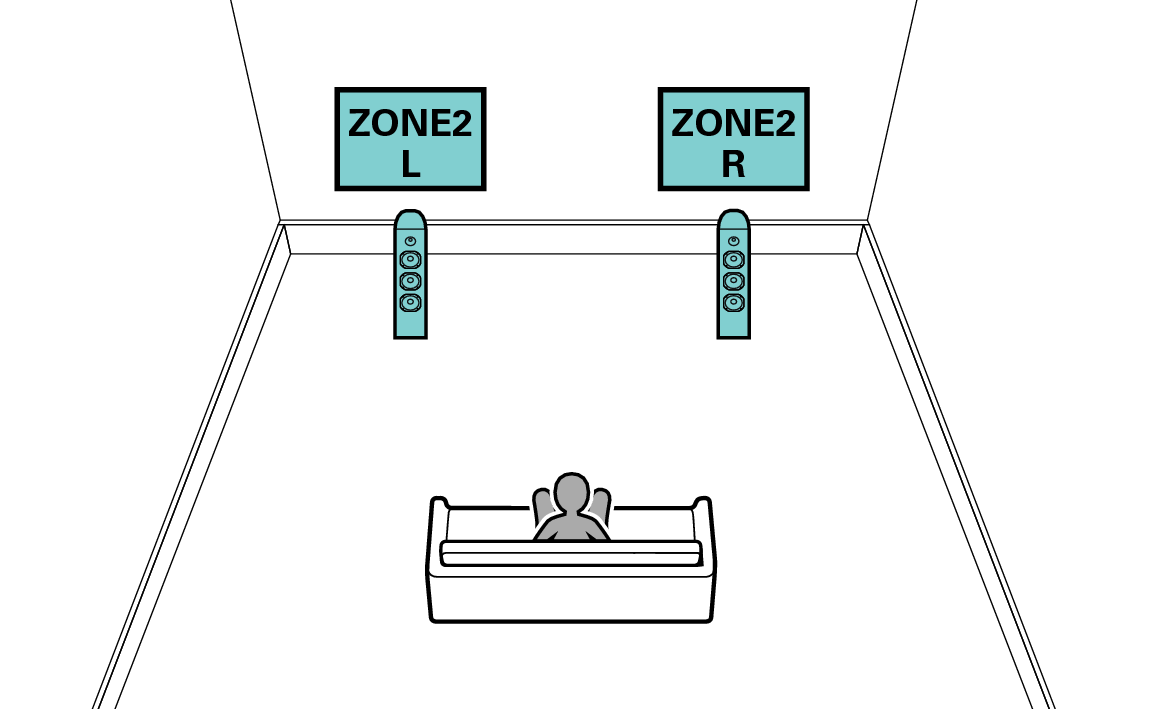

ZONE2 |
 |
Set “Assign Mode” to “ZONE2” in the menu. link
