Connecting multi-zone speakers

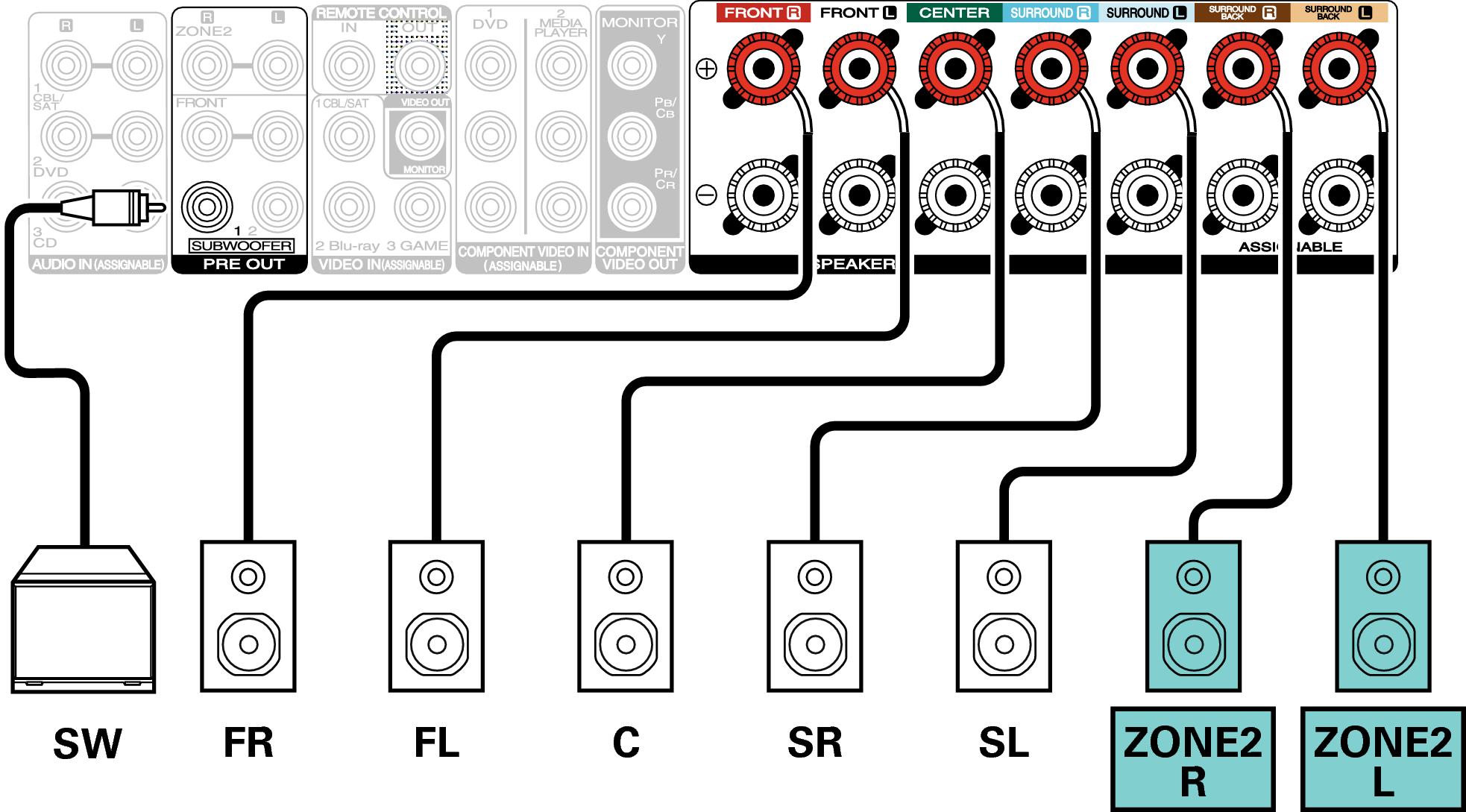

5.1-channel (MAIN ZONE) + 2-channel (ZONE2) speaker connection
This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.

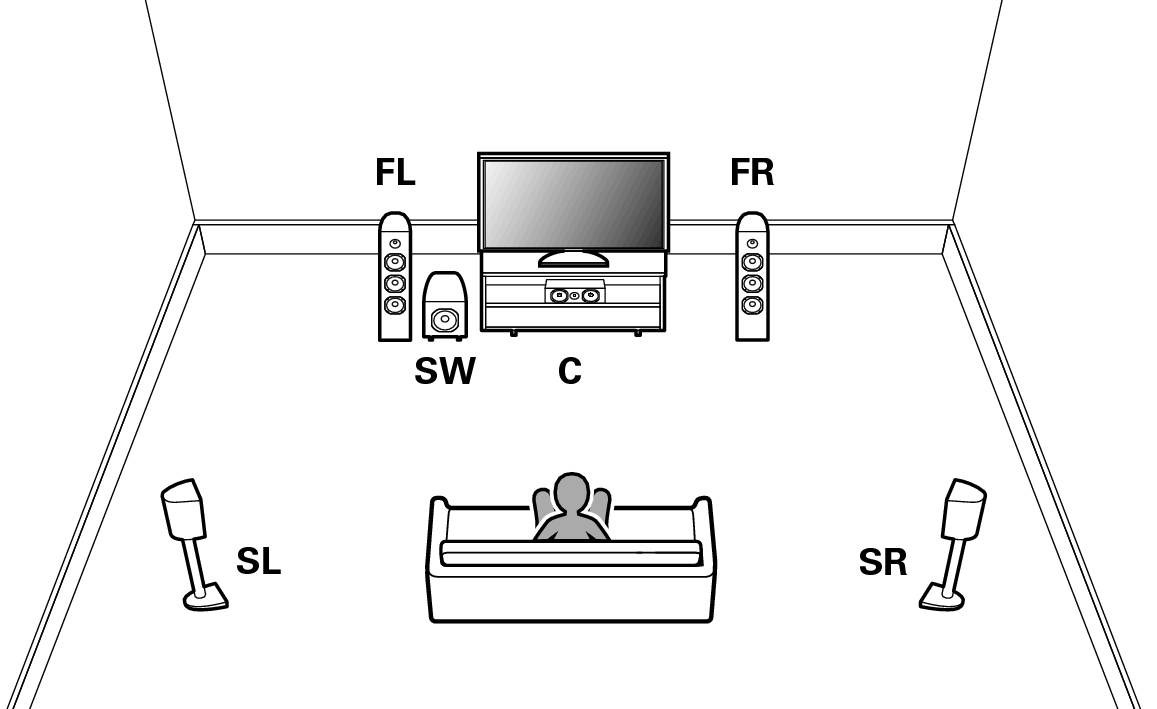

MAIN ZONE |
![]() |

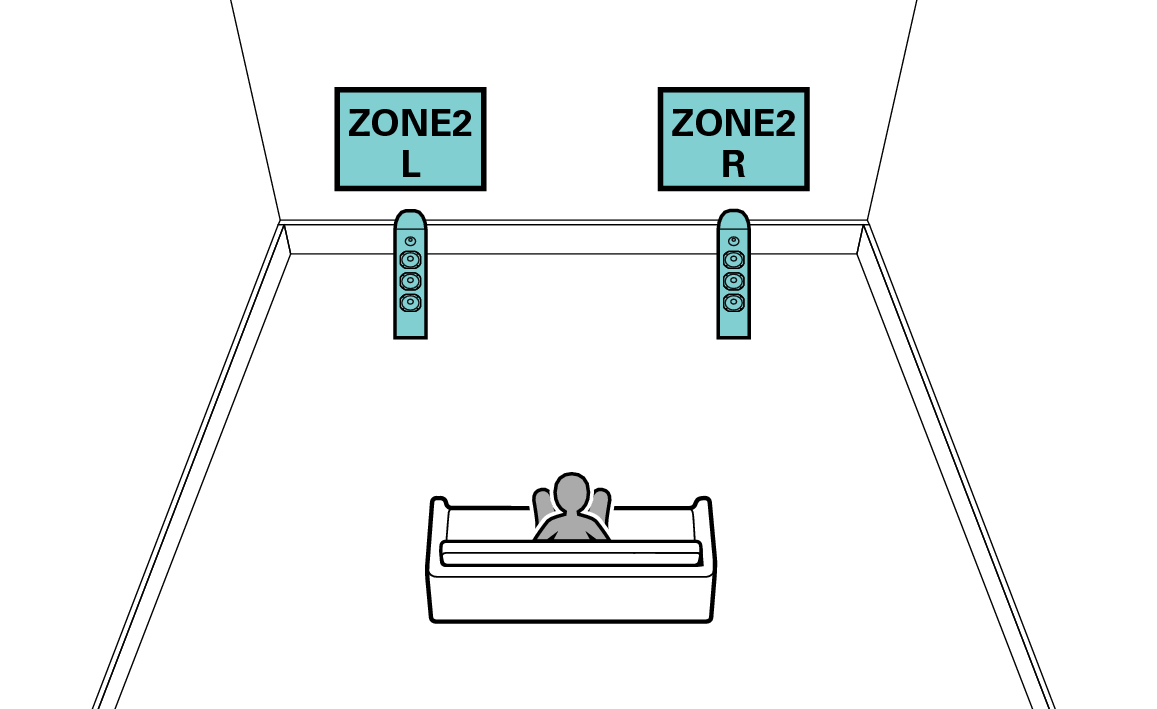

ZONE2 |
![]() |

Set “Assign Mode” to “ZONE2” in the menu. link
