Menu map

When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.

The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.

Setting items

Detailed items

Description

Page

Icon Audio Mz

Audio

Dialog Level

This setting adjusts the output level to clarify the dialogue output from the center channel.

Subwoofer Level

This setting adjusts the volume level for the subwoofer.

Surr.Parameter

Adjusts surround sound parameters.

M-DAX

Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback.

Audio Delay

Compensates for incorrect timing between video and audio.

Volume

Sets the volume setting.

Audyssey

Makes Audyssey MultEQ®, Audyssey Dynamic EQ® and Audyssey Dynamic Volume® settings.

Manual EQ

Uses the graphic equalizer to adjust the tone of each speaker.

Icon Video Mz

Video

HDMI Setup

Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings.

On Screen Disp.

Configures the on-screen display settings.

4K Signal Format

Set the 4K signal format when the TV or playback device is 4K compatible.

TV Format

Sets the video signal format to be output for the TV you are using.

Setting items

Detailed items

Description

Page

Icon Inputs Mz

Inputs

Input Assign

Changes input connector assignment.

Source Rename

Changes the display name for input source.

Hide Sources

Removes from the display input sources that are not used.

Source Level

Adjusts the playback level of the audio input.

Input Select

Sets the audio input mode.

Icon Speakers Mz

Speakers

Audyssey® Setup

The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically.

Manual Setup

Sets up the speakers manually or changes Audyssey® Setup settings.

Icon Network Mz

Network

Information

Displays network information.

Connection

Selects whether to connect the home network to a wireless LAN or a wired LAN.

Settings

Used for manually setting the IP address.

Network Control

Enables network communication in standby power mode.

Friendly Name

The “Friendly Name” is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences.

Diagnostics

Used to check the network connection.

Setting items

Detailed items

Description

Page

Icon HEOS Account LEGO

HEOS Account

【When the user is signed out the HEOS Account】

I have a HEOS Account

Selects to sign in.

Create Account

Creates new HEOS Account.

Forgot Password

If you forgot your password, we'll send you an email with instructions about how to reset it.

【When the user is signed in the HEOS Account】

Signed in As

Displays your HEOS Account.

Change Location

Selects your location.

Change Password

Changes your HEOS Account Password.

Delete Account

Deletes your HEOS Account.

Sign Out

Sign out of your HEOS Account.

Setting items

Detailed items

Description

Page

Icon General Mz

General

Language

Changes the language of the display on the TV screen.

ECO

Configures the ECO Mode and Auto Standby energy-saving functions.

Smart Sel.Names

Changes the Smart Select Name display title to one you prefer.

Front Display

Makes settings related to the display on this unit.

Firmware

Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display.

Information

Shows information about this unit settings, input signals, etc.

Usage Data

Selects whether or not to send anonymous usage data to Marantz.

Save & Load

Save and restore device settings by using a USB memory device.

Setup Lock

Protects settings from inadvertent changes.

Icon SetupAssistant Mz

Setup Assistant

Begin Setup...

Performs basic installation/connections/settings from the beginning according to the guidance indicated on the TV screen.

Page 8 of the separate manual “Quick Start Guide”

Language Select

Sets individual setting items according to the guidance displayed on the TV screen.

Speaker Setup

Sp.Calibration

Network Setup

TV Audio Connect

Input Setup

Mobile Apps

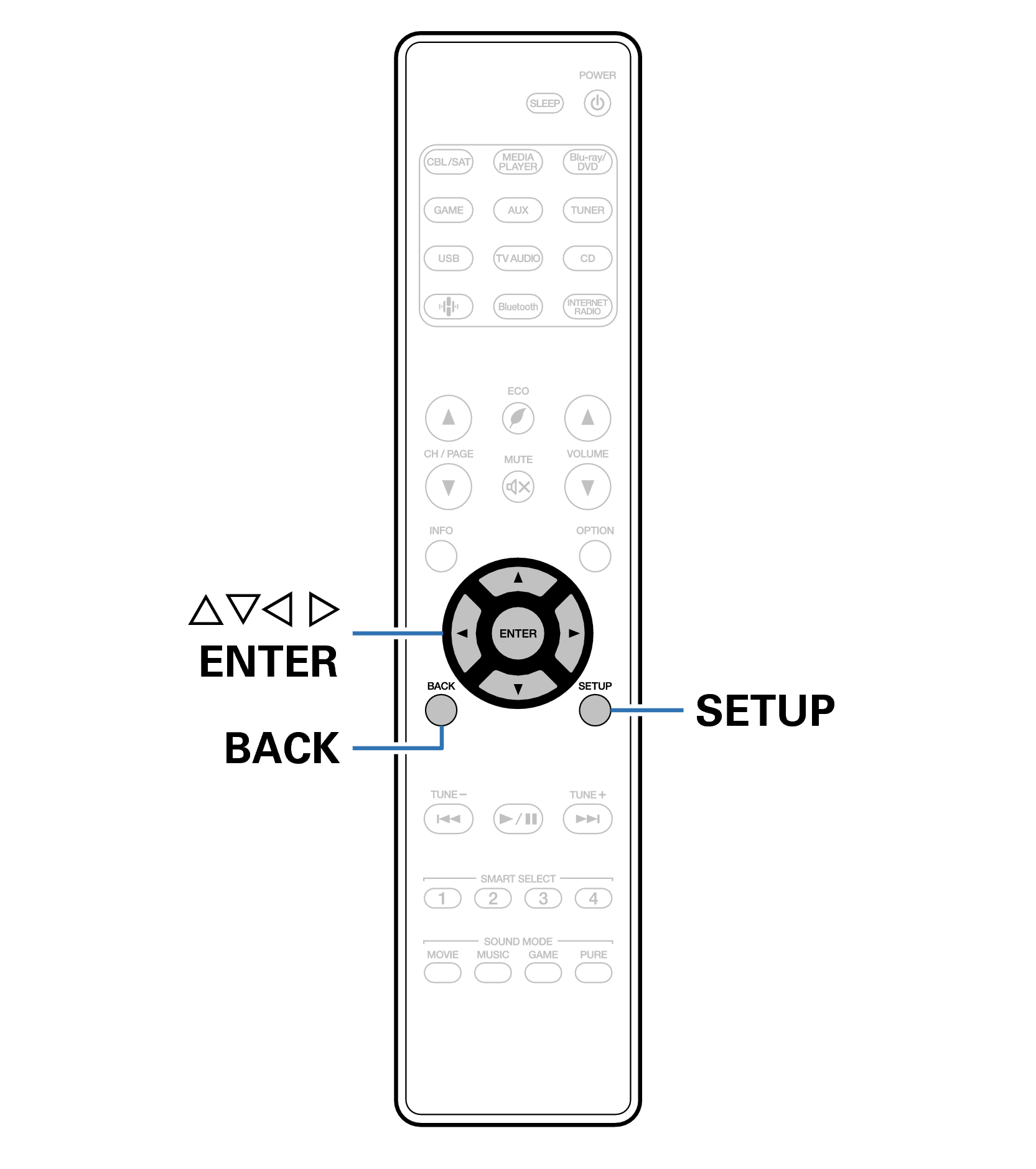

Remote control unit illustration

Ope Menu RC033
