Resetting factory settings

If the indicators are incorrect or the unit cannot be operated, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings.link

If the operations are not improved by restarting the unit, follow the steps below.

Various settings are reset to the factory default values. Make settings again.

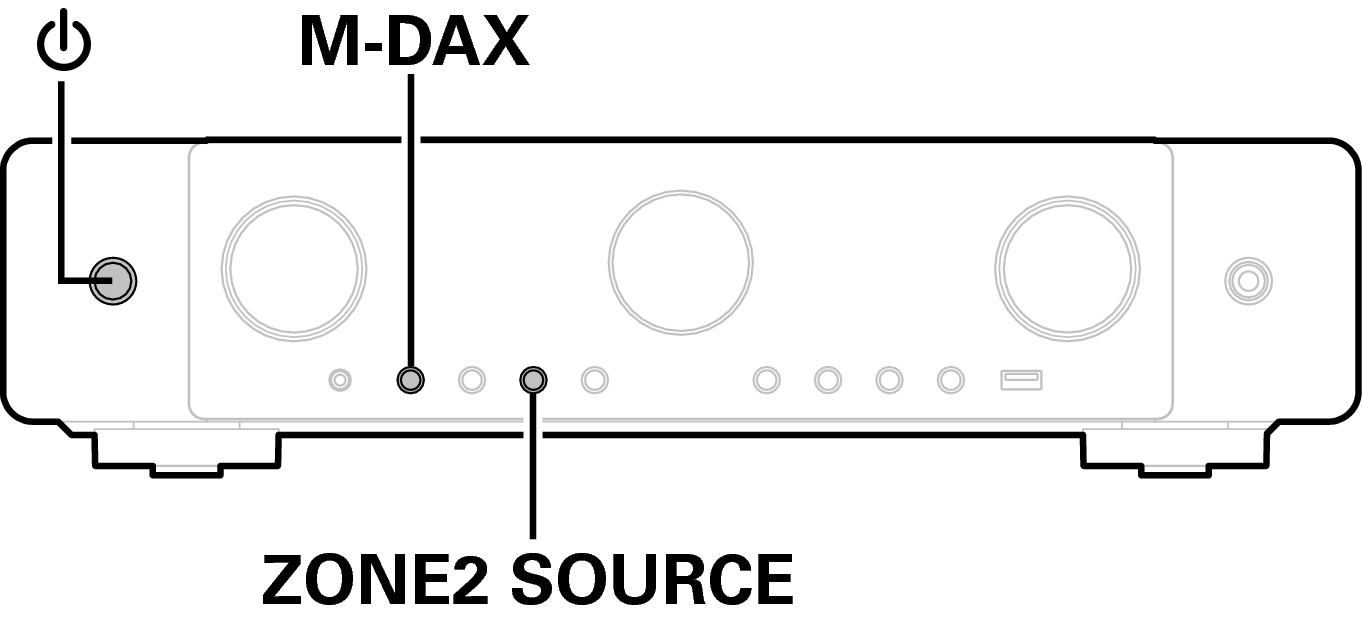

Ope Resetting C70s
Turn off the power using Power Button .
Press Power Button while simultaneously pressing M-DAX and ZONE2 SOURCE.
Remove your fingers from the two buttons when “Initialize” appears on the display.

Before returning the settings to the default settings, use the “Save & Load” function from the menu to save and restore the details of various settings configured on the unit.link

You can also reset all settings to the factory defaults using “Reset” - “All Settings” in the menu.link
