Remote control unit
Display
LEARN indicator
This is lit when setting the learning function for the remote control unit. link
Information display
This displays “AVP” when operating this unit.
This displays the input source name when operating an external device.
This displays “TV” when operating TV.
indicatorThis is lit when signals are sent from the remote control unit.
AVP operation button
When preset codes are registered to the remote control unit, press this button and then operate the menu on the unit.
SET button
This is used for various settings on the remote control unit.
ZONE SELECT button
These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.

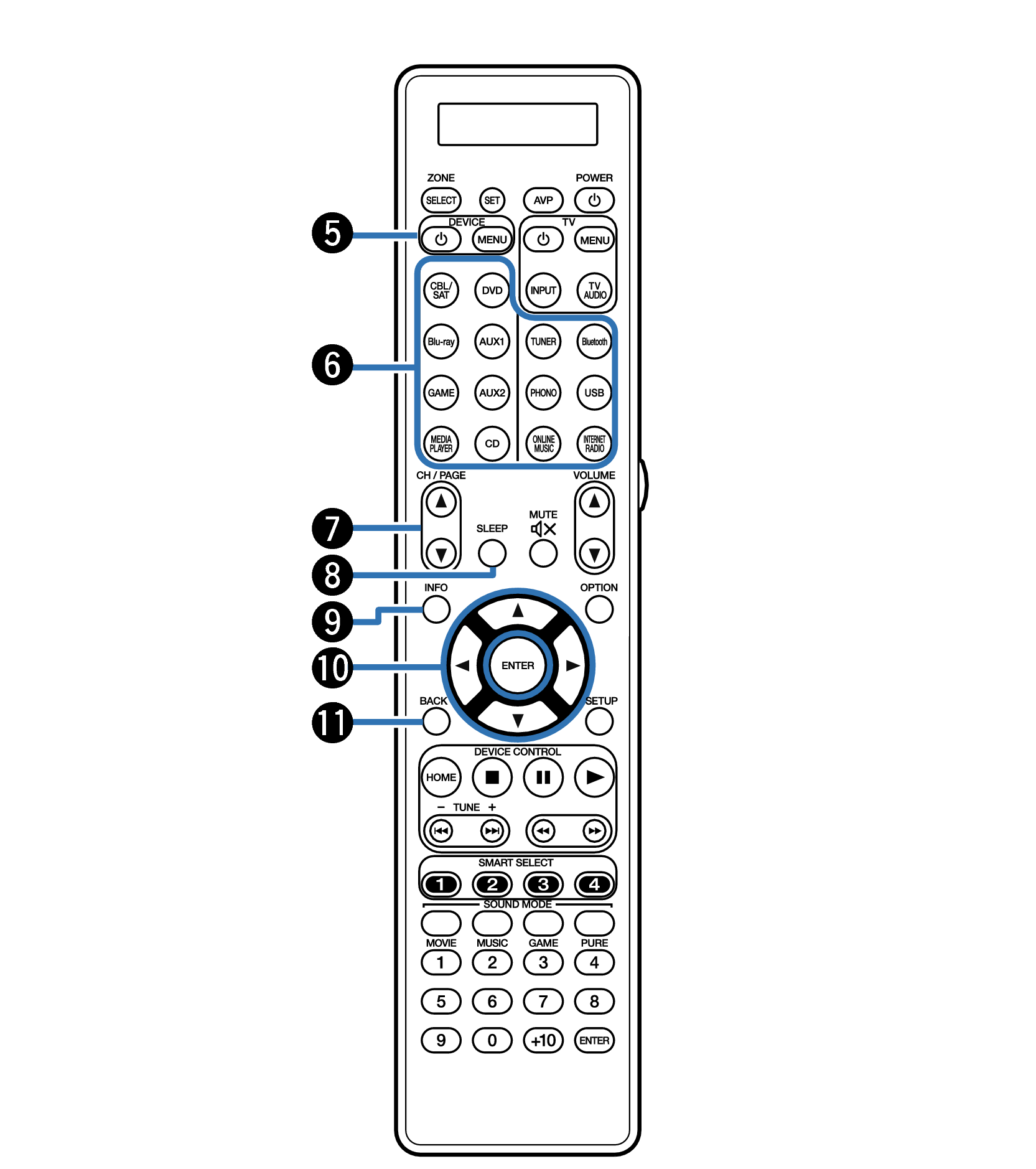

Device operation buttons (DEVICE
/ DEVICE MENU)
These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link
Input source select buttons
These select the input source.
SLEEP button
This sets the sleep timer. link
Channel/page search buttons (CH/PAGE
)
These select radio stations registered to presets or switch pages. link
Information button (INFO)
This displays the status information on the TV screen. link
Cursor buttons (
)
These select items.
BACK button
This returns to the previous screen.
HOME button
This takes you to the Home screen (Top screen) when the input source is Online Music. link
System buttons
These perform playback related operations.
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. link
SMART SELECT buttons (1 - 4)
These call up settings registered to each button, such as input source, volume level and sound mode settings. link
SOUND MODE buttons
These select the sound mode. link
Number buttons
These enter numbers into the unit. link
Remote control signal transmitter
This transmits signals from the remote control unit. link
POWER button ( )
This turns the power on/off.
TV operation buttons (TV / TV MENU / TV INPUT)
These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link
Light button
This turns on the backlight for approx. 2 seconds. link
VOLUME buttons ( )
These adjust the volume level.
MUTE button (
)
This mutes the output audio.
OPTION button
This displays the option menu on the TV screen.
ENTER button
This determines the selection.
SETUP button
This displays the menu on the TV screen. link
