Controlling the unit from a web control

Switch the “IP Control” setting to “Always On”. link

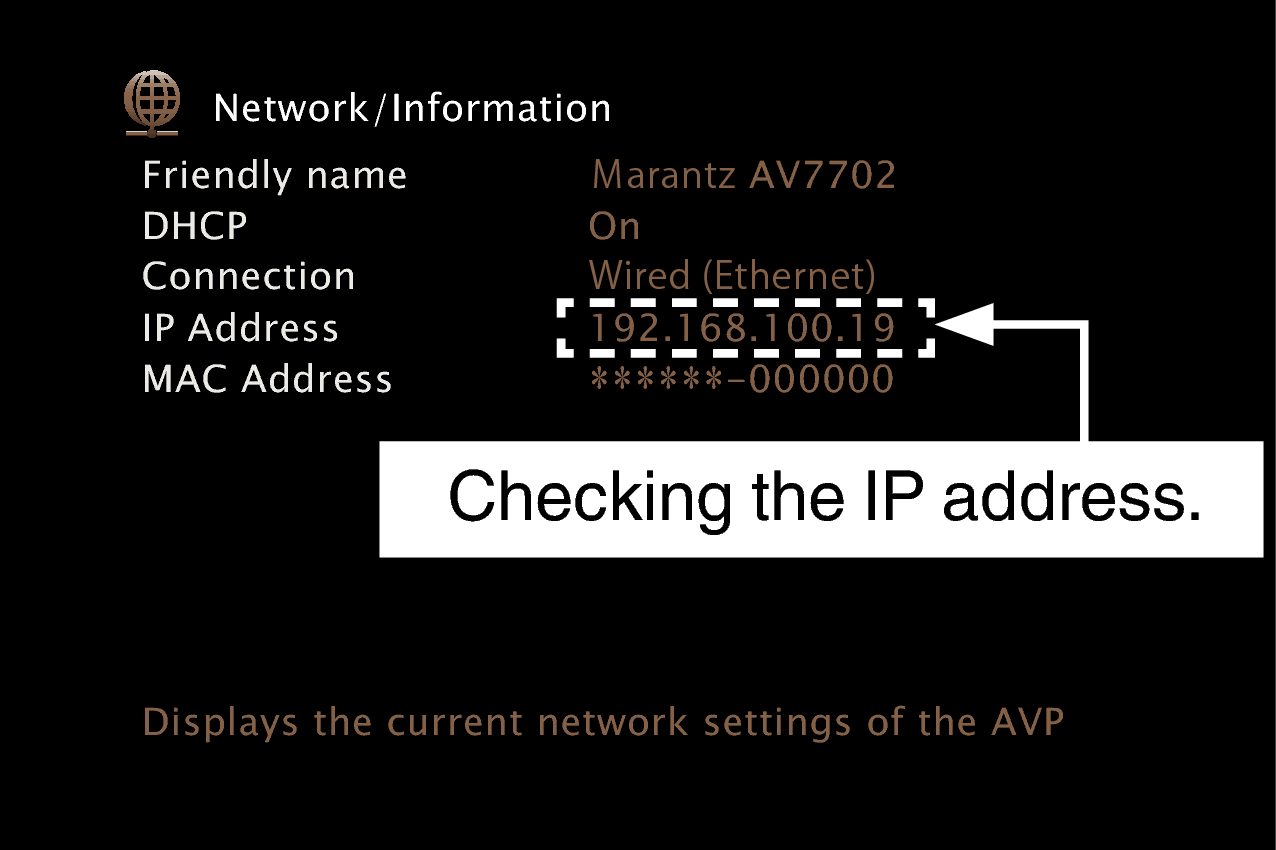

Check the IP address of this unit with “Information”. link
GUI NetworkInfo AV7702
Start up the web browser.

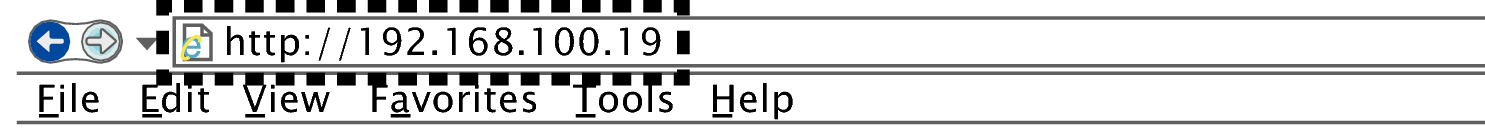

Enter the IP address of this unit in browser’s address box.

For example, if the IP address of this unit is “192.168.100.19”, enter “http://192.168.100.19”.

GUI Web4 AVRX2100W

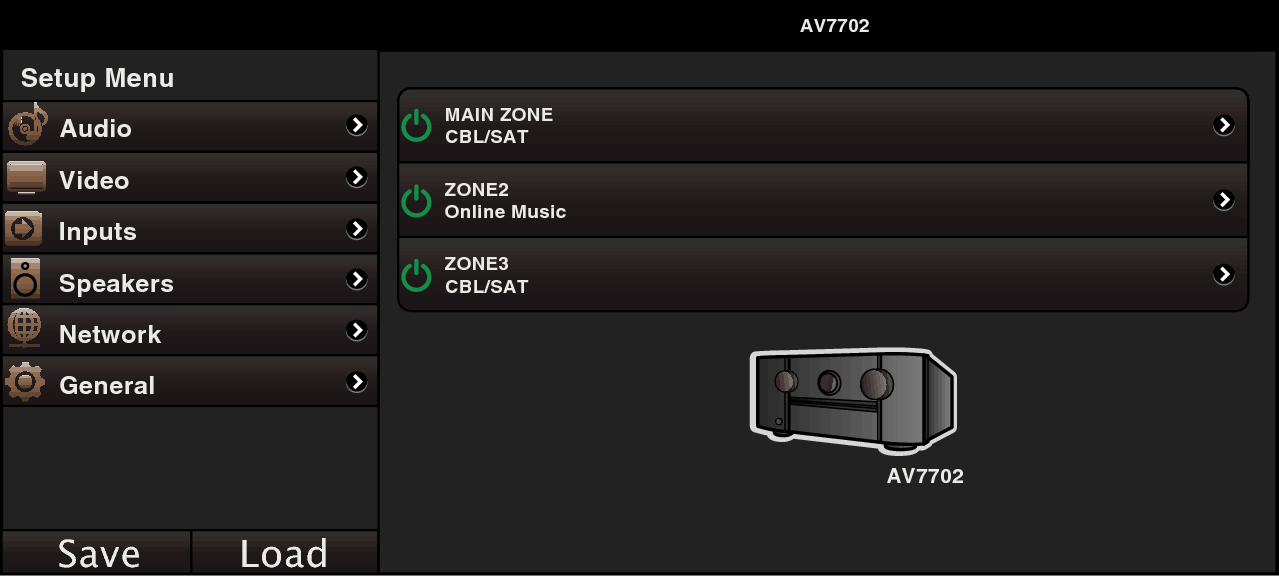

When the top menu is displayed, click on the menu item you want to operate.
GUI Web5 AV7702

You can use the “Save” and “Load” functions to store or recall various function settings using web control from a PC.

To memorize settings, click “Save” on the Setup Menu screen.

To call up settings, click “Load” on the Setup Menu screen.

We recommend using one of the following web browsers.
Internet Explorer 10 and above
Mozilla Firefox 24 and above
Google Chrome 29 and above
Safari 5.x and above
