Connecting 13.1-channel speakers

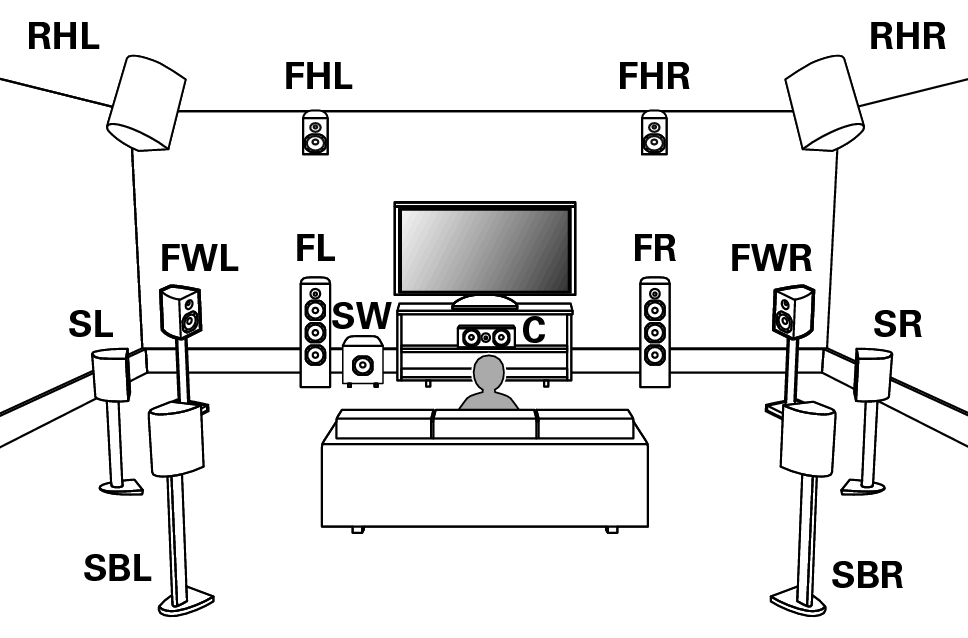

Example layout when using surround back, Front Wide and two set of height speakers

Pict SP Layout 13.1 FH RH FW2

For each speaker connection, refer to Connecting a power amplink.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Front Wide: Yes
Height Speakers: 4 spkrs
Front Layout: Front Height
Rear Layout: Rear Height
Subwoofers: 1 spkr

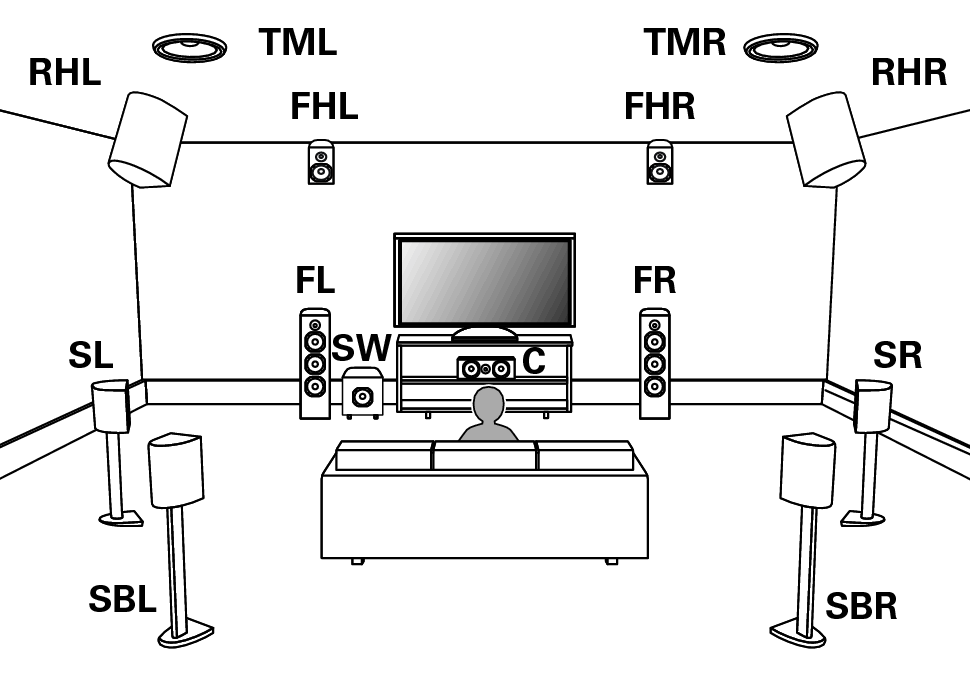

Example layout when using surround back and three sets of height speakers

Pict SP Layout 13.1 FH RH TM2

For each speaker connection, refer to Connecting a power amplink.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Top Middle
Rear Layout: Rear Height
Subwoofers: 1 spkr

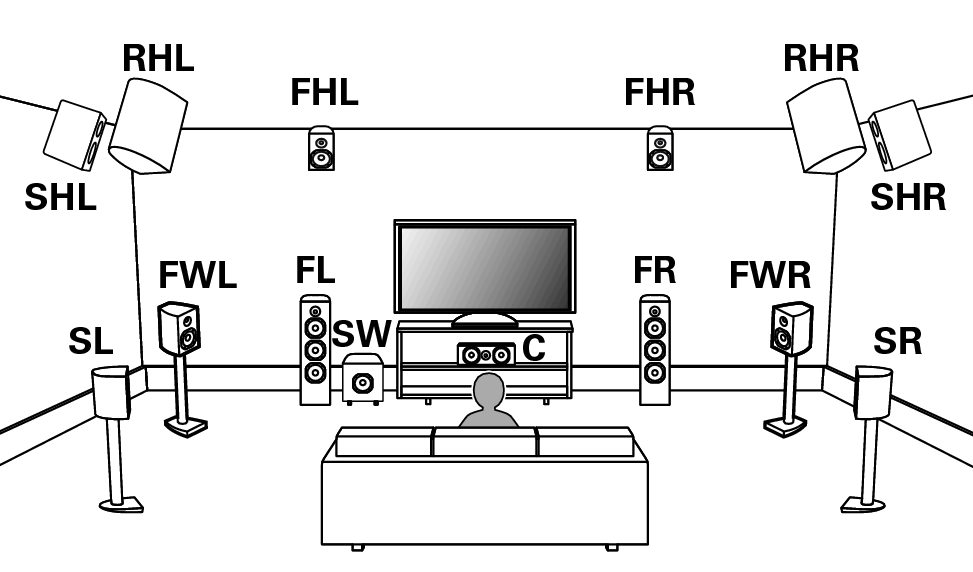

Example layout when using front wide and three sets of height speakers

Pict SP Layout 13.1 FW RH FH1

For each speaker connection, refer to Connecting a power amplink.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: No
Front Wide: Yes
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Surround Height
Rear Layout: Rear Height
Subwoofers: 1 spkr

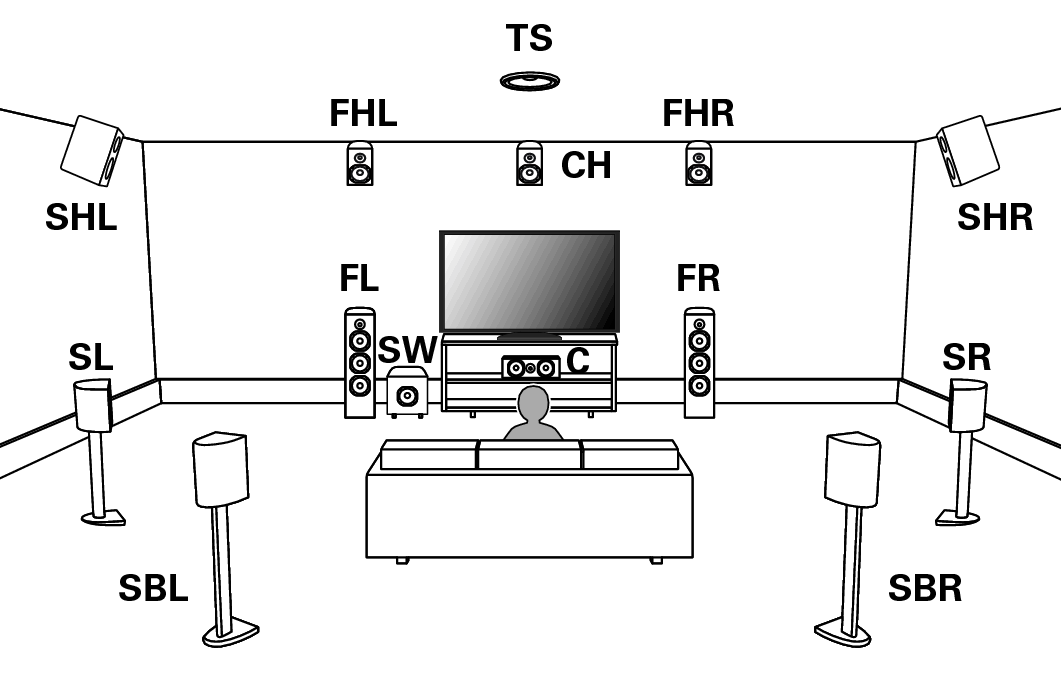

Example layout for AURO-3D 13.1 channel system

This speaker configuration is optimized for AURO-3D playback.

Pict SP Layout 13.1 Auro3

For each speaker connection, refer to Connecting a power amplink.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Surround Height
Rear Layout: No
TS/CH: TS/CH
Subwoofers: 1 spkr

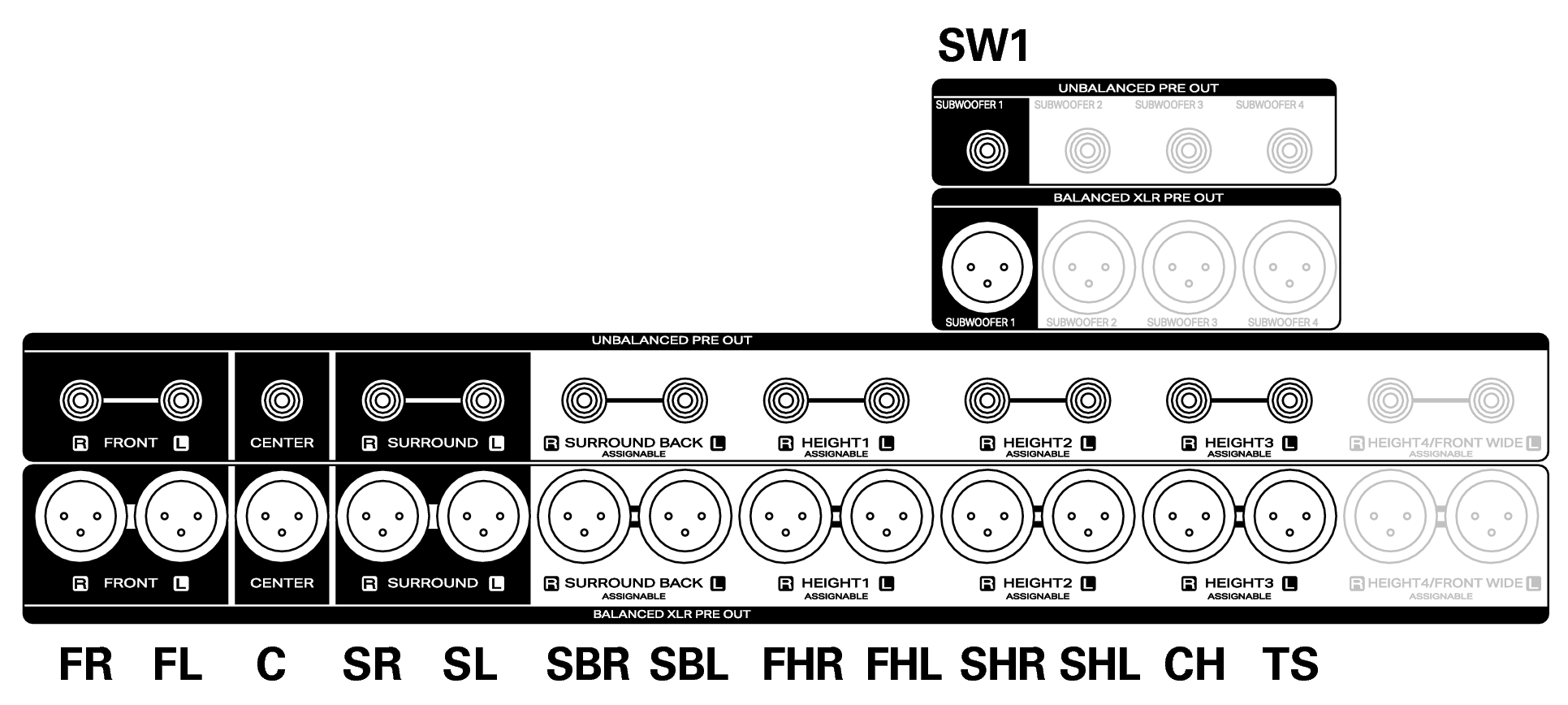

Conne SP 13.1_Auro AV20
