Sound mode that can be selected for each input signal

The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.

Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. link

Pict Soundmode1 A74

2-channel also includes analog input.

This mode plays back 2-channel sources in 5.1, 7.1, 9.1 or 11.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.

It cannot be selected when headphones are used, or when a speaker configuration without front height speakers is used.

It cannot be selected when headphones are used, or when only front speakers are used.

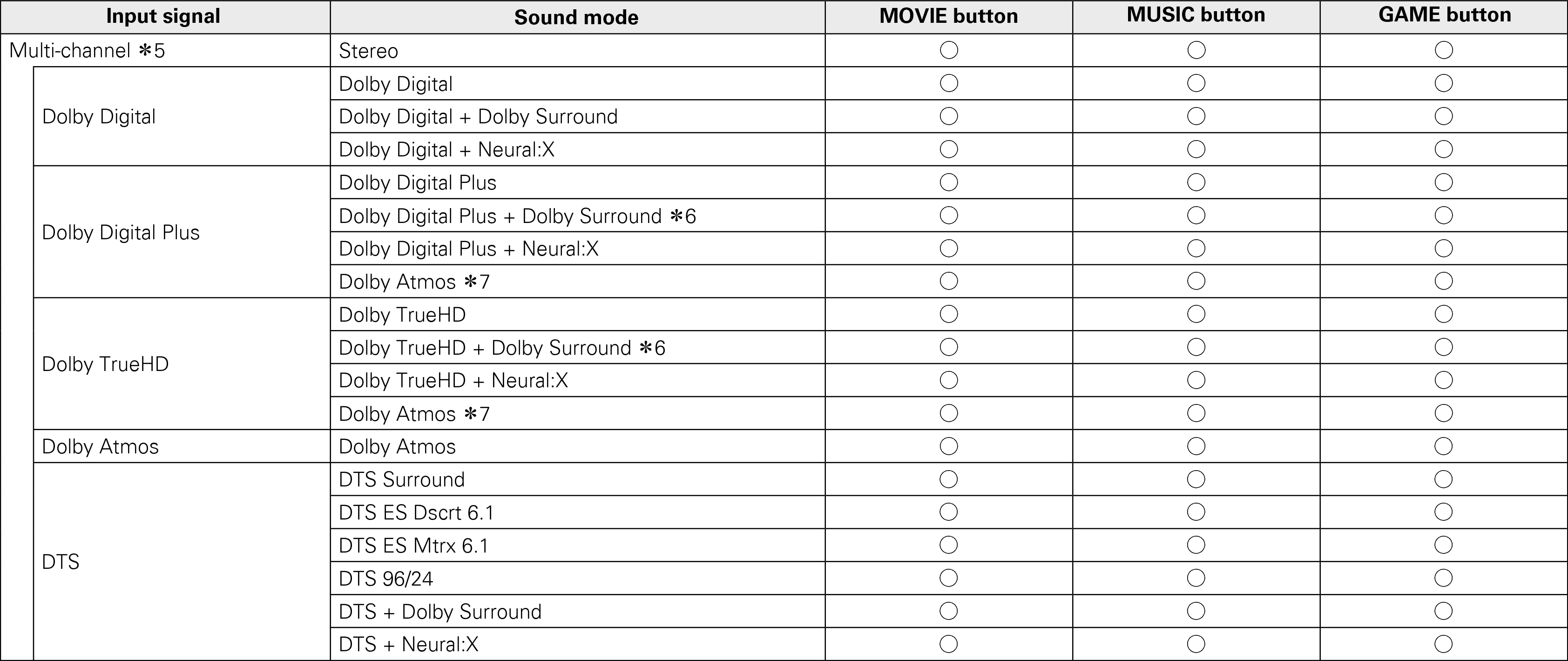

Pict Soundmode2 A74

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.

This can be selected when the input signal does not contain Dolby Atmos.

This can be selected when the input signal contains Dolby Atmos.

Pict Soundmode3 A74

It cannot be selected when headphones are used, or when a speaker configuration without front height speakers is used.

It cannot be selected when headphones are used, or when only front speakers are used.

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.

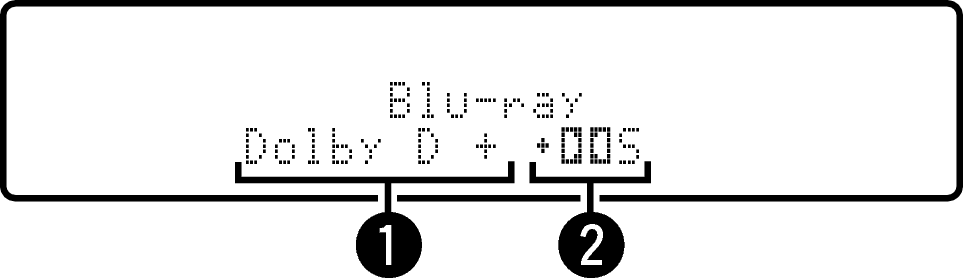

Views on the display

Disp DOLBY DIGITAL

Shows a decoder to be used.

In the case of the Dolby Digital Plus decoder, “ Icon Disp Dolby D pl Mz ” is displayed.

Shows a decoder that creates sound output.

Icon DOLBY Ds ” indicates that the Dolby Surround decoder is being used.
