Speaker configuration and “Amp Assign” settings

This unit has a built-in 9-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback. link

Perform “Amp Assign” settings to suit the number of rooms and speaker configuration to be installed. link

Playback speaker in each zone

“Amp Assign” settings

Connection page

MAIN ZONE

ZONE2

ZONE3

5.1-channel playback

2-channel (Pre-out)

2-channel (Pre-out)

Can be set in all “Amp Assign” modes.

7.1-channel playback

7.1ch + ZONE2 (Default)

9.1-channel playback

9.1ch

11.1-channel playback

11.1ch

7.1-channel playback (bi-amp connection of front speakers)

7.1ch (Bi-Amp)

Second front speakers

7.1ch + Front B

7.1-channel playback

2-channel
(Speaker out)

2-channel (Pre-out)

7.1ch + ZONE2 (Default)

7.1-channel playback

2-channel (Pre-out)

2-channel
(Speaker out)

7.1ch + ZONE3

5.1-channel playback (bi-amp connection of front speakers)

2-channel
(Speaker out)

2-channel (Pre-out)

5.1ch (Bi-Amp) + ZONE2

5.1-channel playback

2-channel
(Speaker out)

2-channel
(Speaker out)

5.1ch + ZONE2/3

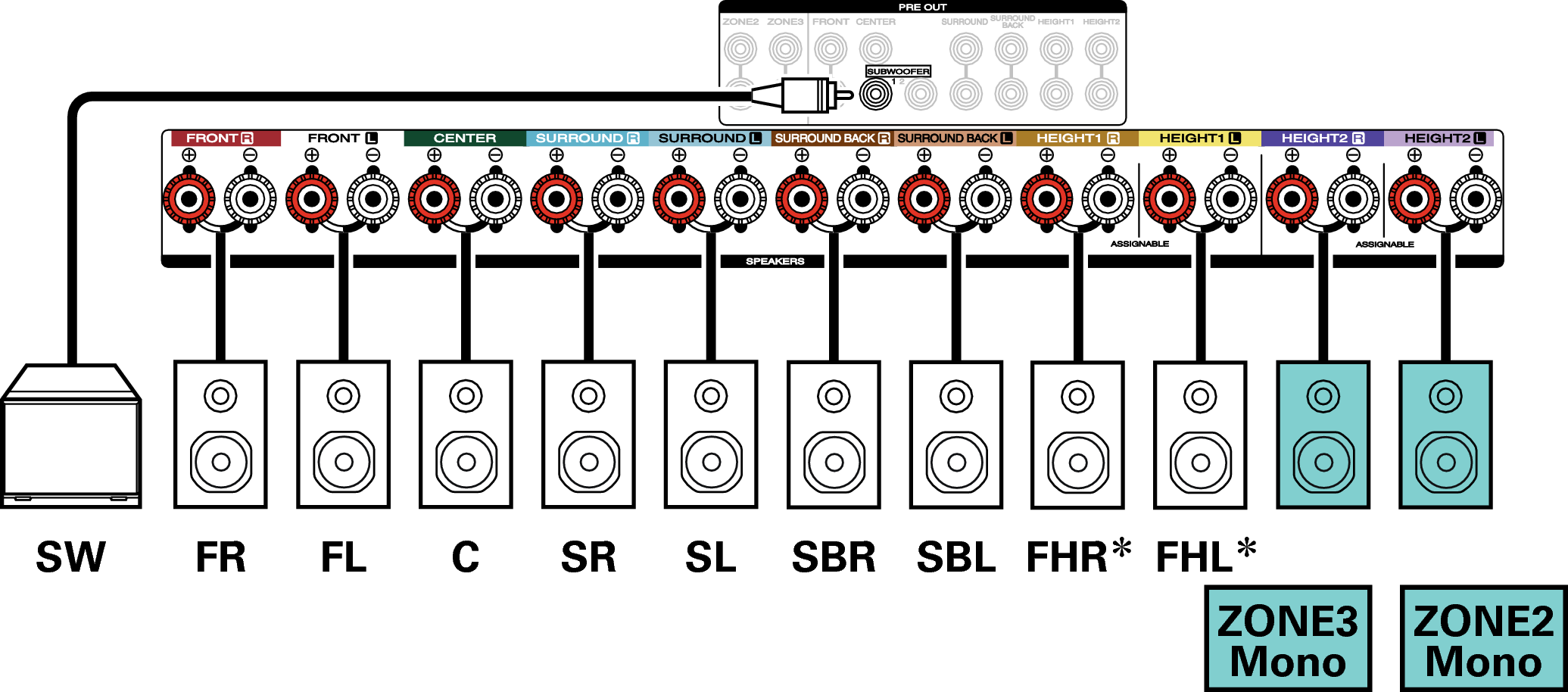

7.1-channel playback

1-channel
(Speaker out)

1-channel
(Speaker out)

7.1ch + ZONE2/3-MONO

The sound mode that can be selected varies according to the speaker configuration. See “Relationship between sound modes and channel output” link for the sound modes that are supported.

The following pages provide basic connection examples.

Upgrade (Auro-3D)

Refer to the example connection for Example connection for the Auro-3D 9.1-channel systemlink when playing Auro-3D with a 9.1-channel system using the basic 5.1-channel system and the front height and surround height speakers.
Also refer to the connection example for Example connection for the Auro-3D 10.1-channel systemlink when playing Auro-3D with a 10.1-channel system by adding the top surround speaker.

In addition to the connections described in p.link - link, this unit allows for various speaker connections with the “Amp Assign” setting.

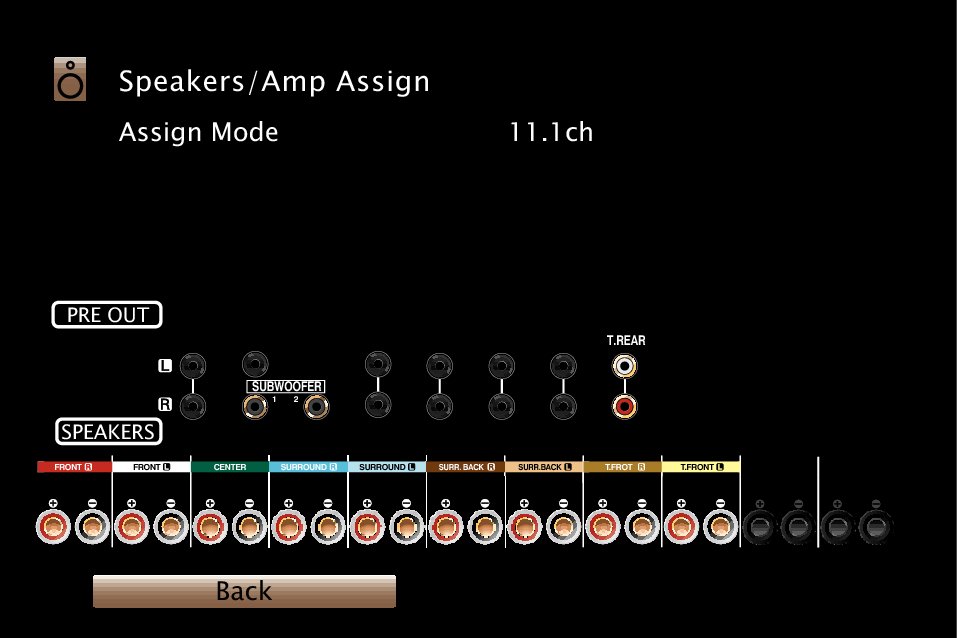

Also refer to the menu screen in “View Terminal Config.” on the “Amp Assign” setting screen, which shows how to make connections in your environment.

GUI ViewTerminalConfig S7

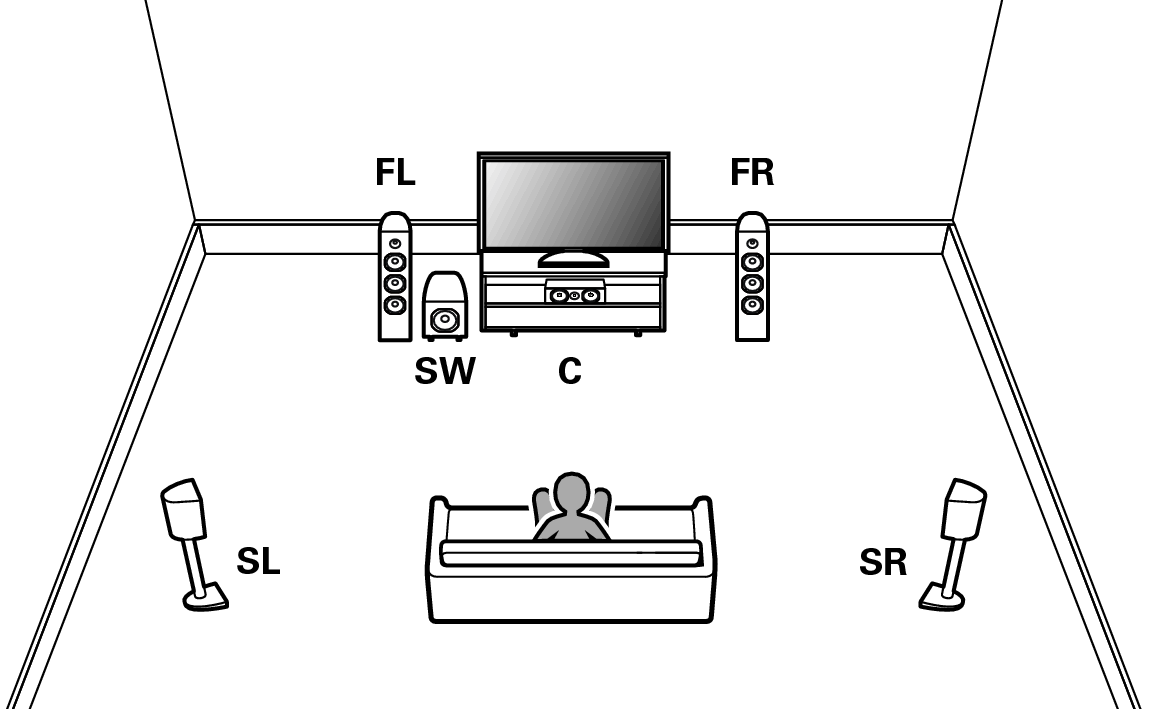

5.1-channel playback

This serves as a basic 5.1-channel surround system.

Pict AmpAssign 5.1

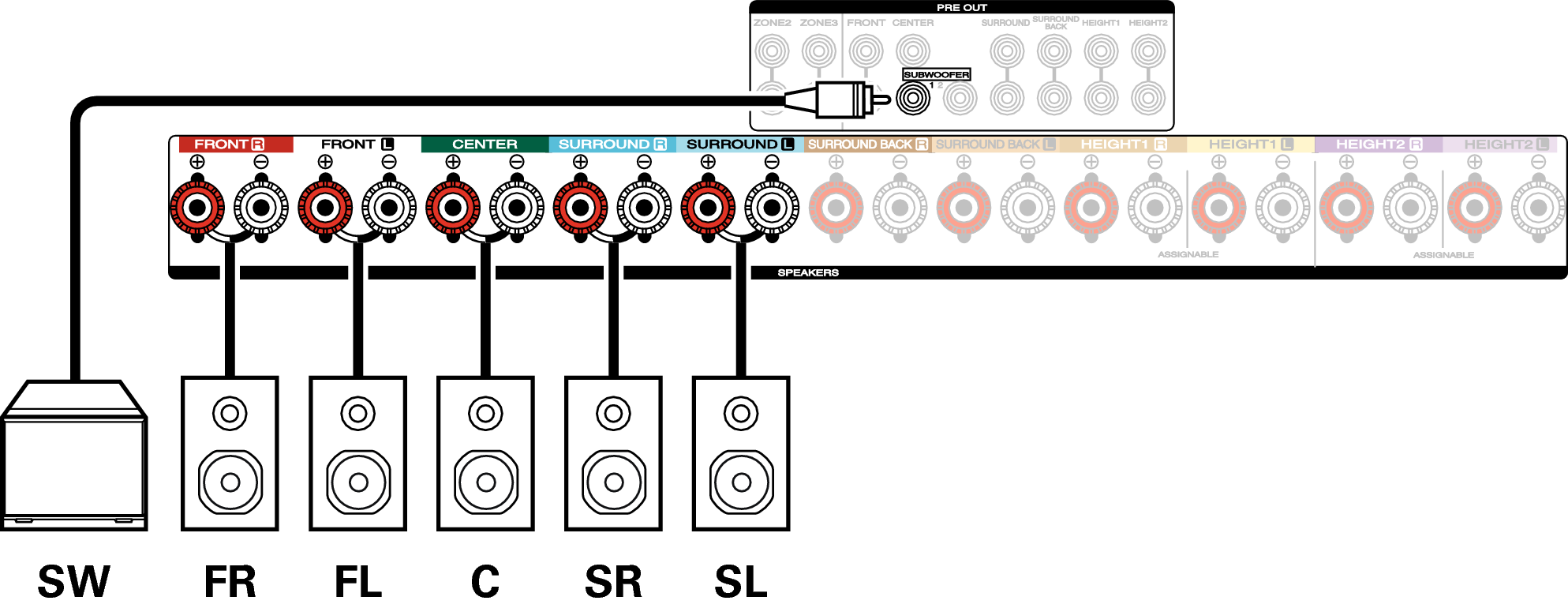

Conne SP 5.1 S7

7.1-channel playback

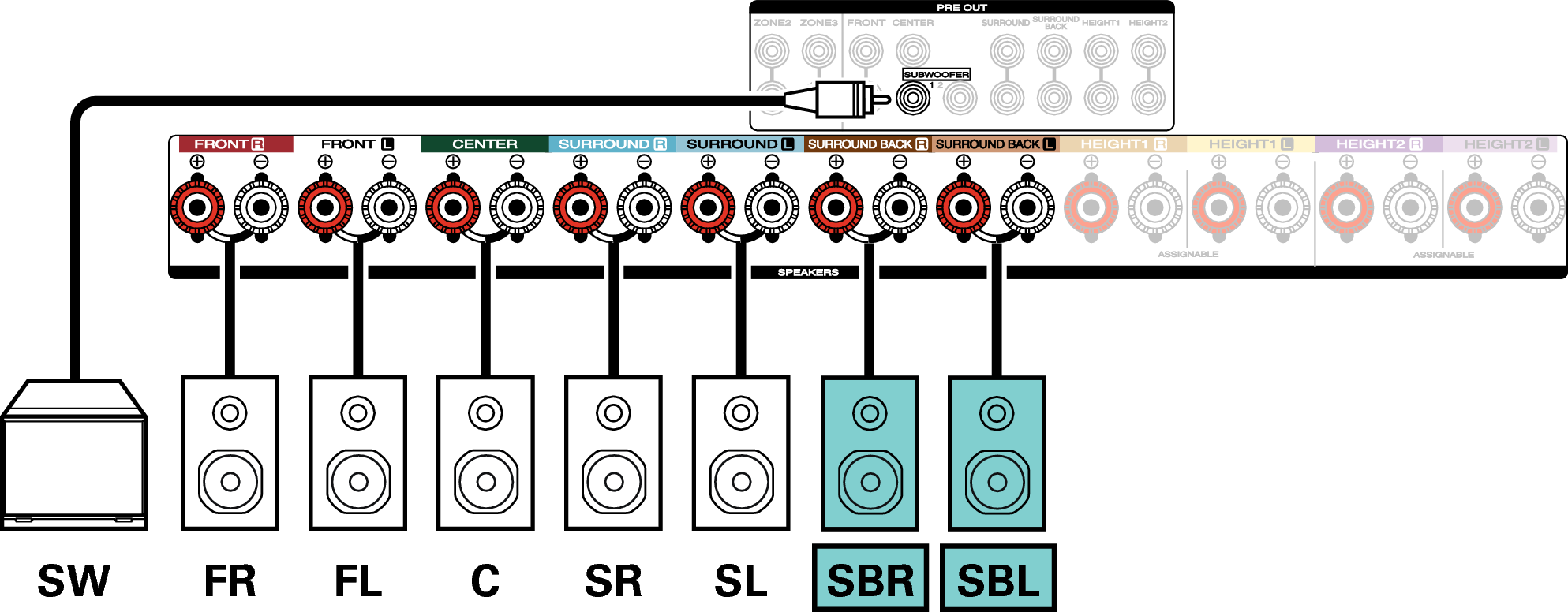

Example connections when using surround back speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.

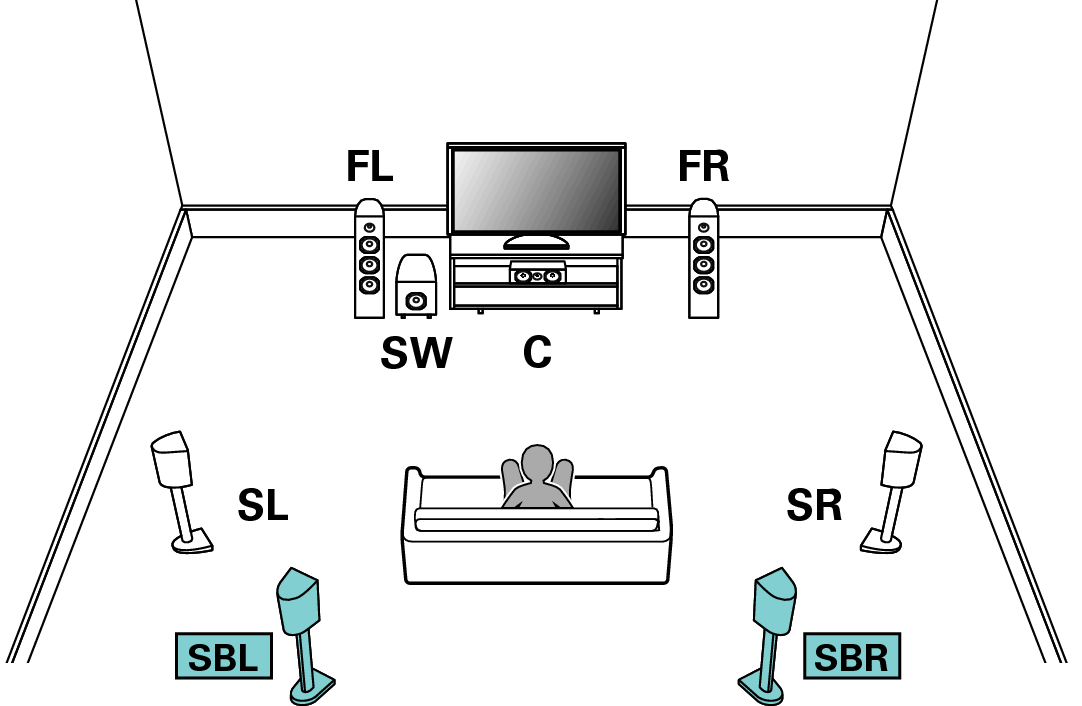

Pict SP Layout 7.1 SB

Set “Floor” - “Layout” to “5ch & SB” in the menu when connecting in this configuration. link

Conne SP 7.1 SB S7

When using a single surround back speaker, connect it to the SURROUND BACK L terminal.

Example connections when using ceiling speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with ceiling speakers.

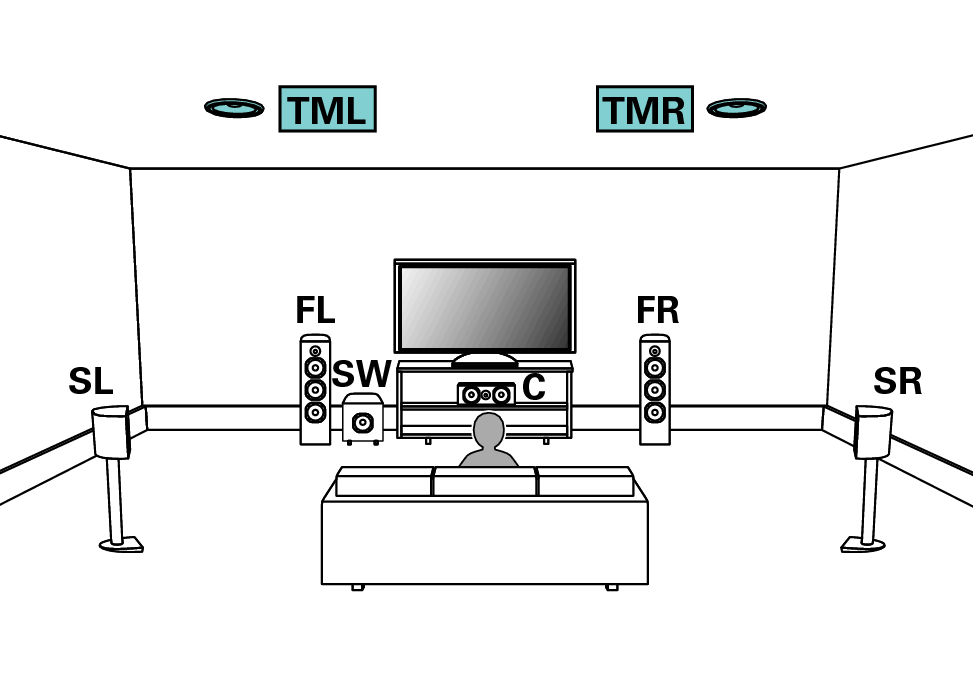

Pict SP Layout 7.1 TM

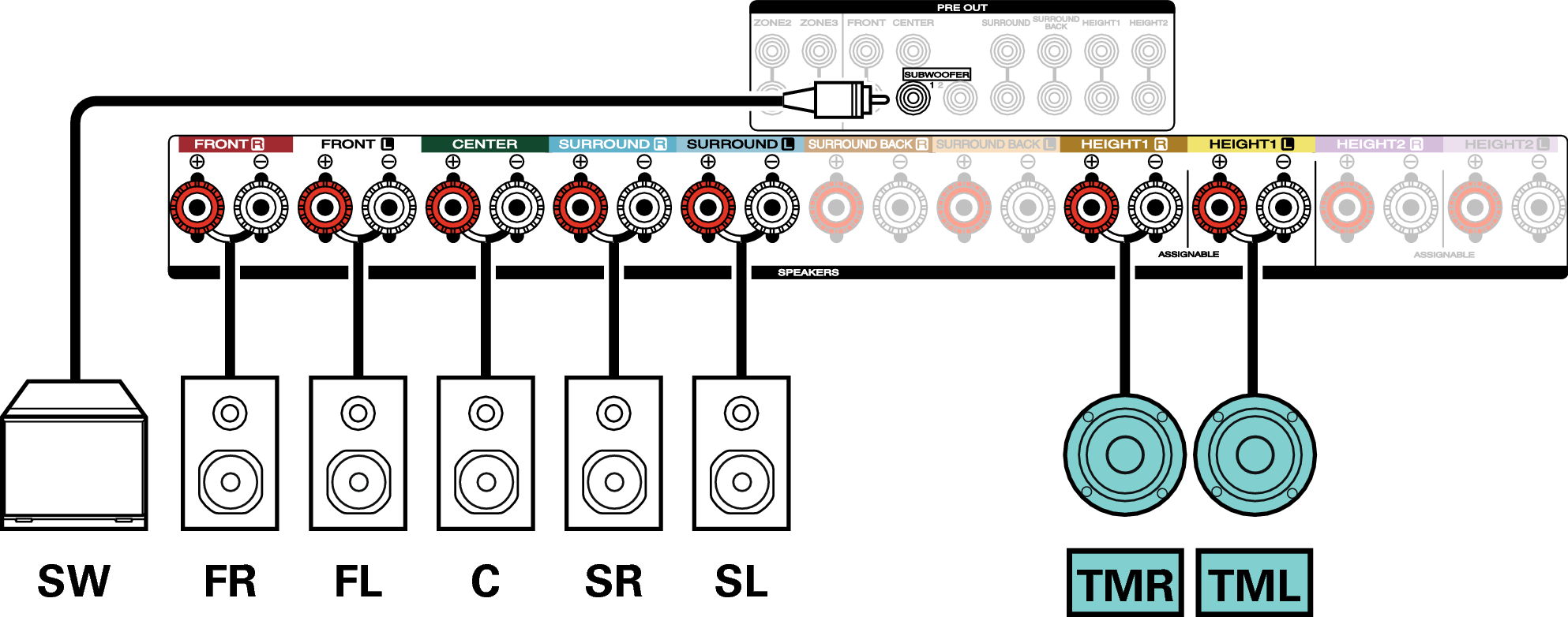

Conne SP 7.1 TM S7

Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when connecting in this configuration. link

The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under “Height” - “Layout” in the menu. link

Example connections when using height speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

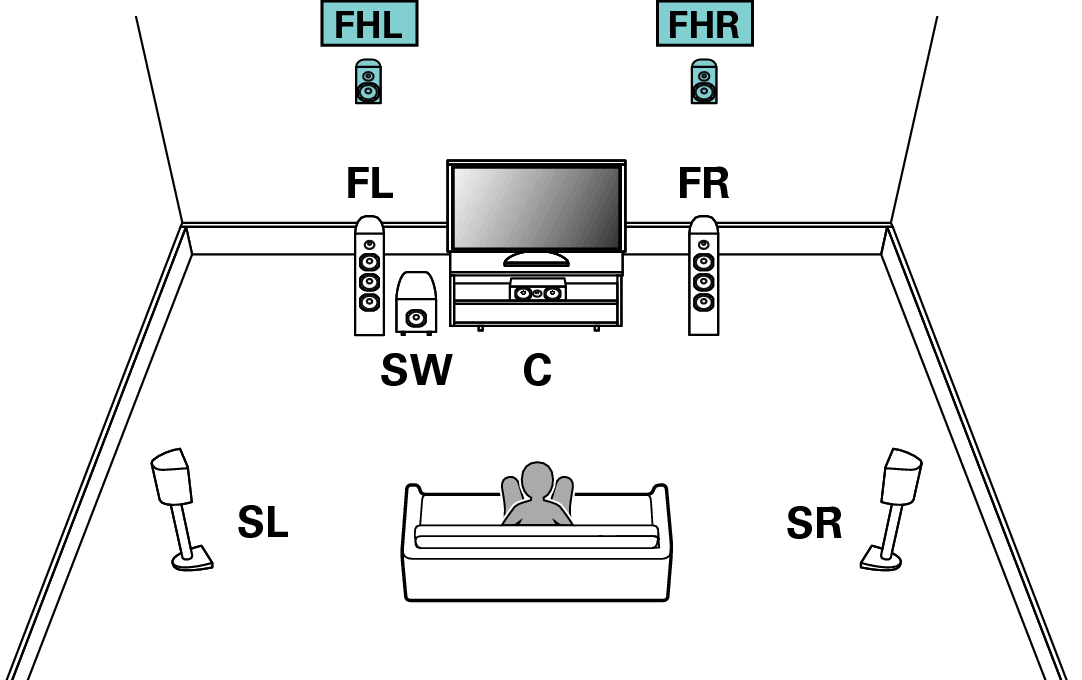

Pict SP Layout 7.1 FH

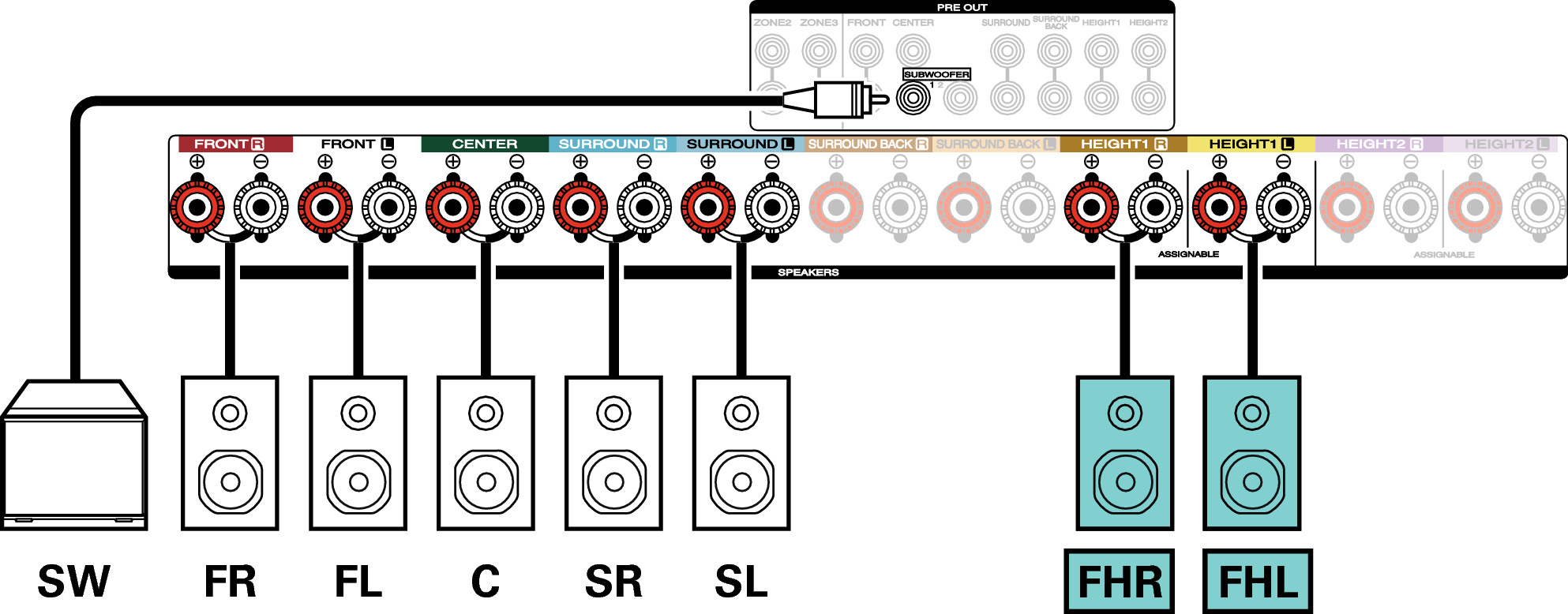

Conne SP 7.1 FH S7

Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when connecting in this configuration. link

The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under “Height” - “Layout” in the menu. link

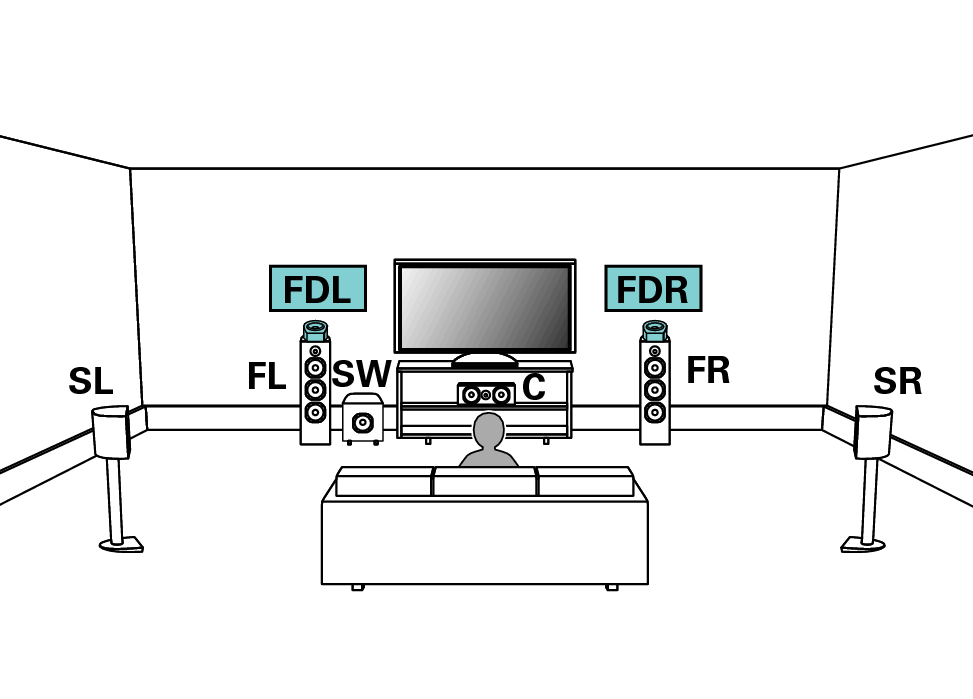

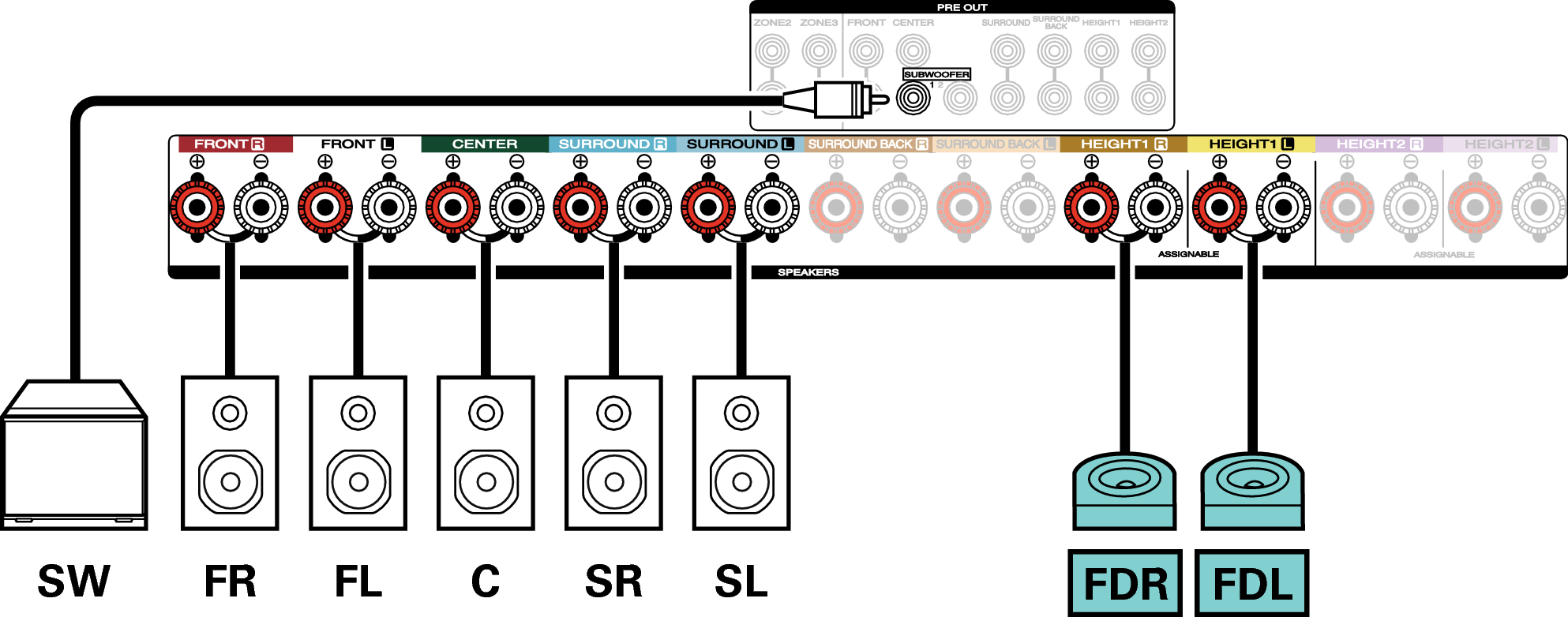

Example connections when using Dolby Atmos Enabled speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers.

Pict SP Layout 7.1 FD
Conne SP 7.1 FD S7

Set “Floor” - “Layout” to “5ch” and “Dolby Sp” to “2ch” in the menu when connecting in this configuration. link

The surround Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under “Height” - “Layout” in the menu. link

9.1-channel playback

This system, which is based on a 5.1-channel system, plays back up to 9.1-channels at the same time.

You can connect speakers for up to 11-channels for MAIN ZONE. When you connect speakers for 10 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Example connection when using one set of ceiling speakers

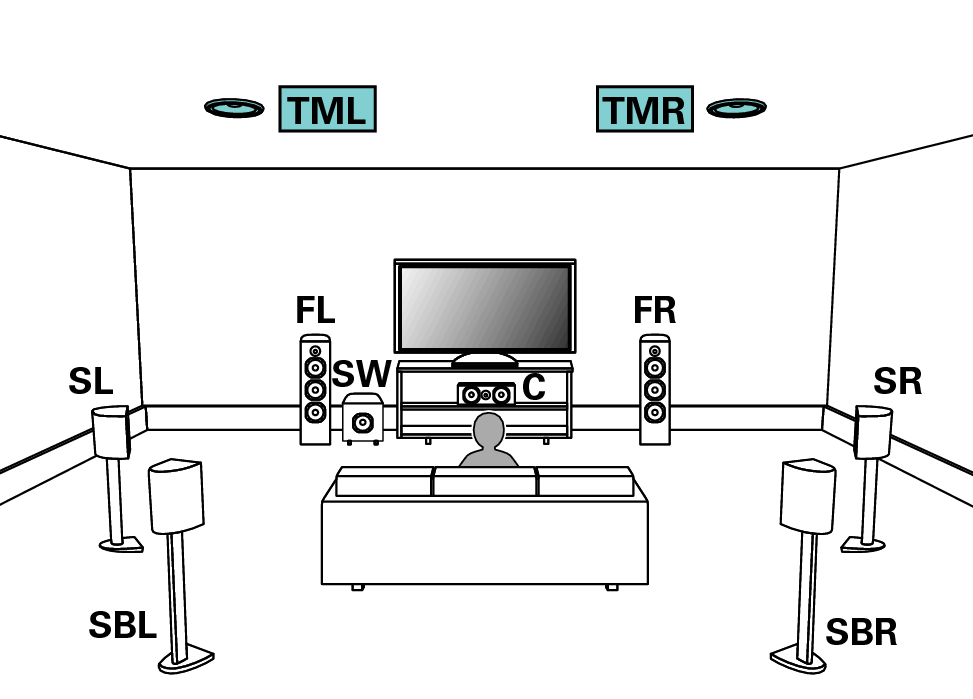

Pict SP Layout 9.1 TM

Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this configuration. link

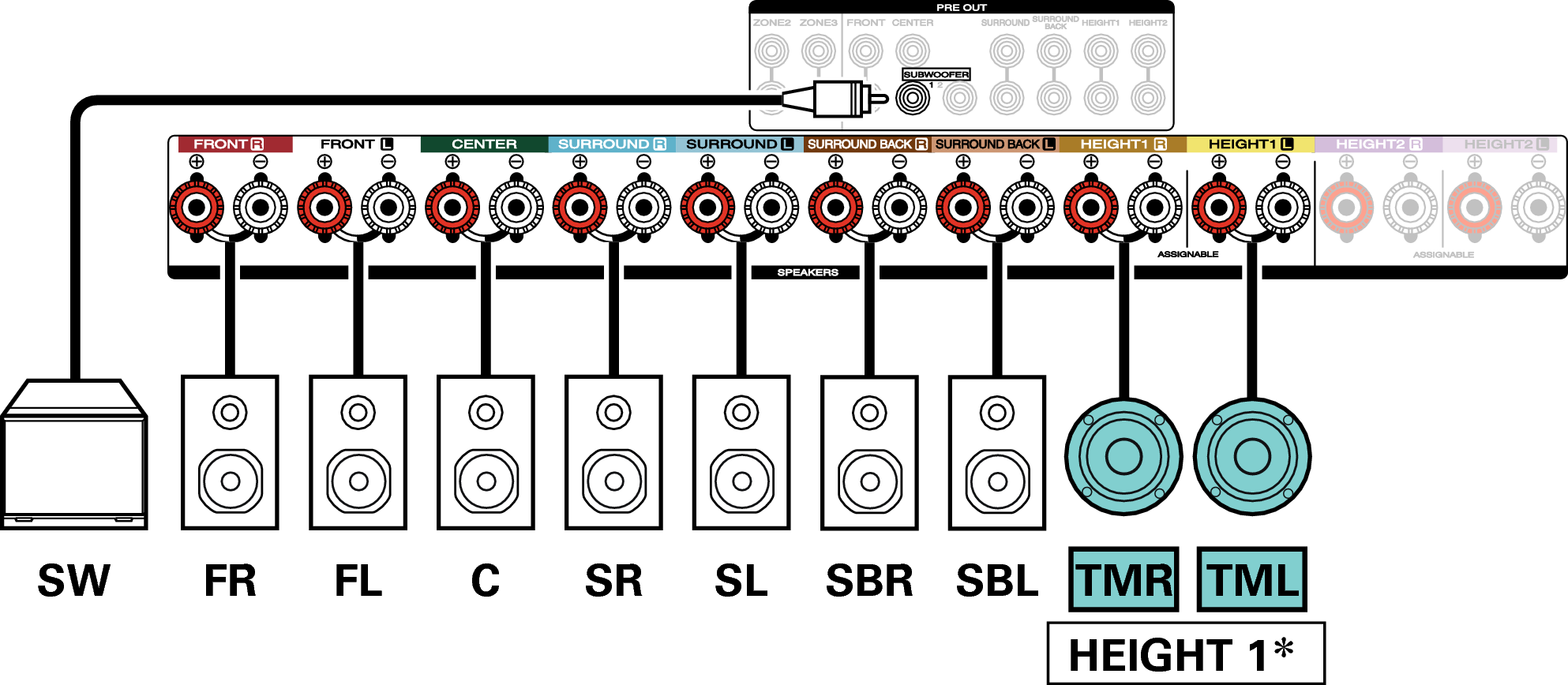

Conne SP 9.1 TM S7

The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under “Height” - “Layout” in the menu. link

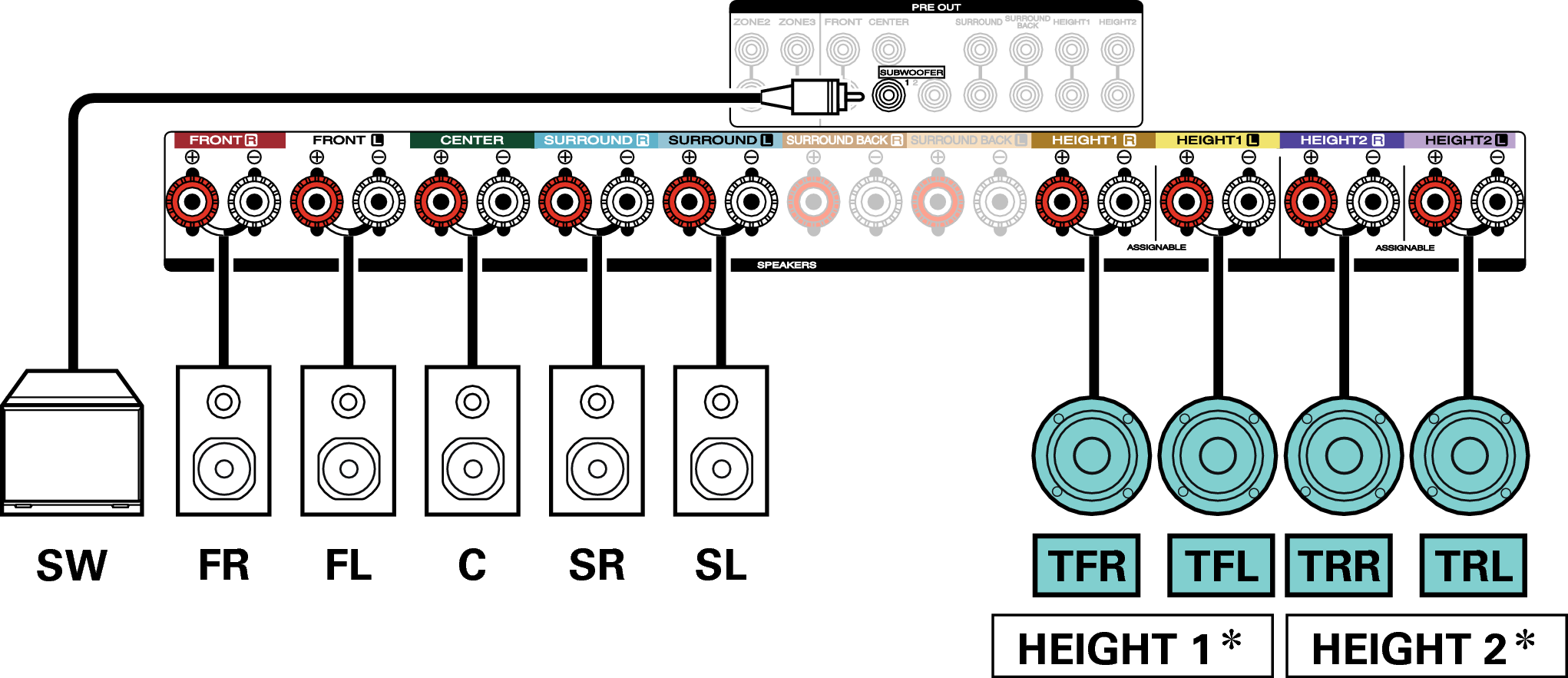

Example connection when using two sets of ceiling speakers

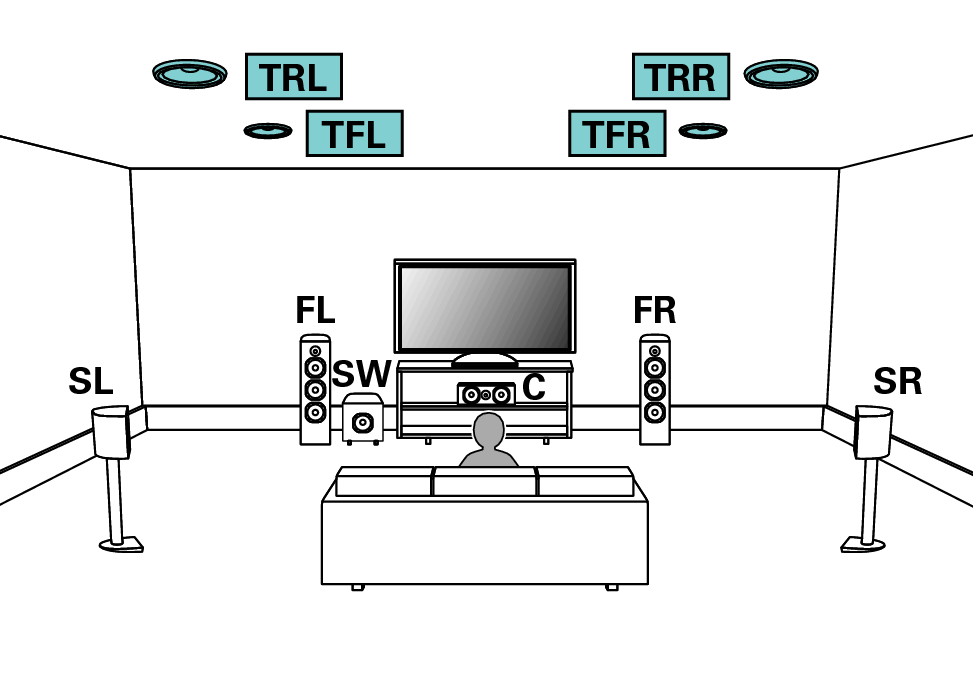

Pict SP Layout 9.1 TR TF

Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this configuration. link

Conne SP 9.1 TR TF S7

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Example connection when using one set of height speakers

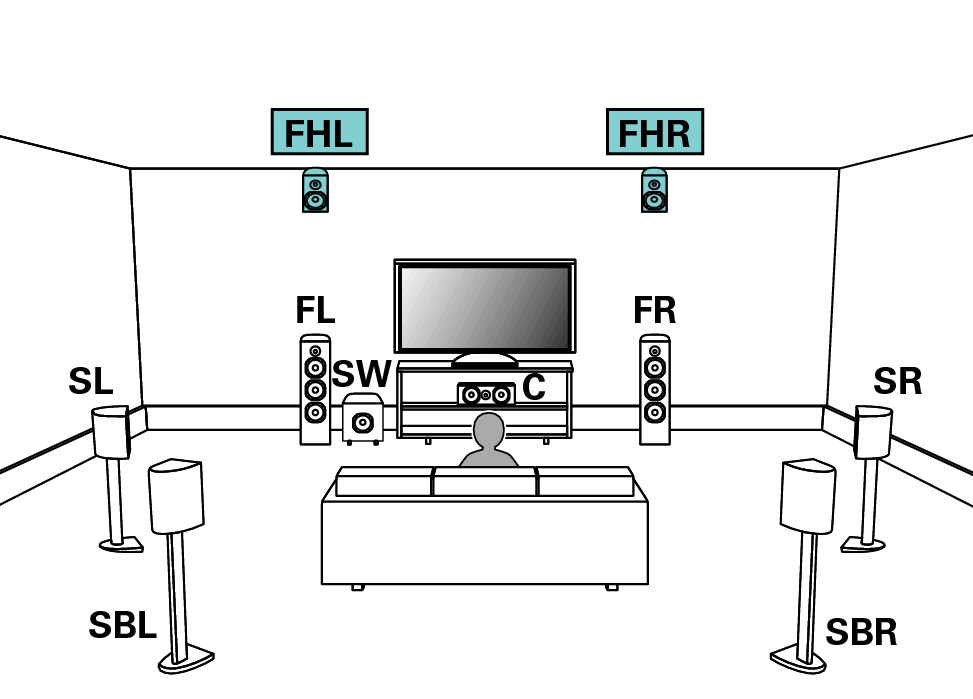

Pict SP Layout 9.1 FH

Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this configuration. link

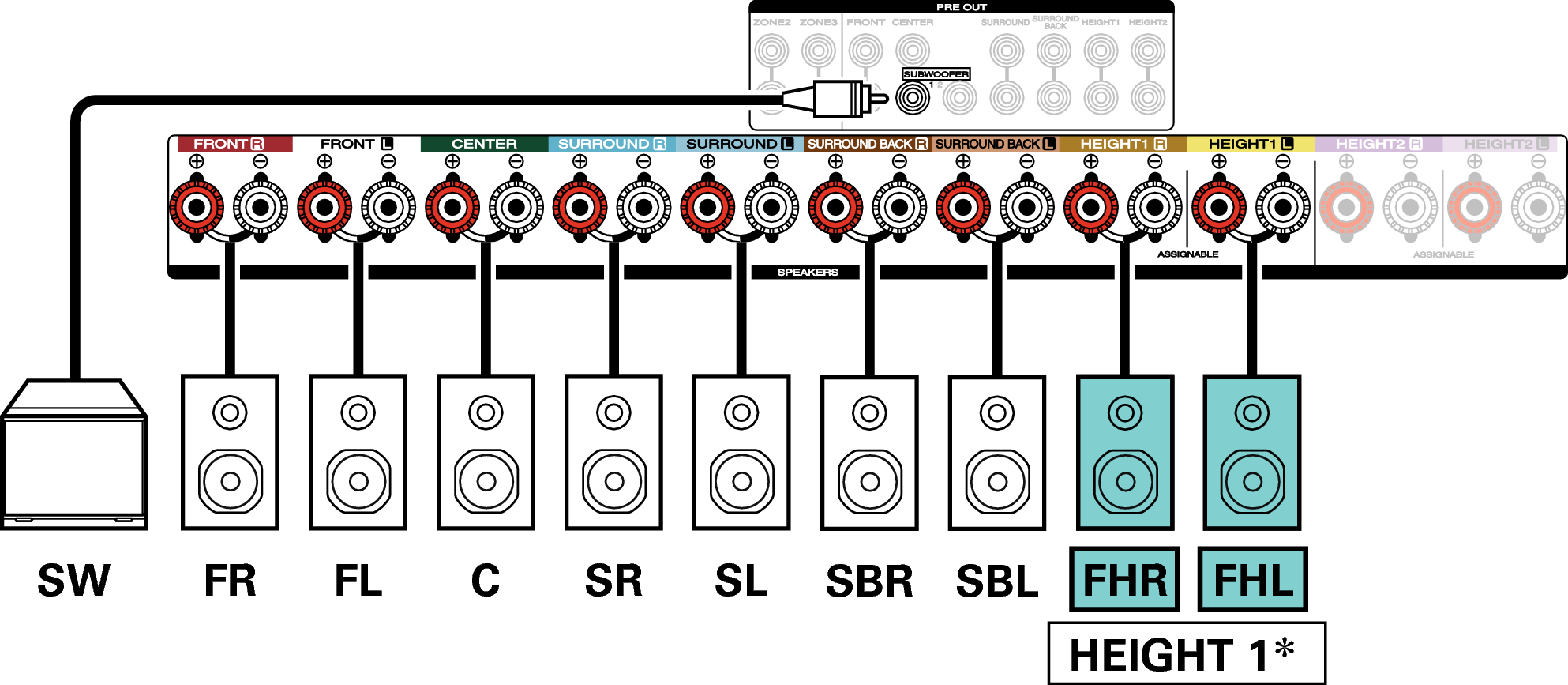

Conne SP 9.1 FH S7

The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under “Height” - “Layout” in the menu. link

Example connection when using two sets of height speakers

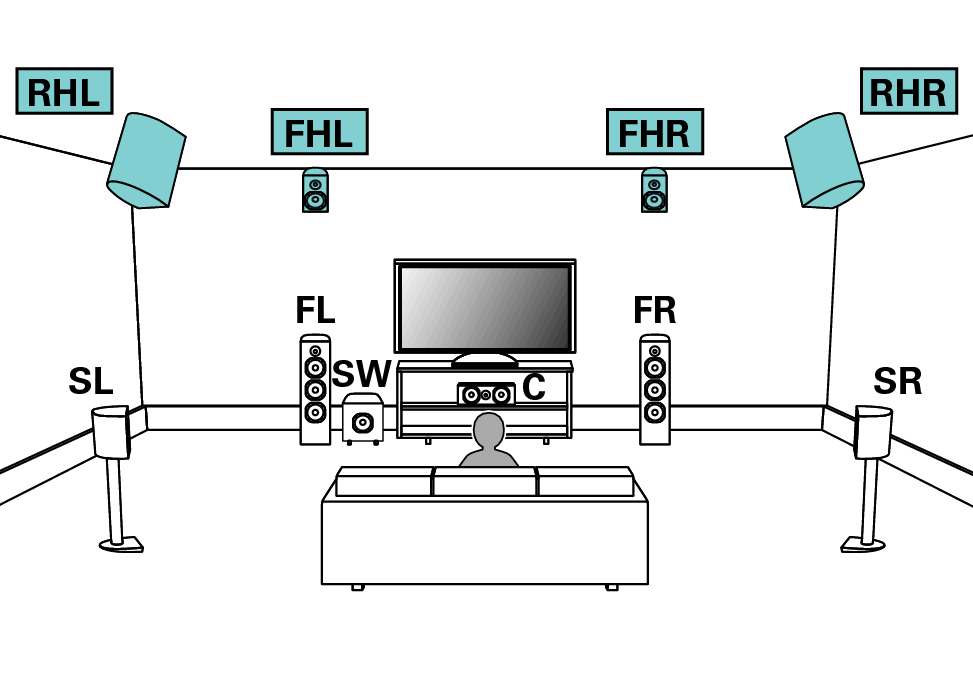

Pict SP Layout 9.1 RH FH

Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this configuration. link

Conne SP 9.1 RH FH S7

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Example connection when using one set of Dolby Atmos Enabled speakers

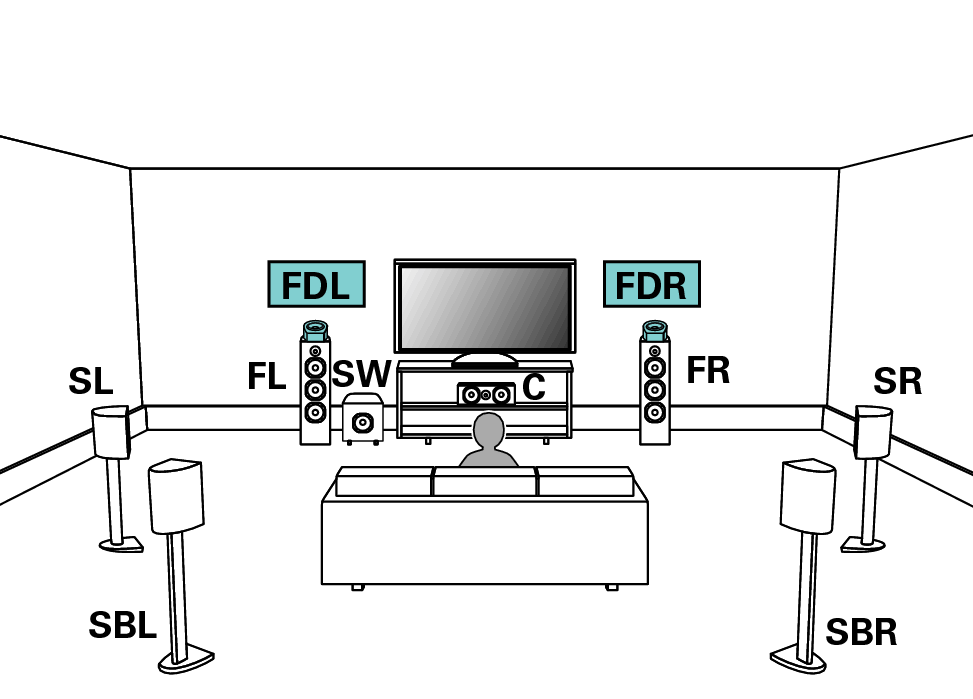

Pict SP Layout 9.1 FD

Set “Height” - “Dolby Sp” to “2ch” in the menu when connecting in this configuration. link

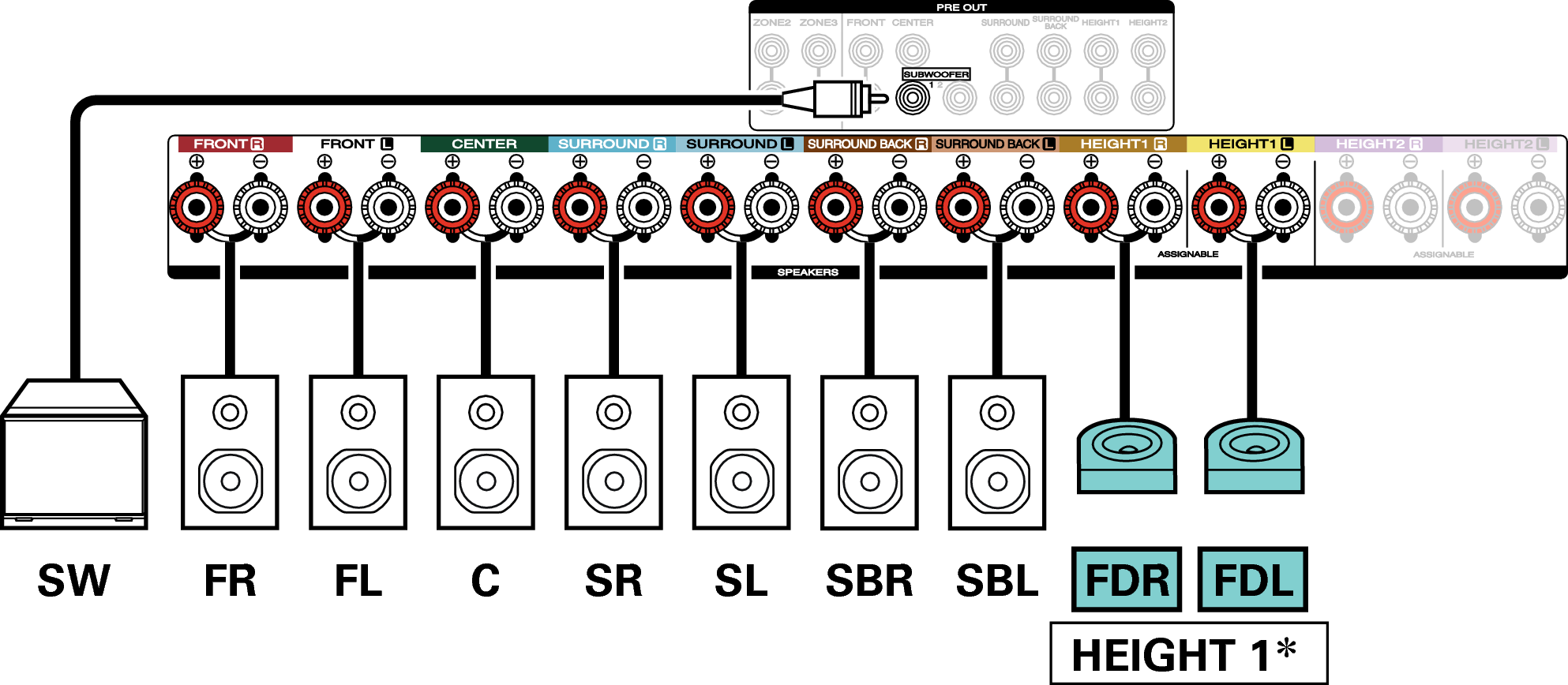

Conne SP 9.1 FD S7

The surround Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under “Height” - “Layout” in the menu. link

Example connection when using two sets of Dolby Atmos Enabled speakers

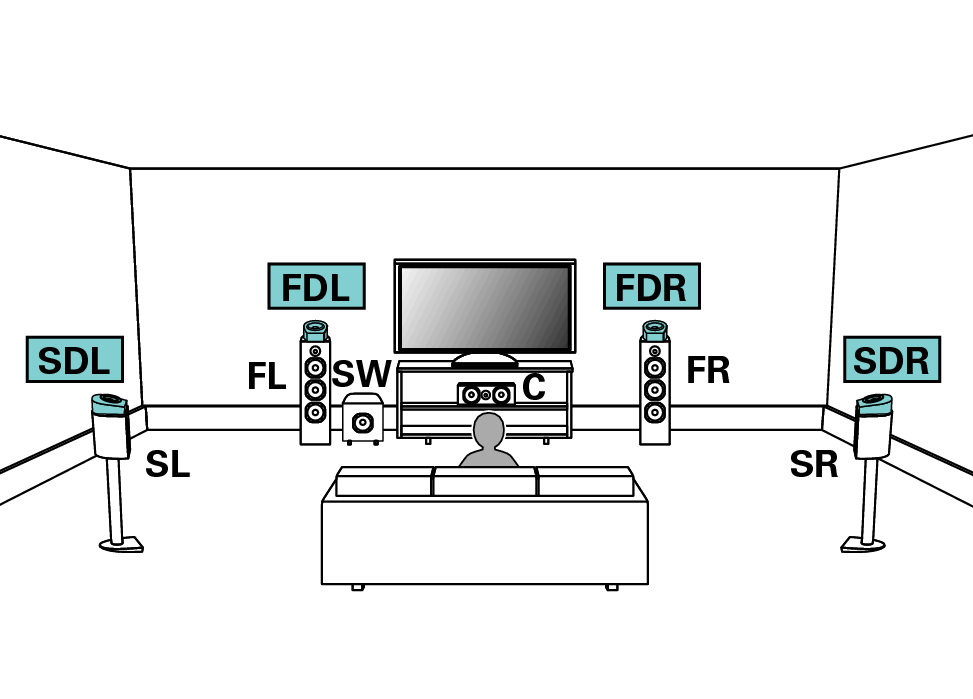

Pict SP Layout 9.1 SD FD

Set “Height” - “Dolby Sp” to “4ch” in the menu when connecting in this configuration. link

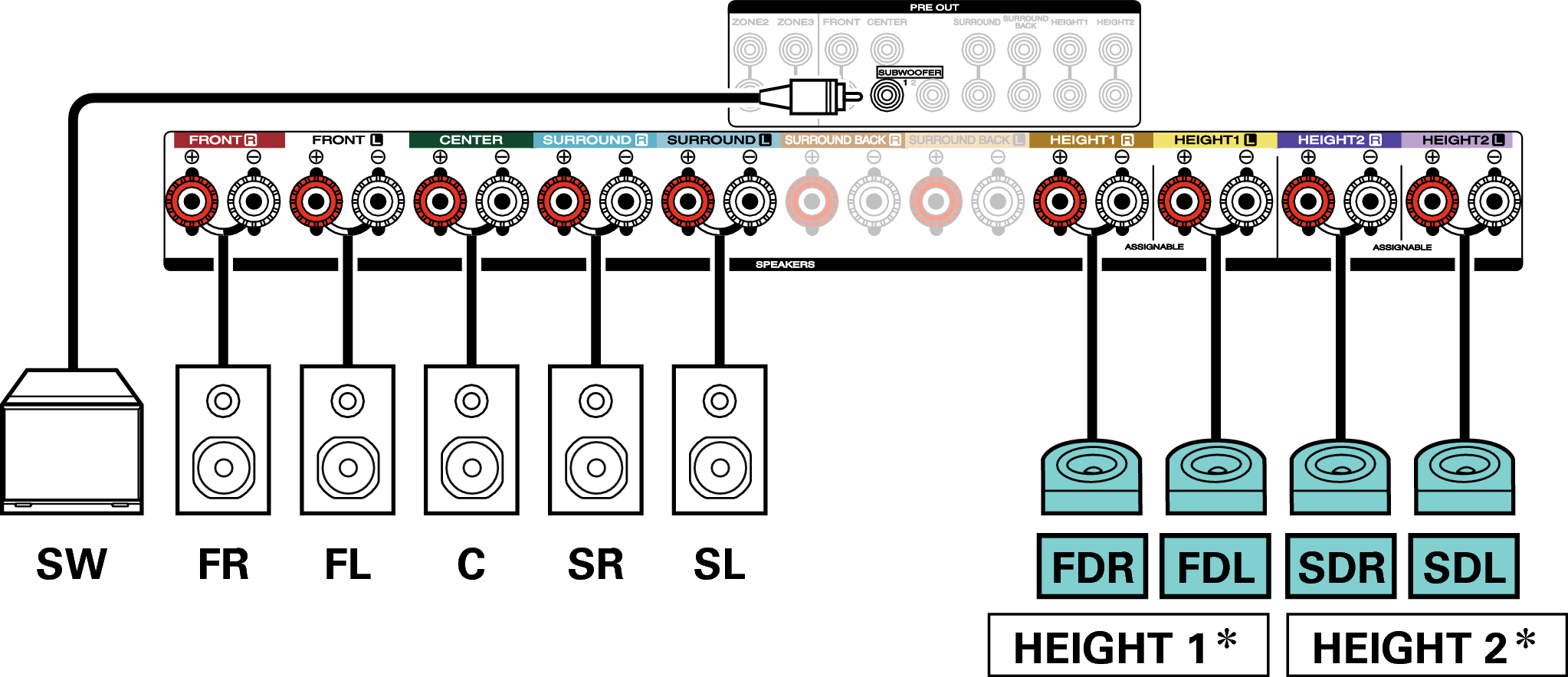

Conne SP 9.1 SD FD S7

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Upgrade (Auro-3D)

Example connection for the Auro-3D 9.1-channel system

This speaker configuration is optimized for Auro-3D playback.

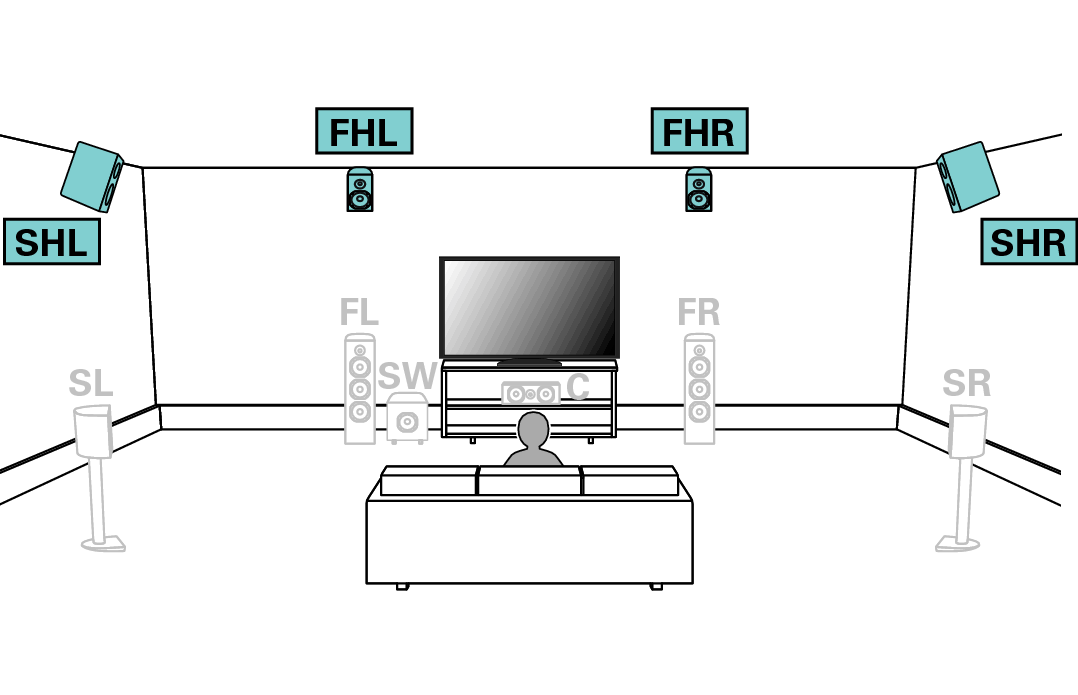

Pict SP Layout 9.1 Auro3D

Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this configuration. link
Next, set “Height” - “Layout” to “Front Height & Surr. Height”. link

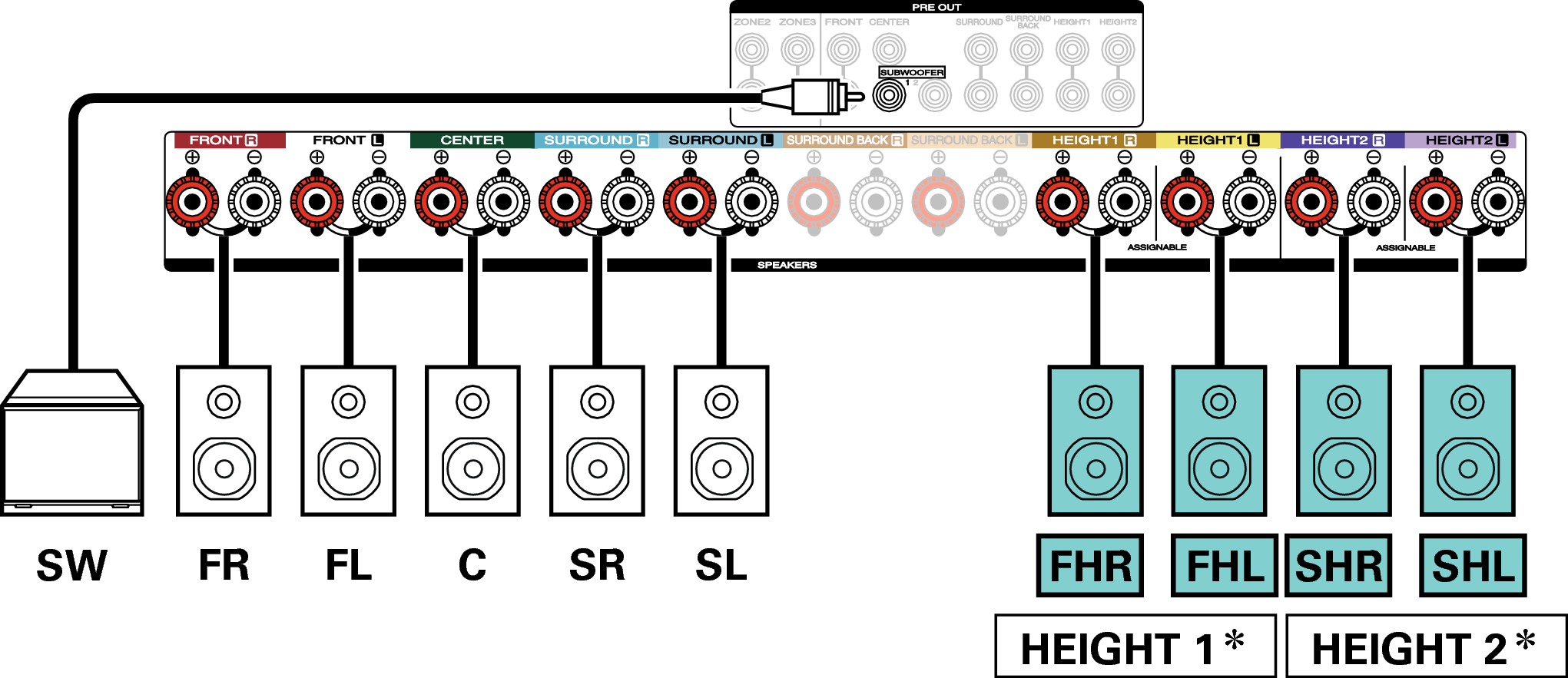

Conne SP 9.1 Auro3D S7

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Channels output from the HEIGHT1 and HEIGHT2 speaker terminals can be changed to the following patterns according to the speaker systems being used.
Set this from “Amp Assign” in the menu. link

Combination of height speakers to be used

Connected terminals

Number of height/ceiling speakers

Number of Dolby Speakers

Combination pattern

HEIGHT1 SPEAKER

HEIGHT2 SPEAKER

2 speakers

None

Front Height

Front Height

-

Top Front

Top Front

-

Top Middle

Top Middle

-

Top Rear

Top Rear

-

Rear Height

Rear Height

-

None

2 speakers

Front Dolby

Front Dolby

-

Surround Dolby

Surround Dolby

-

Back Dolby

Back Dolby

-

4 speakers

None

Front Height & Top Middle

Front Height

Top Middle

Front Height & Top Rear

Front Height

Top Rear

Front Height & Rear Height

Front Height

Rear Height

Top Front & Top Rear

Top Front

Top Rear

Top Front & Rear Height

Top Front

Rear Height

Top Middle & Rear Height

Top Middle

Rear Height

2 speakers

2 speakers

Front Dolby & Top Rear

Front Dolby

Top Rear

Front Dolby & Rear Height

Front Dolby

Rear Height

Front Height & Surr. Dolby

Front Height

Surround Dolby

Top Front & Surround Dolby

Top Front

Surround Dolby

None

4 speakers

Front Dolby & Surround Dolby

Front Dolby

Surround Dolby

Upgrade (Auro-3D)

Combination of height speakers to be used

Connected terminals

Number of height/ceiling speakers

Number of Dolby Speakers

Combination pattern

HEIGHT1 SPEAKER

HEIGHT2 SPEAKER

4 speakers

None

Front Height & Surr. Height

Front Height

Surround Height

Front Height & Rear Height Flower Mark

Front Height

Rear Height

For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.

11.1-channel playback

This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time.

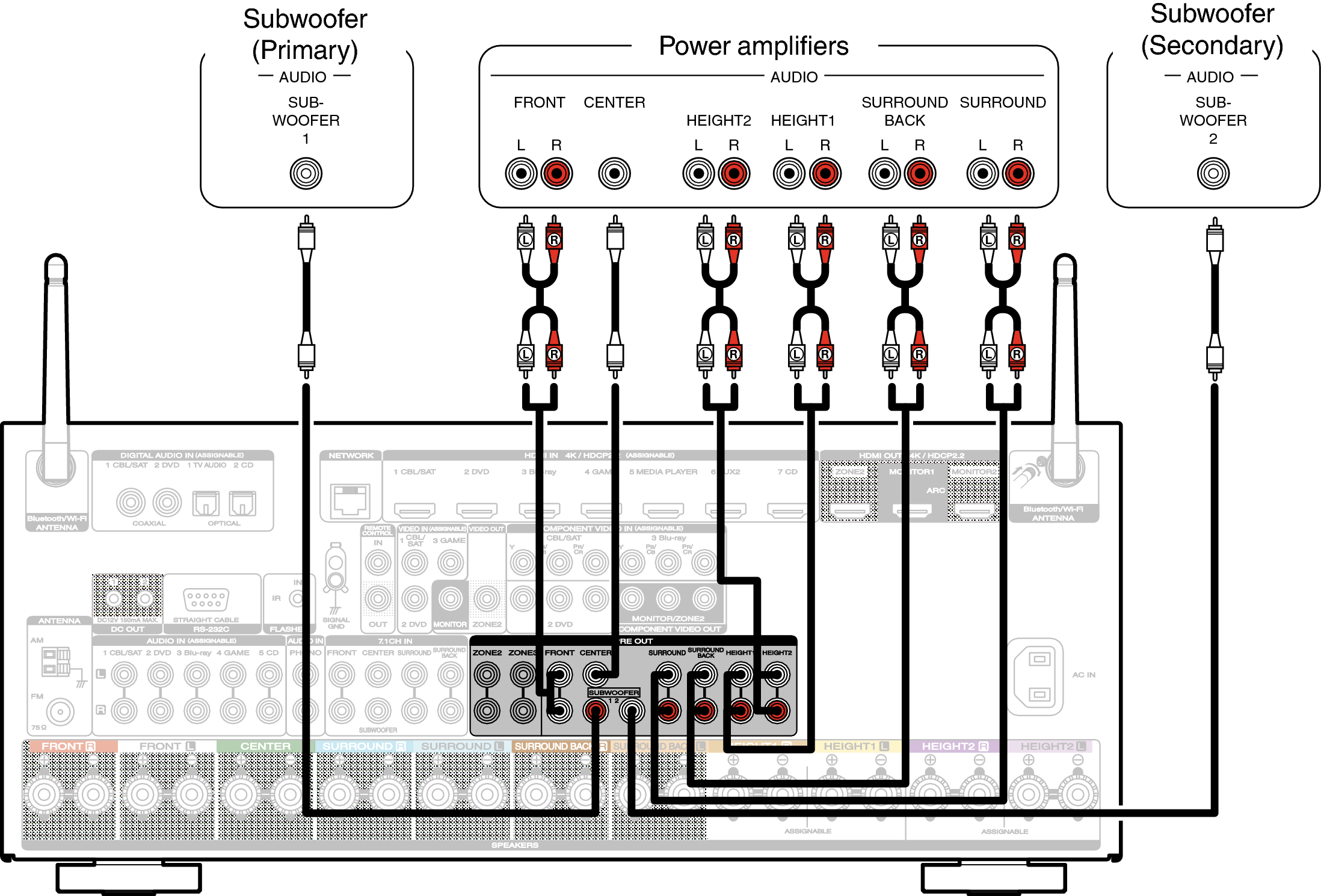

You can connect speakers for 11-channels for MAIN ZONE by using an external power amplifier.

Example connection when using two sets of ceiling speakers

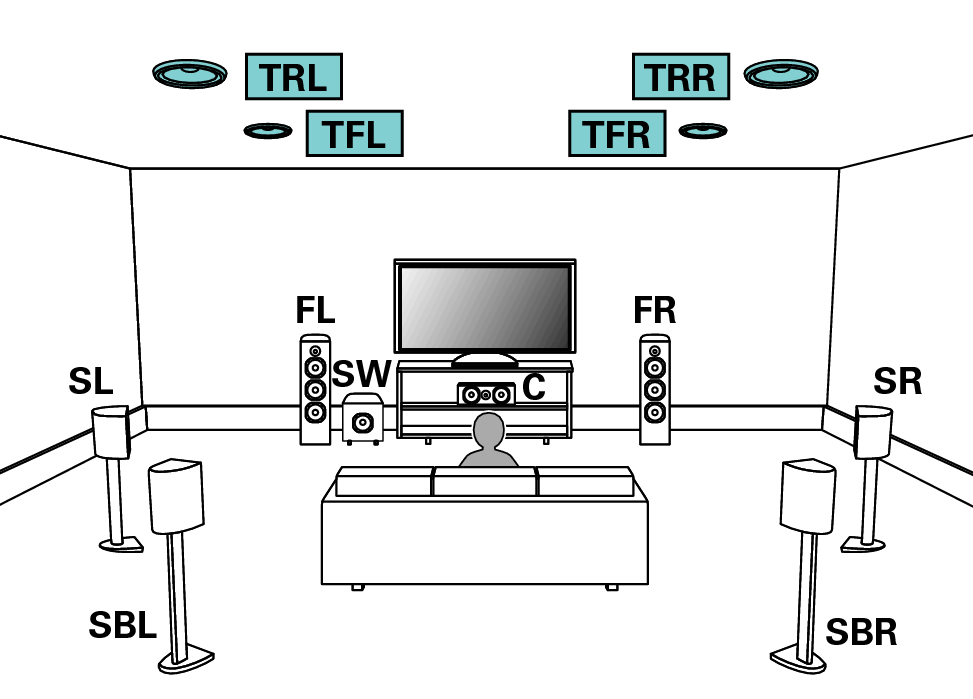

Pict SP Layout 11.1 TR TF

Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this configuration. link

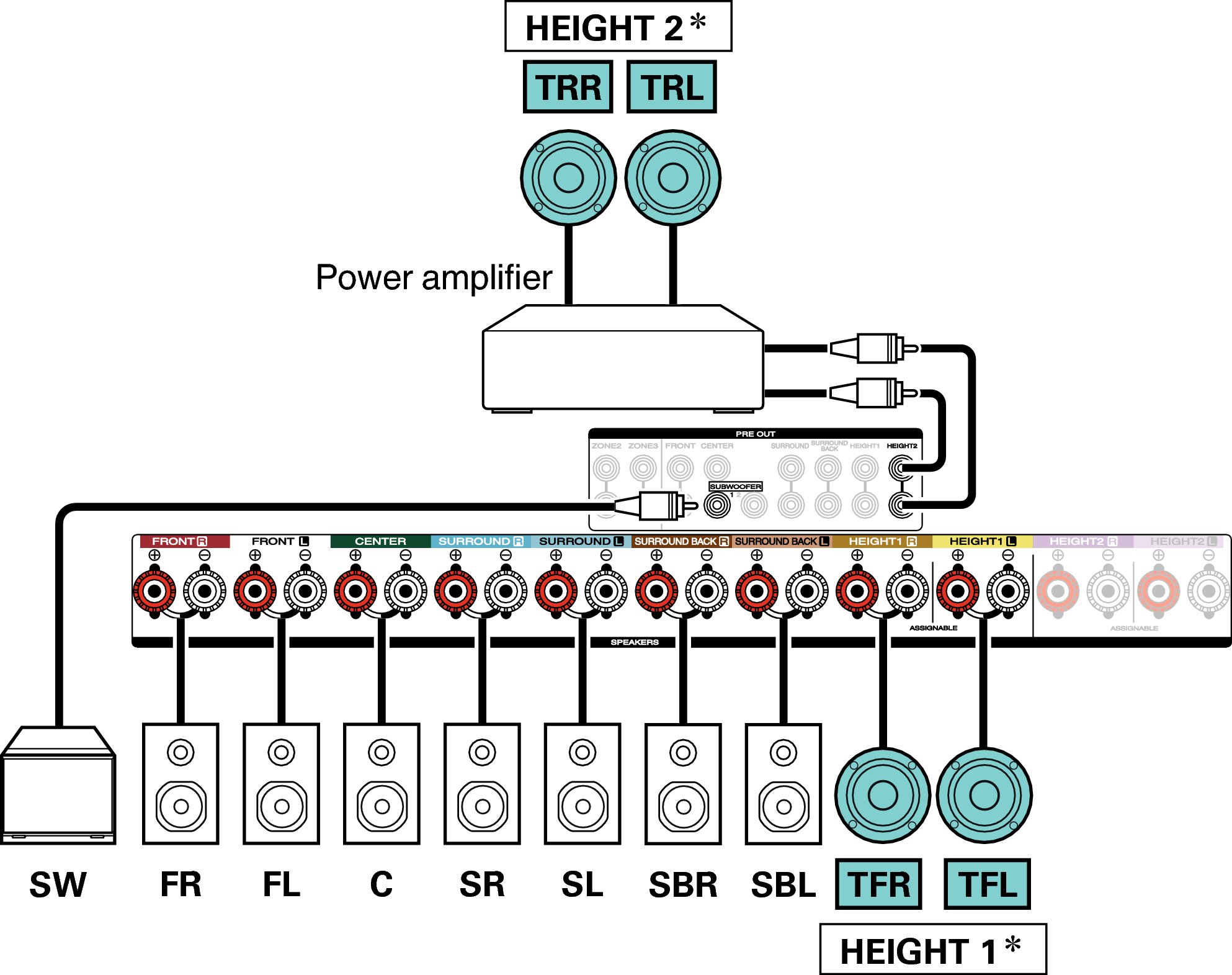

Conne SP 11.1 TR TF S7

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Example connection when using two sets of height speakers

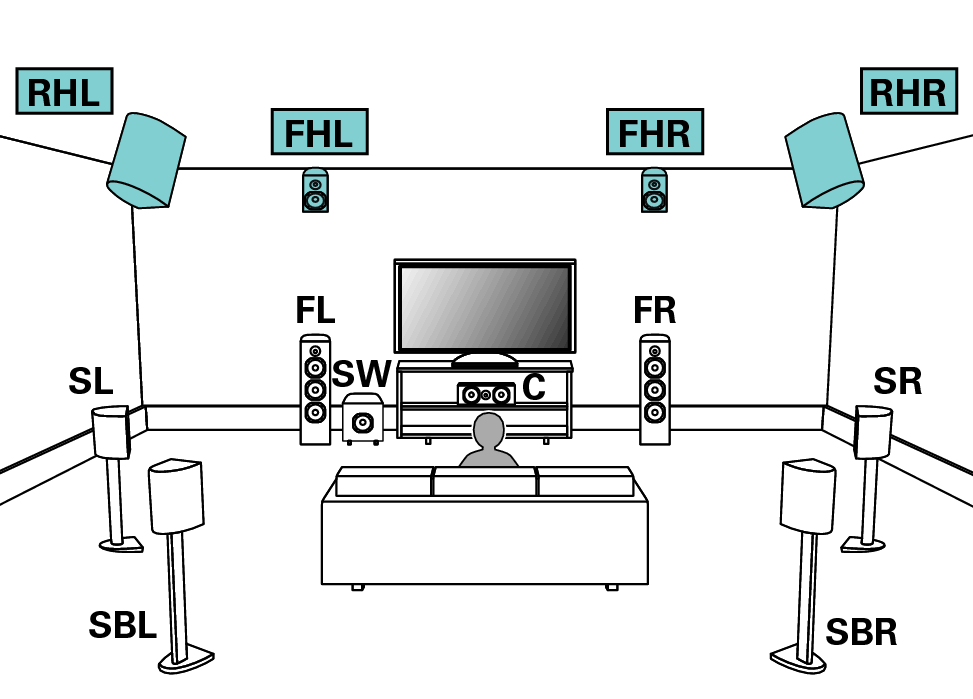

Pict SP Layout 11.1 RH FH

Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this configuration. link

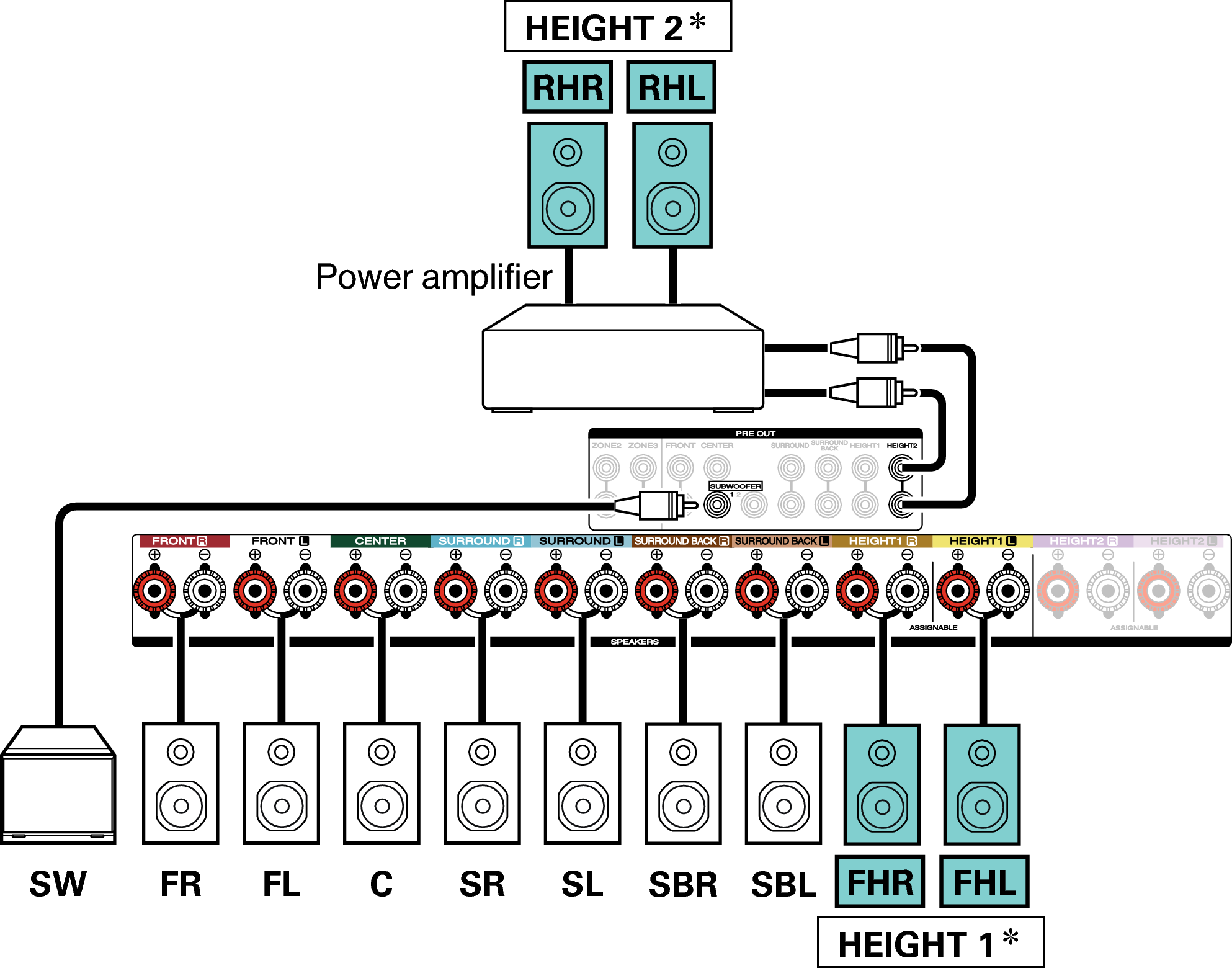

Conne SP 11.1 RH FH S7

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

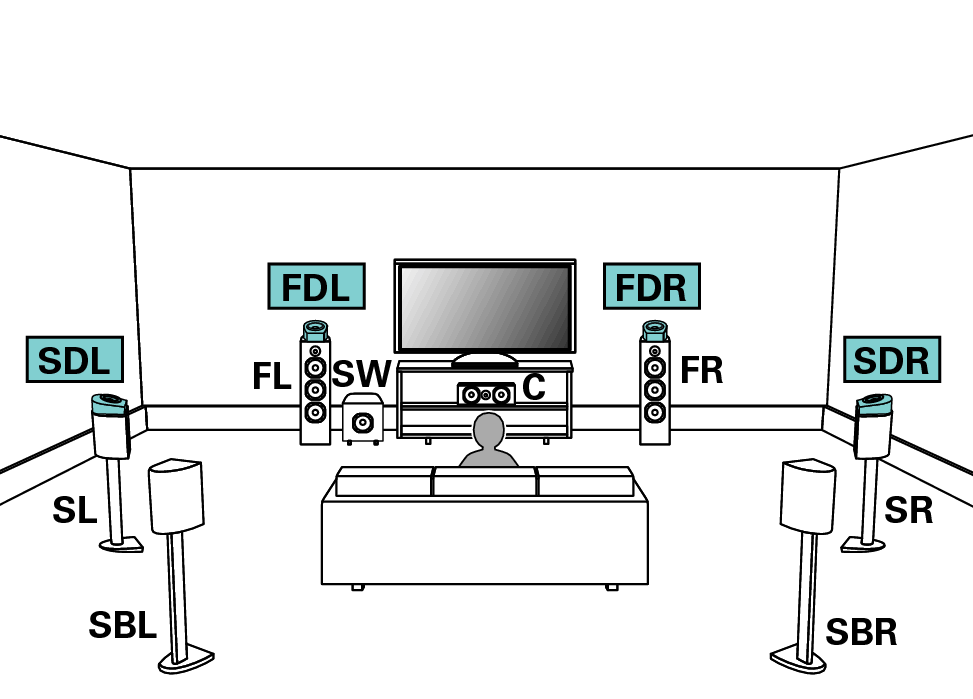

Example connection when using two sets of Dolby Atmos Enabled speakers

Pict SP Layout 11.1 SD FD

Set “Height” - “Dolby Sp” to “4ch” in the menu when connecting in this configuration. link

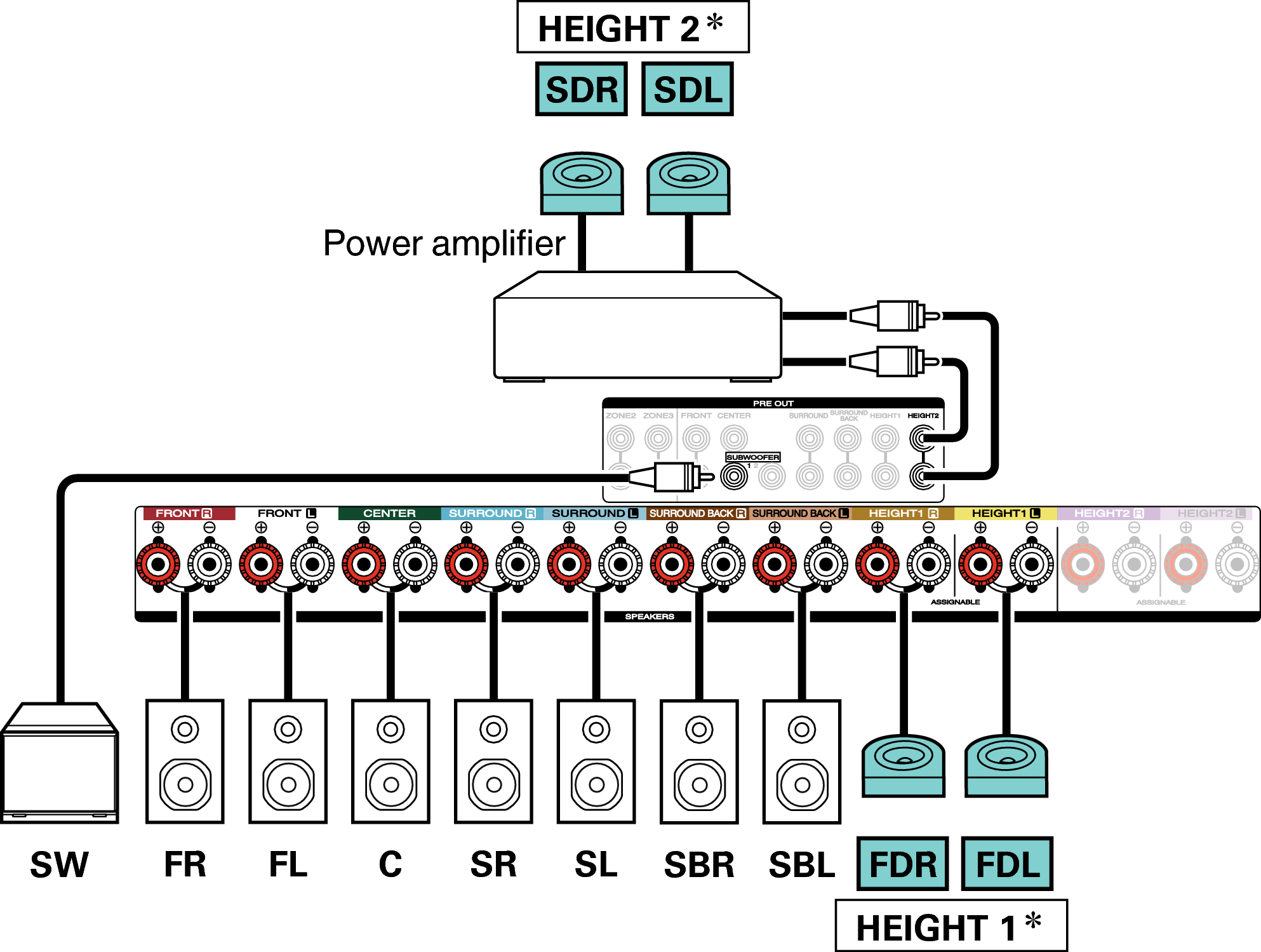

Conne SP 11.1 SD FD S7

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Upgrade (Auro-3D)

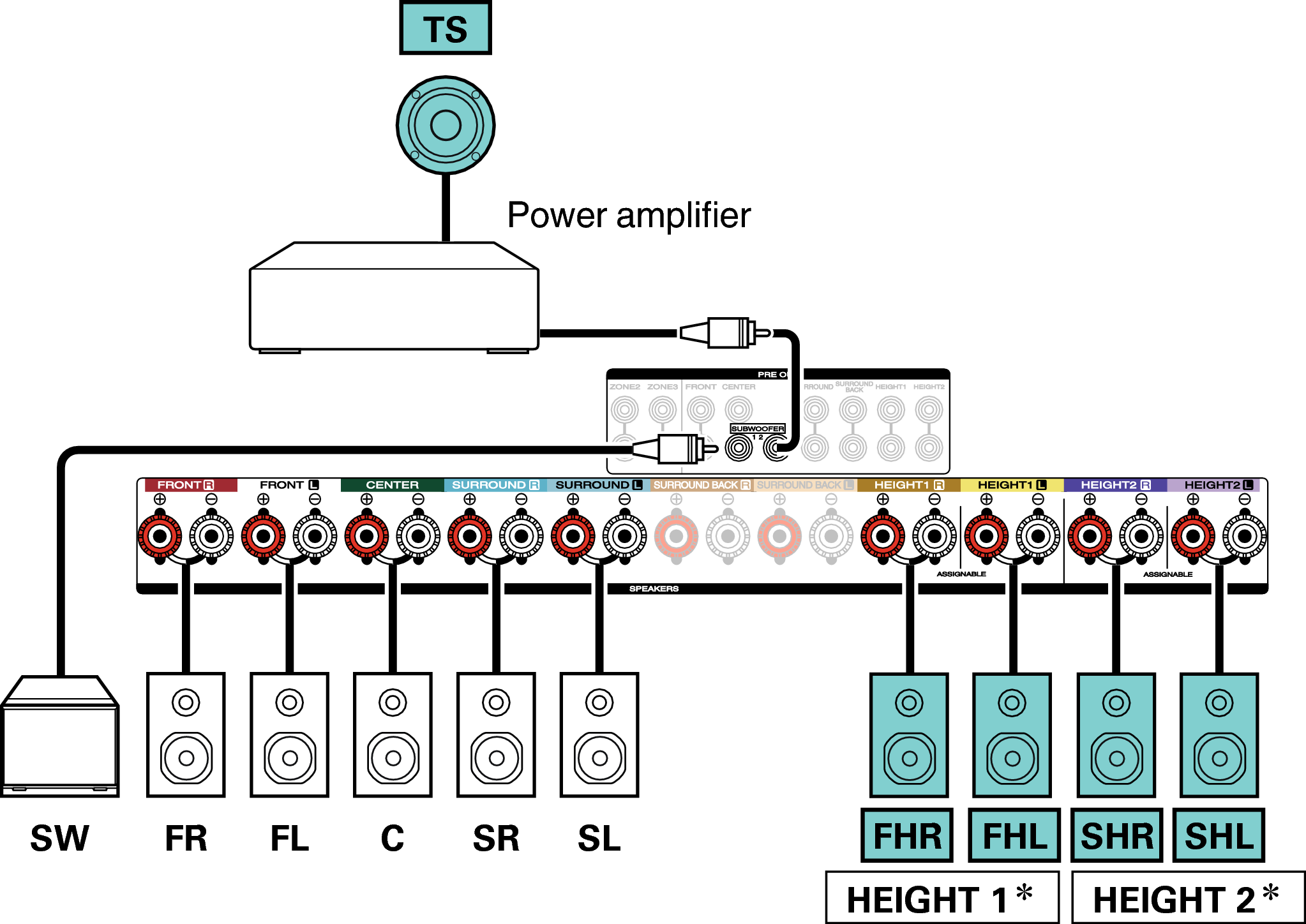

Example connection for the Auro-3D 10.1-channel system

This speaker configuration is optimized for Auro-3D playback.

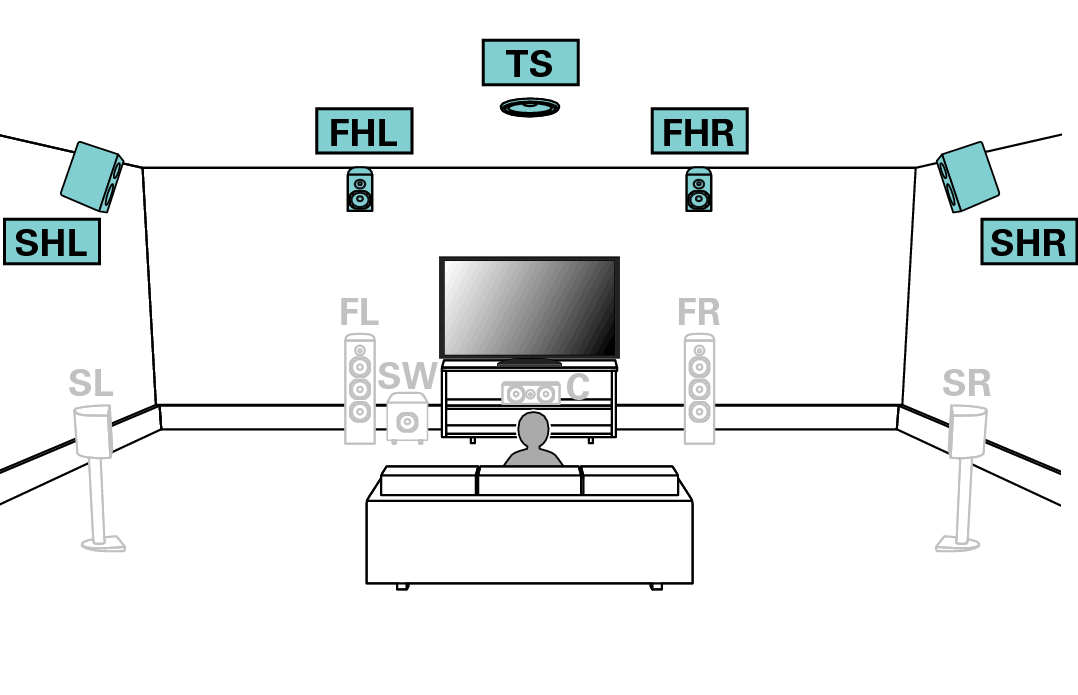

Pict SP Layout 10.1 Auro3D

Set “Height” - “Height Sp” to “5ch” in the menu when connecting in this configuration. Next, set “Height” - “Layout” to “Front Height & Surr. Height”.

Conne SP 10.1 Auro3D S7

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

The combination of the HEIGHT1 and HEIGHT2 channels can be changed to the following patterns according to the speaker system being used.
Set this from “Amp Assign” in the menu. link

Combination of height speakers to be used

Connected terminals

Number of height/ceiling speakers

Number of Dolby Speakers

Combination pattern

HEIGHT1 SPEAKER

HEIGHT2 PRE OUT

2 speakers

None

Front Height

Front Height

-

Top Front

Top Front

-

Top Middle

Top Middle

-

Top Rear

Top Rear

-

Rear Height

Rear Height

-

4 speakers

None

Front Height & Top Middle

Front Height

Top Middle

Front Height & Top Rear

Front Height

Top Rear

Front Height & Rear Height

Front Height

Rear Height

Top Front & Top Rear

Top Front

Top Rear

Top Front & Rear Height

Top Front

Rear Height

Top Middle & Rear Height

Top Middle

Rear Height

None

2 speakers

Front Dolby

Front Dolby

-

Surround Dolby

Surround Dolby

-

Back Dolby

Back Dolby

-

2 speakers

2 speakers

Front Dolby & Top Rear

Front Dolby

Top Rear

Front Dolby & Rear Height

Front Dolby

Rear Height

Front Height & Surr. Dolby

Front Height

Surround Dolby

Front Height & Back Dolby

Front Height

Back Dolby

Top Front & Surround Dolby

Top Front

Surround Dolby

Top Front & Back Dolby

Top Front

Back Dolby

None

4 speakers

Front Dolby & Surround Dolby

Front Dolby

Surround Dolby

Front Dolby & Back Dolby

Front Dolby

Back Dolby

Upgrade (Auro-3D)

Combination of height speakers to be used

Connected terminals

Number of height/ceiling speakers

Number of Dolby Speakers

Combination pattern

HEIGHT1 SPEAKER

HEIGHT2 PRE OUT

SUBWOOFER2 PRE OUT

5 speakers

None

Front Height & Surr. Height & Top Surround

Front Height

Surround Height

Top Surround

Front Height & Rear Height & Top Surround Flower Mark

Front Height

Rear Height

Top Surround

For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.

7.1-channel playback (bi-amp connection of front speakers)

This system plays back 7.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

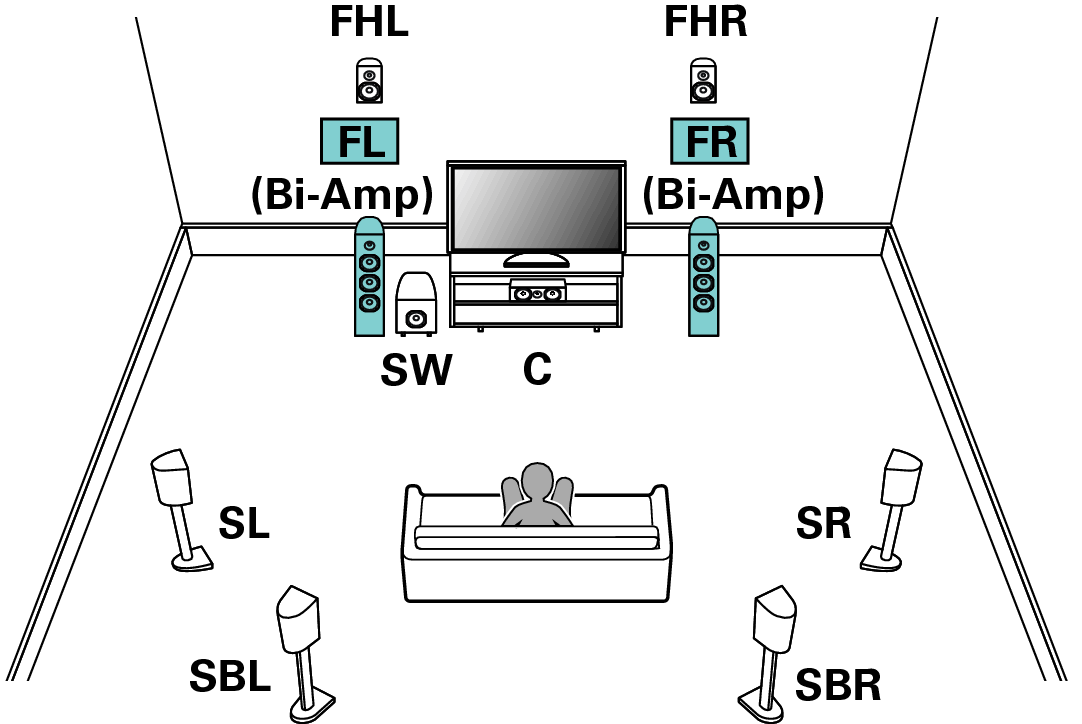

Pict SP Layout 7.1 BiAmp
NOTE

When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker’s woofer and tweeter terminals.

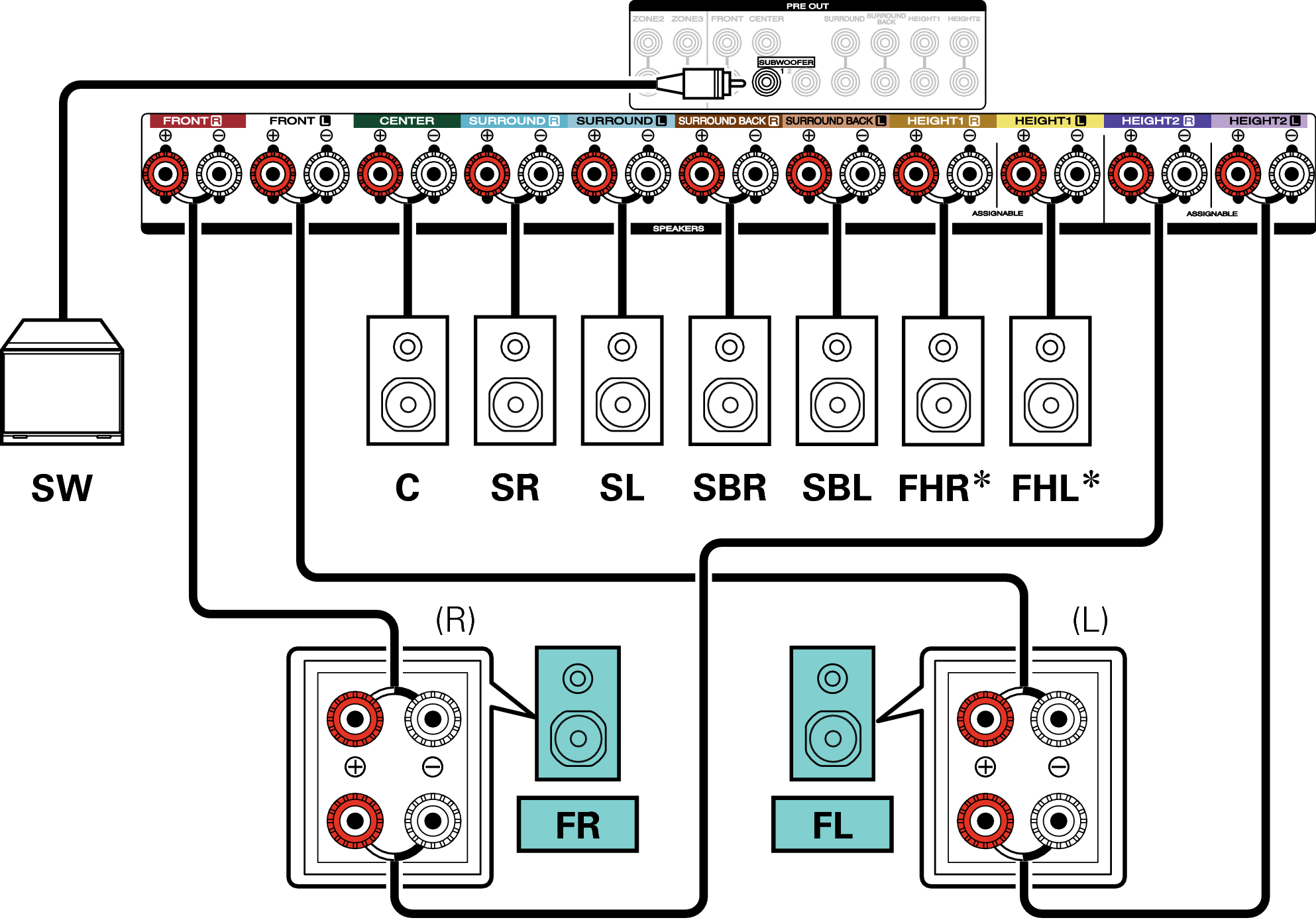

Conne SP 7.1 BiAmp S7

The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. link

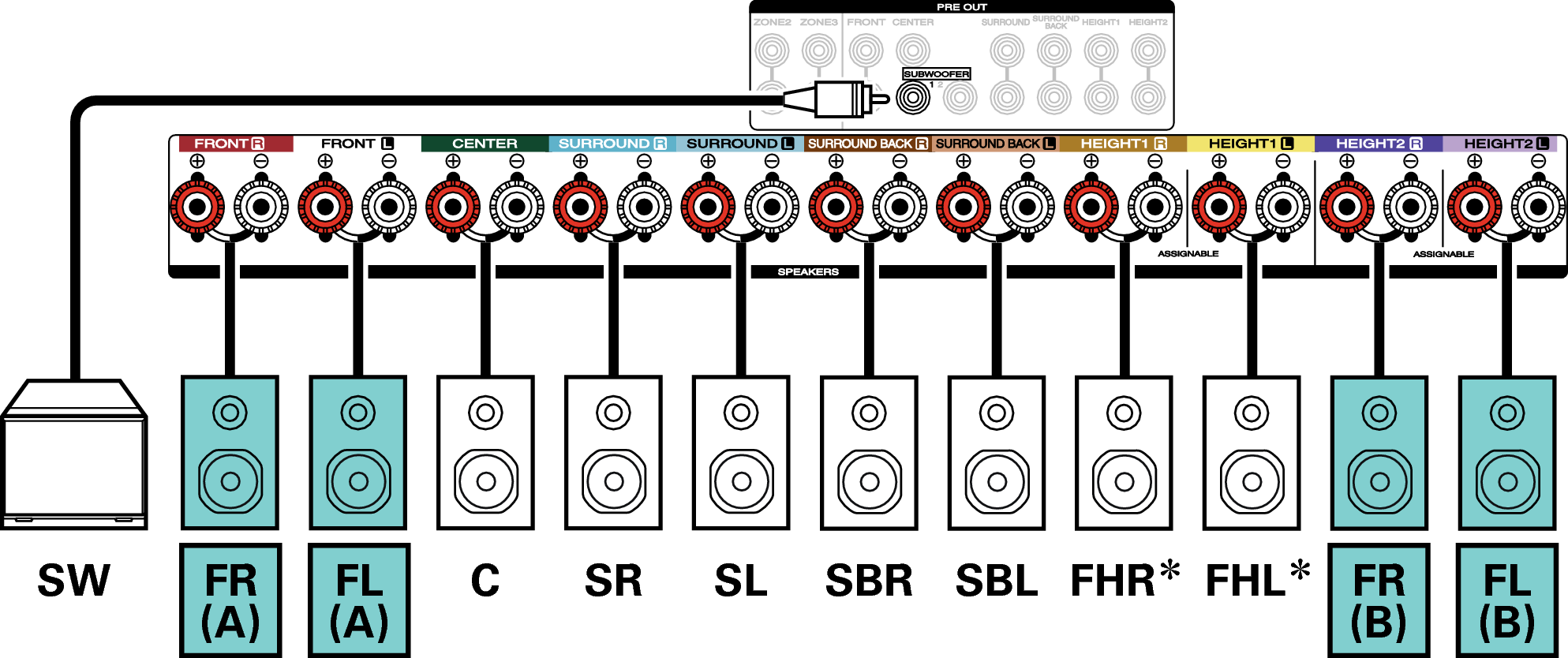

7.1-channel playback + second pair of front speakers

This system enables switching playback between front speakers A and B as desired.

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

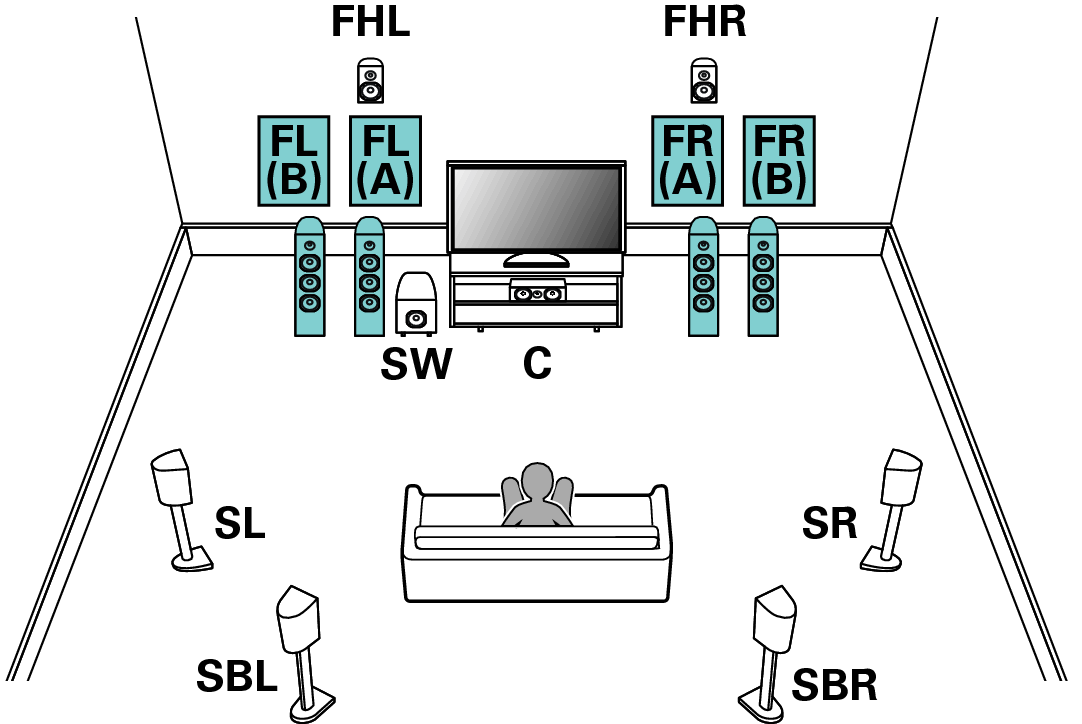

Pict SP Layout 7.1 FB
Conne SP 7.1 FB S7

The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. link

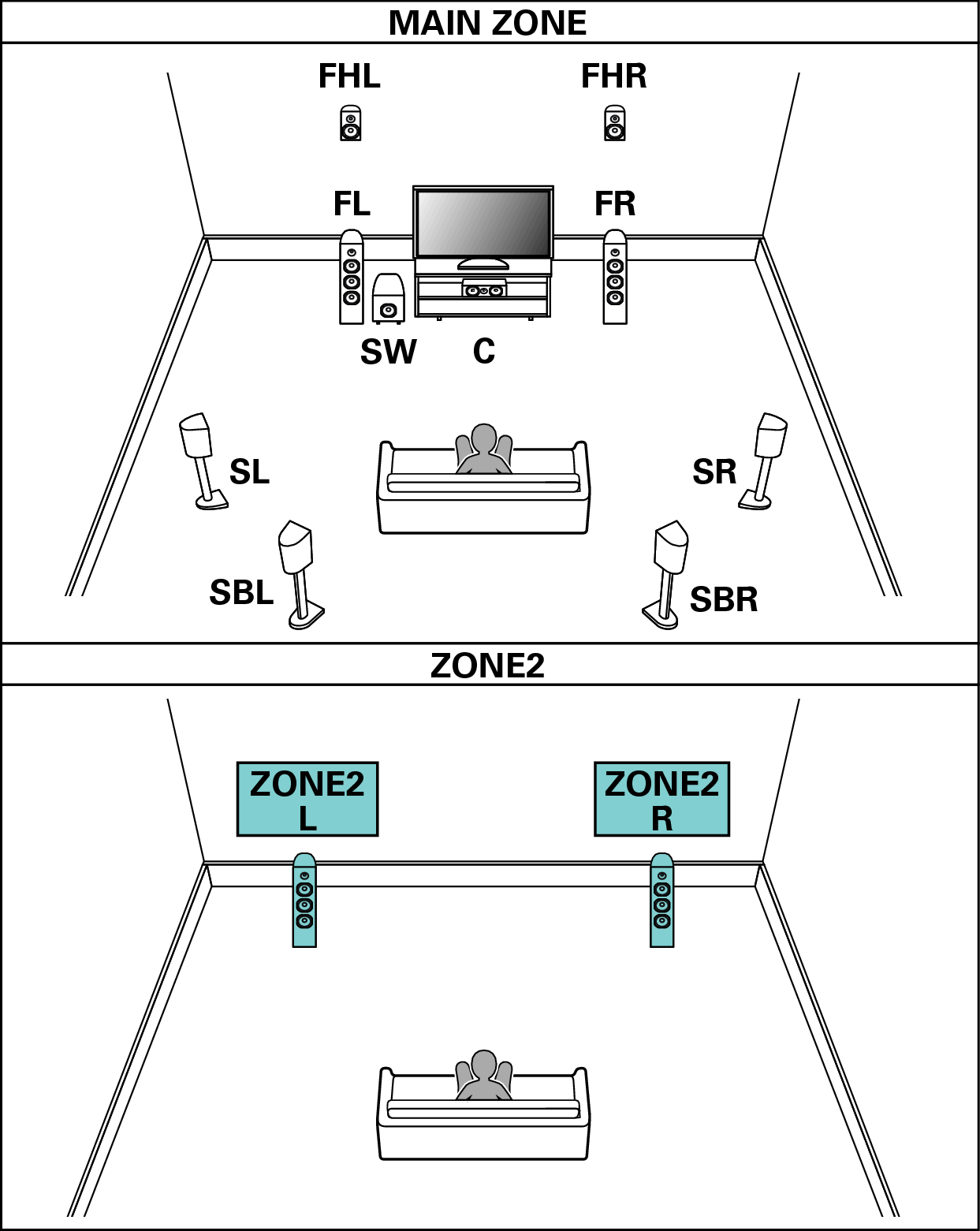

7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3)

This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2.
(Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 7.1ch + ZONE3)).

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Pict SP Layout 7.1 2ch

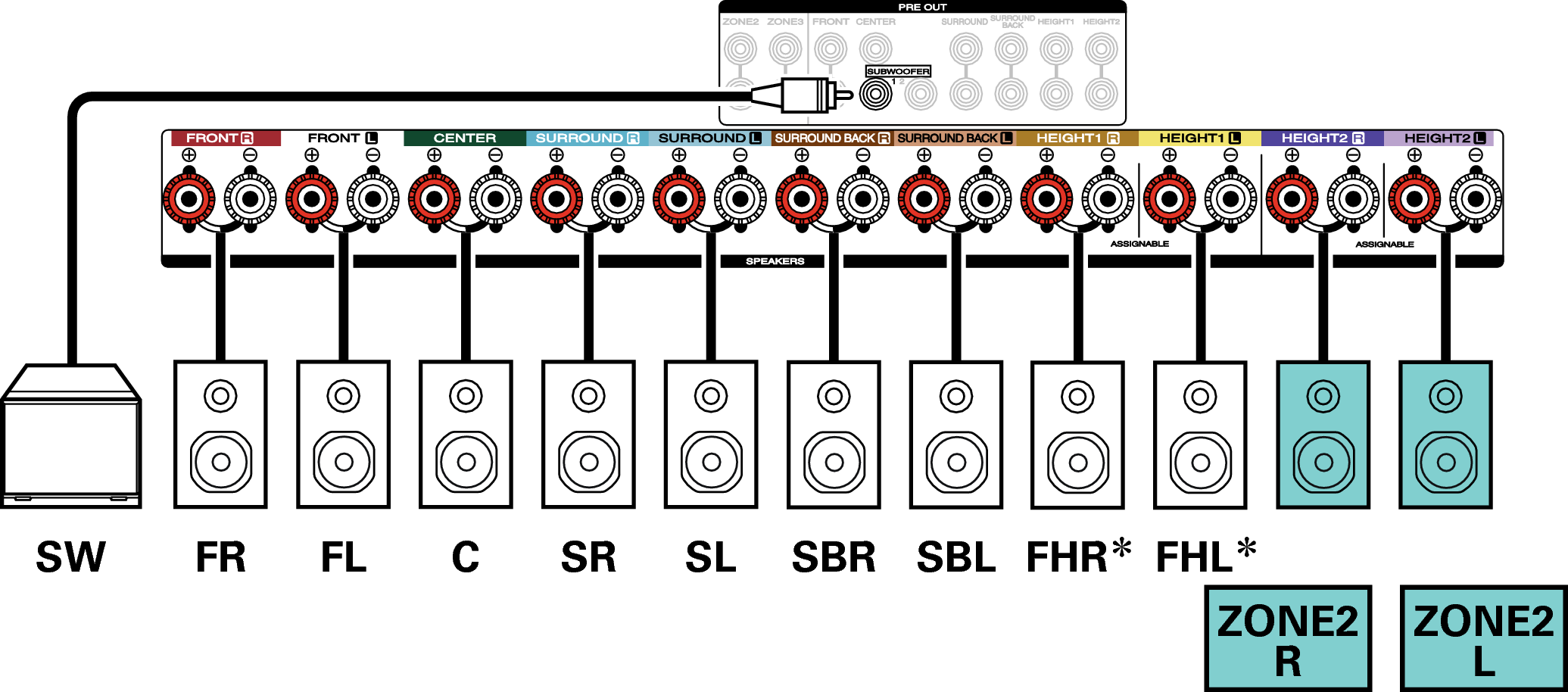

Conne SP 7.1 2ch S7

The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. link

5.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2)

This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.

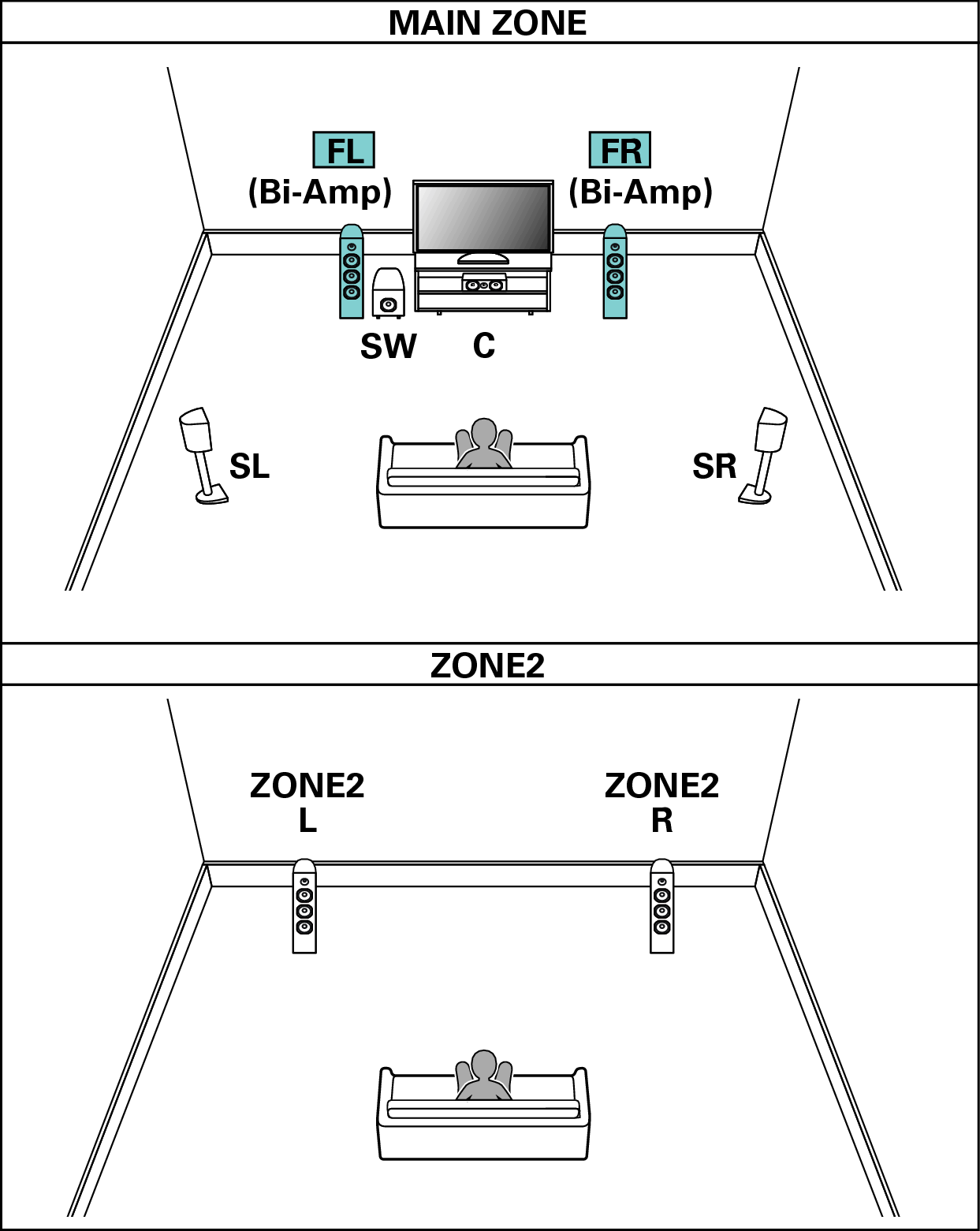

Pict SP Layout 5.1 BiAmp 2ch

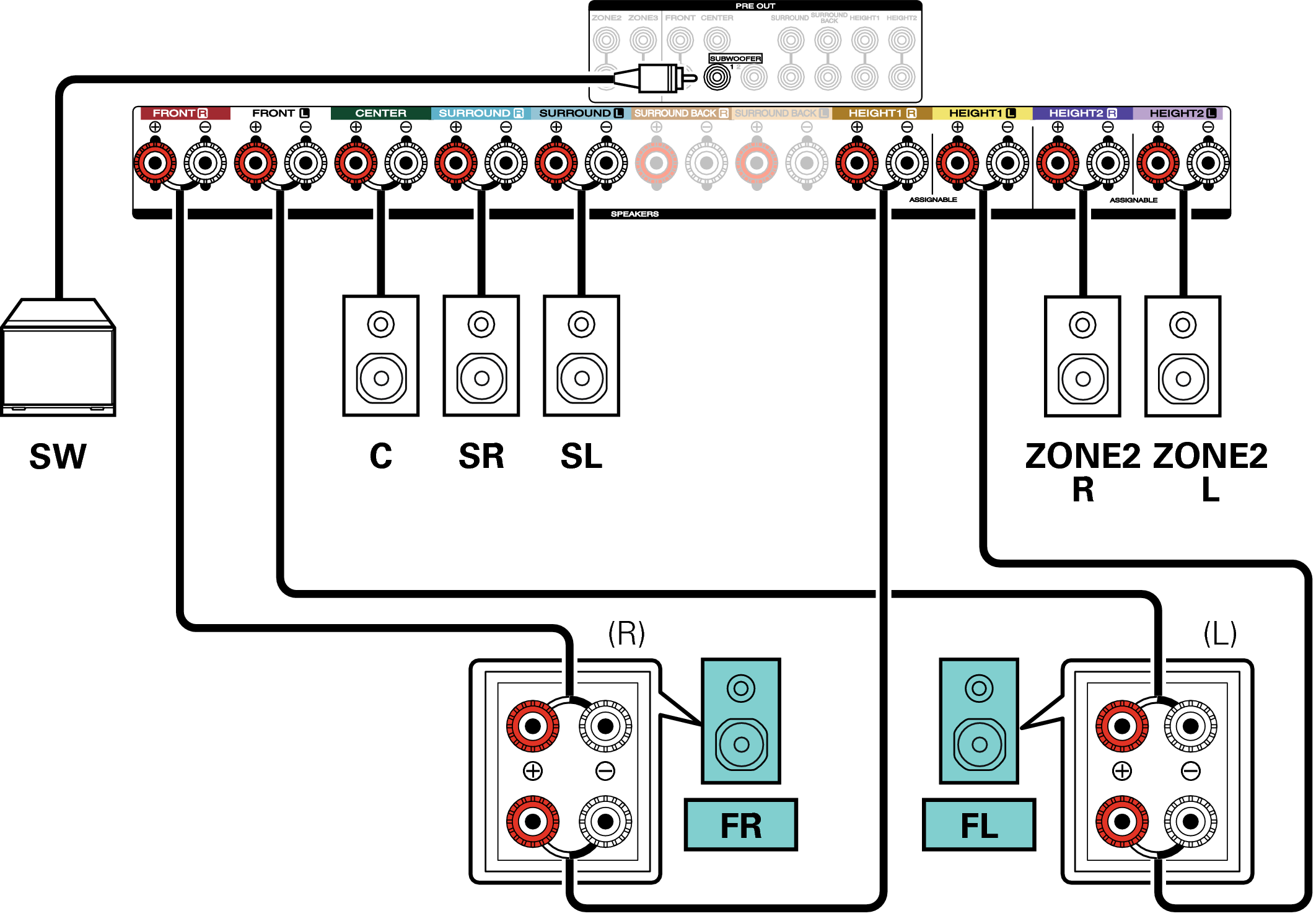

Conne SP 5.1 BiAmp 2ch S7

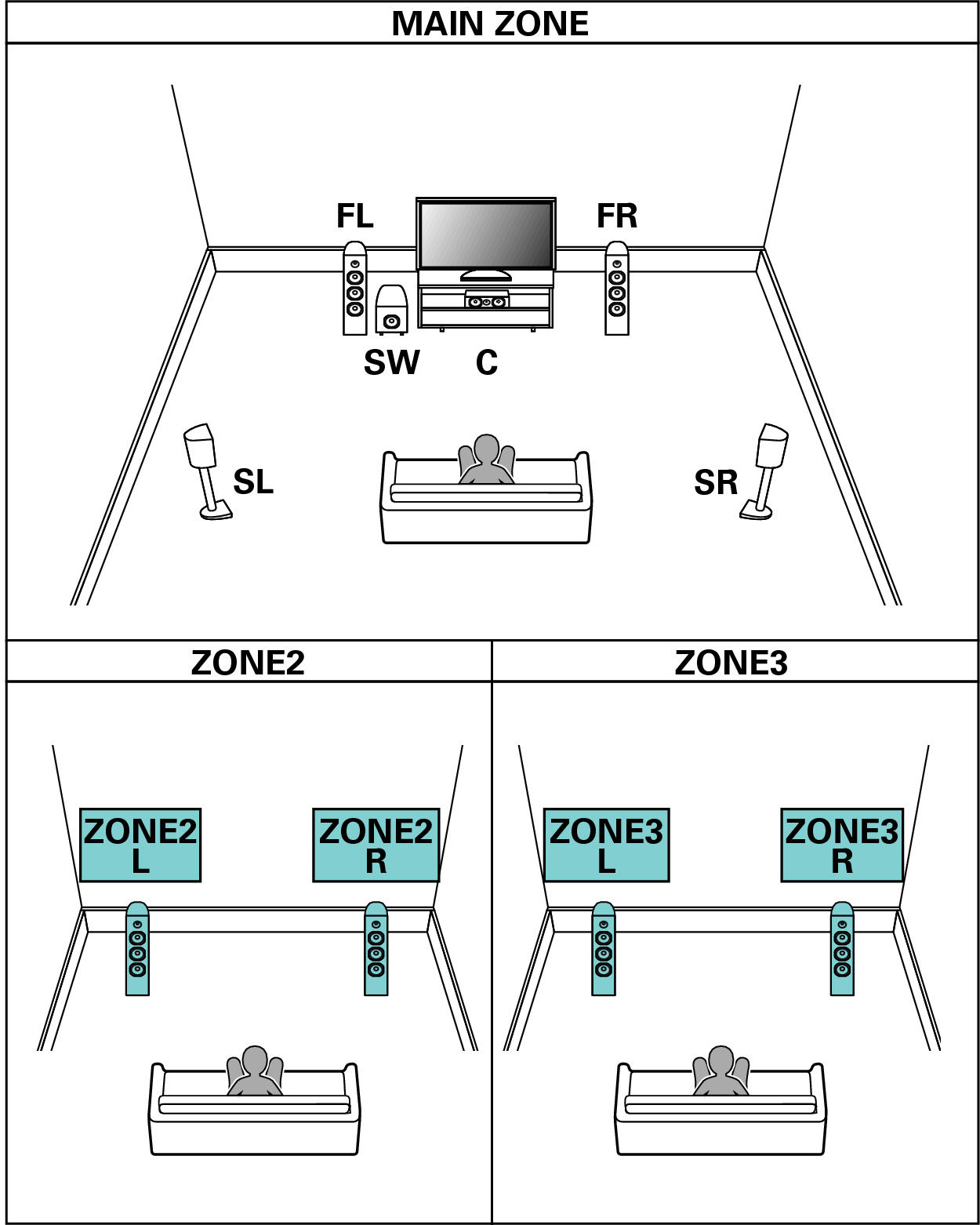

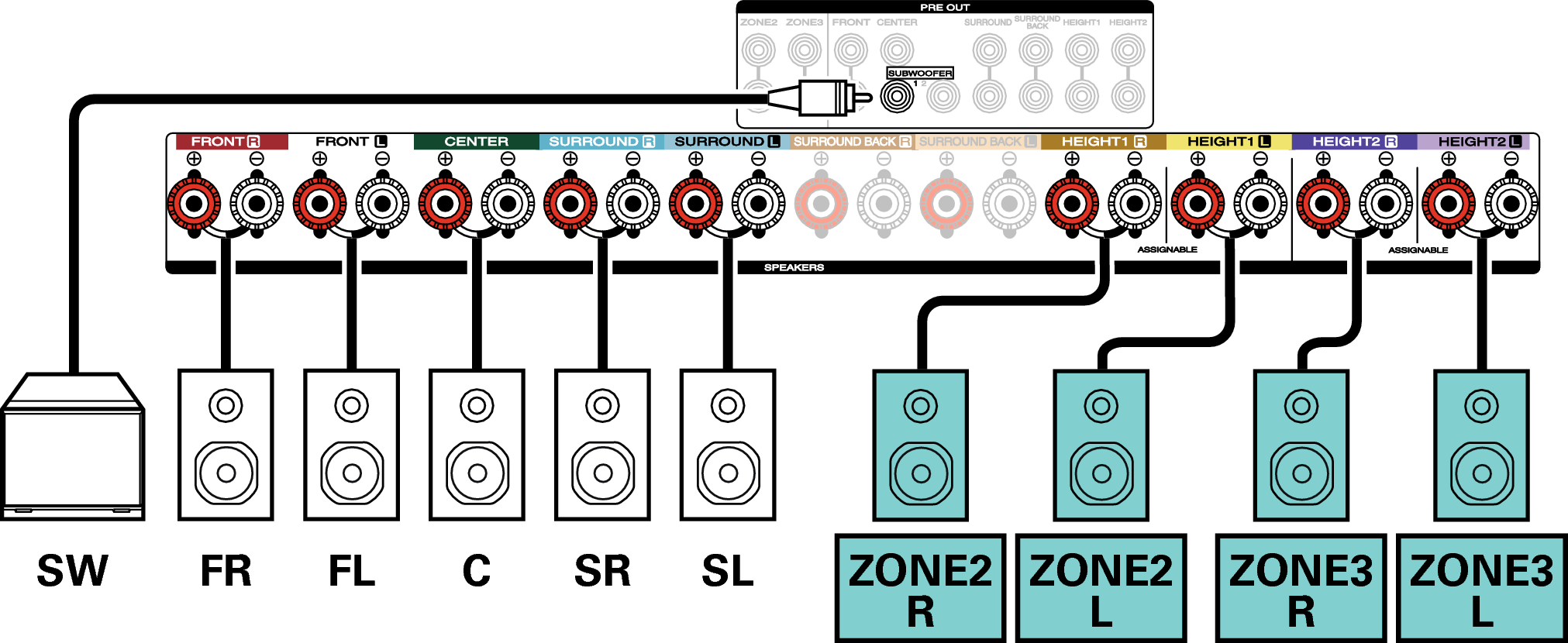

5.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2) + 2-channel playback (ZONE3)

This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2 and ZONE3.

Pict SP Layout 5.1 2ch
Conne SP 5.1 2ch S7

7.1-channel playback (MAIN ZONE) + 1-channel playback (ZONE2) + 1-channel playback (ZONE3)

This type of configuration plays back 7.1-channels in MAIN ZONE and 1-channel (monaural) in ZONE2 and ZONE3.

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Pict SP Layout 7.1 1ch
Conne SP 7.1 1ch S7

The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. link

Connecting an external power amplifier

You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.

Select the terminal to use and connect the device.

Conne EXTIN S7U

When using just one surround back speaker, connect it to the left channel (L) terminal.

back to top
