Input Assign

By making connections as indicated by the input sources printed on the audio/video input connectors of this unit, you can just press one of the input source select buttons to easily play back audio or video from a connected device.

Please change the assignment of the HDMI input connector, digital audio input connector, analog audio input connector, component video input connector and video input connector when connecting an input source that differs from that printed to the audio/video input connectors of this unit.

Sets the audio input mode for each “INPUT MODE” source. “AUTO” is normally recommended for this setting. This automatically detects and plays signal input to this unit prioritized in the following order: HDMI Open Left DIGITAL Open Left ANALOG.

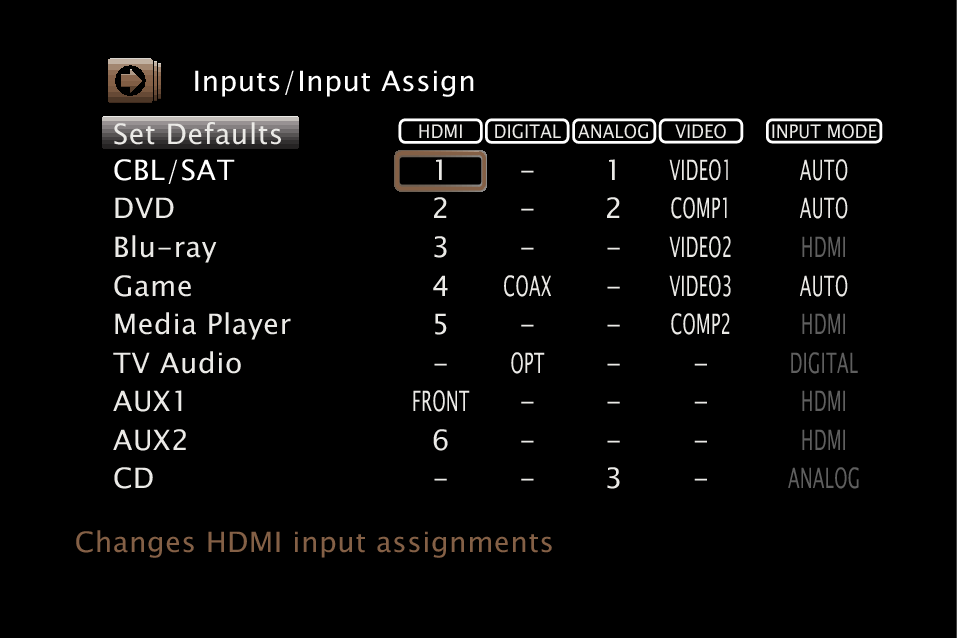

GUI InputAssign N70U

By default, each item is set as follows.

Input source

Input connector

INPUT MODE

HDMI

DIGITAL

ANALOG

VIDEO

CBL/SAT

1

1

VIDEO1

AUTO

DVD

2

2

COMP1

AUTO

Blu-ray

3

VIDEO2

HDMI

Game

4

COAX

VIDEO3

AUTO

Media Player

5

COMP2

HDMI

TV Audio

OPT

DIGITAL

AUX1

FRONT

HDMI

AUX2

6

HDMI

CD

3

ANALOG

TV set top box/satellite users please note

When using the digital audio output on a TV/satellite box:

To play the video signal assigned to “HDMI” combined with the audio signal assigned at “Input Assign” - “DIGITAL”, you will also need to select “DIGITAL” in the “INPUT MODE”.

The same input connector can be assigned to multiple input sources. For example, assign the same HDMI input connector to multiple sources to use each input source in combination with analog or digital audio as you prefer. In such cases, set the audio connector for playback in “INPUT MODE”. (This feature will be supported via firmware update.)

HDMI

Set this to change the HDMI input connectors assigned to the input sources.

1 / 2 / 3 / 4 / 5 / 6 / 7 /
FRONT:

Assign an HDMI input connector to the selected input source.

– :

Do not assign an HDMI input connector to the selected input source.

When “HDMI Control” or “ARC” is set to “On” in the menu, “HDMI” cannot be assigned to “TV Audio”. (HDMI Controllink, ARClink)

The eARC function does not operate when “HDMI” is set as the “TV Audio” input source.

DIGITAL

Set this to change the digital audio input connectors assigned to the input sources.

COAX (Coaxial) /
OPT (Optical):

Assign a digital audio input connector to the selected input source.

– :

Do not assign a digital audio input connector to the selected input source.

ANALOG

Set this to change the analog audio input connectors assigned to the input sources.

1 / 2 / 3:

Assign a analog audio input connector to the selected input source.

– :

Do not assign a analog audio input connector to the selected input source.

VIDEO

Set this to change the component video input connectors and composite video input connectors assigned to the input sources.

COMP1 (Component video) / COMP2 /
VIDEO1 / VIDEO2 /
VIDEO3:

Assign the video input connector to the selected input source.

– :

Do not assign a video input connector to the selected input source.

INPUT MODE

Set the audio input modes for each input source.

It is normally recommended to set the audio input mode to “AUTO”.

AUTO
(Default):

Automatically detect input signal and perform playback.

HDMI:

Play only signals from HDMI input.

DIGITAL:

Play only signals from digital audio input.

ANALOG:

Play only signals from analog audio input.

When digital signals are properly input, the DIG. indicator lights on the display. If the DIG. indicator does not light, check “Input Assign” and the connections. link

If “HDMI Control” is set to “On” and a TV compatible with the ARC is connected via the HDMI MONITOR connectors, the input mode whose input source is “TV Audio” is fixed to ARC.

When an eARC function-compatible television is connected to the HDMI MONITOR connector, the input mode whose input source is “TV Audio” is fixed to eARC.

Set Defaults

The “Input Assign” settings are returned to the default settings.
