Rear panel

Name Rear Small1 N69U

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

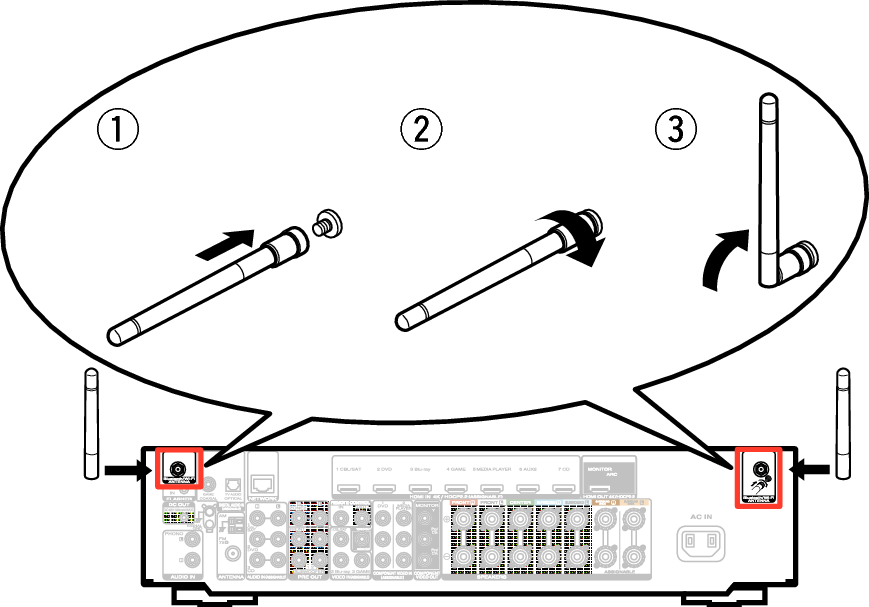

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle N69U

FLASHER IN jack

Used when using a control BOX or other such control devices to control this unit.

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link

Name Rear Small2 N69U

HDMI connectors

Used to connect devices equipped with HDMI connectors.

DC OUT jack

Used to connect devices equipped with the trigger function. link

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or a power amplifier for ZONE2.

Name Rear Small3 N69U

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors.

Speaker terminals (SPEAKERS)

Used to connect speakers. link

AC inlet (AC IN)

Used to connect the power cord. link

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
