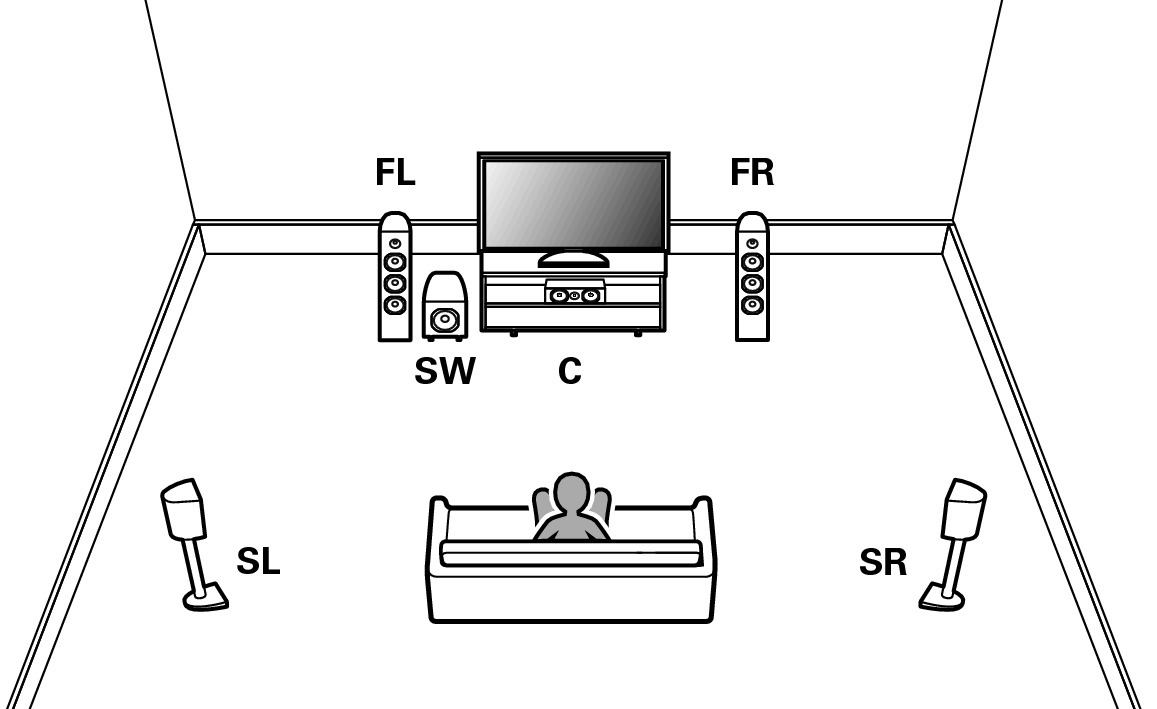

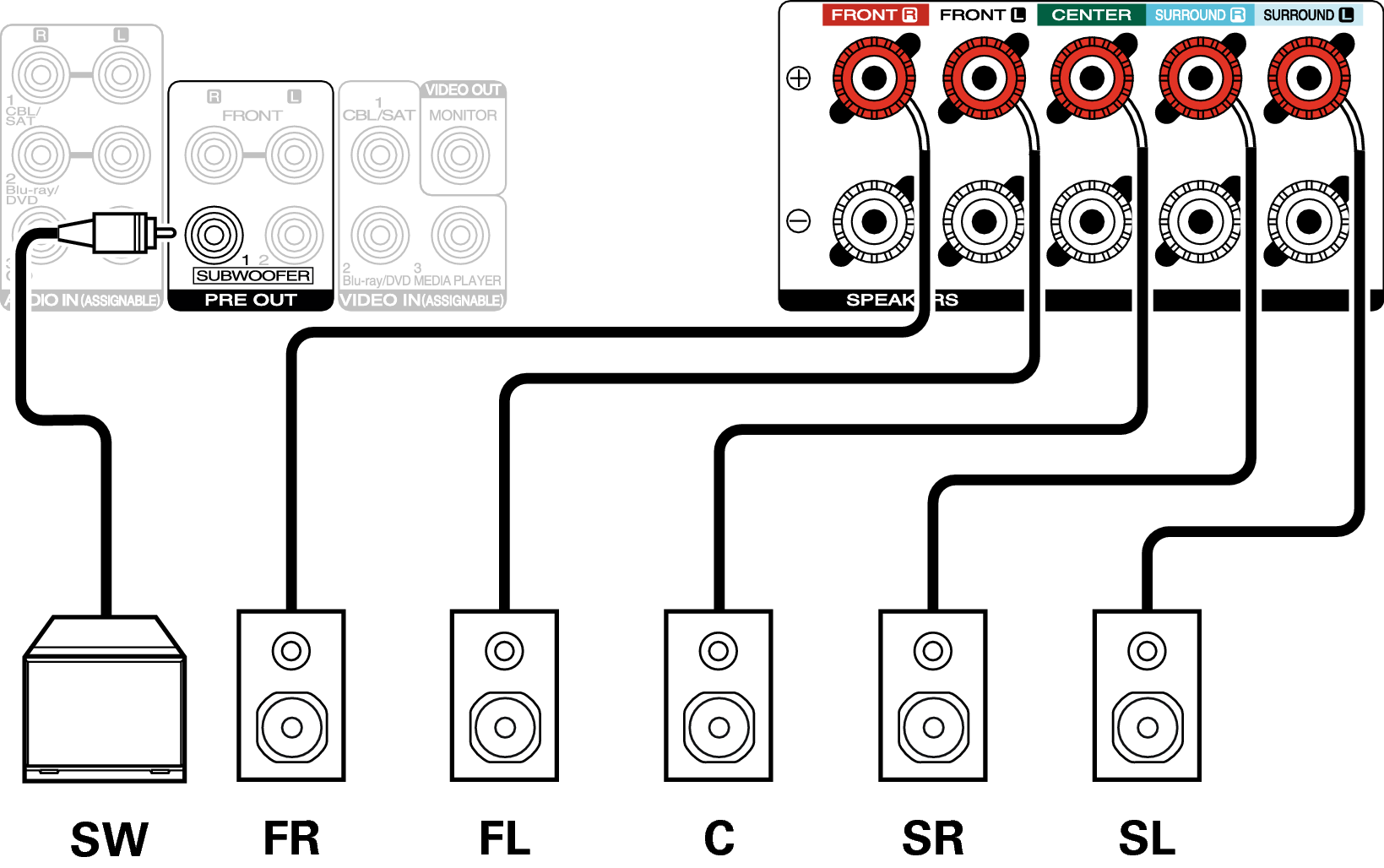

Standard connection

This serves as a basic 5.1-channel surround system.

Pict AmpAssign 5.1
Conne SP 5.1 N58U

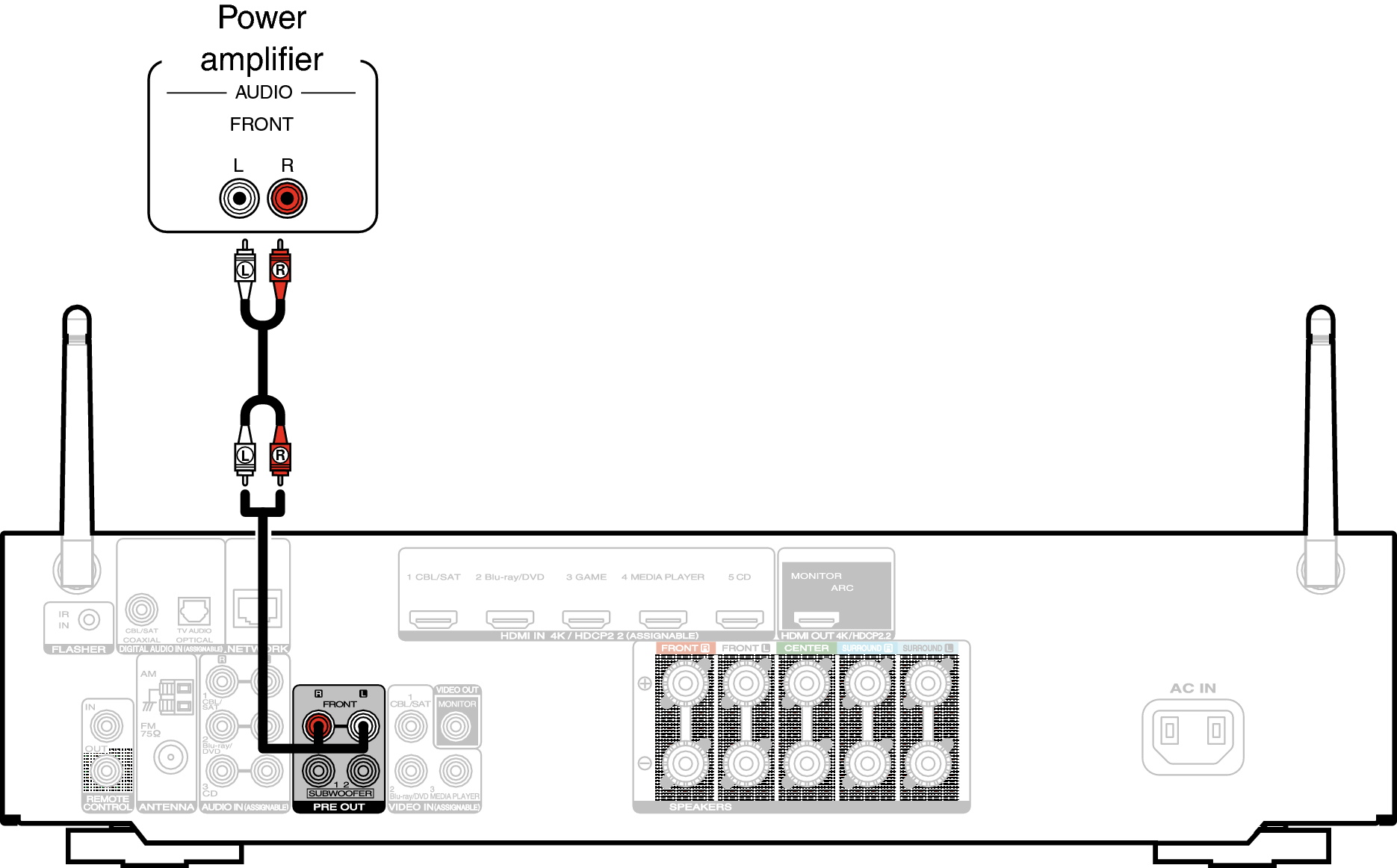

Connecting a front speaker that uses a power amplifier

This unit supports connection of a front speaker that uses an external power amplifier to increase its output.
Connect a separately sold power amplifier to the PRE OUT (FL/FR) connector of this unit.

Conne FrontSp N58U
