Rear panel

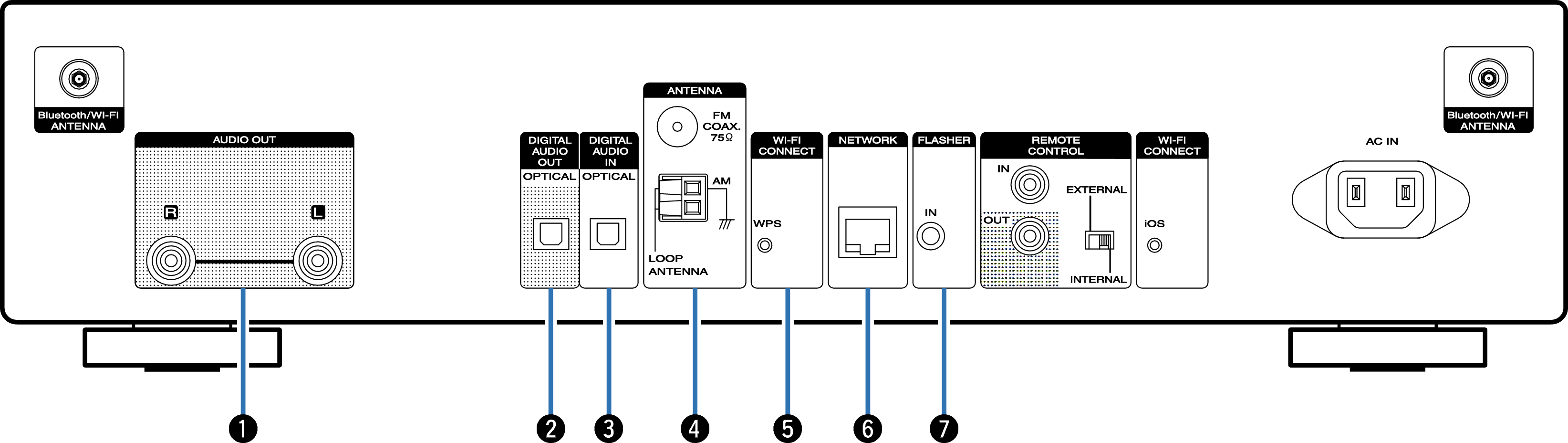

Name_Rear NA6005U

AUDIO OUT connectors

Used to connect devices equipped with analog audio inputs connectors or an external amplifier. link

DIGITAL AUDIO OUT connector

Used to connect an AV receiver or D/A converter that has a digital input connectors. link

DIGITAL AUDIO IN connector

Used to connect a computer or devices equipped with digital audio output connectors. link

Antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

Wi-Fi CONNECT WPS button

Connects to a wireless LAN.

(See the separate “Quick Start Guide”.)

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

FLASHER IN jack

Used to connect a control box, etc. FLASHER IN jacklink

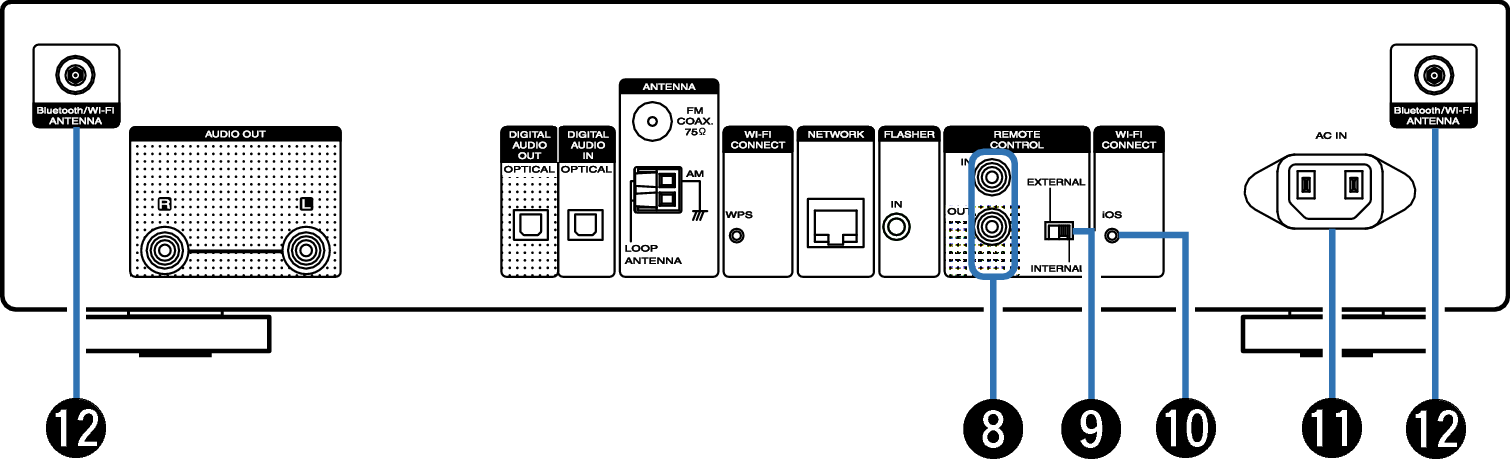

Name_Rear_small NA6005U

REMOTE CONTROL IN/OUT connectors

Used to connect to a Marantz amplifier that is compatible with the remote control function. link

EXTERNAL/INTERNAL switch

Turn this switch to “EXTERNAL” to operate the unit by pointing the remote control at the amplifier connected to this unit using the remote control connection.
link

Wi-Fi CONNECT iOS button

Connects to iOS.

(See the separate “Quick Start Guide”.)

AC inlet (AC IN)

Used to connect the power cord. link

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.

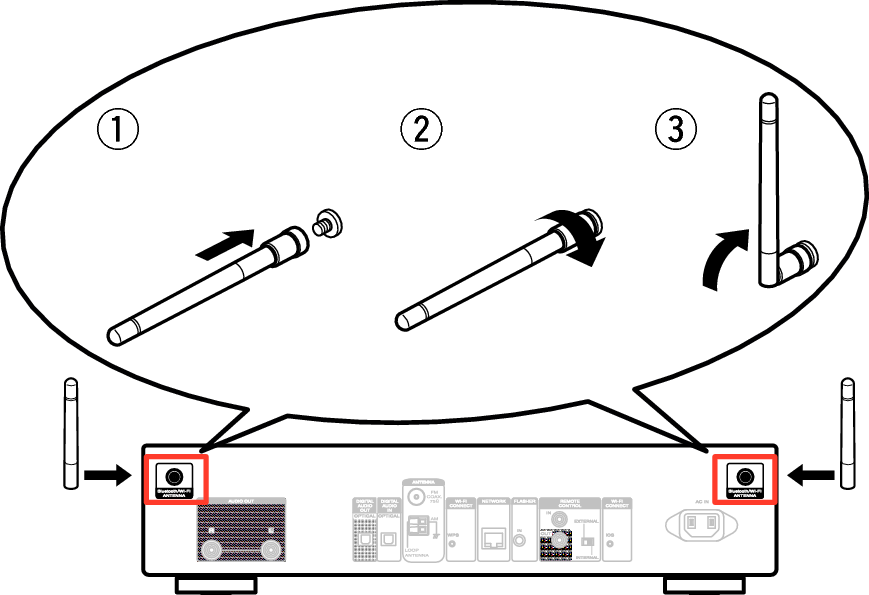

Pict AntennaAngle NA6005U
