Operating devices

To operate an external device, press the input source button registered with the preset code, followed by one of the buttons in the following tables.

When operating an external device, the display on the remote control unit shows the input source name.

The “TV” indicator lights when the TV is being operated.

To operate the menu of this unit, press AVP before operating the unit. The “AVP” indicator lights when this unit is being operated.

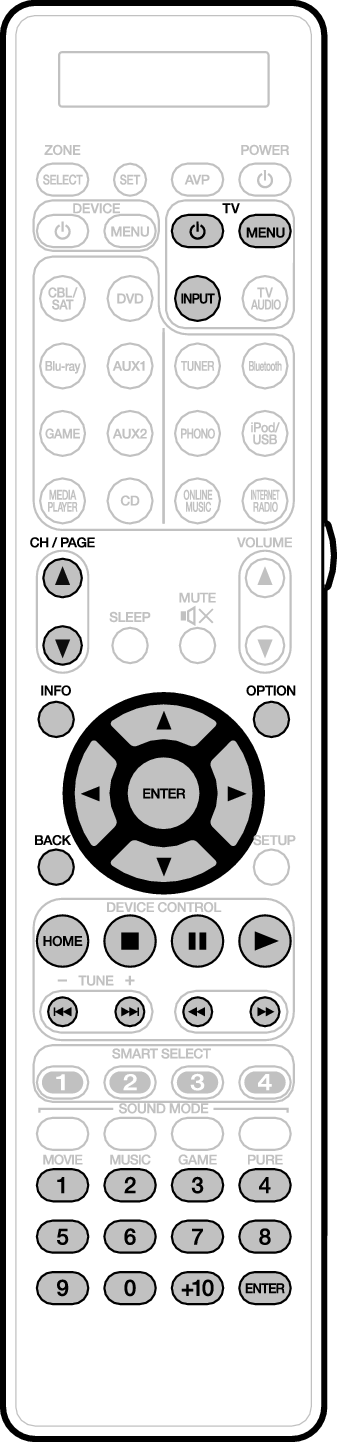

TV group(TV) operation

RC_TV RC027SR

Operation buttons

Function

Operation buttons

Function

TV  Power Button

TV power on/off

TV INPUT

Switch TV input

TV MENU

TV menu

CH/PAGE  kurosankaku Sankaku-Reverse

Switch channels (up/down)

INFO

Information

OPTION

Sub menu, Option

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER(Cursor)

Enter

BACK

Back

Skip-Left Skip-Right

Skip chapter

Triangle Right

Playback

Rewind Forward

Fast-reverse / Fast-forward

Pause

Pause

Square Black

Stop

0 – 9, +10

Channel selection

TV  Power Button and TV INPUT buttons can be operated at any time without pressing the TV button.

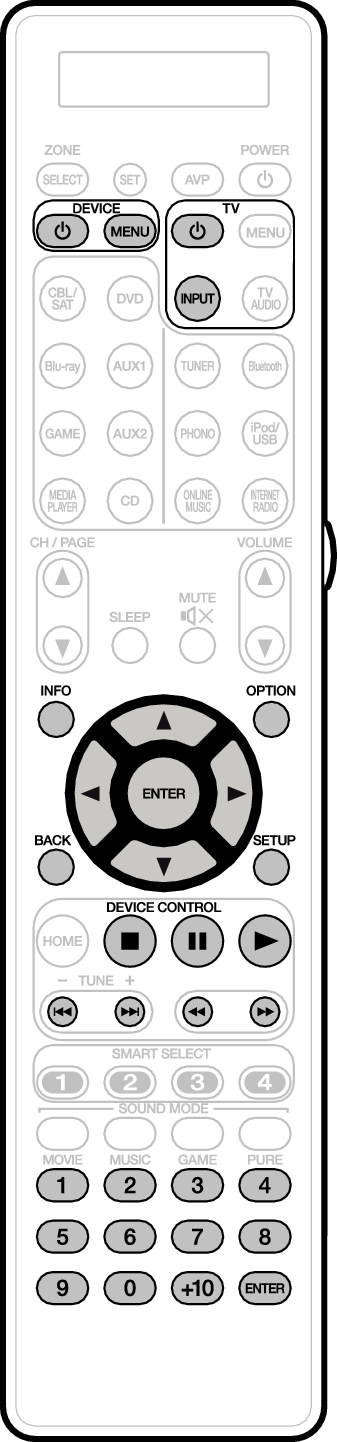

DVD group(DVD player / DVD recorder) operation

RC_DVD RC027SR

Operation buttons

Function

Operation buttons

Function

DEVICE  Power Button

Power on/off

DEVICE MENU

(Popup) Menu

INFO

Information

OPTION

Top menu

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER

Enter

BACK

Back

SETUP

Setup

Square Black

Stop

Pause

Pause

Triangle Right

Playback

Skip-Left Skip-Right

Skip chapter

Rewind Forward

Fast-reverse / Fast-forward

0 – 9, +10

Select title, chapter or channel selection

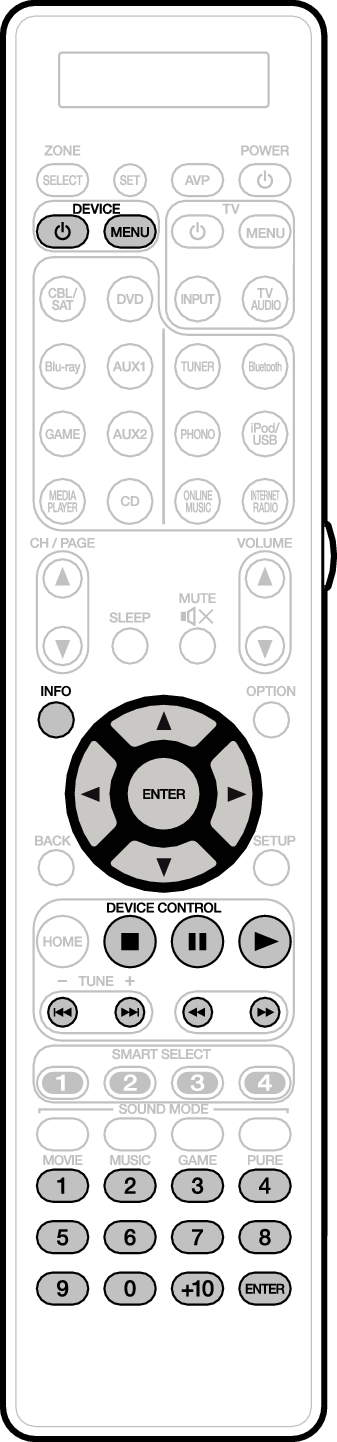

CD group(CD player / CD recorder) operation

RC_CD RC027SR

Operation buttons

Function

Operation buttons

Function

DEVICE  Power Button

Power on/off

DEVICE MENU

(Popup) Menu

INFO

Information

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER

Enter

Square Black

Stop

Pause

Pause

Triangle Right

Playback

Skip-Left Skip-Right

Skip chapter

Rewind Forward

Fast-reverse / Fast-forward

0 – 9, +10

Select title, chapter or channel selection

Depending on the device, the DEVICE  Power Button button only performs the power-on operation.

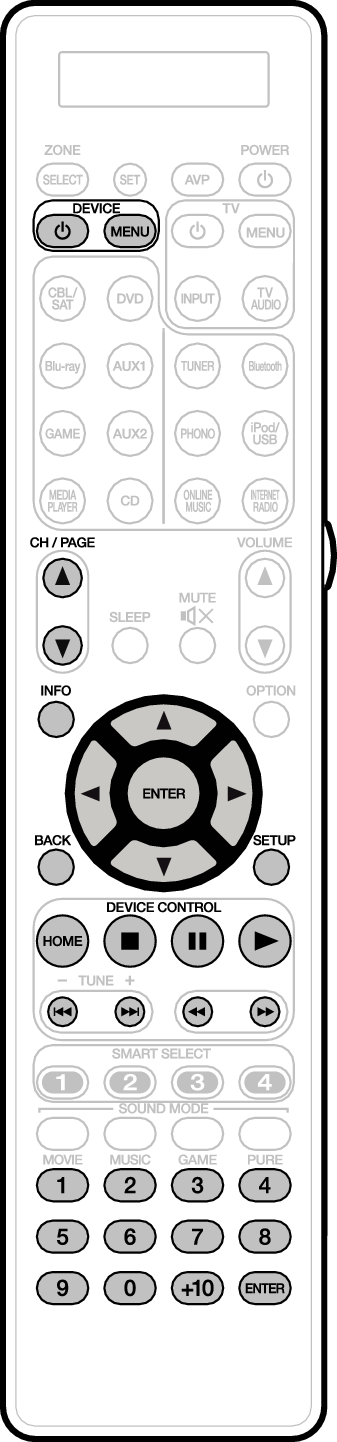

CBL/SAT group(Set top box for satellite (SAT)/cable TV (CBL)/Media player/IP TV) operation

RC_CBL RC027SR

Operation buttons

Function

Operation buttons

Function

DEVICE  Power Button

Power on/off

DEVICE MENU

Menu

CH/PAGE  kurosankaku Sankaku-Reverse

Switch channels (up/down)

INFO

Information

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER

Enter

BACK

Back

SETUP

Setup

HOME

Home menu

Square Black

Stop

Pause

Pause

Triangle Right

Playback

Skip-Left Skip-Right

Skip chapter

Rewind Forward

Fast-reverse / Fast-forward

0 – 9, +10

Channel selection

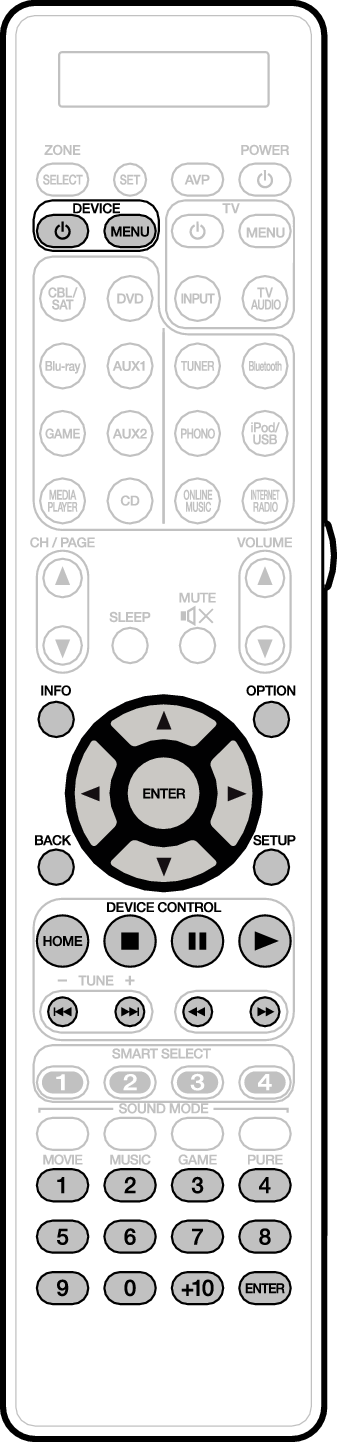

BD group(Blu-ray Disc player) operation

RC_BD RC027SR

Operation buttons

Function

Operation buttons

Function

DEVICE  Power Button

Power on/off

DEVICE MENU

(Popup) Menu

INFO

Information

OPTION

Top menu

shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right

Cursor operation

ENTER

Enter

BACK

Back

SETUP

Setup

HOME

Home menu

Square Black

Stop

Pause

Pause

Triangle Right

Playback

Skip-Left Skip-Right

Skip chapter

Rewind Forward

Fast-reverse / Fast-forward

0 – 9, +10

Select title, chapter or channel selection

Depending on the device, the DEVICE  Power Button button only performs the power-on operation.
