Connecting a power amp

Connect a power amp (sold separately) to the PRE OUT connector of this unit.

This unit has UNBALANCED RCA PRE OUT connector and BALANCED XLR PRE OUT connector. Connect to the correct connector for your power amp. If your power amp has both connectors, connect to either of them.

Connect the speakers to the power amp.

For details on speaker connections, see the User Guide for the power amp.

This section shows how to make a 11.1-channel connection.

For how to make other speaker connections, see page link.

Bracket Open AV8802 BALANCED XLR PRE OUT connector PIN arrangement Bracket Close

Pict XLR pin-2
GND (Ground)
HOT (+)
COLD (–)

The PIN arrangement in this device uses the European method.

In the USA method, sanwacirnumw_2 is COLD, and sanwacirnumw_3 is HOT.

When connecting a device that utilizes the USA type of PIN arrangement, replace the sanwacirnumw_2 and sanwacirnumw_3 plugs on one side of the balanced cable.

NOTE

Do not short the HOT and GND or COLD and GND for use.

Disconnect this unit’s power plug from the power outlet before connecting the speakers.

Also, turn off the power amp and subwoofer.

Example of connections to Marantz MM8077 power amp

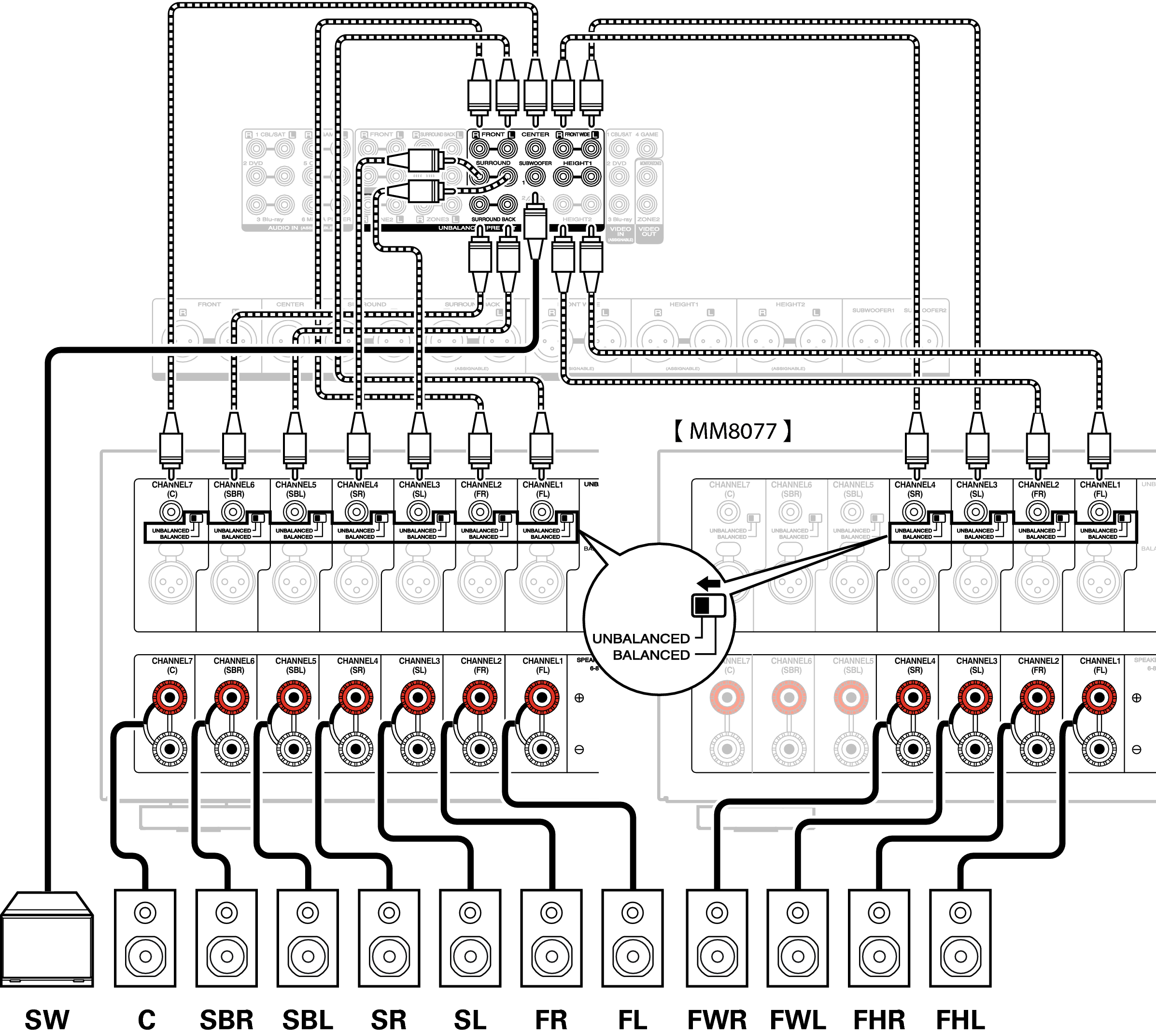

Connecting the UNBALANCED RCA PRE OUT connector

Conne SP Unbalanced AV8802U

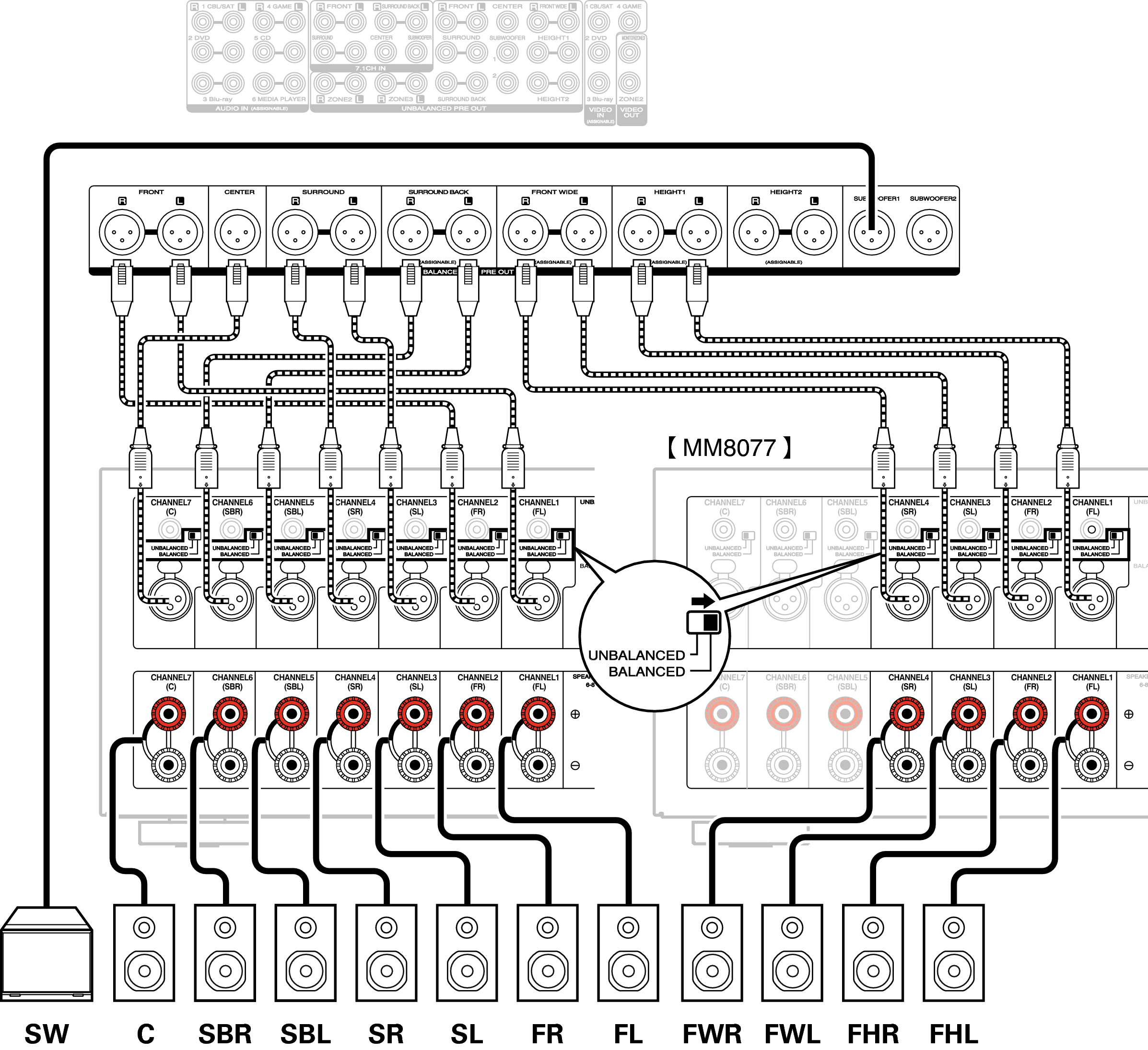

Connecting the BALANCED XLR PRE OUT connector

Conne SP Balanced AV8802U

About the cable labels (supplied) for channel identification

Channel

Color

FRONT L

White

FRONT R

Red

CENTER

Green

SURROUND L

Light blue

SURROUND R

Blue

SURROUND BACK L

Beige

SURROUND BACK R

Brown

FRONT WIDE L

Light Yellow

FRONT WIDE R

Yellow

FRONT HEIGHT L

Light Yellow

FRONT HEIGHT R

Yellow

TOP FRONT L

Light Yellow

TOP FRONT R

Yellow

TOP MIDDLE L

Light Yellow

TOP MIDDLE R

Yellow

TOP REAR L

Light Yellow

TOP REAR R

Yellow

REAR HEIGHT L

Light Yellow

REAR HEIGHT R

Yellow

FRONT DOLBY L

Light Yellow

FRONT DOLBY R

Yellow

SURROUND DOLBY L

Light Yellow

SURROUND DOLBY R

Yellow

BACK DOLBY L

Light Yellow

BACK DOLBY R

Yellow

SUBWOOFER

Black

Refer to the table and attach the label to each speaker cable.

This makes it easier to connect the speakers to the power amp.

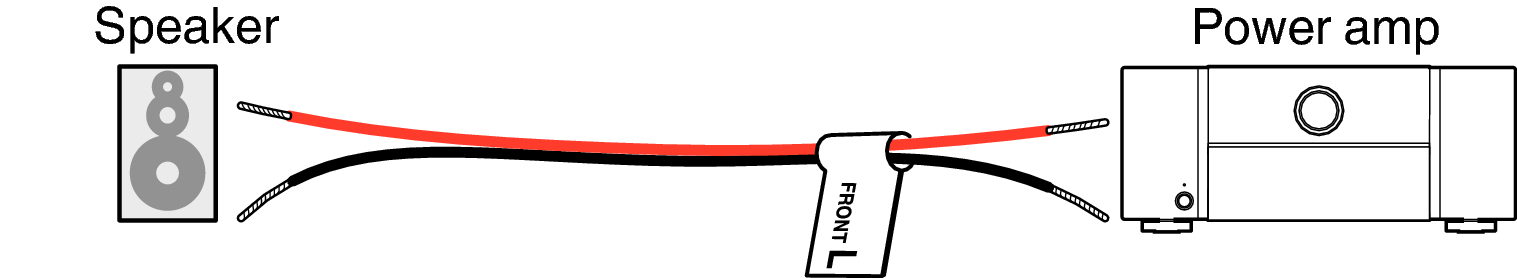

Bracket Open How to attach the cable labels Bracket Close

Pict SP CableLabel AV7702
