Information

Show information about this unit settings, input signals, etc.

Audio

Show the audio information for MAIN ZONE.

Sound Mode:

The currently set sound mode.

Input Signal:

The input signal type.

Format:

The number of input signal channels (presence of front, surround, LFE).

Sample Rate:

The input signal’s sampling frequency.

Offset:

The dialogue normalization correction value.

Flag:

This is displayed when inputting signals including a surround back channel. “MATRIX” is displayed with DTS-ES Matrix input signals, “DISCRETE” with DTS-ES Discrete signals.

Video

Show the HDMI input/output signals and HDMI monitor information for MAIN ZONE.

HDMI Signal Info.

Resolution / Color Space / Pixel Depth

HDMI Monitor 1 / HDMI Monitor 2

Interface / Resolutions

ZONE

Show information about current settings.

MAIN ZONE:

This item shows information about settings for MAIN ZONE. The information displayed differs according to the input source.

ZONE2:

This item shows information about settings for ZONE2.

ZONE3:

This item shows information about settings for ZONE3.

Firmware

Version:

Displays information for the current firmware.

Update (DTS:X)

DTS Version :

Displays the current DTS version.

“DTS Version” is displayed after updating to DTS:X via firmware update.

Notifications

Displays and sets notifications.

Also, sets whether or not to display the notification when the power is turned on.

Notification Alerts

On
(Default):

Notification messages are displayed.

Off:

Notification messages are not displayed.

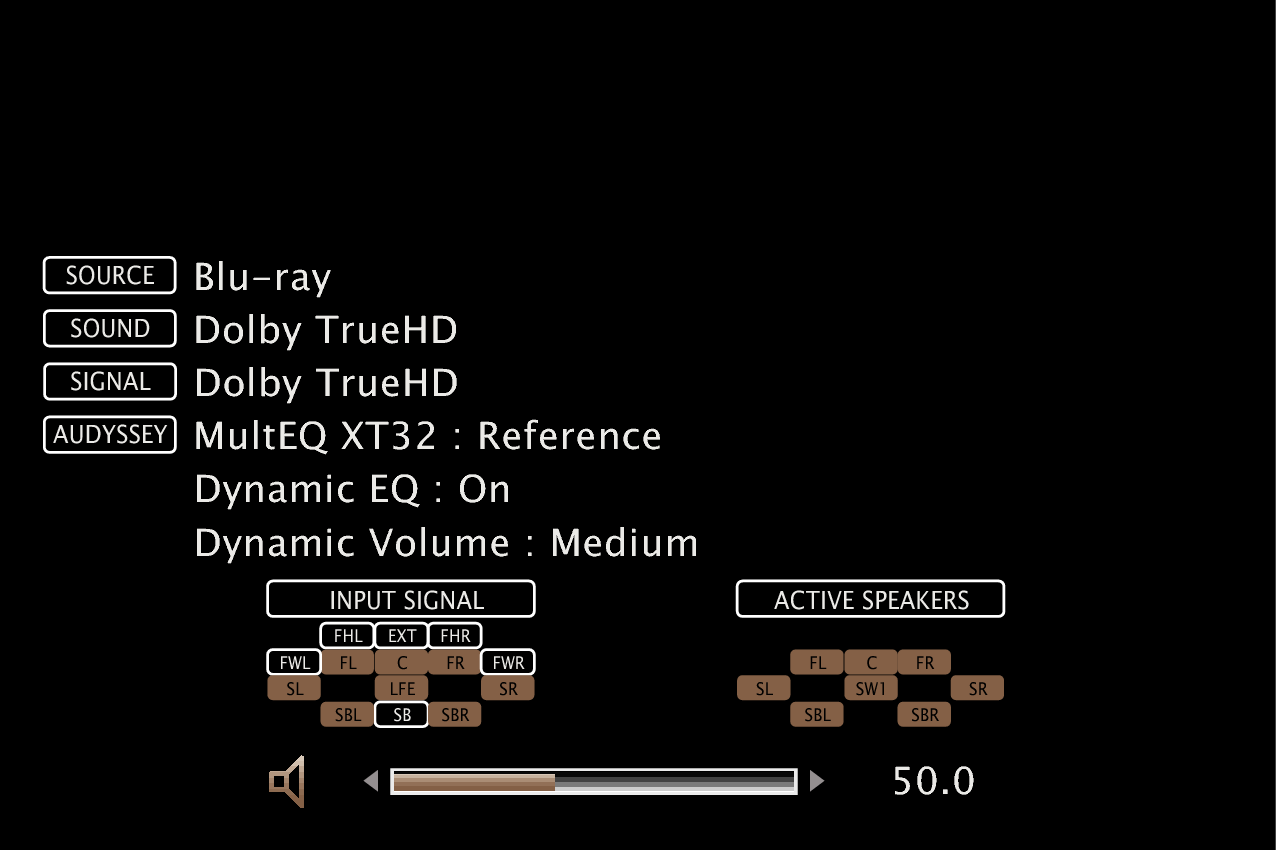

Press INFO on the remote control unit to display current source name, volume, sound mode name, and other information at the bottom of the screen.

GUI Information ex1 EQXT32 Mz
